Product Details

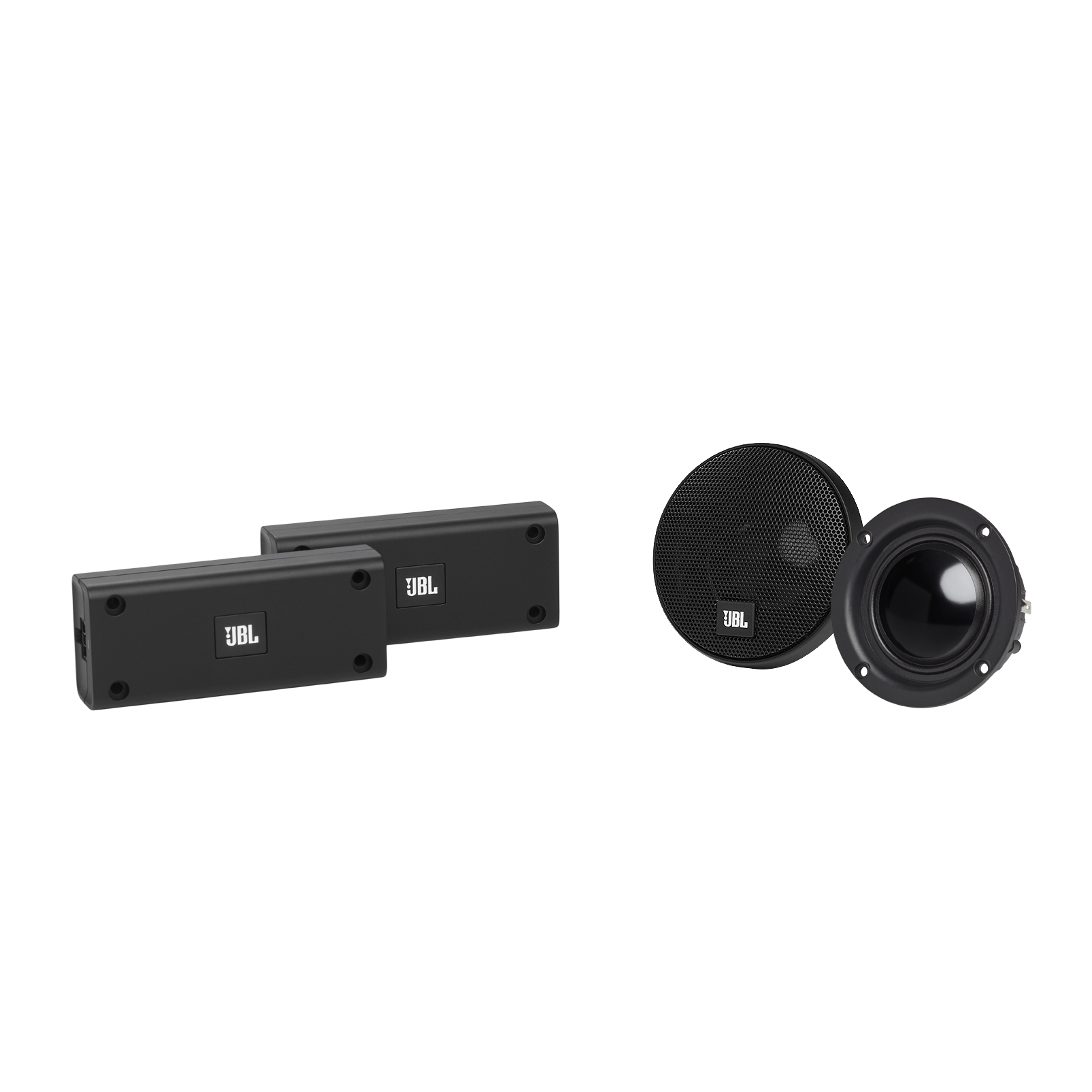

Product Hero Image
STADIUM 22S

Model: JBLSPKSD22SAM
    ${AttributesAtAGlance}

40kHz High-resolution Aluminum Dome Tweeter

Stadium edge-driven aluminum dome tweeters equipped with oversized voice coils deliver unforgettable audio experience with impressive thermal power handling and 40kHz high- resolution. Turn every drive into your personal concert.
Feature 1 Lifestyle Image
Feature 2 Lifestyle

Patented Plus One™ Glass Fiber Woofers

Patented Plus One™ fiberglass woofer cones leverage lighter weight and increased stiffness for a visceral bass experience for the whole body. Dare to listen.

0dB or -3dB Tweeter Output Level Control

The push-button on the angled tweeter allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.
Feature 3 Lifestyle

Product Details

JBL's Stadium Series speakers - available in 2", 3", 5-1/4",6-1/2", 6" x 8", 4" x 6", 6" x 9", and 3/4"- bring iconic JBL sound that can only come from a 75-year pedigree of audio excellence to virtually any car on the road. Stadium’s Plus One™ fiberglass woofers deliver high-output, deep and robust bass. The high-resolution 3/4" edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2" and 3" midranges are available to upgrade two-way component systems into three-way. The compact 3" midrange speakers also offer a perfect plug-and-play solution with low frequency response to 300Hz, and high sensitivity.

What's in the Box

    • 2 x Midrange driver
    • 2 x Grilles
    • 2 x Crossovers
    • 2 x Cables
    • 2 x Custom fit mounting adapters
    • 2 x Foam gaskets
    • 24 x Screws
    • 8 x Speed clips
    • 1 x Allen head bit (2.5mm)
    • 2 x JBL logo badges
    • 2 x Brand stickers
    • 1 x Owner’s manual

Specifications

  • Model Number: JBLSPKSD22SAM
  • Series: STADIUM 22S
  • Color: Black
  • Condition: Current

Technical Specs

    • Power Handling: 50Wrms, 150W peak
    • Sensitivity (@ 2.83V): 94dB
    • Frequency Response: 500Hz – 7kHz
    • Impedance: 3.0ohms

Product Availability & Pricing

By placing an order with us, you are offering to purchase a product or service. Harman reserves the right to limit, reject, modify, or cancel orders that appear to be *unauthorized parties (resellers, freight forwarders, vendors).

Product pricing, due to the nature of the business, may contain errors, and pricing or product availability may be subject to change at any time without notice. Harman reserves the right to modify or cancel purchases that are due to systemic technical errors.

Warranty Information

Portables, Docks & Headphones – 1 Year
Home Passive Speakers – 5 Years
Car Audio – 1 Year
AVR & Receivers – 2 Years
