Product Description

Features:

  • Metal Cutting Disc

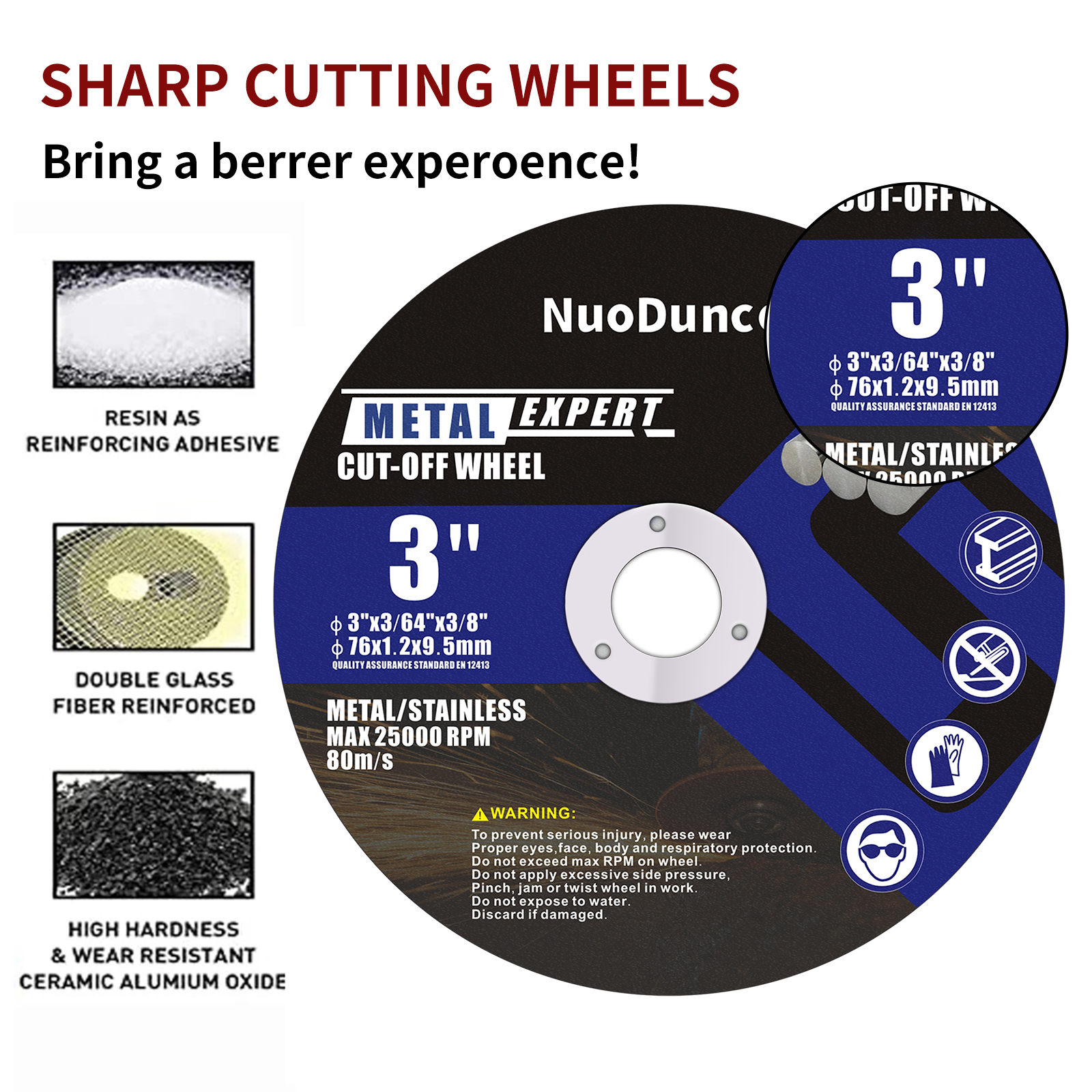

  • These cutting discs are made by a special process of Resin & Corundum abrasive to ensure extra toughness, sharpness, and durability.

  • Abrasive sand distribution uniform, fast grinding speed, sharper cutting, long service life.

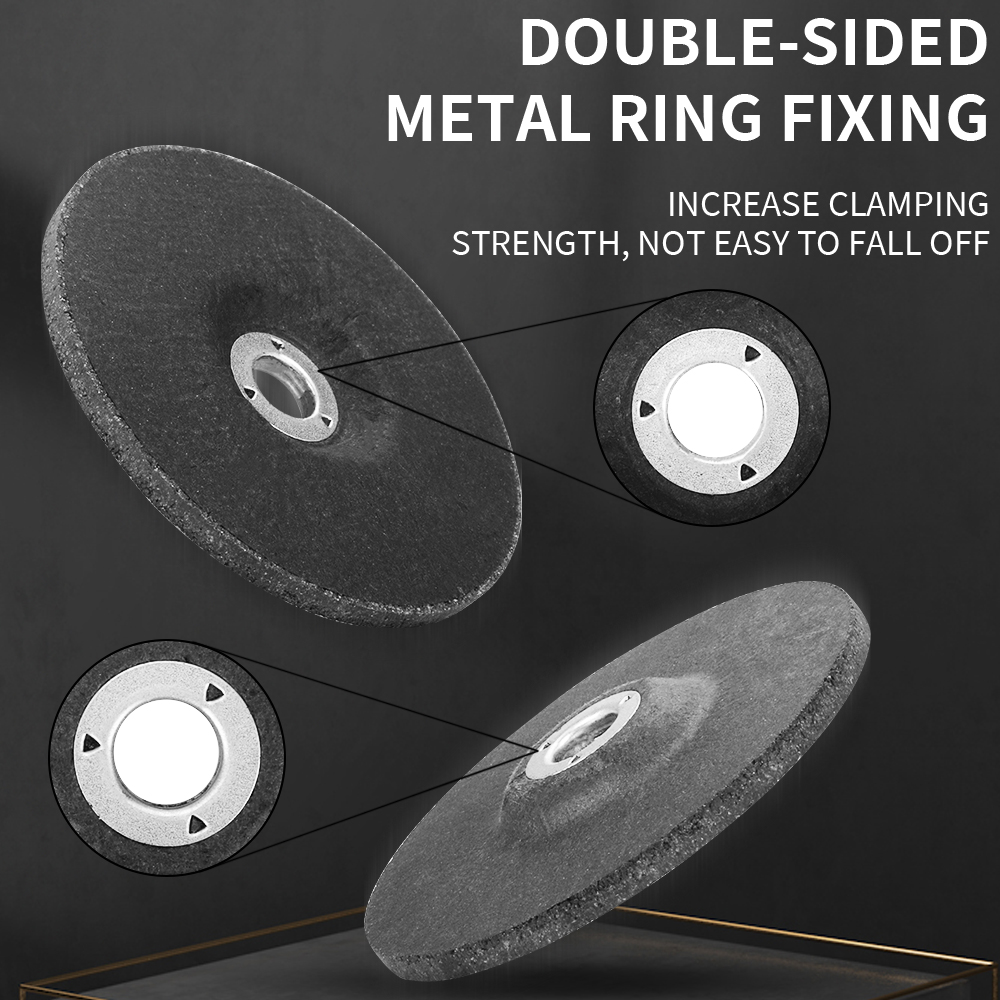

  • The Cutting Wheels is Thickly inlaid steel ring, anti-rust electroplating treatment of hole ring, firmly inlaid, high safety.

  • The cutting wheels are suitable for most angle grinders-compatible with all 3" angle grinders and 3/8" arbor, operating speeds up to 25,000 RPM and 80M/S.

  • Often used to cut iron, steel, alloy, aluminum, stainless steel,metal and ect.

  • Please wear suitable protective equipment during use 3inch cutting wheels and do not exceed the specified maximum speed.

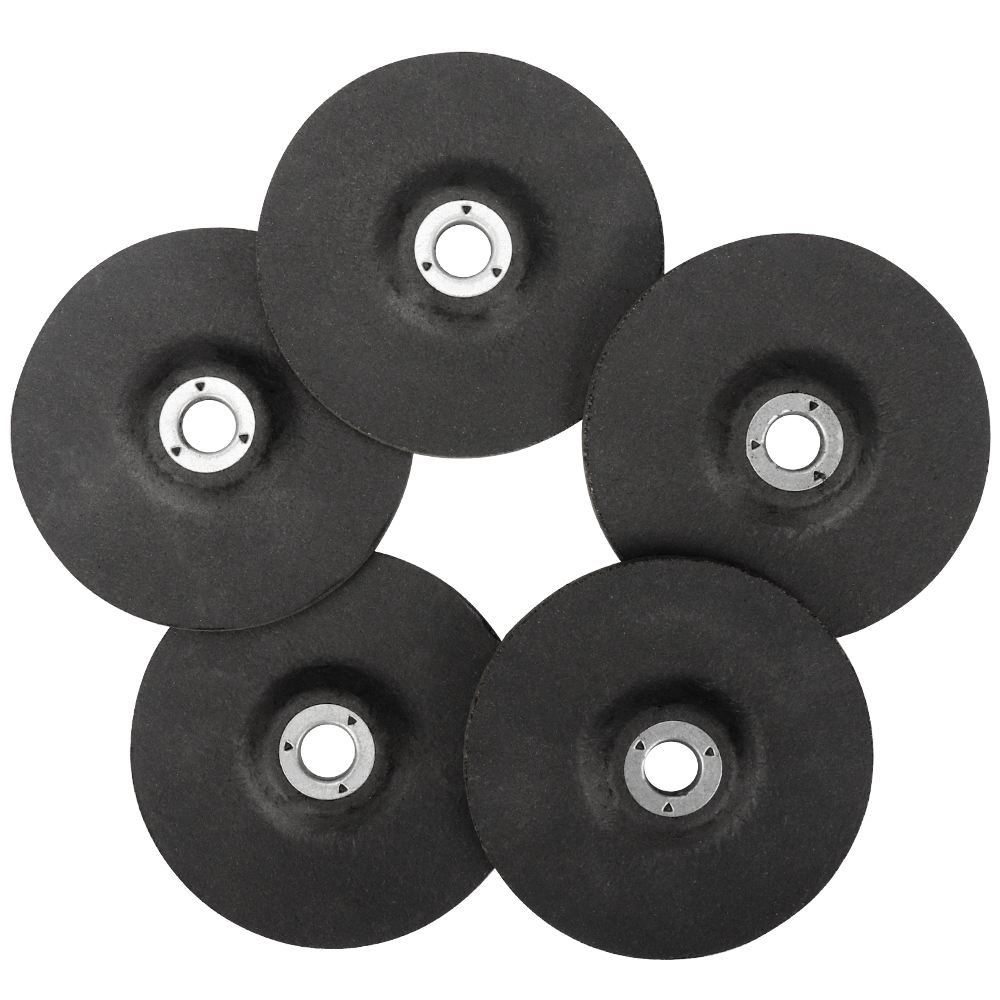

  • Grinding Wheel

  • These are "depressed center" aka "type 27" grinding wheels.

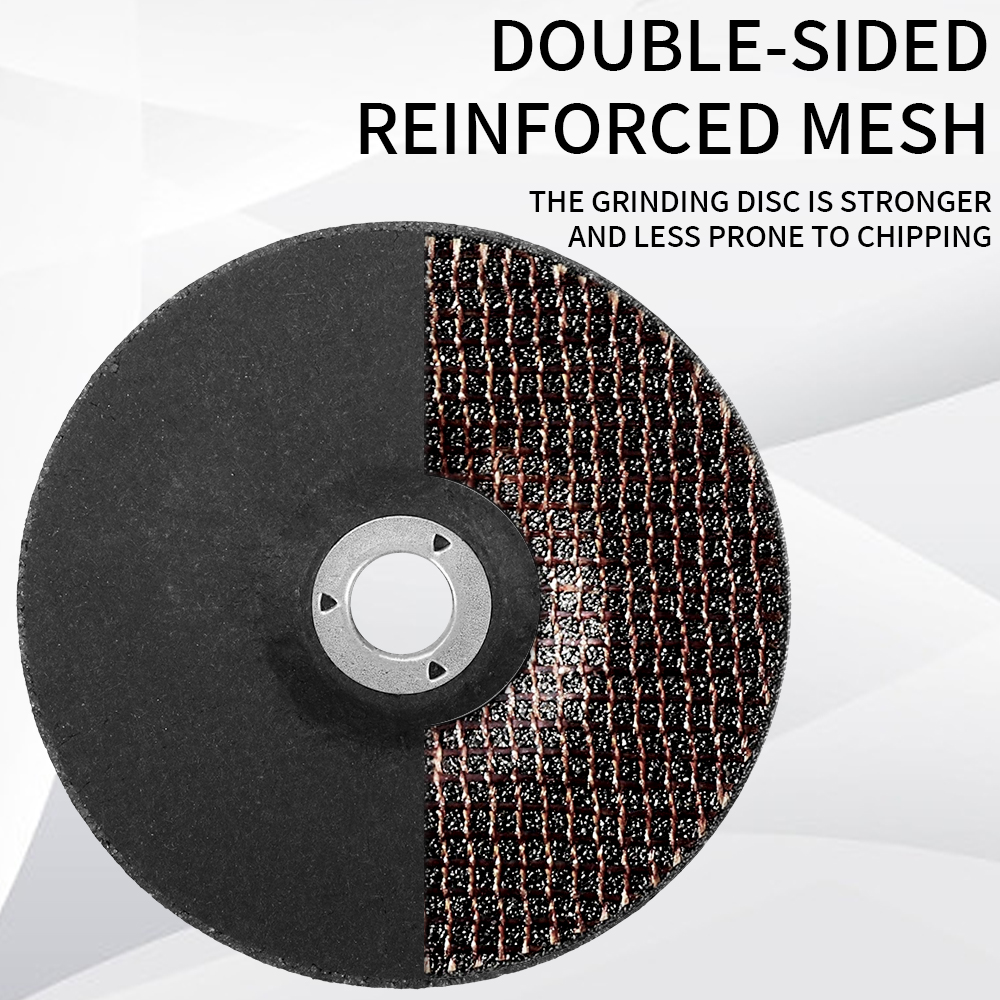

  • They are reinforced with fibre mesh for increased safety

  • Grinding Wheels 3" x 1/6" x 3/8" ( 75 mm x 4 mm x 10mm )

  • A60 grit (Aluminum Oxide Abrasive Material)

  • Mounting Mandrel

  • The mounting mandrel is composed of a handle with two different types of thread head.

  • This mounting arbor is mainly used to mount small diameter cut-off wheels or circular saw blades with a 3/8inch or 1/4inch core hole, with a journal length suitable for cutting discs from 0.035inch to 0.16inch thick.

  • Shank dia x L: 1/4” x 1-15/16”, #1 screw head dia x arbor dia x L: 3/4” x 3/8” x 5/8”, #2 screw head dia x arbor dia x L: 3/4” x 1/4” x 5/8”.

  • Cut-off wheel arbor with 1/4 inch(6.35mm) shank fits most die grinders, drill rotary tools.

  • The cut-off wheel arbor is made of A3 carbon steel with a black plated finish for durability and rust resistance for long term use.

  • The mandrel structure can also be used to mount various other types of grinding wheels, such as grinding, sanding, cleaning, descaling, polishing grinding wheels or hss saw blades.

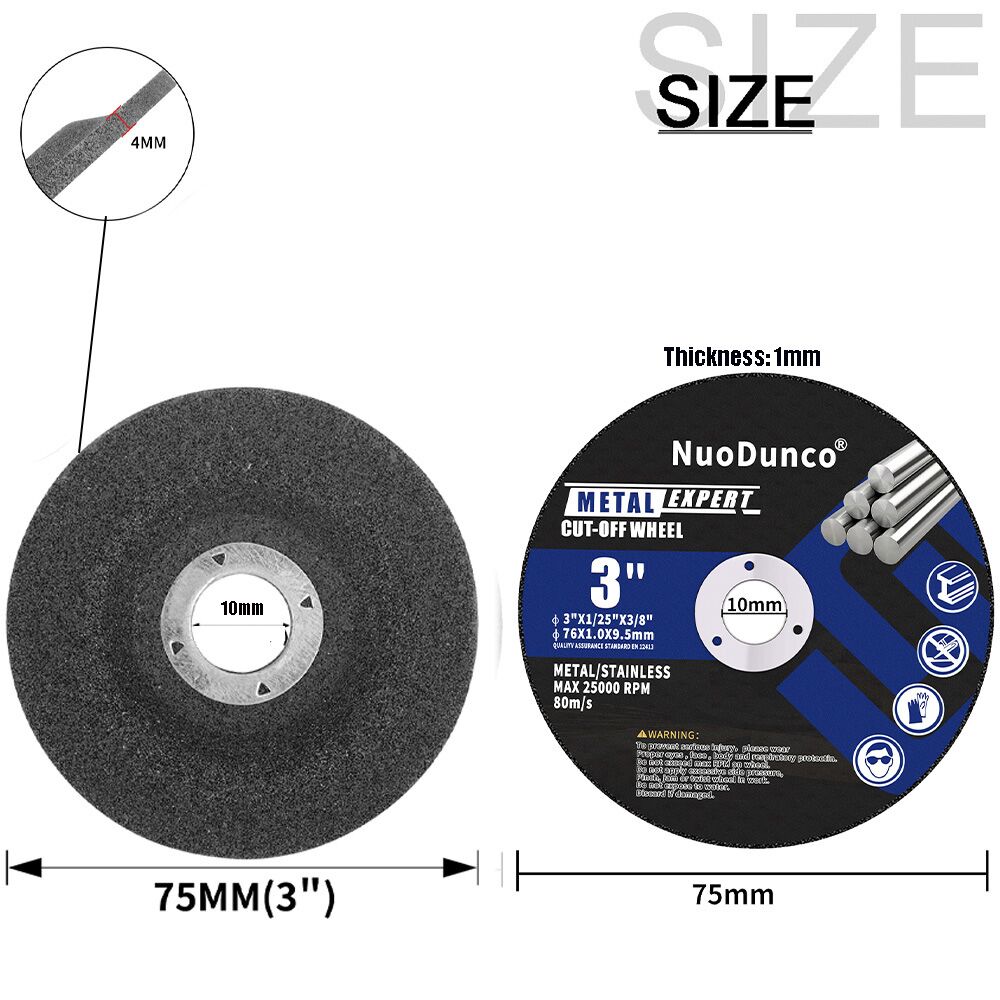

Specification:

  • Metal Cutting Disc

  • Material: Resin & Corundum

  • Outer Diameter: 75mm/ 3inch

  • Inner Diameter: 9.5mm/3/8inch

  • Thinckness: 1.0mm/1/25inch

  • Max Speed: 25,000 RPM and 80M/S

  • Grinding Wheel

  • Material: High-performance Alumina Particles

  • Diameter: 75mm (3" inch)

  • Thickness: 4mm

  • Hole diameter: 10mm

  • Speed :13300RPM

Package Include:

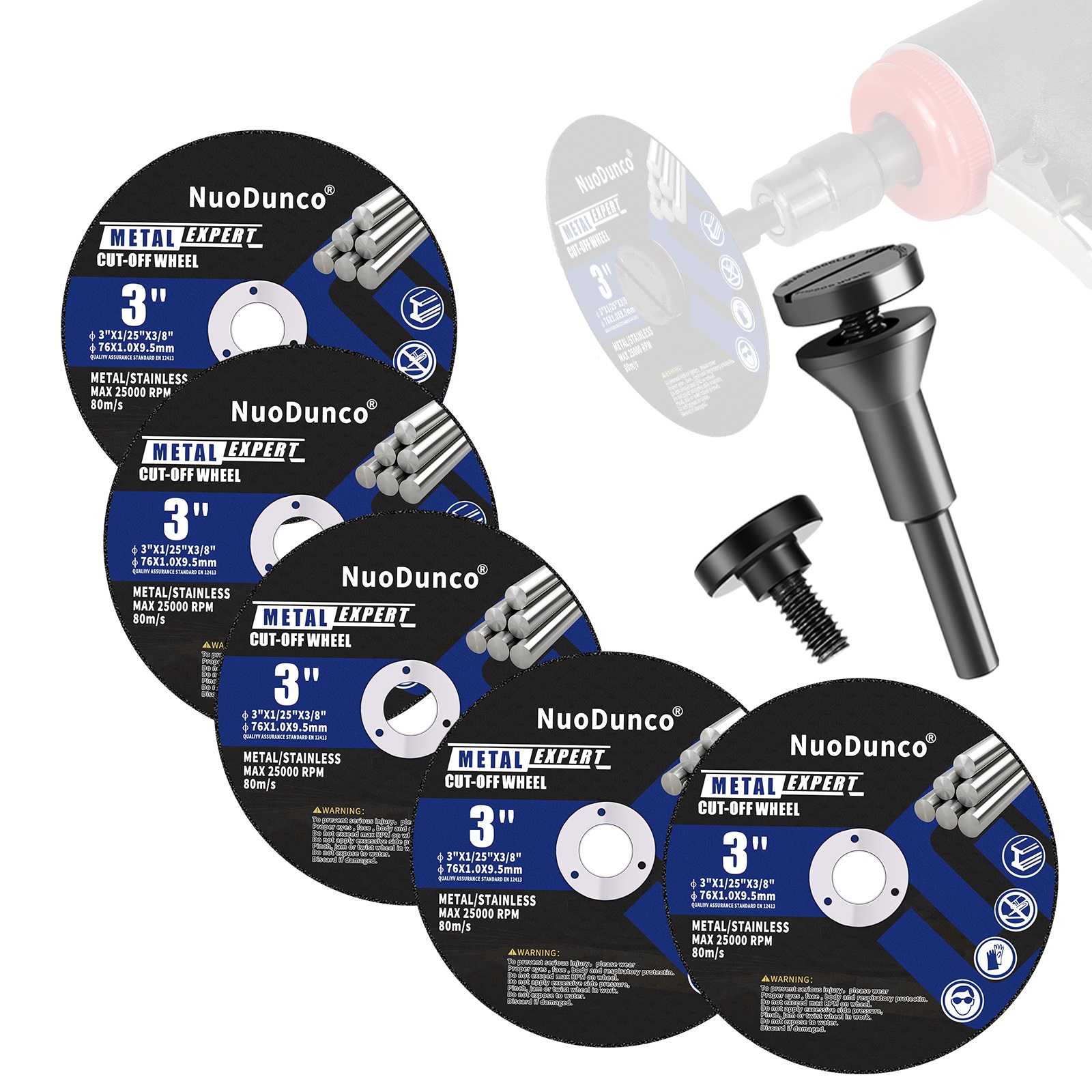

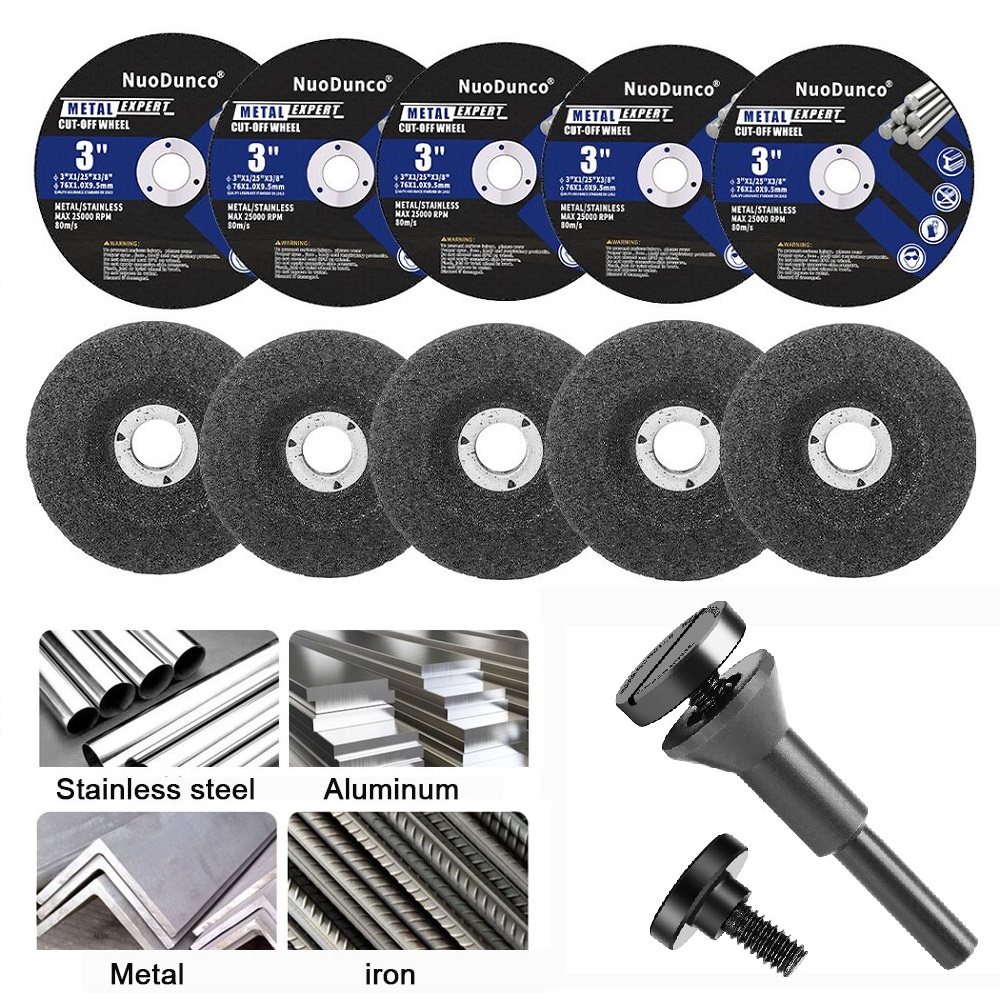

  • 5pcs Metal Cutting + 5pcs Grinding Wheel + 1pc Mandrel

Note

Please be carefully check the goods appearance, size, shape, and then compare your original goods before ordering, thank you.

Due to the shooting light and angle, the product will have a slight color difference, please don't mind, thank you.

Due to different measurement methods, slight dimensional errors will occur, thank you.

If you have any questions, please contact us in time, we will do our best to help you solve the problem, thank you.
