1. Using high quality materials quality is guaranteed
2. Bridge single 600W, dual 300W + 300W
3. Easy to use, temperature control/manual control of the fan
4. The use of oxygen-free copper wire to improve the quality of sound; magnetic shielding mechanism anti-electromagnetic interference EMI performance
5. With preamplification, 26-36dB adjustable

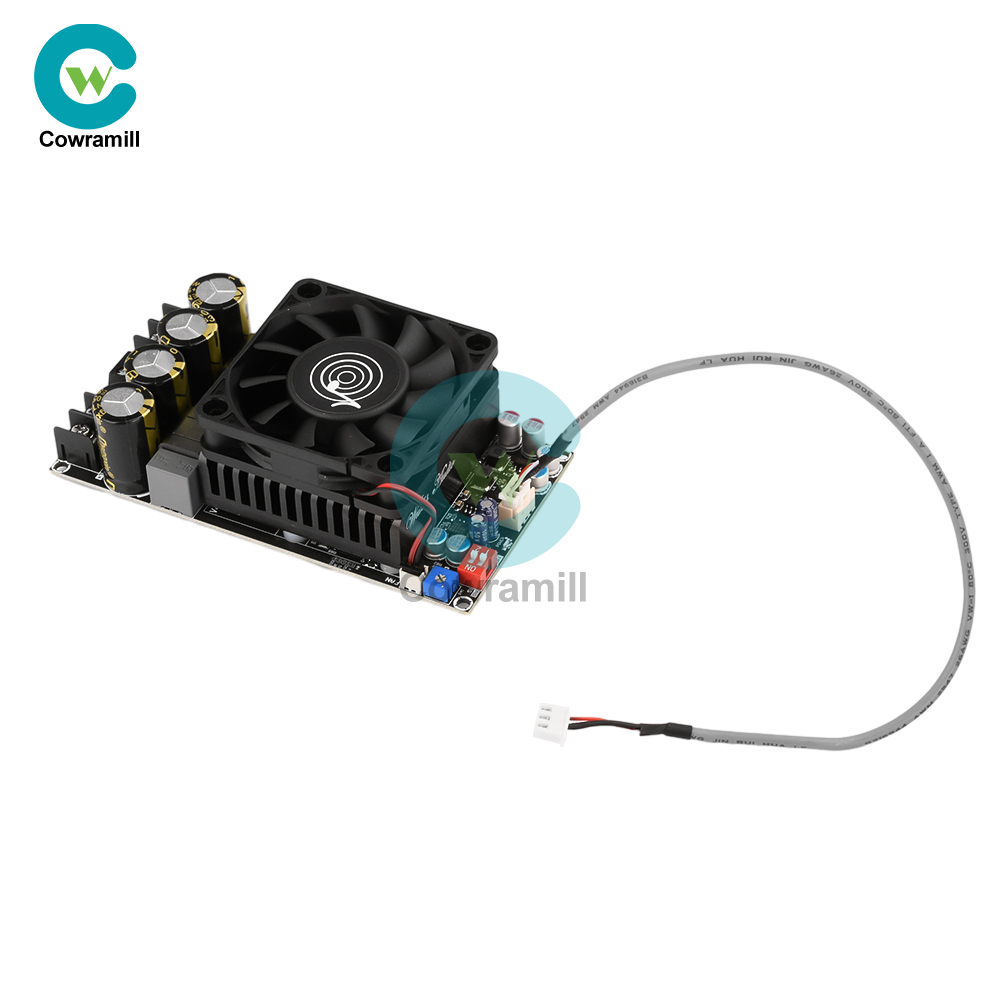

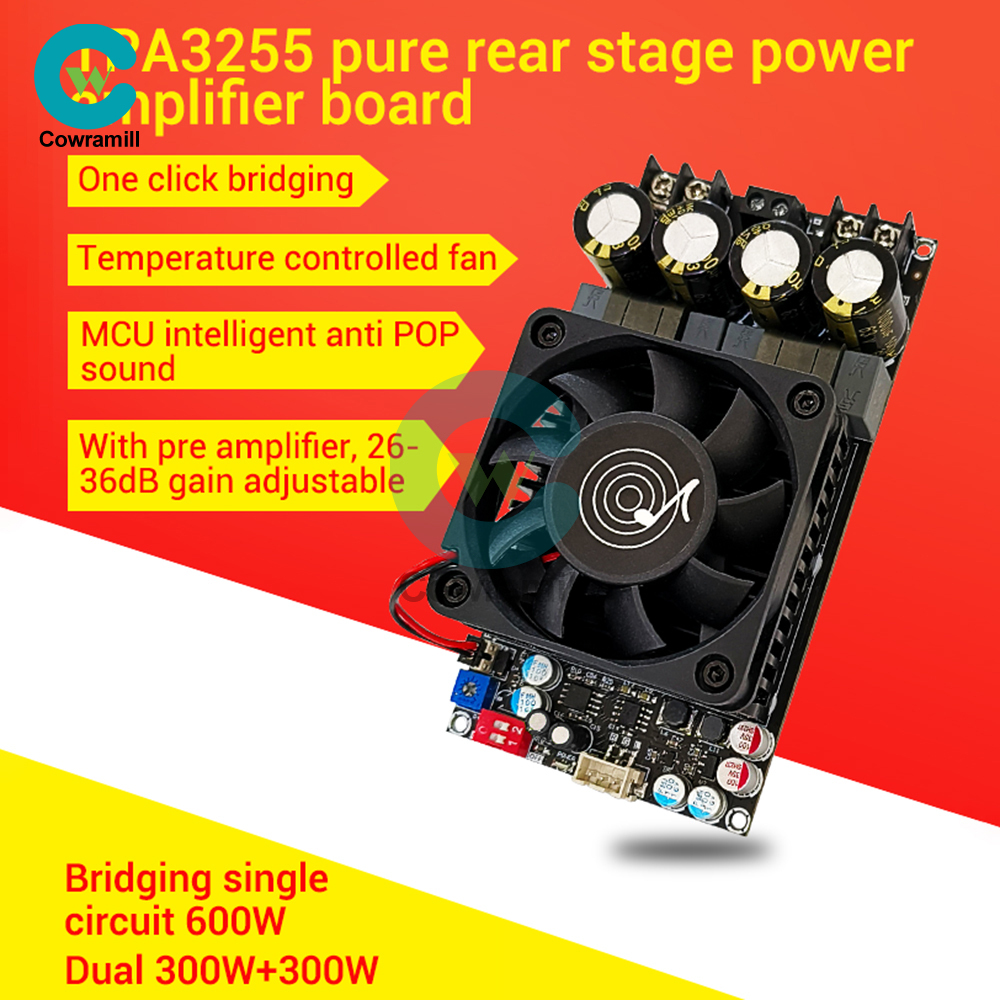

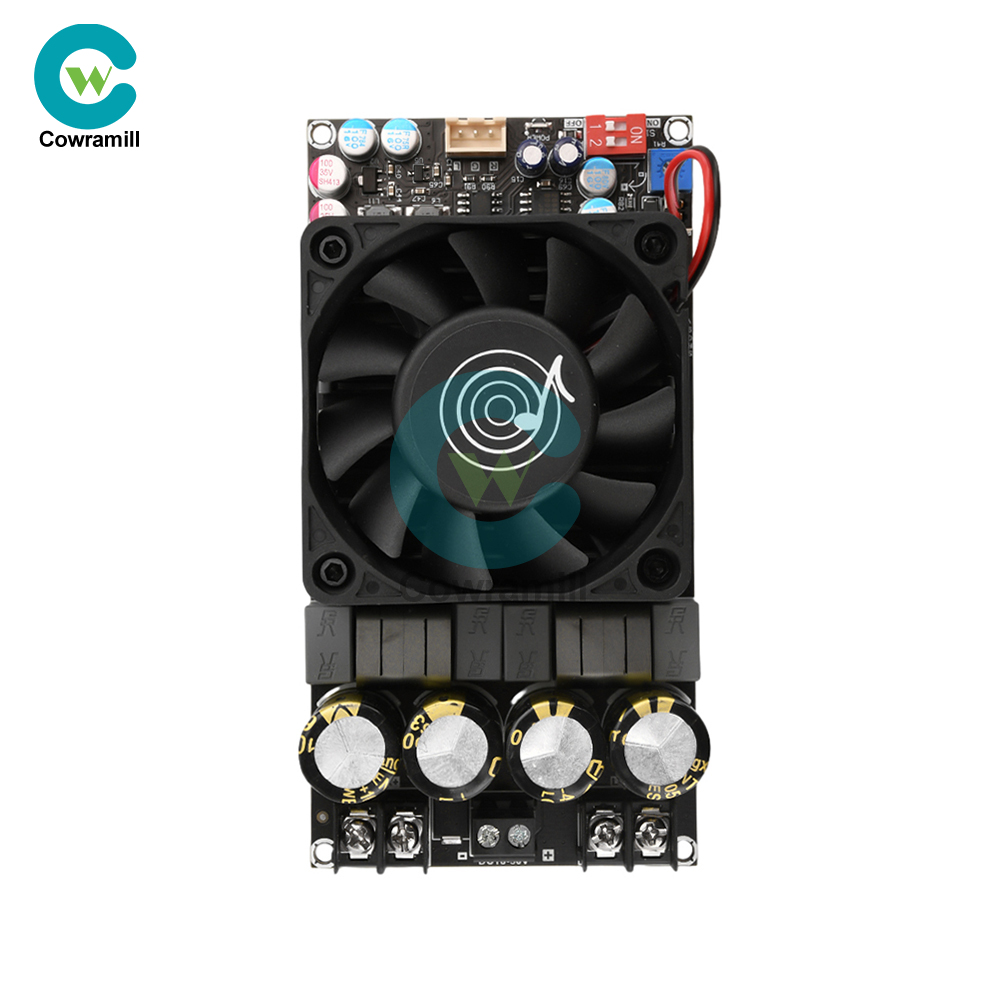

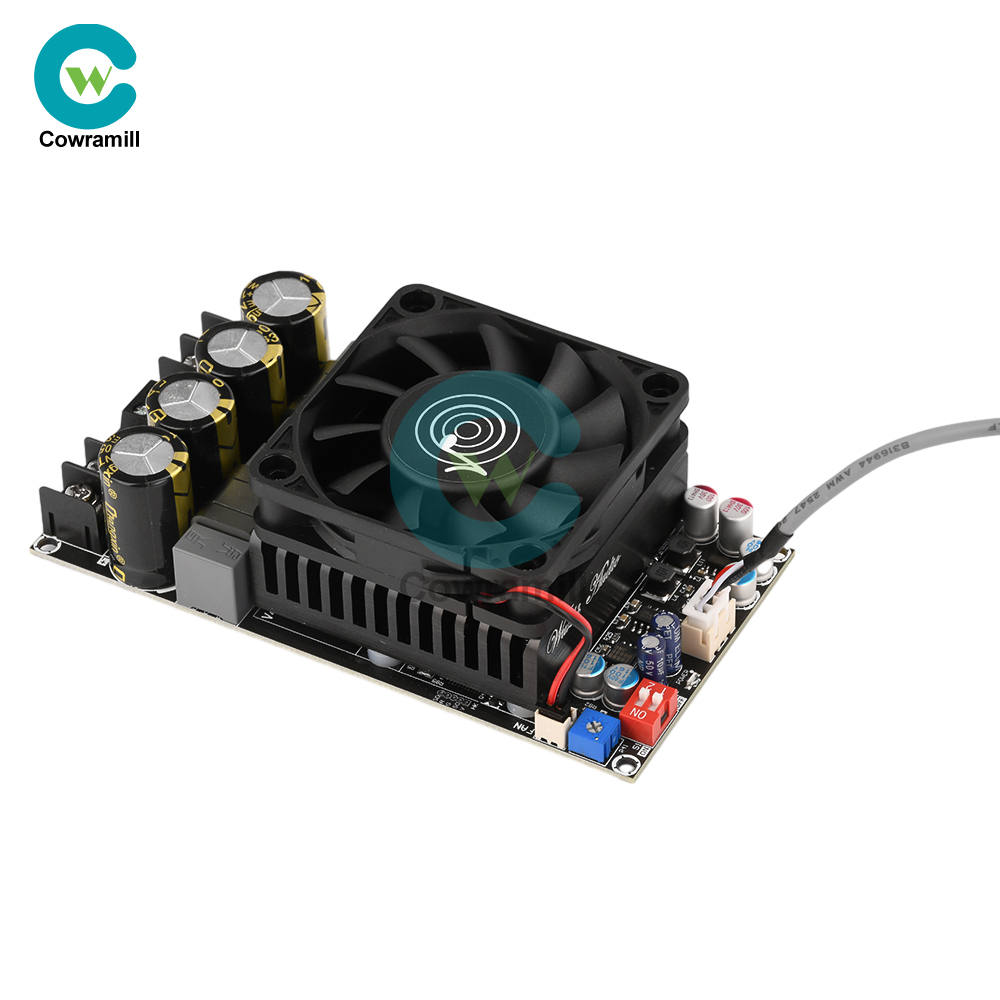

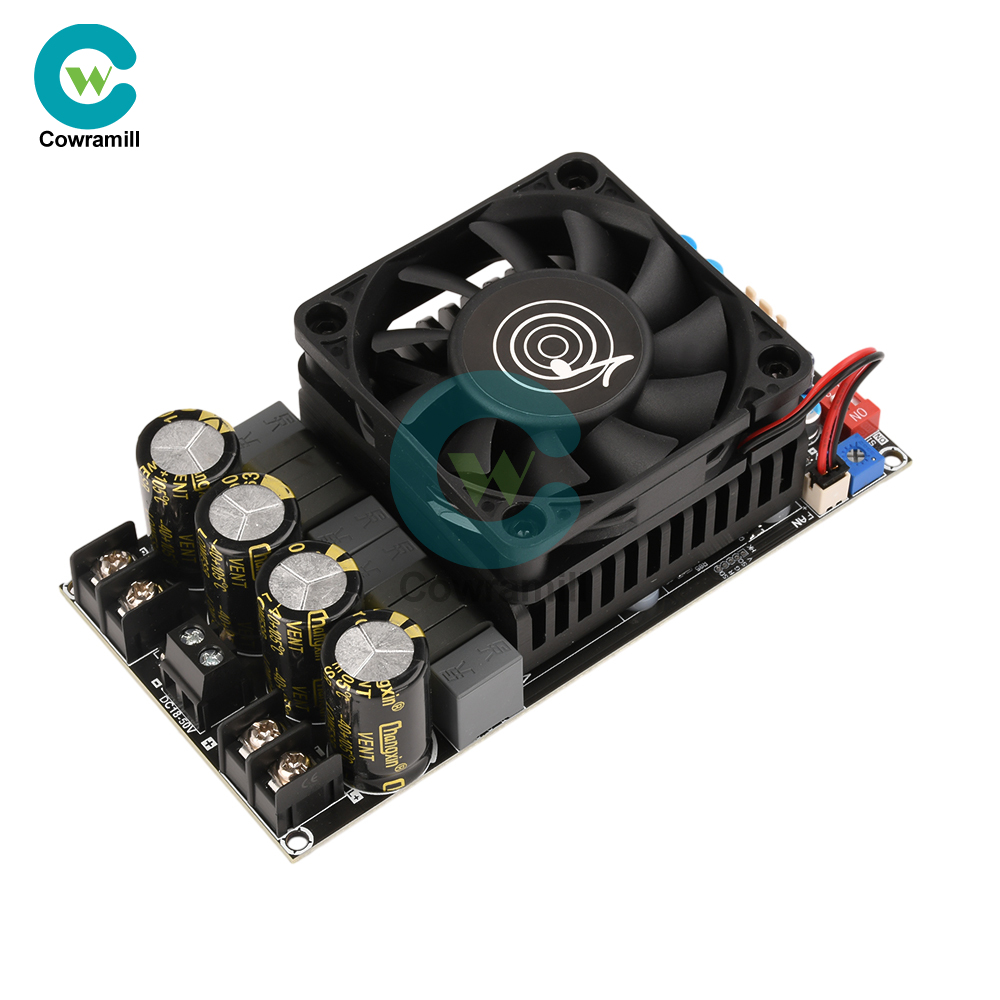

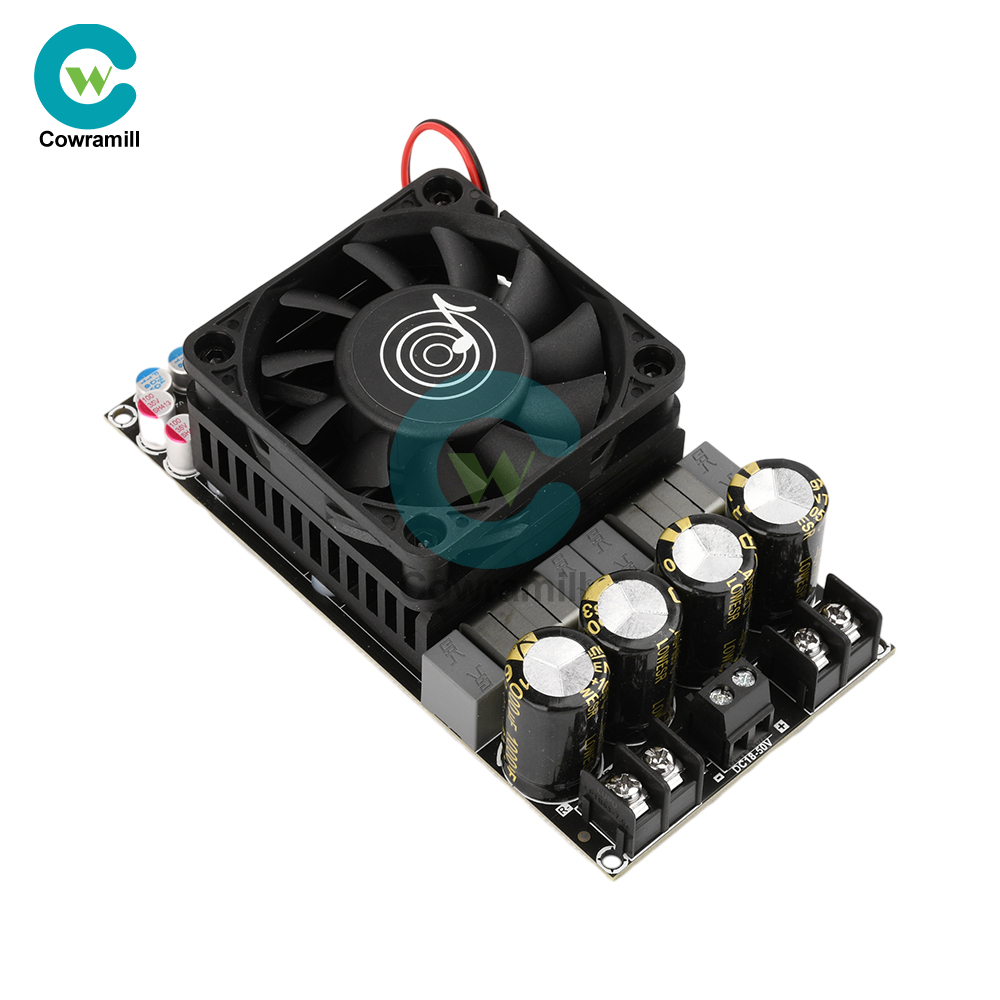

Product Name: 300W Dual/600W Mono Pure Rear Stage Amplifier Board
Amplifier Chip: TPA3255
Adaptable Power Supply: Working voltage range 18-50VDC, limit 53V. Recommended to use DC power supply with voltage 36-48V and current 10A or above. The higher the voltage, the higher the output power.
Adaptable Speaker: 3-8 ohms in BTL dual-channel mode, 50-300W; 2-8 ohms in PBTL mono mode, 100-600W
Heat dissipation: Temperature-controlled automatic air-cooling, or manually select the fan to keep turning.
Gain selection: potentiometer 10-step adjustment, 26dB-36dB
Bridge mode: power off first, No.1 dip switch to ON position, output R+L+ shorted parallel output, R-L- shorted parallel output.
Maximum power:
BTL mode, 2*300W@50V 4Ω, 160W@50V 8Ω;
PBTL mode, 600W@50V 2Ω, 300W@50V 4Ω, 160W@50V 8Ω
Protection mechanism: Input under-voltage, over-temperature, over-current, short circuit protection. No input anti-reverse protection, positive and negative poles can not be reversed!
digital amplifier board * 1
shell accessories * 1
