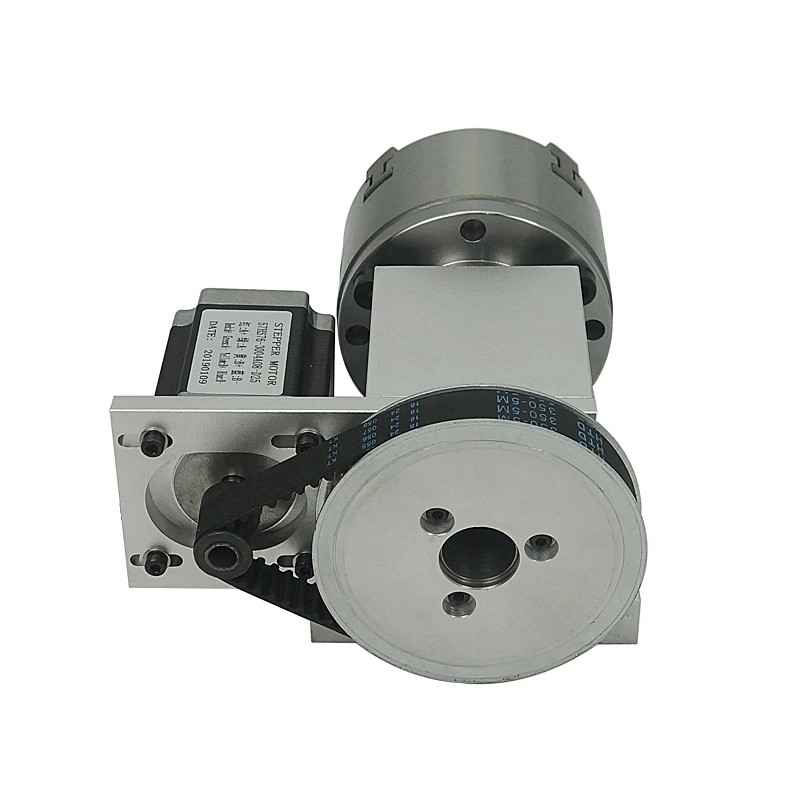

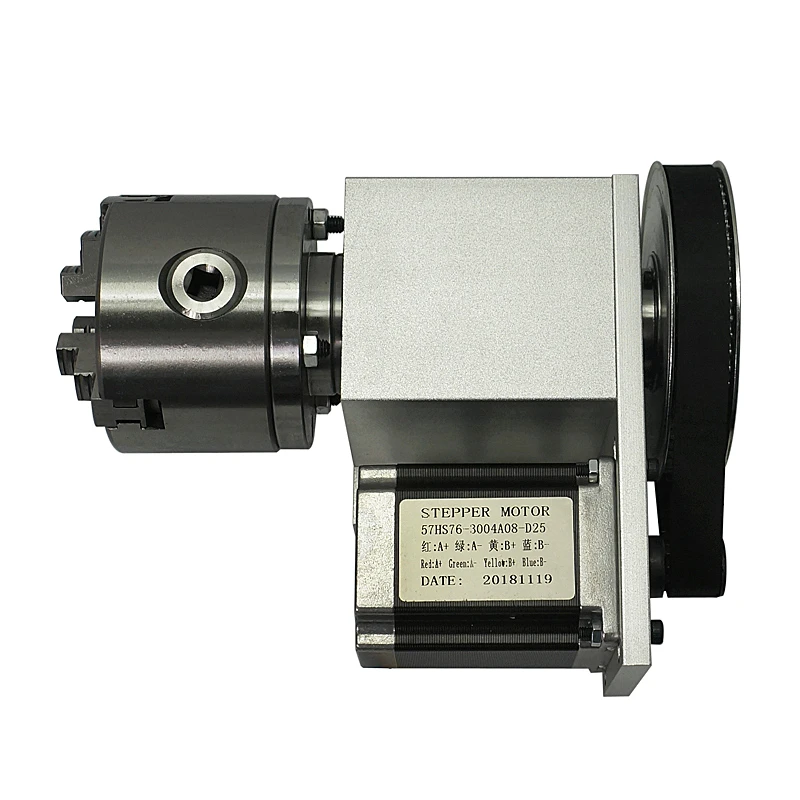

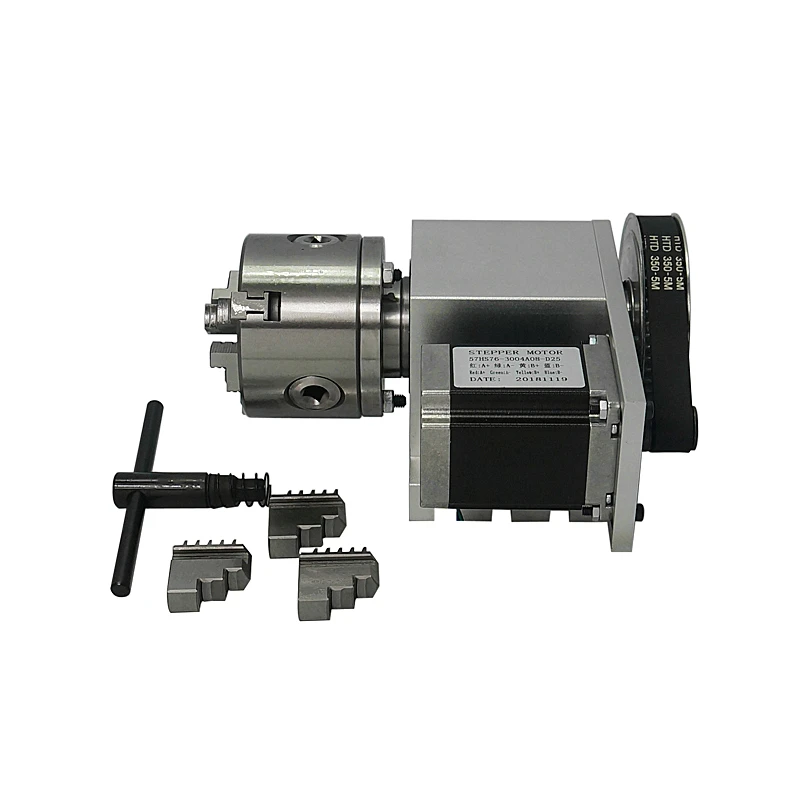

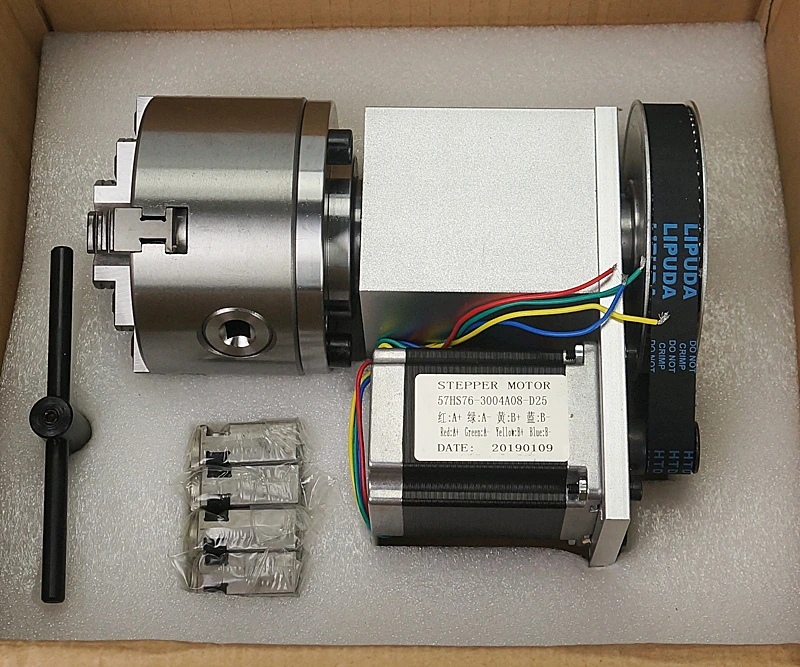

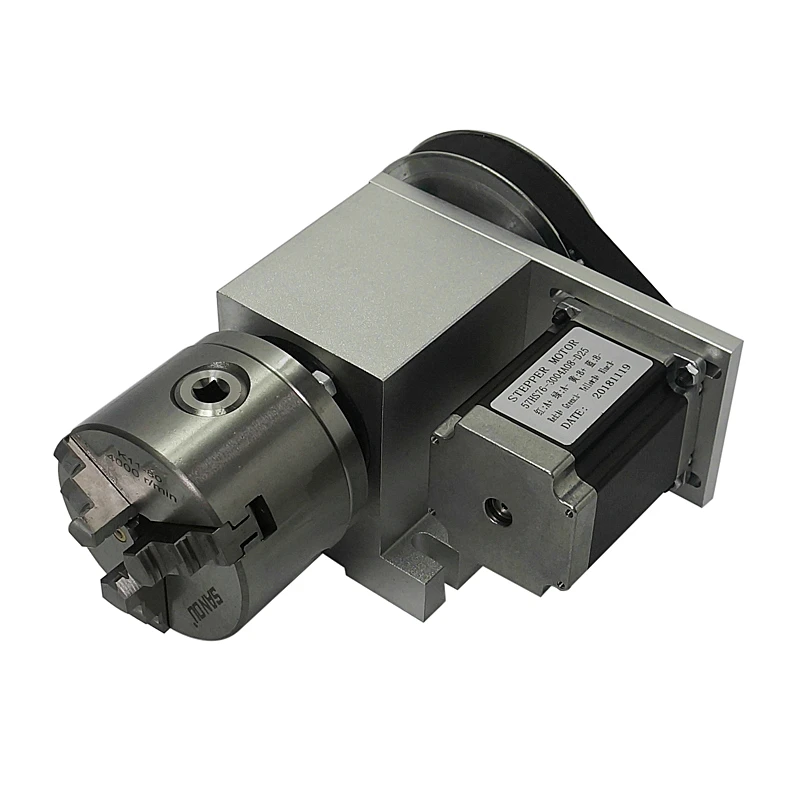

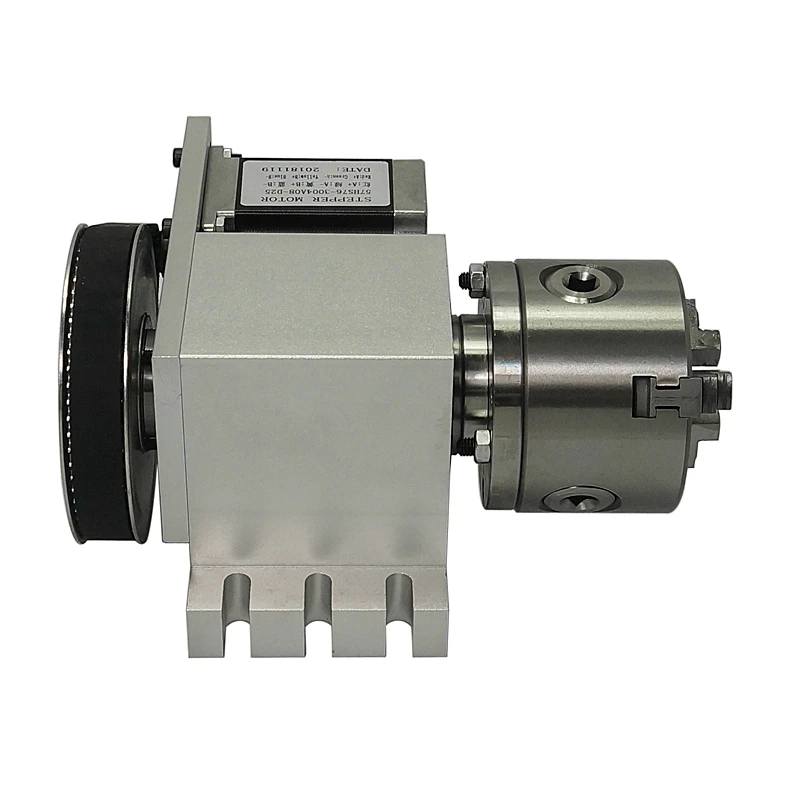

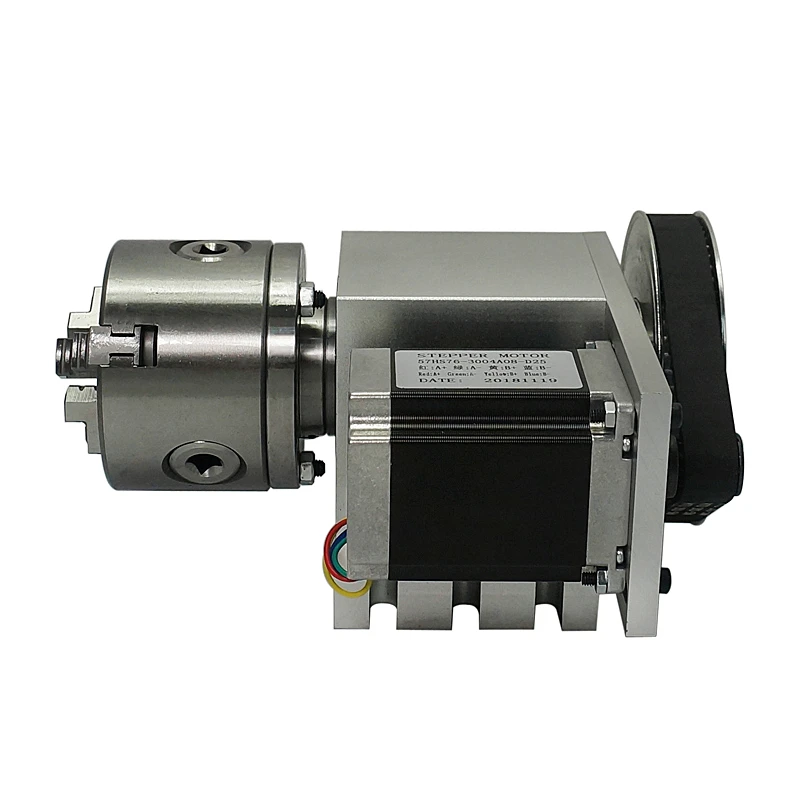

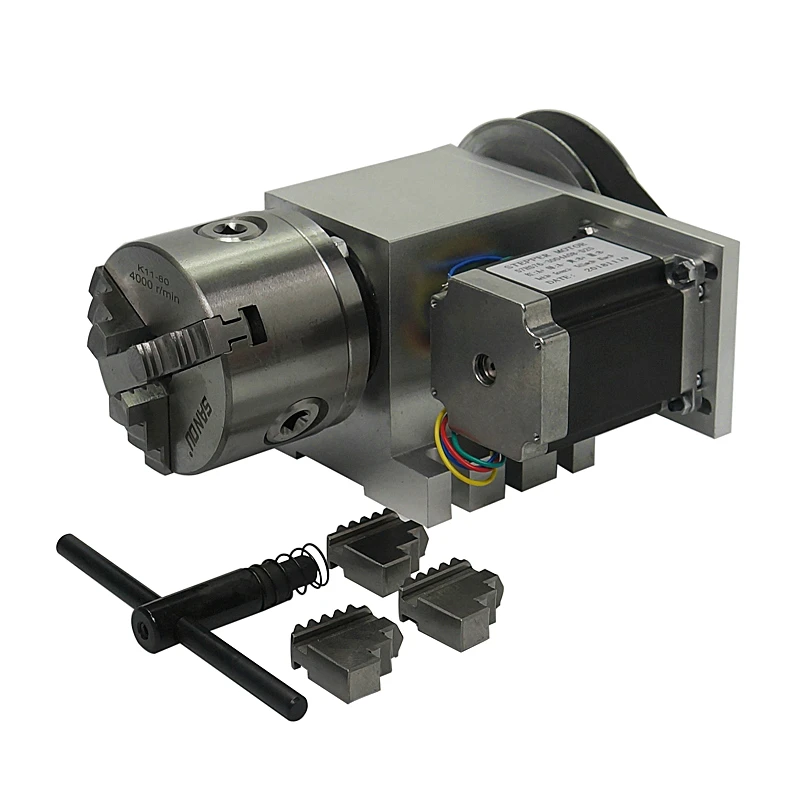

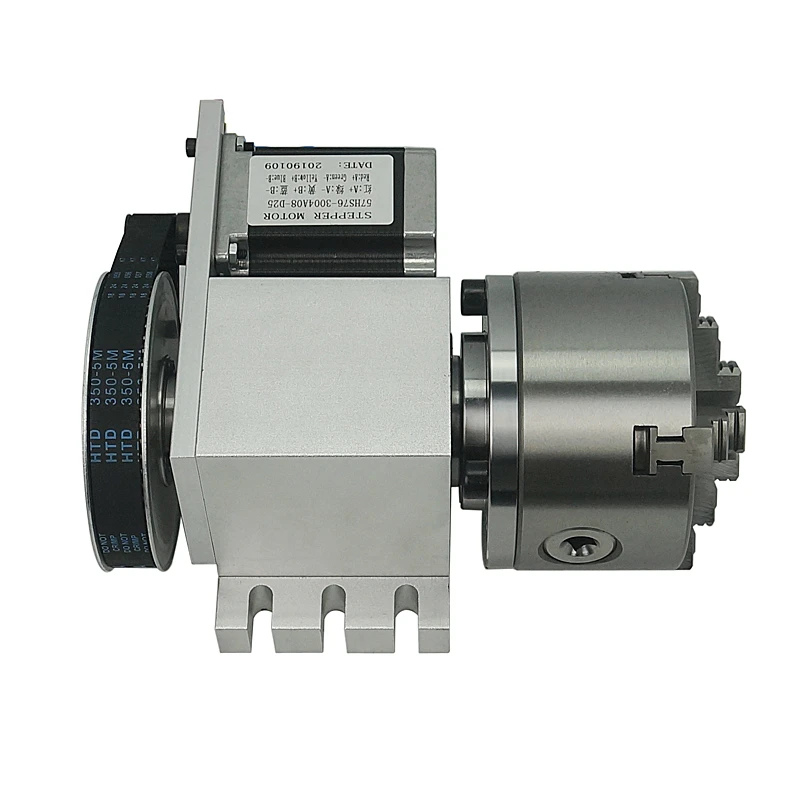

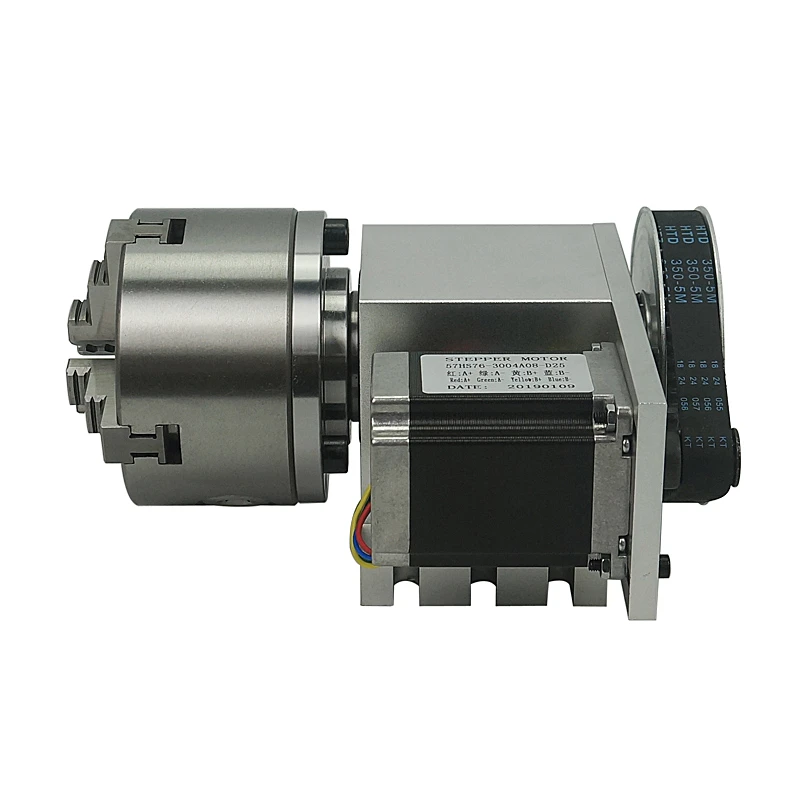

CNC 4th axis A aixs, Rotary axis with chuck jaw for cnc router cnc miiling machine



Specifications:

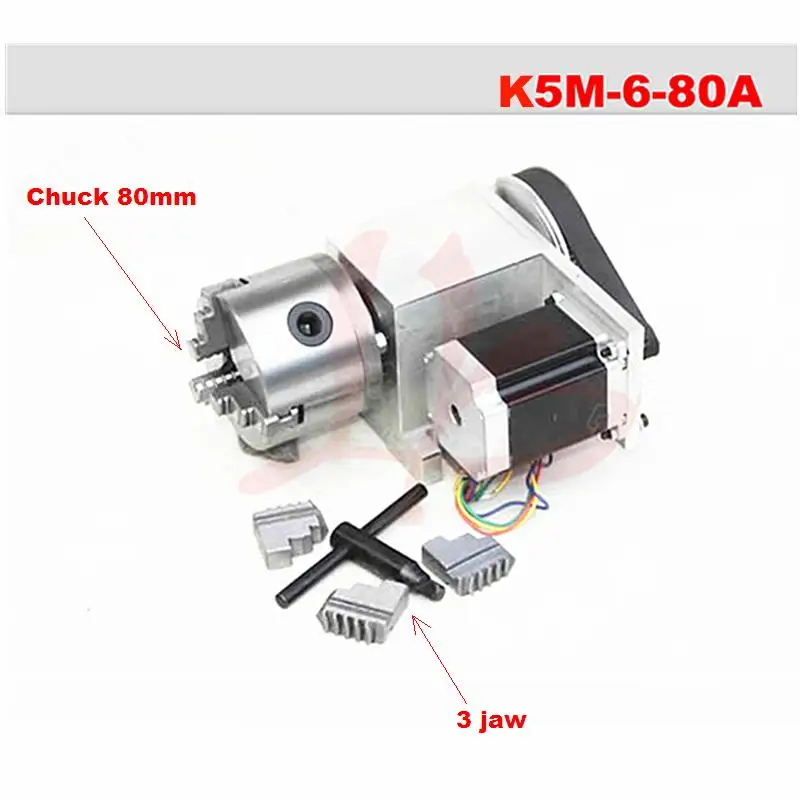

Model Number:K5M-6-80A

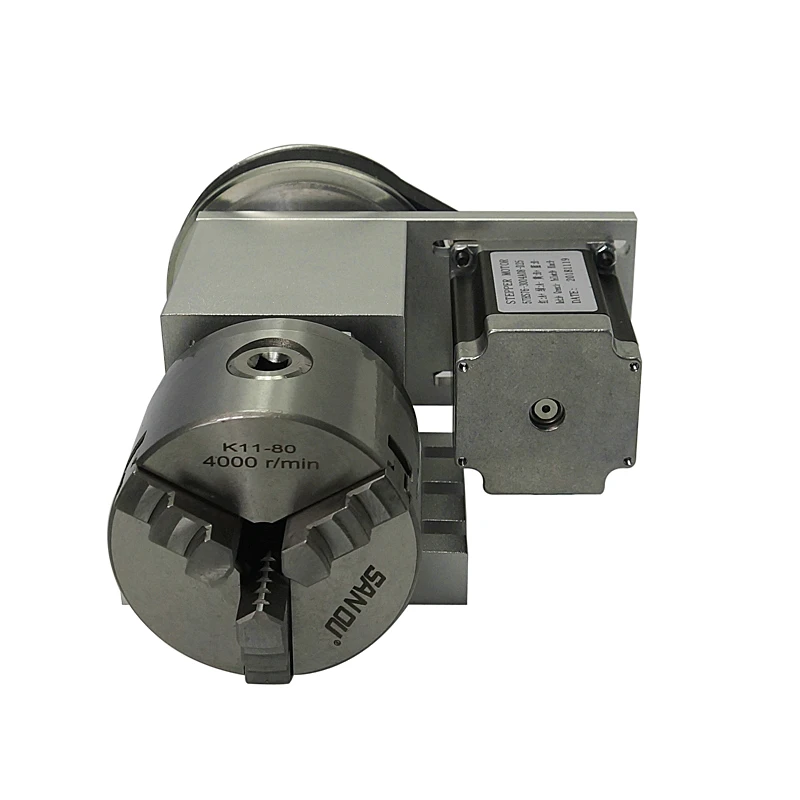

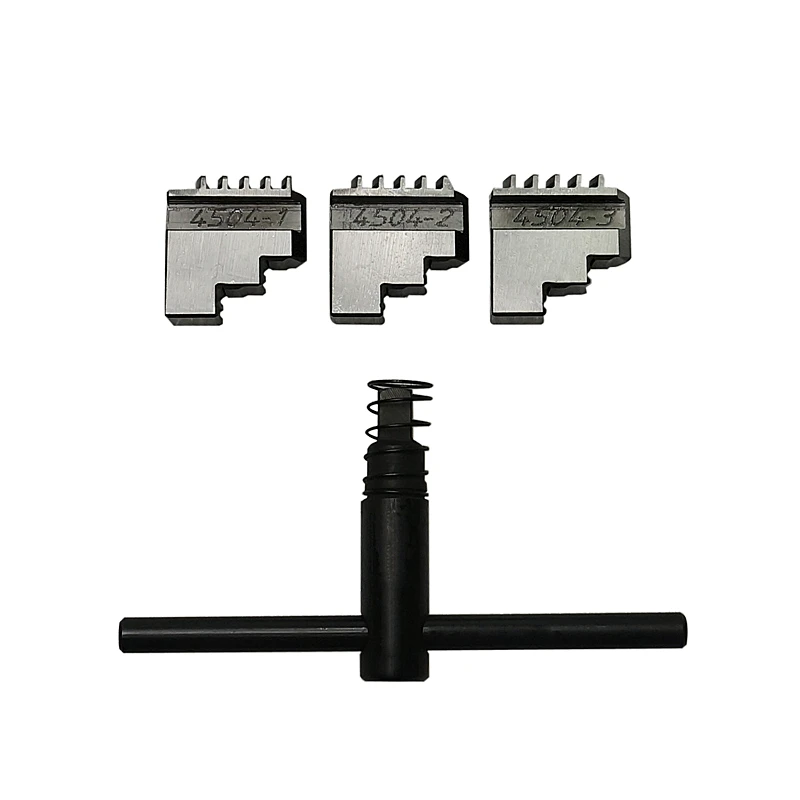

Chuck: 80MM 3-jaw chuck hollow shaft
Center height: 65MM

Inner hole diameter: 16MM
The output diameter of axle: 20MM

Angle: 0.3 degrees / step

Speed reducing ratio: 6:1
Stepper motor: two-phase stepper motor 57
Size: 210MM*168MM*110MM

Weight: 7.5KG

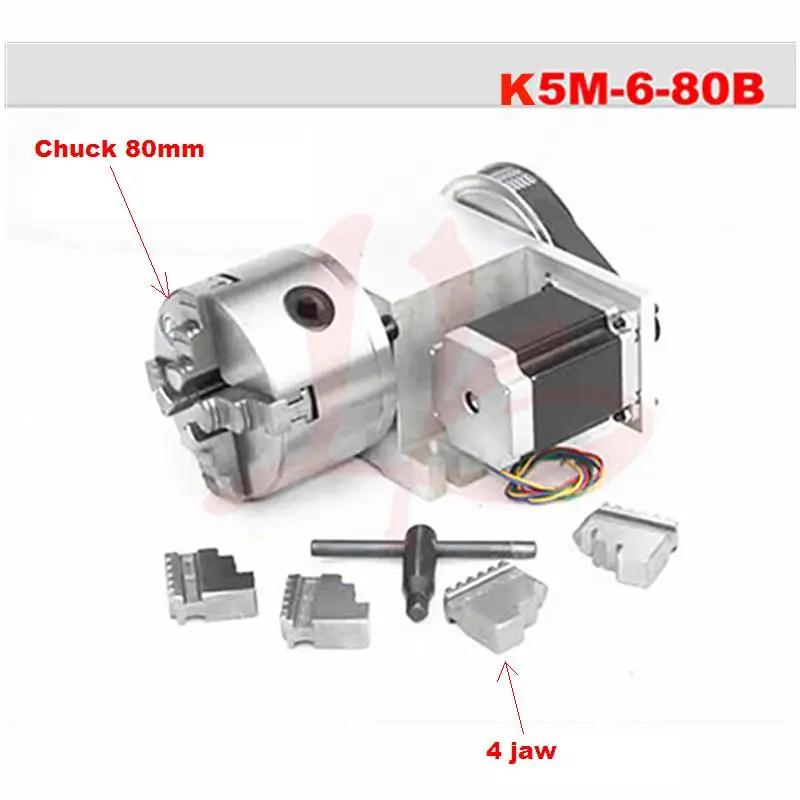

Model Number:K5M-6-80B

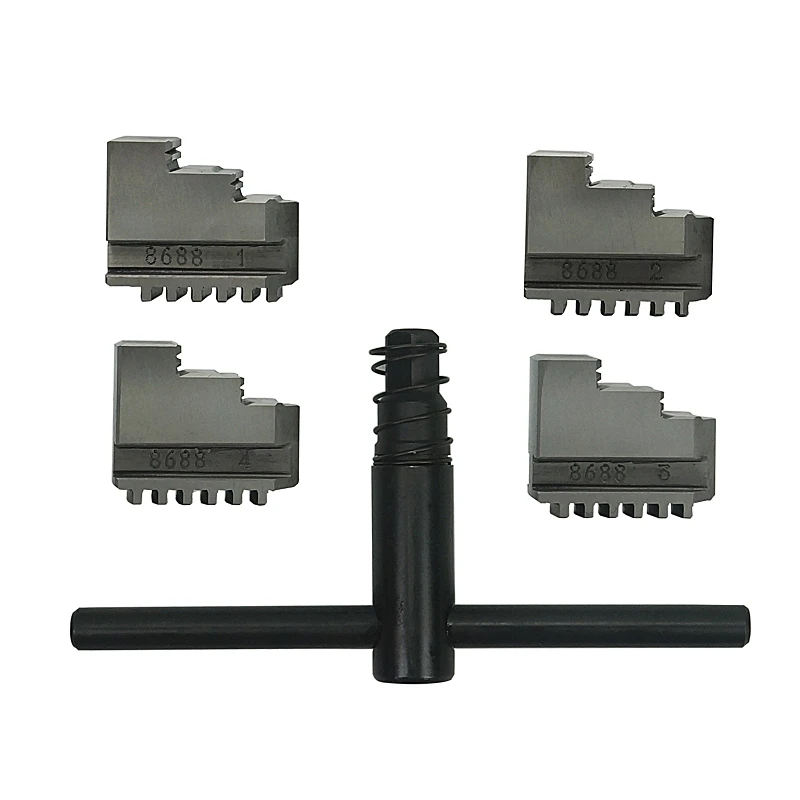

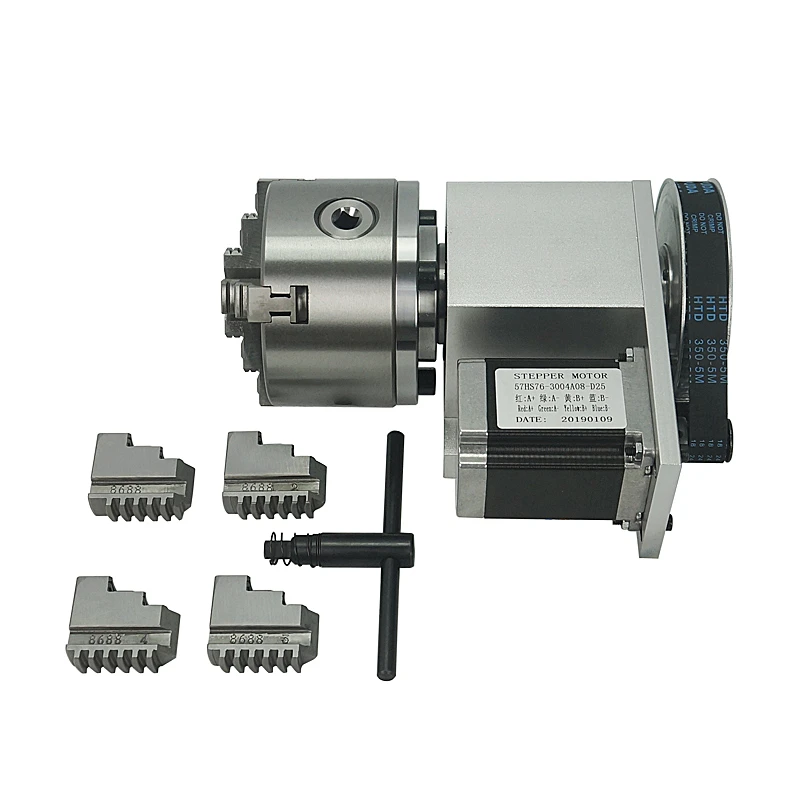

Chuck: 80MM 4-jaw chuck hollow shaft
Center height: 65MM

Inner hole diameter: 16MM
The output diameter of axle: 20MM

Angle: 0.3 degrees / step

Speed reducing ratio: 6:1
Stepper motor: two-phase stepper motor 57
Size: 210MM*168MM*110MM

Weight: 7.5KG

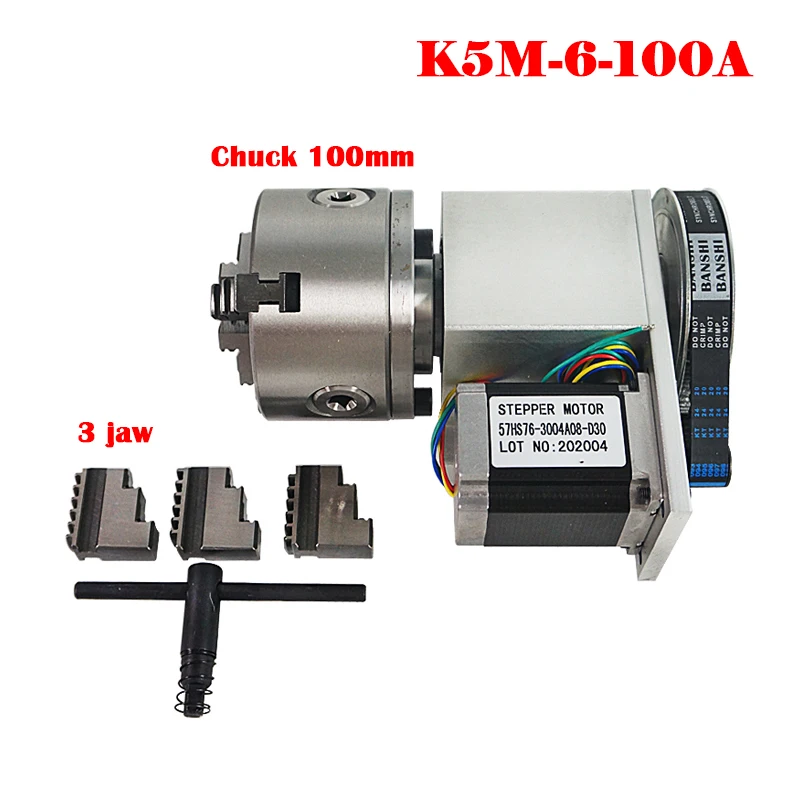

Model Number:K5M-6-100A

Chuck: 100MM 3-jaw chuck hollow shaft
Center height: 65MM

Inner hole diameter: 22MM
The output diameter of axle: 30MM

Angle: 0.3 degrees / step

Speed reducing ratio: 6:1
Stepper motor: two-phase stepper motor 57
Size: 210MM*168MM*115MM

Weight: 8KG

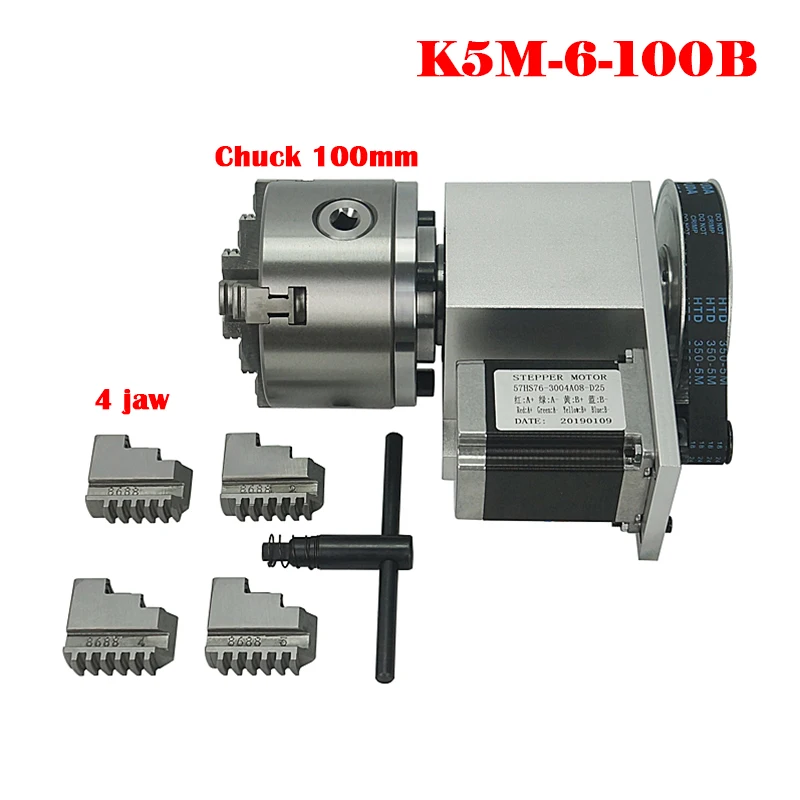

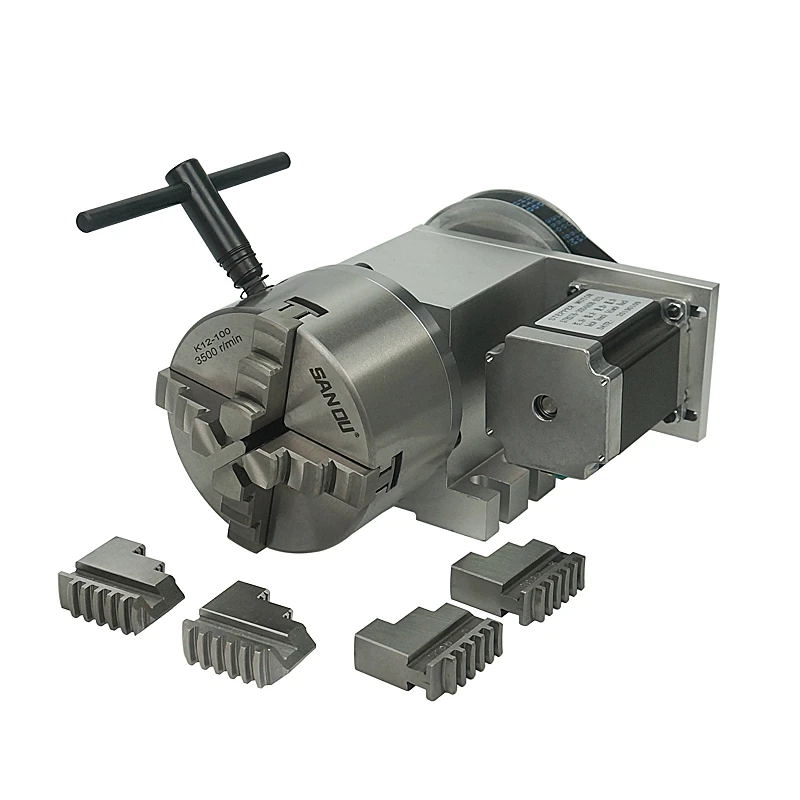

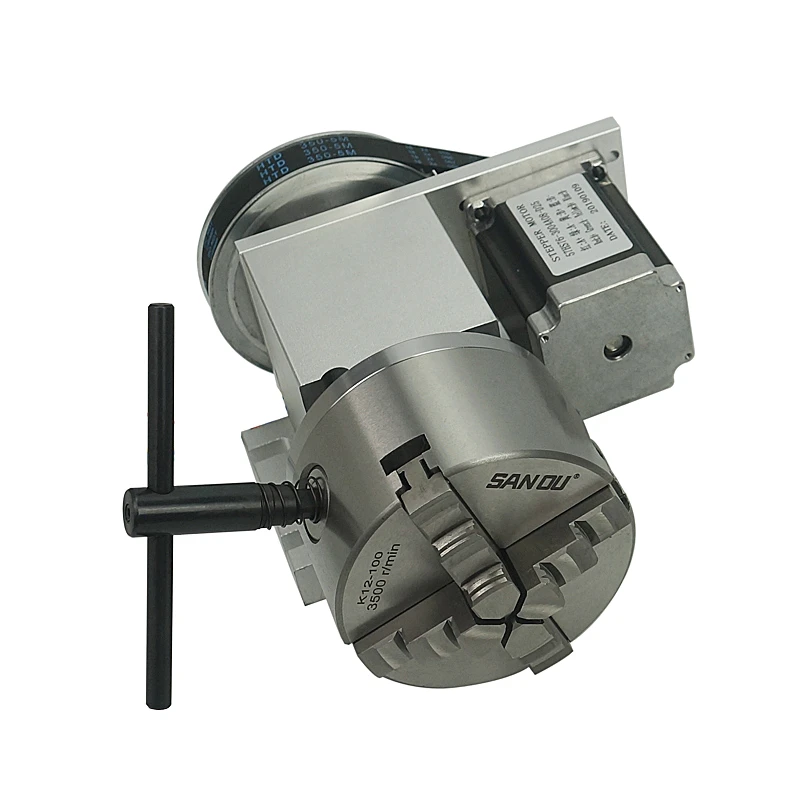

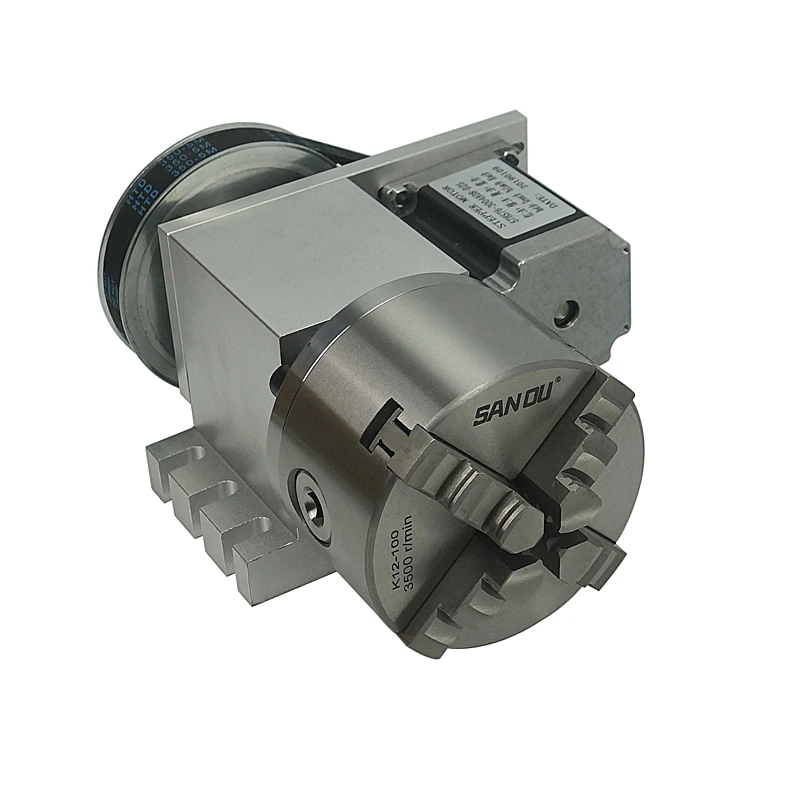

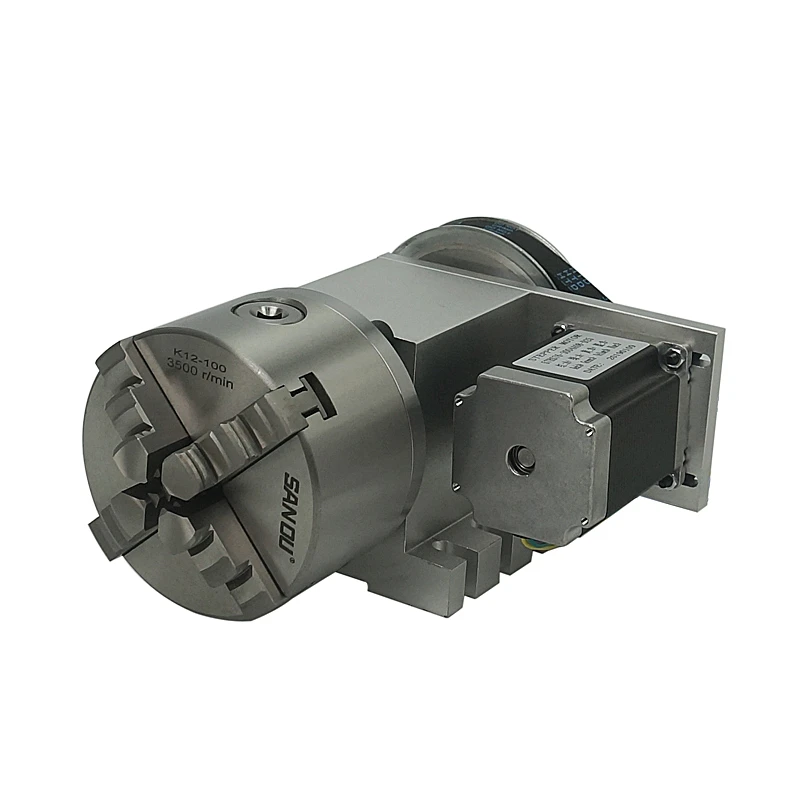

Model Number:K5M-6-100B

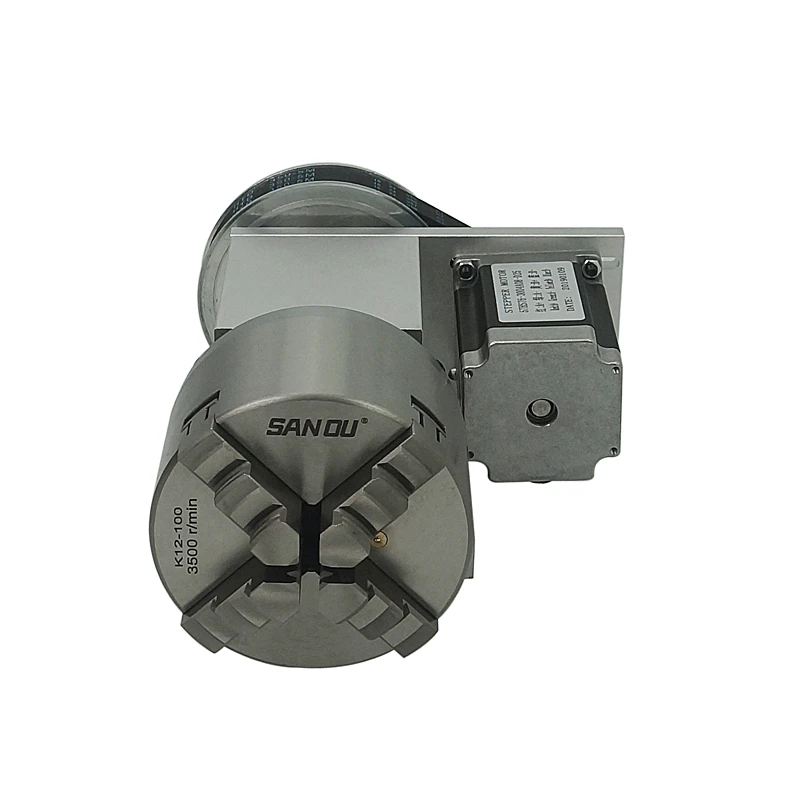

Chuck: 100MM 4-jaw chuck hollow shaft
Center height: 65MM

Inner hole diameter: 22MM
The output diameter of axle: 30MM

Angle: 0.3 degrees / step

Speed reducing ratio: 6:1
Stepper motor: two-phase stepper motor 57
Size: 210MM*168MM*115MM

Weight: 8KG
