Parameter:

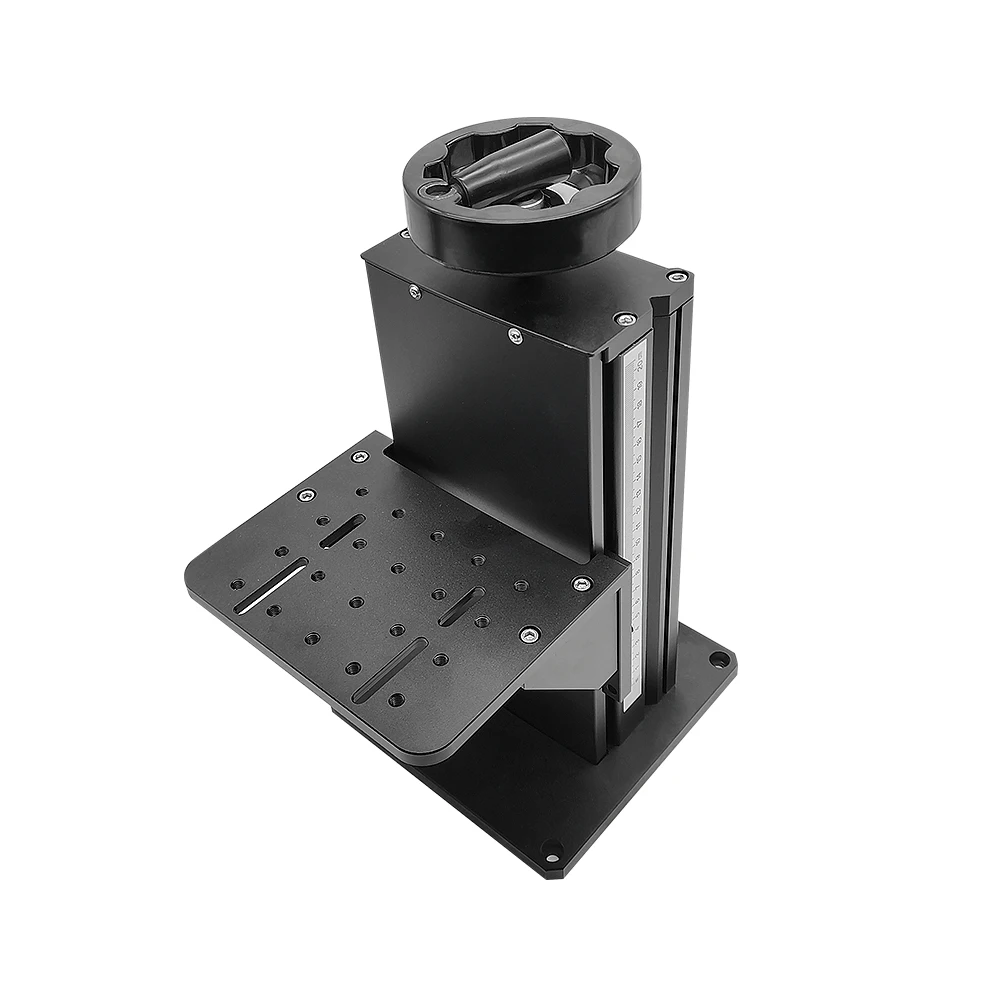

Product name: Z-axis lifting table
Model: LZ-300

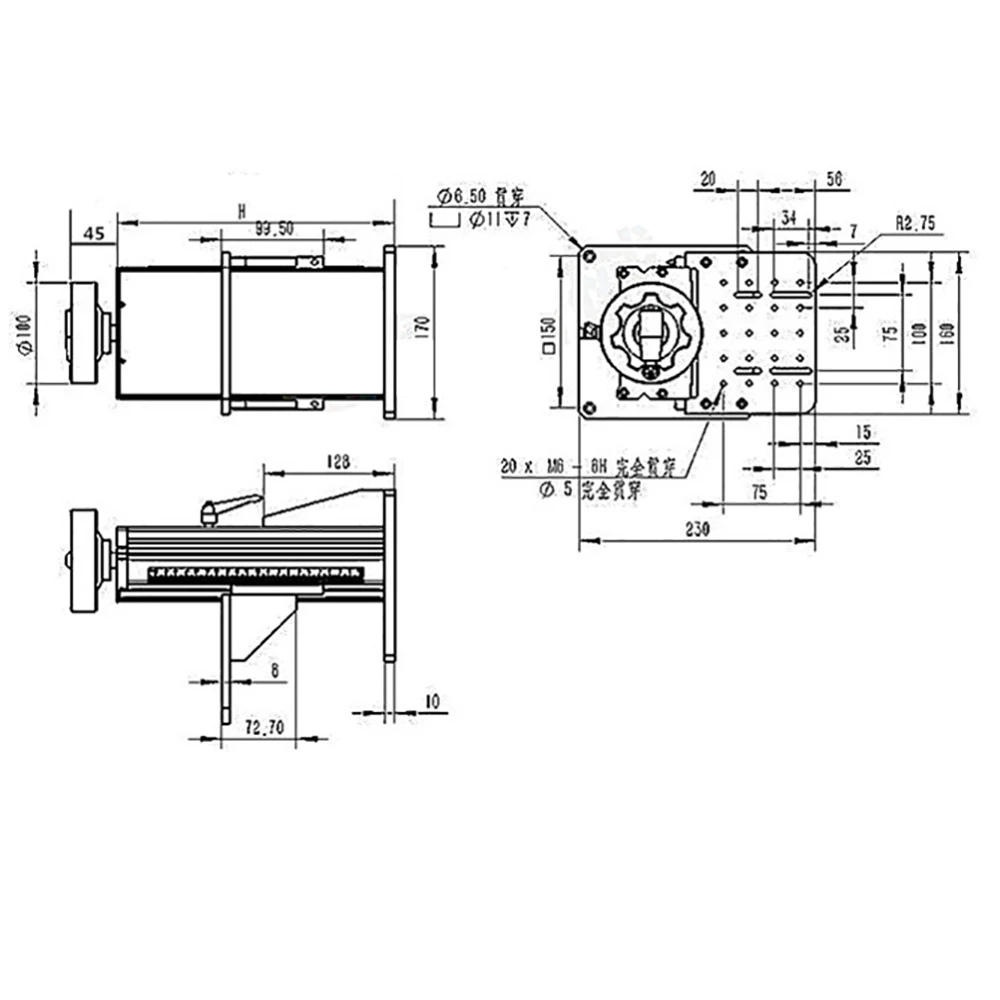

Dimensions: 230x170x(LZ300=416)
Effective stroke: 261MM
Fixed base plate size: 170x170x10MM
Mounting hole size: 150x150MM (M6 screw)
Surface treatment: anodized black
Screw: M16*4 (T type screw)
Load: 50KG
Advantages: aluminum alloy material, high precision production, light weight, heavy load, easy secondary processing, durable and not rusty, dustproof and beautiful.

Note:

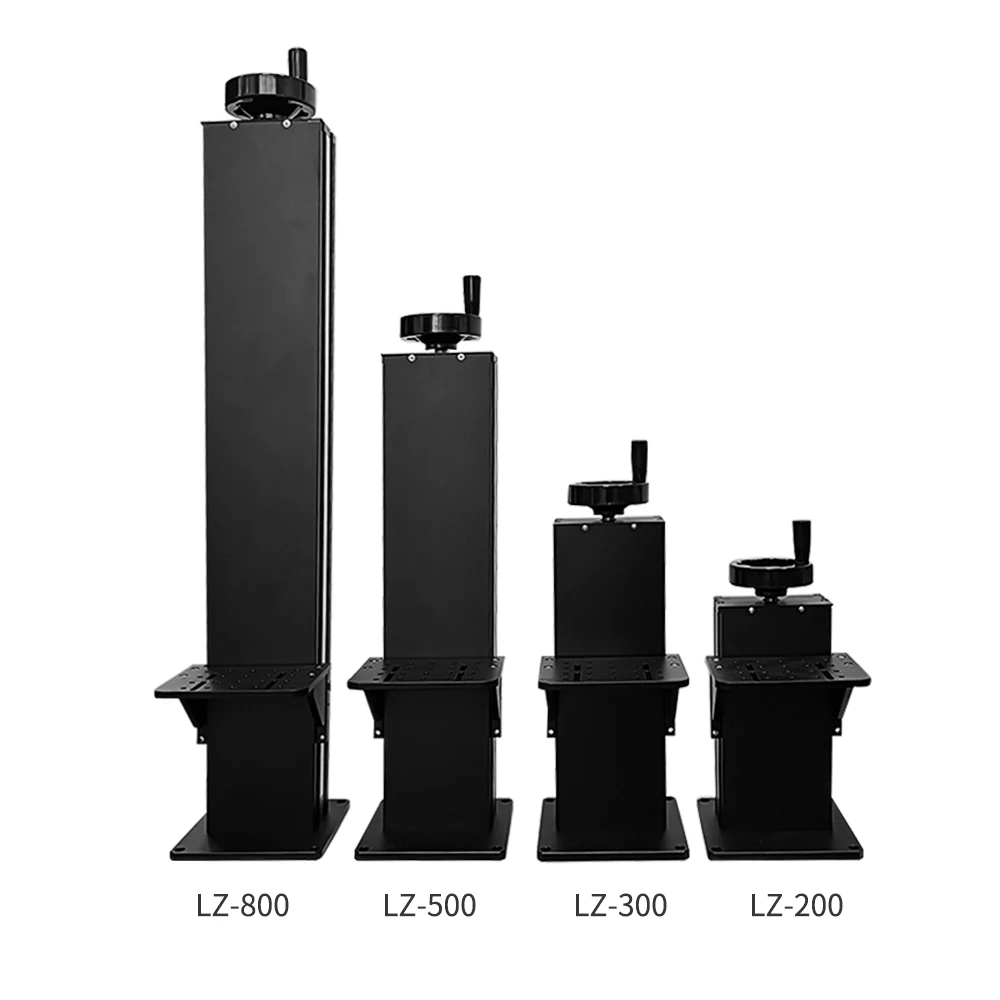

This price is for model LZ-300, if you need other sizes, please contact us.
