36V/48V/52V/60V/72V/84V 34A-40A 1000W-1500W-2000W Universal Brushless Controller

if motor not have hall wires,not connect hall wires also can work

Name: Intelligent dual-mode brushless controller

Power: 1000W/1500W/2000W

Voltage: 36V-84V

Current limit: 40A

Undervoltage: automatic identification

MOS tube: 15mos

Phase: automatic identification (60 ° / 120 ° all can fit)

Brakes: low brake / high brake

1.hall

2.cruise

3.hall meter

4.intelligent recognition（self-learning）

5.high level brake

6.phase meter

7.PAS(pedal assist)

8.reverse

9.multiple data meter

10.low level brake

11.speed control handle （throttle）

12.electric door lock

13.three speed

14.anti-theft alarm signal

15.anti-theft alarm power

16.motor phase line

17.battery

How to connect controller？

1.connect the motor phase line(color to color）

2. connect the battery line(red:battery+ , black:battery-)

3. connect the controller throttle to throttle and need color to color connect,

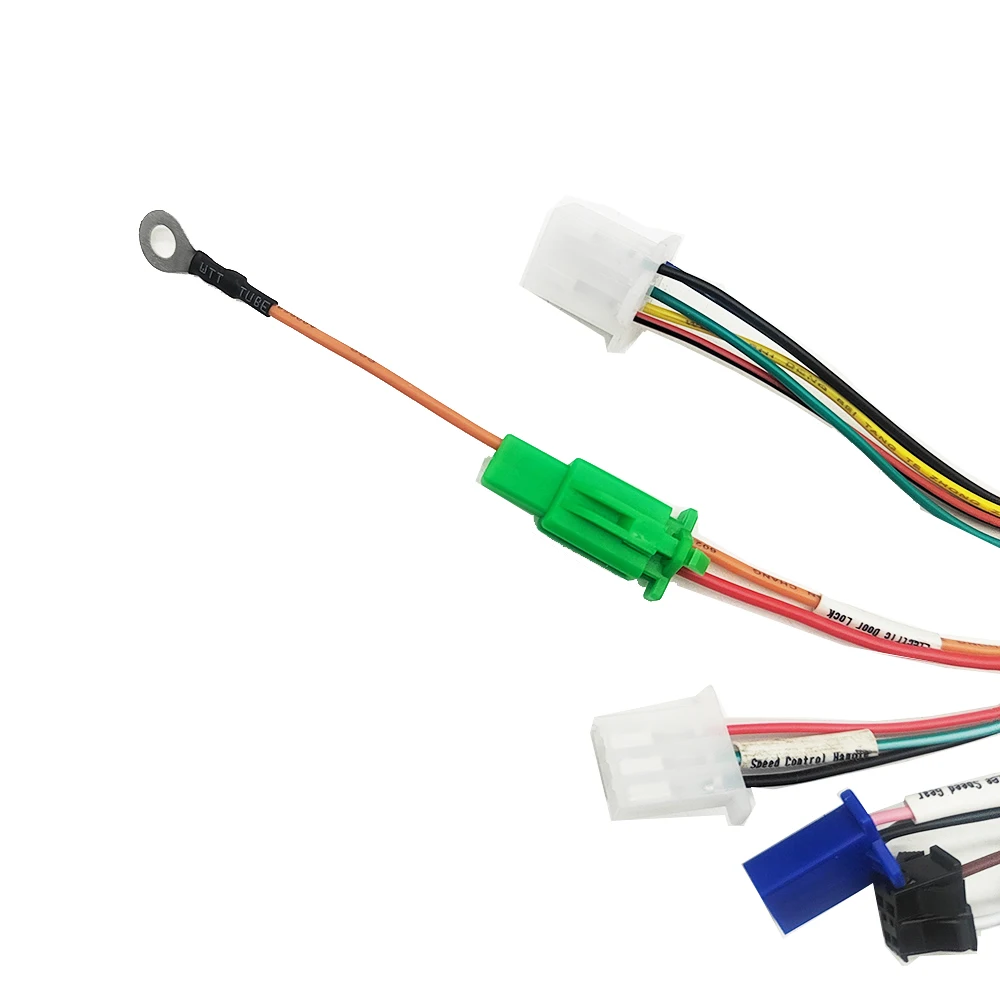

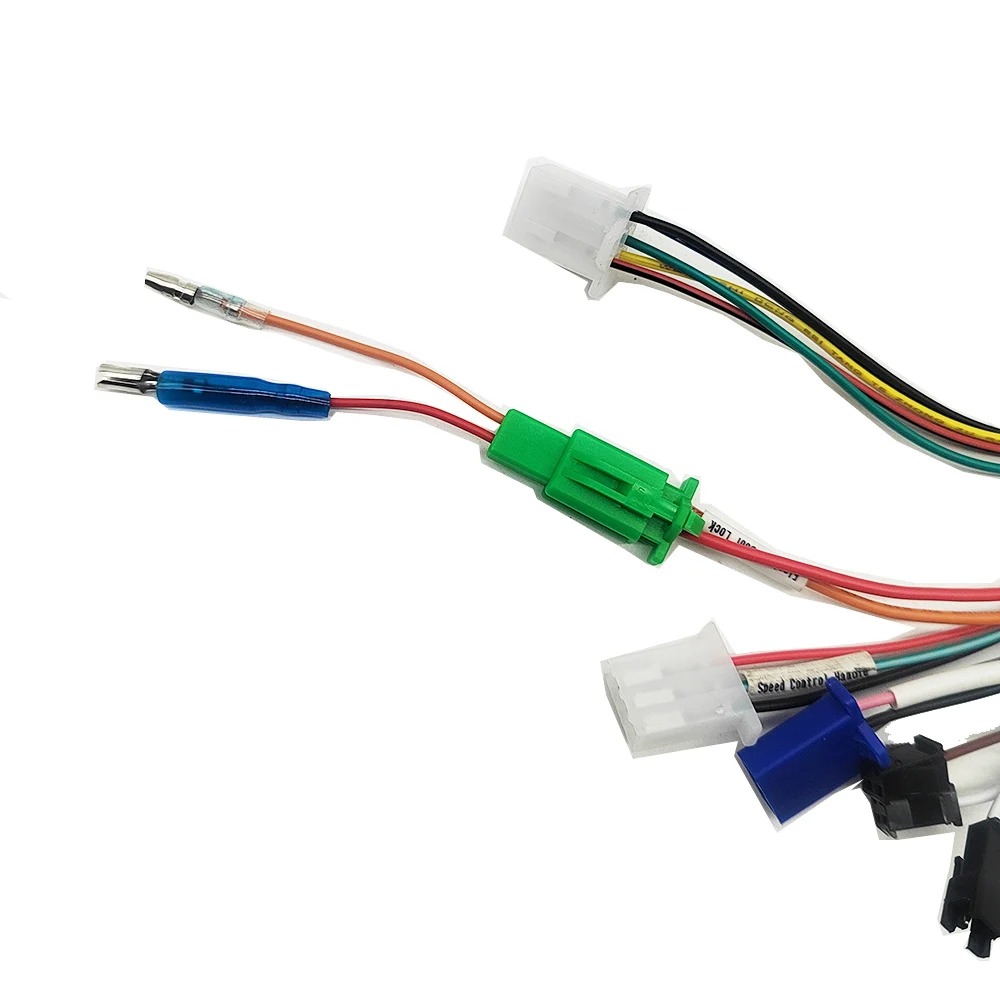

connect controller electric door lock to throttle electric door lock

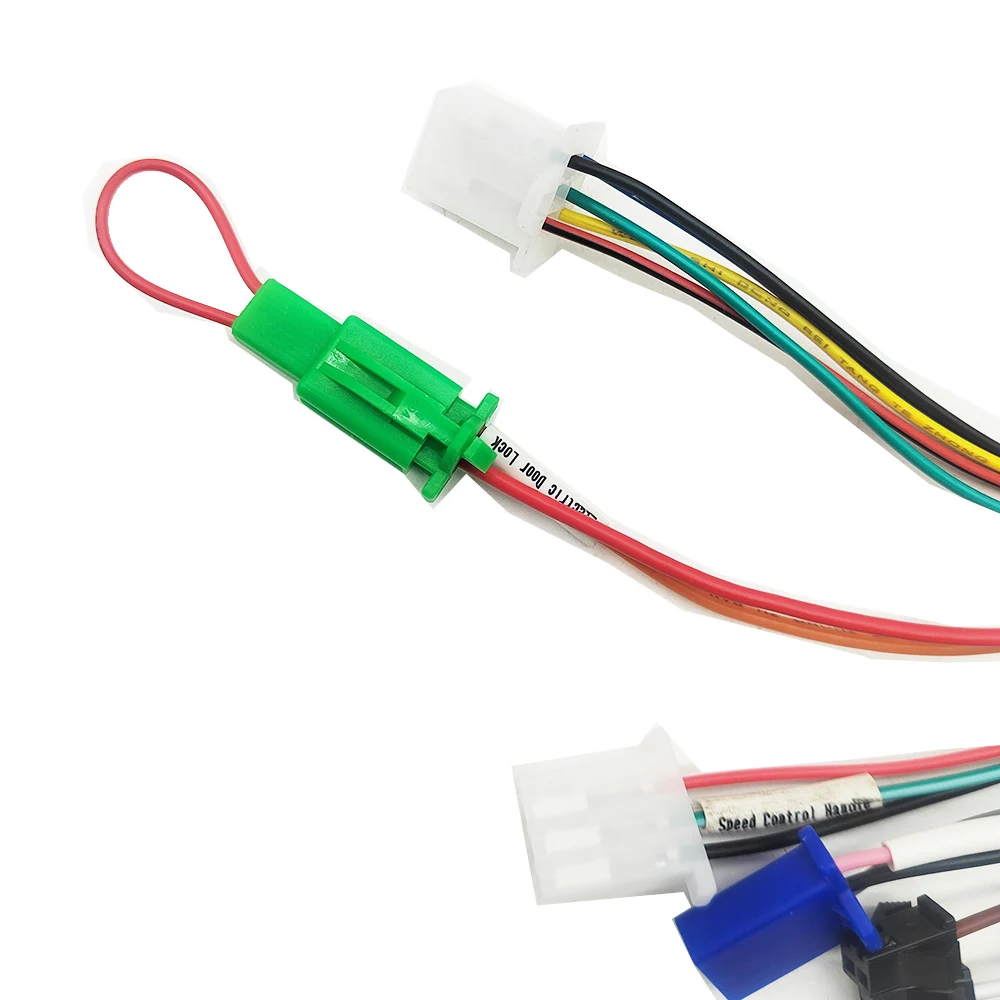

（if throttle not have electric door lock, controller electric door lock docking,

so controller electric door must connect ）

4. connect the hall line(if motor without hall line, don't need connect)

5.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again

if wheel forward ,Separate the self-learning line.)

6.other functions can be connected as needed.
