36V 48V DC to 24V DC 1A 3A 5A 10A 20A 30A Buck Step Down Voltage Power Converter 36 48 Volt to 24 Volt Golf Cart Regulator
|
Model |
Input Voltage Range |
Output Voltage |
Output current |
Output power max |
Conversion Efficiency |
Dimension excluding cable |
Net Weight |
|
F60J24V1A2S |
DC 30-60V |
DC 24V |
1A max |
24W max |
>90% |

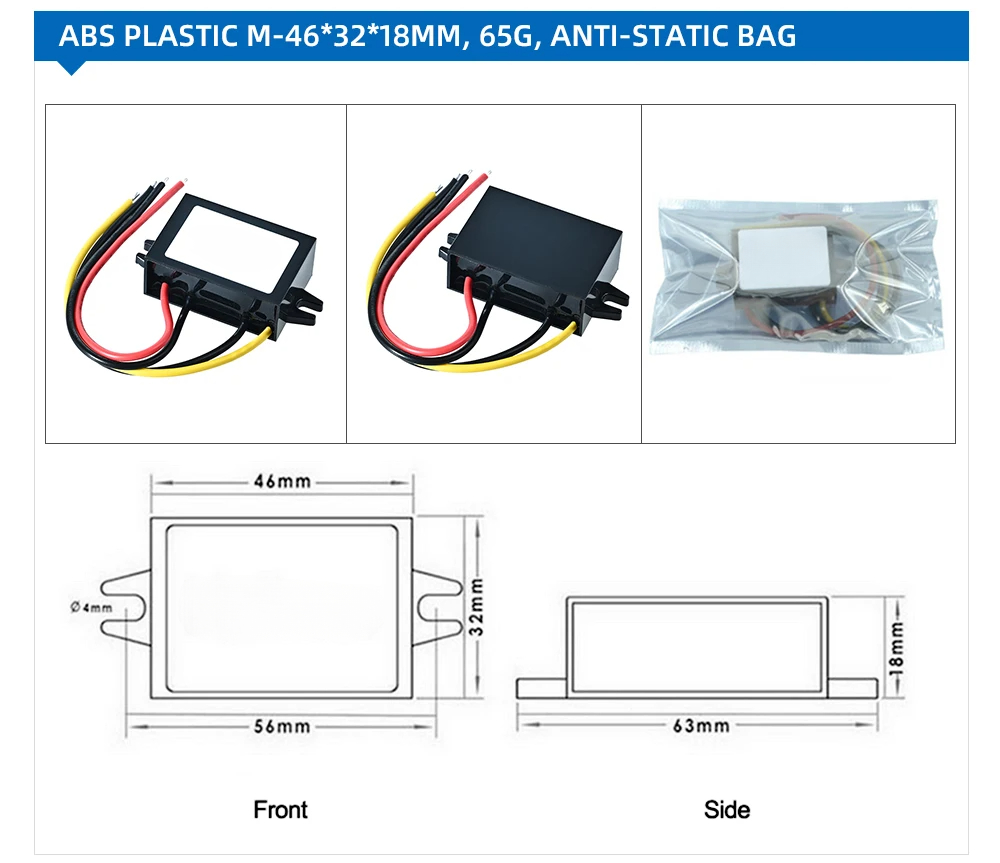

46*32*18mm |
65g |
|
F60J24V2A2S |
DC 30-60V |
DC 24V |
2A max |
24W max |
>90% |
46*32*18mm |
65g |
|
F60J24V3A2S |
DC 30-60V |
DC 24V |
3A max |
72W max |
>90% |
46*32*18mm |
65g |
|
F60J24V5A2S |
DC 30-60V |
DC 24V |
5A max |
120W max |
>90% |
46*32*18mm |
65g |
|

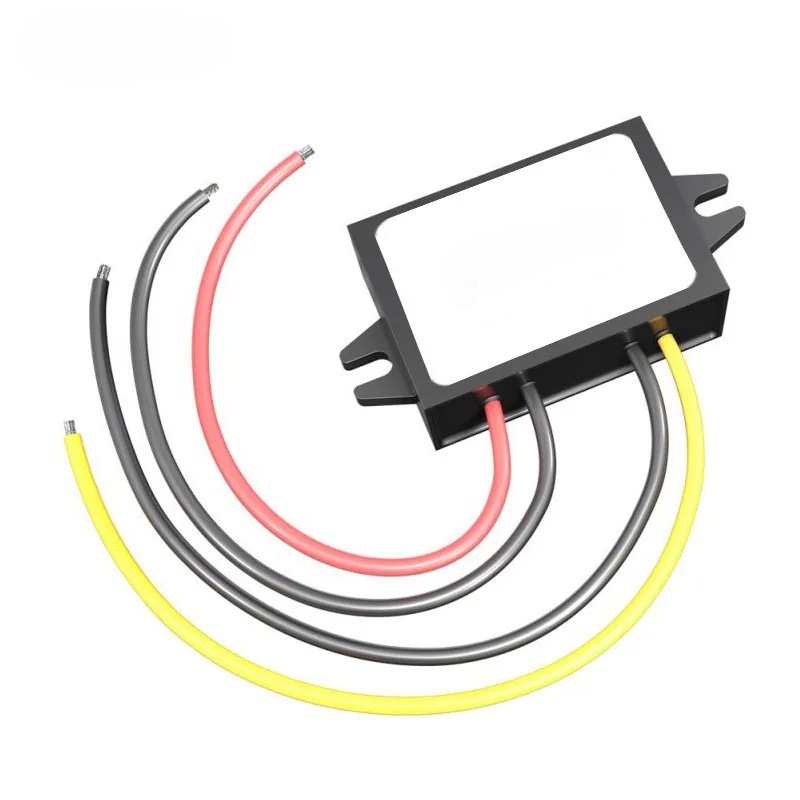

F60J24V3A3S |
DC 30-60V |
DC 24V |
3A max |
72W max |
>90% |

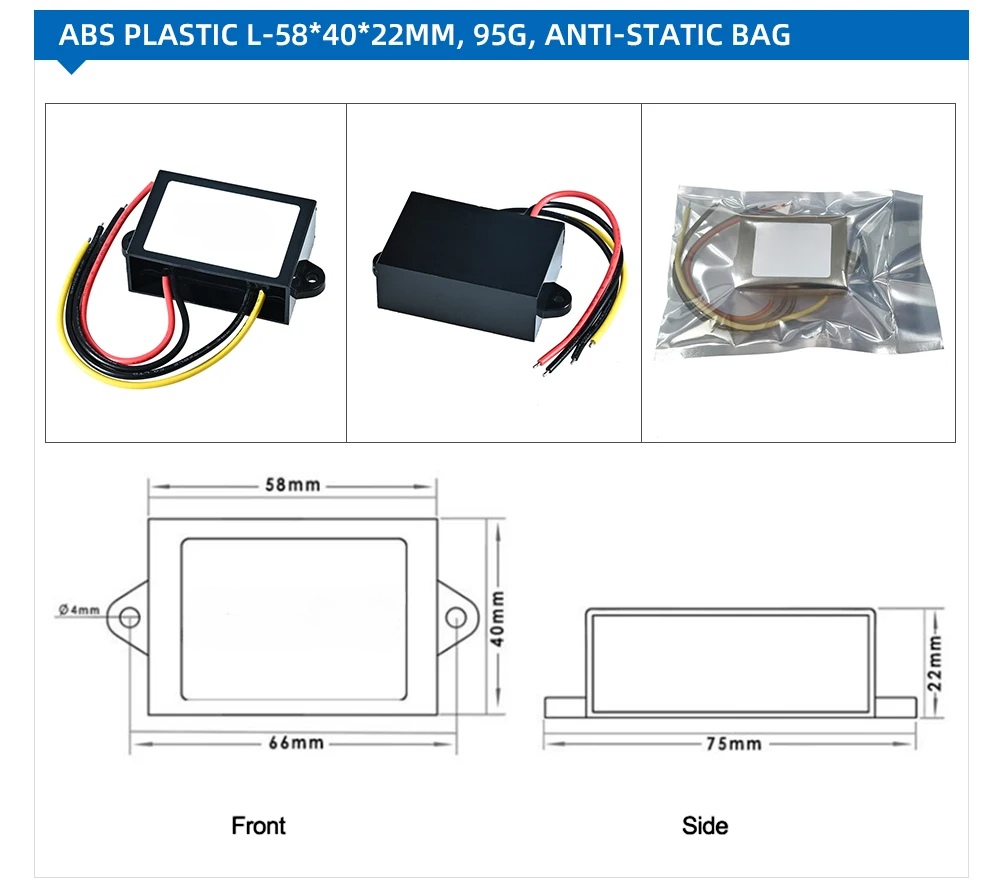

58*40*22mm |
95g |
|
F60J24V5A3S |
DC 30-60V |
DC 24V |
5A max |
120W max |
>90% |
58*40*22mm |
95g |
|

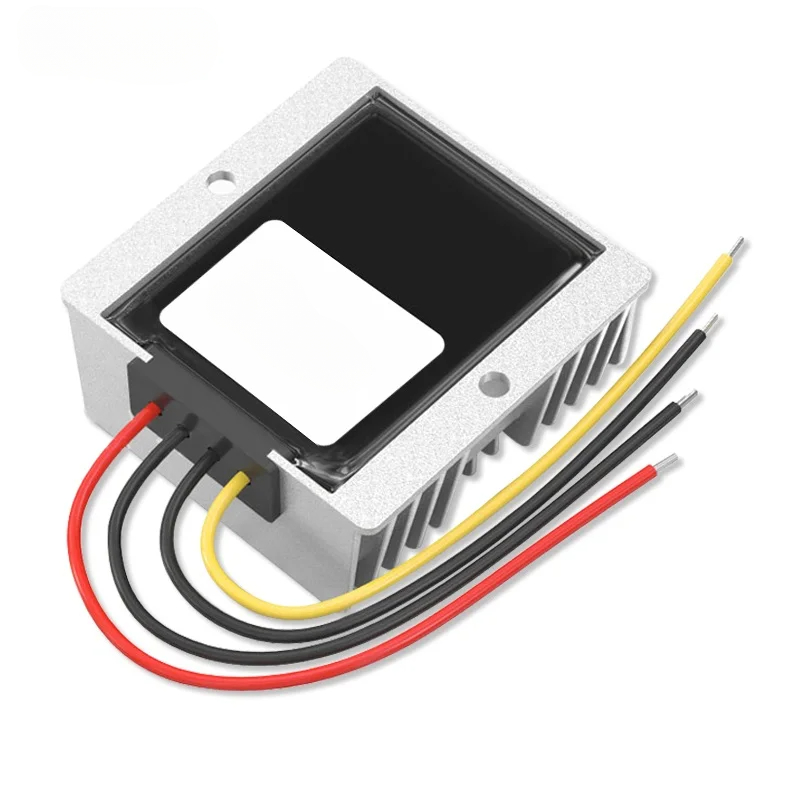

F60J24V5A5L |
DC 35-60V |
DC 24V |
5A max |
120W max |
>90% |

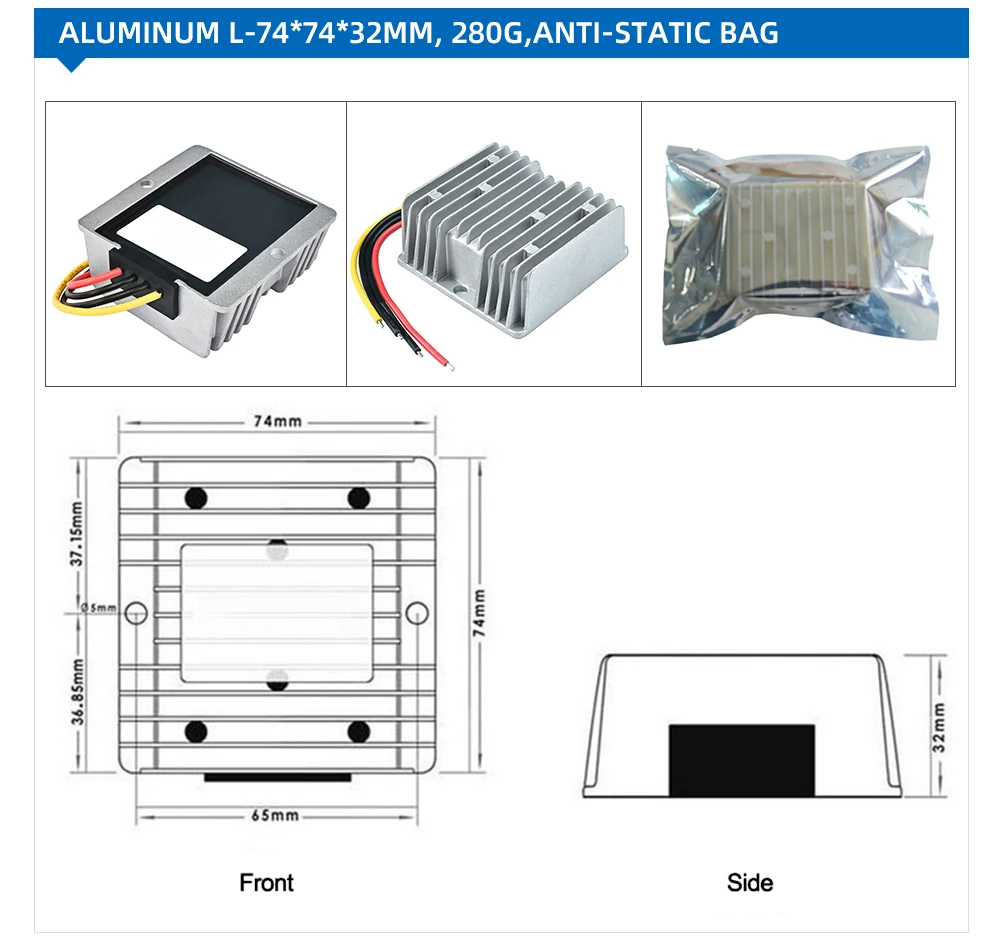

74*74*32mm |
280g |
|
F60J24V8A5L |
DC 35-60V |
DC 24V |
8A max |
192W max |
>90% |
74*74*32mm |
280g |
|
F60J24V10A5L |
DC 35-60V |
DC 24V |
10A max |
240W max |
>90% |
74*74*32mm |
280g |
|
F60J24V15A5L |
DC 35-60V |
DC 24V |
15A max |
360W max |
>90% |
74*74*32mm |
280g |
|
F60J24V20A5L |
DC 35-60V |
DC 24V |
20A max |
480W max |
>90% |
74*74*32mm |
280g |
|
F60J24V30A6L |
DC 35-60V |
DC 24V |
30A max |
720W max |
>90% |
100*80*39mm |
500g |
|
Product Name |
DC DC Converter 36V 48V to 24V 1A~30A Max |
|
Brand Name |
Fulree |
|
Model No. |
F60J24V*A**(First * for current Second ** for case No) |
|
Module Properties |
non-isolated buck module |
|
Rectification |
synchronous rectification |
|
Input cable length |
12cm |
|
Input Voltage |
DC 36V 48V |
|
Input Voltage Range |
DC 30-60V for 1A~5A / DC 35-60V for 5A~30A |
|
Outputcable length |
12cm |
|
Output Voltage |
DC 24V |
|
Output Current |
1A/2A/3A/ 5A/8/10A/15A/20A/30A Max |
|
Output Power |
24W/48W/72W/120W/192W/240W/360W/480W/720W Max |
|
Conversion Efficiency |
>93% |
|
Voltage regulation |
±1% |
|
Load regulation |
± 2% |
|
Ripple (Full load test) |
< 150mV |
|
No-load current |
<100mA |
|
Working Temperature |
-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
|
Waterproof Rating |
IP68 |
|
Protection |
Over-current protection / Overheating protection / Short circuit protection / waterproof IP68 design, anti-shock protection |
|
Application |
mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. |
|
Case Material |
As above table |
|
Product Size (L x W x H) |
As above table |
|
Product Weight |
As above table |
|
Warranty |
12 months |
|
Cooling Way |
Free air convection |
|
OEM&ODM Service |
Acceptable |
