Flat Joining Plate 2.5mm Heavy Duty Galvanised Steel Timber Fencing
Certified structural flat joining plates to EN 14545, 2.5mm galvanised steel, pre-punched fixing holes both sides.
✅ Suitable for: General fixing and construction (100-280mm)
Fast UK
Delivery
Delivery
60-Day
Free Returns
Free Returns
Strict Quality
Control
Control
Z275 Galvanised Steel
Corrosion resistance in exposed structural applications.
EN 14545:2008 Certified
System 2+, assessed by notified body Building Research Institute (ITB).
220 N/mm² Yield Strength
With minimum 20% elongation, declared characteristic performance.
Service Class 1 & 2 Rated
Z275 coating rated under EN 1995-1-1 (Eurocode 5).
2.5mm Plate Thickness
For a rigid, load-spreading connection across the joint.
Full 100-280mm Range
Six sizes available, from 100x35mm up to 280x55mm.
Pre-Punched Fixing Holes
On both sides of the joint, ready for nail or screw fixing.
Flat Profile
Suits butt joints, splices, lap joints and crack or weak-point repairs.

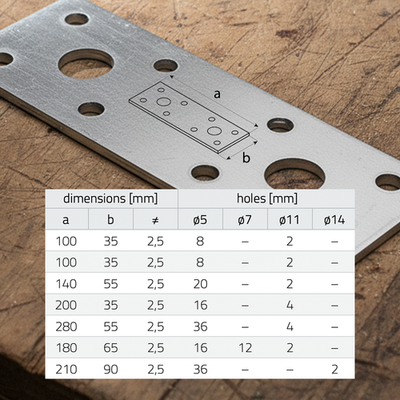

Technical Specification
| Material | Z275 Galvanised Steel |
| Standard | EN 14545:2008, System 2+ |
| Yield Strength | 220 N/mm² |
| Thickness | 2.5mm |
| 100x35mm | 3.94"x1.38" |
| 140x55mm | 5.51"x2.17" |
| 180x65mm | 7.09"x2.56" |
| 200x35mm | 7.87"x1.38" |
| 210x90mm | 8.27"x3.54" |
| 280x55mm | 11.02"x2.17" |
