BE19000 Tri-band Wi-Fi 7 Router, support new 320 MHz bandwidth & 4096-QAM, Multi-link operation (MLO), dual 10 G ports, backup WAN, subscription free network security and AiMesh support

  • Next-gen Wi-Fi standard – Ultrafast Wi-Fi 7 (802.11be) tri-band Wi-Fi router boosts speeds up to 19,000 Mbps
  • 2.4X higher speed with lower signal delays and interference – 6 GHz with new 320 MHz bandwidth & 4096-QAM
  • Dual 10 Gb ports – Enjoy up to 10X-faster data transfer speeds for bandwidth-demanding tasks with two 10 Gbps WAN/LAN ports
  • Multi-link connection – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
  • Commercial-grade network security – The latest ASUS technologies protect you from multiple types of threats extendable router icon

    Extendable Router icon
slide 1 of 7, show larger image, rt-be96u
slide 1 of 7, zoom in, rt-be96u
slide 2 of 7, zoom in, rt-be96u
slide 3 of 7, zoom in, rt-be96u
slide 4 of 7, zoom in, rt-be96u
slide 5 of 7, zoom in, rt-be96u
BE19000 TRI-BAND WiFi7 ROUTER RT-BE96U

2X Higher Capacity

Wi-Fi 7 introduces all-new ultrawide 320 MHz channels, doubling data transmission capacity. You can think of networking as a virtual freeway and the doubled bandwidth as a doubling of the number of lanes. Now larger vehicles are allowed to get on the freeway and can pack more data than ever before.

20% Higher Transmission Rate

With the introduction of 4K-QAM, Wi-Fi 7 can improve data transmission rates versus Wi-Fi 6/6E by up to 20%, because a higher QAM can pack signals more densely. Continuing with the freeway analogy, now higher QAM permits more merchandise to be loaded into every vehicle. In other words, you can now upload and download more data in the same time frame as before.

Reliable Wi-Fi with Multi-Link

Before Wi-Fi 7, transmissions were limited to one band, such as 2.4 GHz or 5 GHz. Multi-Link Operation (MLO) allows a device to simultaneously connect on multiple bands, enabling faster speeds by aggregating bandwidth, with more reliable Wi-Fi connections on multiple concurrently used bands. Connecting to multiple SSIDs in this manner also enables “seamless switching” where your data will automatically be allocated to the most suitable band to reduce latency.
RT-BE96U sending out one 5GHz band and one 6GHz band, two bands aggregates with simultaneous MLO technology for larger bandwidth, while 5GHz band and 6GHz combing into one with alternating MLO technology for seamless switch. Two bands received by smart phone, smart phone is connected to 5GHz and 6GHz band simultaneously.
*Simultaneous MLO means STR (Simultaneous Transmit and Receive) mode, which is scheduled to be released by 2023 Q4. Alternating MLO means eMLSR (enhanced Multi-Link-Single-Radio) mode, which is scheduled to be released by 2024.

Flexible Network Port Configuration

The RT-BE96U’s dual 10 Gbps ports make it a great choice for servers or NAS devices. These are more convenient than simply combining multiple gigabit Ethernet ports, and they help increase your available bandwidth to avoid data bottlenecks throughout your whole network. Users are also empowered to leverage multiple high-speed internet service providers.
Disassembly diagram of RT-BE96U, marking the top cover as special designed vent, second layer as full-sized aluminum plate, three parts on third layer as aluminum heatsinks with nanocarbon coating and 2 center meter router stand at the bottom. Blue cool air entering the router from the router stand, going through layer two and three, the air turns red, and exit from the vent on top.

Cool and Stable

The RT-BE96U is engineered to deliver maximum Wi-Fi performance. The increased clearance under the router is designed to improve airflow through the vents, complementing the quadruple heatsink for even greater reliability.


  1. Special designed vent

  2. Full-sized aluminum plate
  1. Aluminum Heatsinks x3
    With nanocarbon coating
  2. 2 cm router stand


Commercial-Grade Security for Your Home

Flexible VPN Settings

Instant Guard gives you one-click secure internet access via the RT-BE96U from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With the RT-BE96U, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

The site-to-site VPN feature also helps ensure that your data is transferred safely between routers located on different networks.

A business man using laptop in airport, linking to WiFi sent from RT-BE96U at home via VPN.

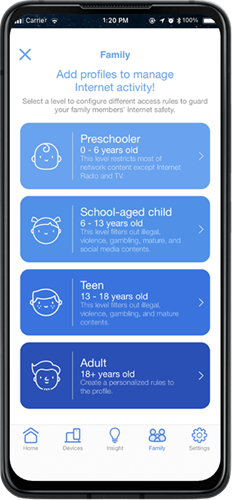

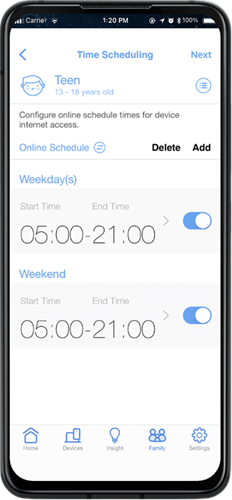

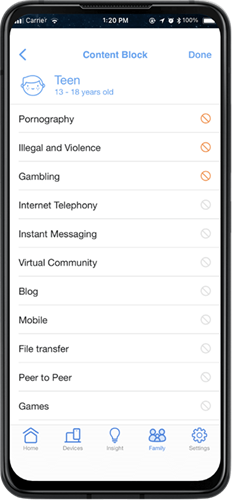

Parental Controls

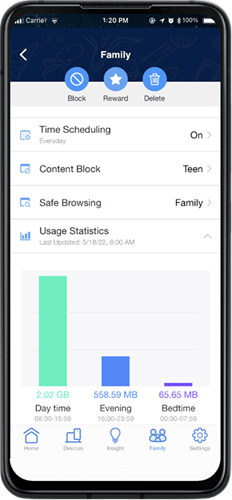

Smart phone showing ASUS router app user interface for internet management of certain family member, including time scheduling setting, content block setting, safe browsing setting and usage statics of each day.
Internet Activity Dashboard

Internet Activity Dashboard



Check network activity on the graphical dashboard to monitor internet peak time and content viewed by your children. You can also view the aggregated data of group devices and apply scheduled screen time and content filters with just a few taps.
  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
  • The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

  • The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
  • Actual data throughput and Wi-Fi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
  • Quoted network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.
  • WPA/WPA2 enterprise is only available on single router, is not available under AiMesh mode.
  • When traditional QoS is enabled, there will be limitations due to the actual Internet service bandwidth and different environment, and there may be a risk of speed reduction.
  • Due to the different power supply requirements on USB external hard disk and 4G/5G Modem device, to ensure that the external device can be used stably, if the USB external device exceeds the standard USB 2.0 (5V/500mA) and USB 3.1 Gen 1 (5V/900mA) power supply requirements, you need to use it with an independent external power supply.
  • If you use the product in conjunction with a third party service, you are responsible for complying with the third party provider's terms and conditions and privacy policy and are also at the risk of such use. ASUS does not provide support or guarantee continuous integration support for products that are not part of ASUS.
  • ASUS makes no representations or warranties about this product’s compatibility with future standards.
  • 6GHz band is limited to indoor range. Clients must support 6GHz band.
  • MU-MIMO capability requires both router and client device to support MU-MIMO.
  • The feature require a Wi-Fi 7 capable device. Expected firmware release by Q4 2023.
