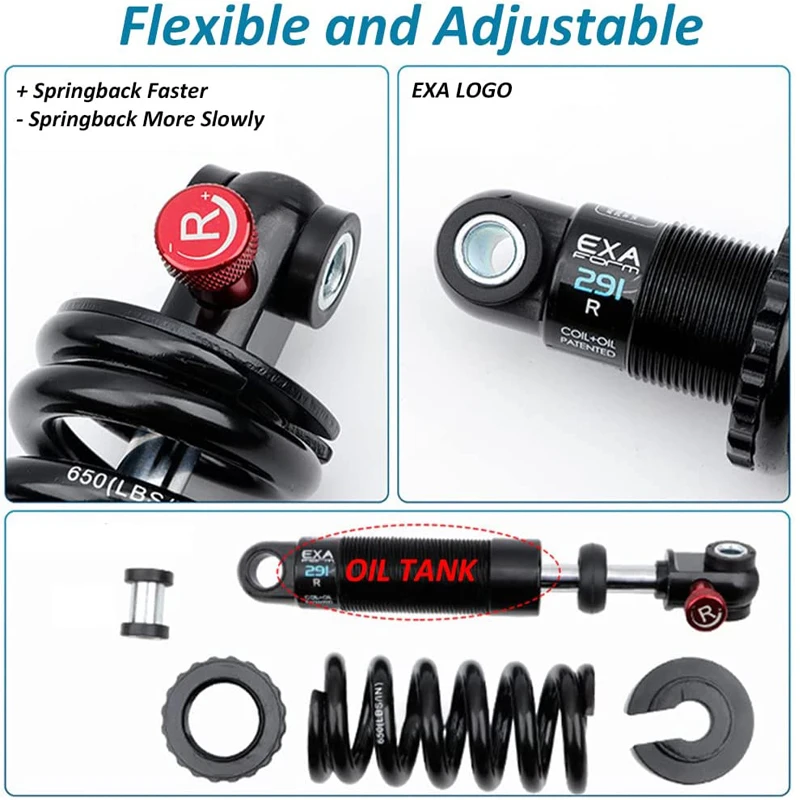

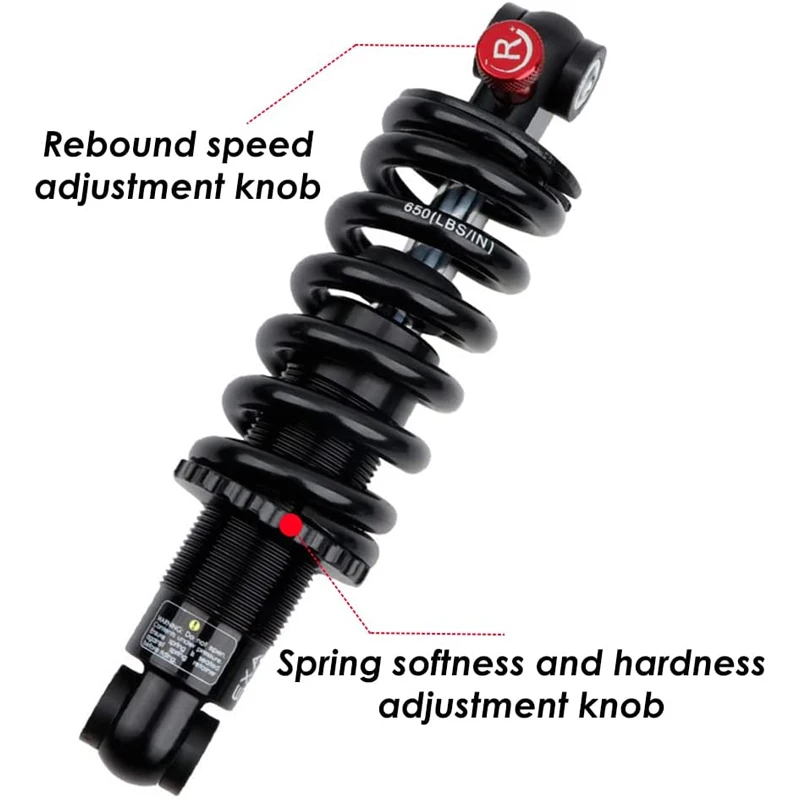

ADJUSTMENT: Preload, rebound damper adjustable

WEIGHT: 166-211g (without coil), 450g-600g(with coil)

USE: XC / recreational / youth/MTB

SPRING TYPE: Coil

DAMPING: Hydraulic

MATERIAL: CNC alloy

FINISH: Anodized

BUSHING: spherical bearing

COLOR: Black

Install angle: 70 degree

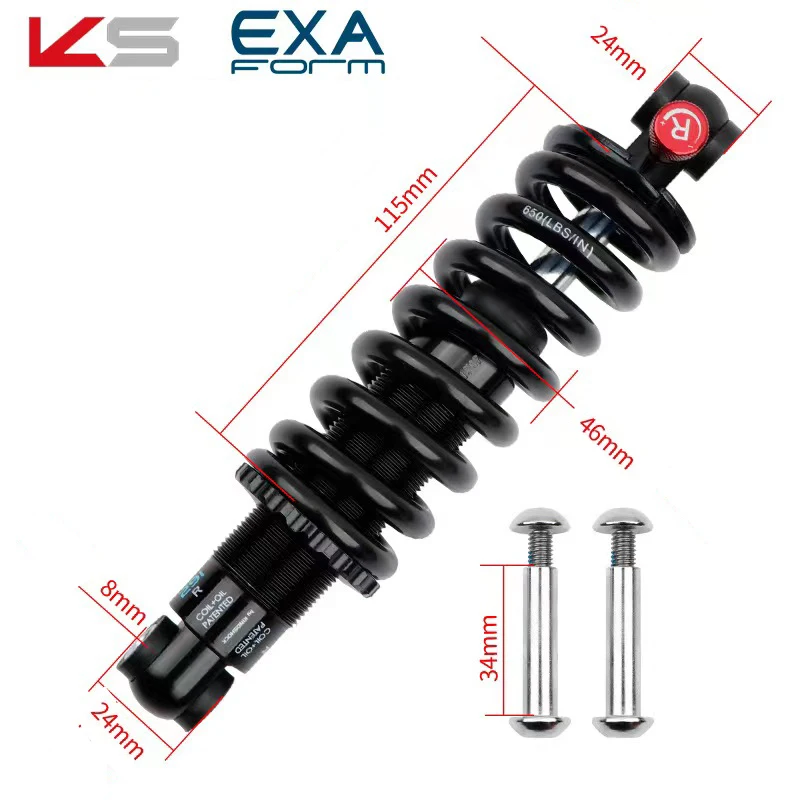

Bolt diameter 8mm

Absorber body diameter 45.5mm

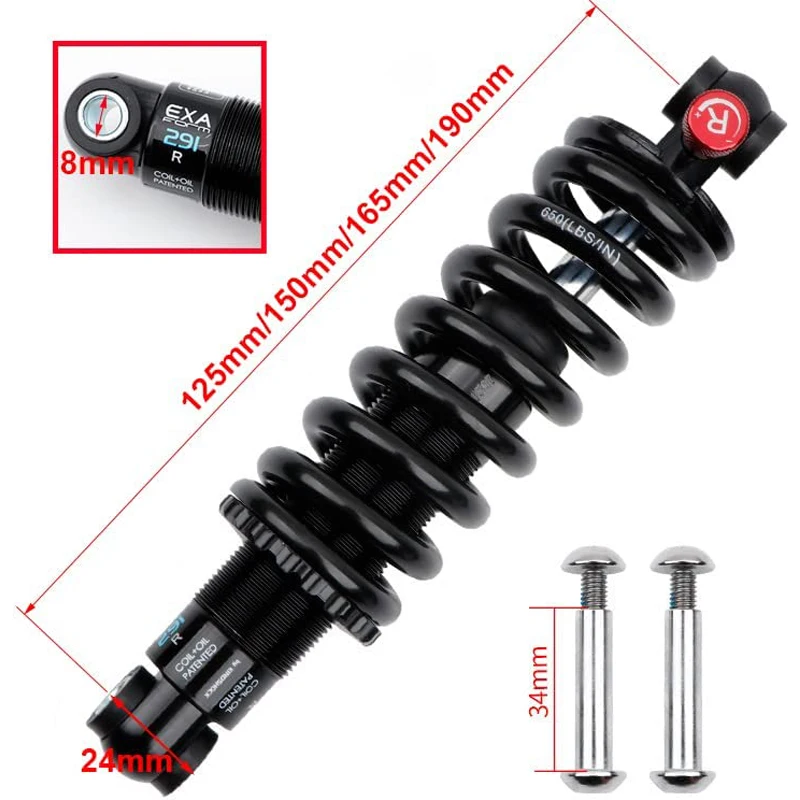

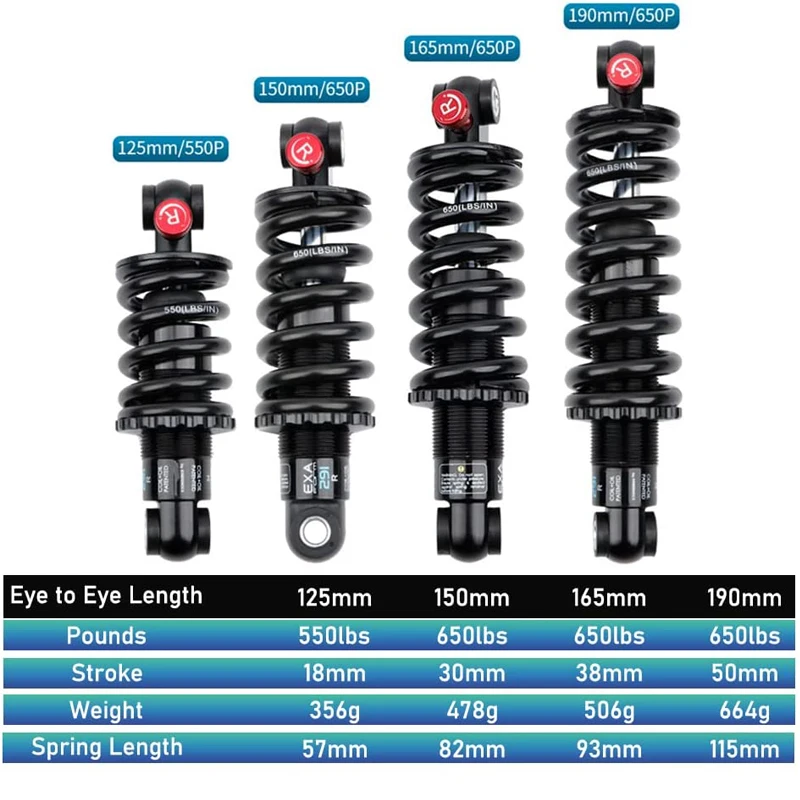

LENGTH / TRAVEL:(eye to eye, hole center to hole center)

125 / 18mm

150 / 30mm

165 / 38mm

185 / 48mm

190 / 50mm

Recommended LBS:

Spring Pound Rates/ Rider weight:

Rider weight-KG , Suggestted Spring LBS

35kg , 400LBS to 650LBS

45kg , 450LBS to 750LBS

55kg , 600LBS to 850LBS

65kg , 650LBS to 950LBS

75kg , 800LBS to 1000LBS

85kg , 850LBS to 1150LBS

95kg , 1000LBS to 1250LBS

105kg , 1050LBS to 1500LBS
