Description:

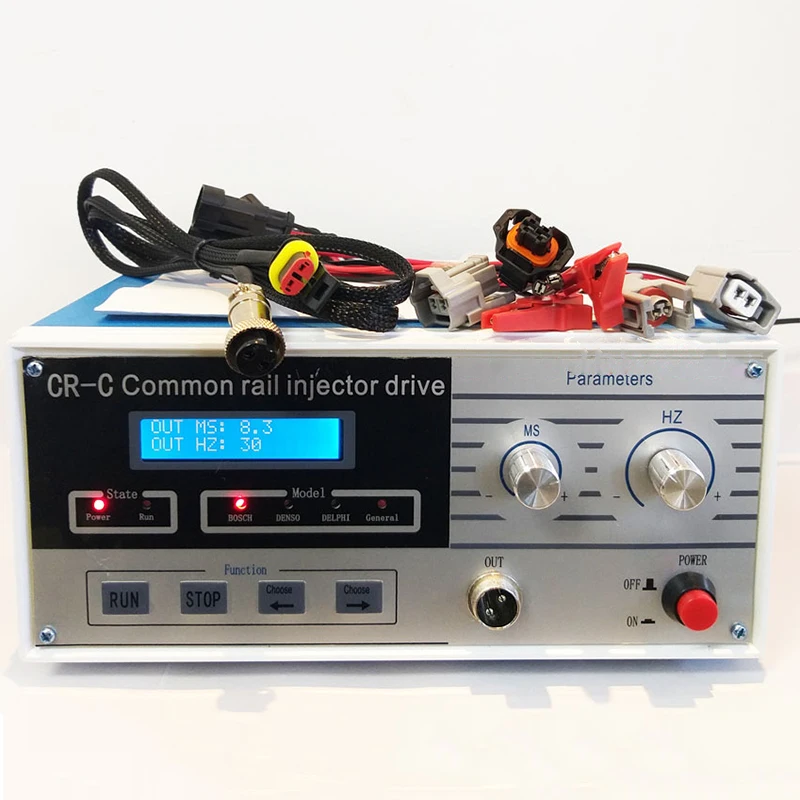

CR-C multifunction common rail injector tester adopts Germany Imported PWM control chip that can accurately and effectively to imitate ECU drive signal for each work condition of injector. such as pre injection, emission point, full load point conditions.

CR-C common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It’s small size and light weight, could meet the requires from repairman on the simple device of testing.

Specification:

Produce Model: CR-C Common Rail Injector Tester

Testing Range: Atomization, pilot, emission and full load condition.

Test Injectors: for bos-ch, for Den-so, and for Del-phi common rail injectors.

Power Supply:AC110v-240V

Working Temperature: -30C°-70C°

Size: 110*250*190mm

Adjustable Width: 10 MS

Weight: 2kg

Package Include:

1 x CR-C Main Unit Machine

1 x Main Test Cable

1 x For Bos-ch Connector

1 x For Del-phi Connector

1 x For Den-so Connector

1 x Cable Clip connector
