Product Description

KOLSOL F02 F02 Pro Underground Cable Locator Tester Wire Tracer With Earphones

Please Note:

If you need to return the item for some reasons, please contact us via eBay message at the first time to get the RMA#,and return address instead of sending back directly without permission,thank you!

This item only shipped to United States,If you are Buyers from United States, Only take 2-9 Days for Delivery.

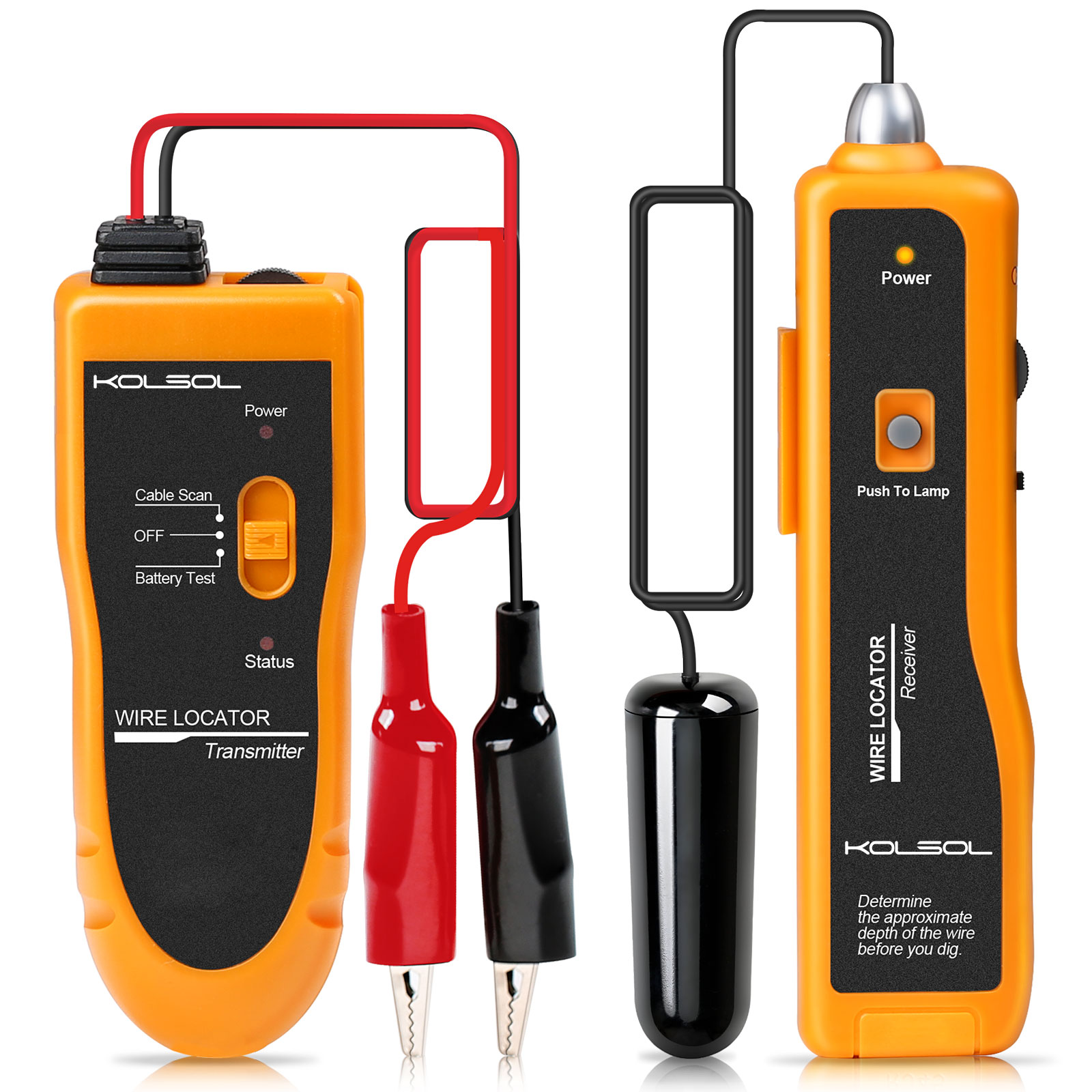

KOLSOL F02 Underground Cable Locator, Wire Tracer with Earphone, Cable Tester for Dog Fence Cables Irrigation Control Wires



The KOLSOL F02 underground wire locator is designed to locate the path of non-energized wires behind walls and underground. Moreover, it is also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground.


Main Features of KOLSOL F02:

【Time and Money Saver】Helpful-Locating & tracking buried and hidden wires.No more calls,no more cost, find and fix it by yourself.

【Where You Can Locate】Locate-Determining Which Receptacles are on specific circuits,track-Pinpointing Drill Sites before drilling.

【Range of Parameters】Wire tracer range-Up to 2-3 feet deep and 1000 feet in length.

【Earphone & Tips】Get a free Earphone with package. Tips: Do not use on live circuits to avoid damaging the tester! This device is mainly to locate non-energized cable, or low-voltage situation less than 24V.

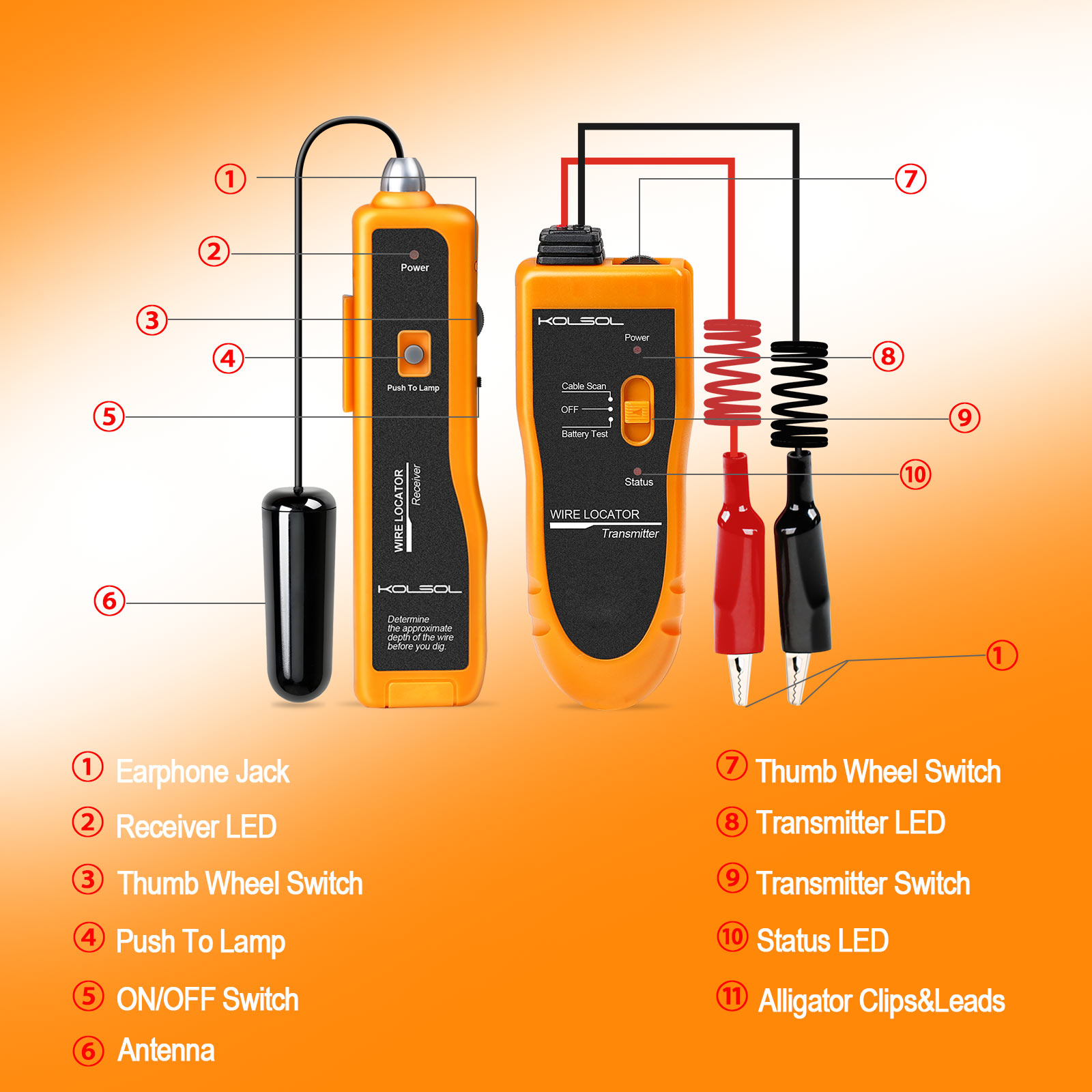

Main Functions of KOLSOL F02:

Locating & tracking buried and hidden wires and other hidden-wires.

Up to 3 feet depth and 1000 feet in length

Determining which receptacles are on specific circuits

Pinpointing drill sites before drilling

White LED flash light and earphone

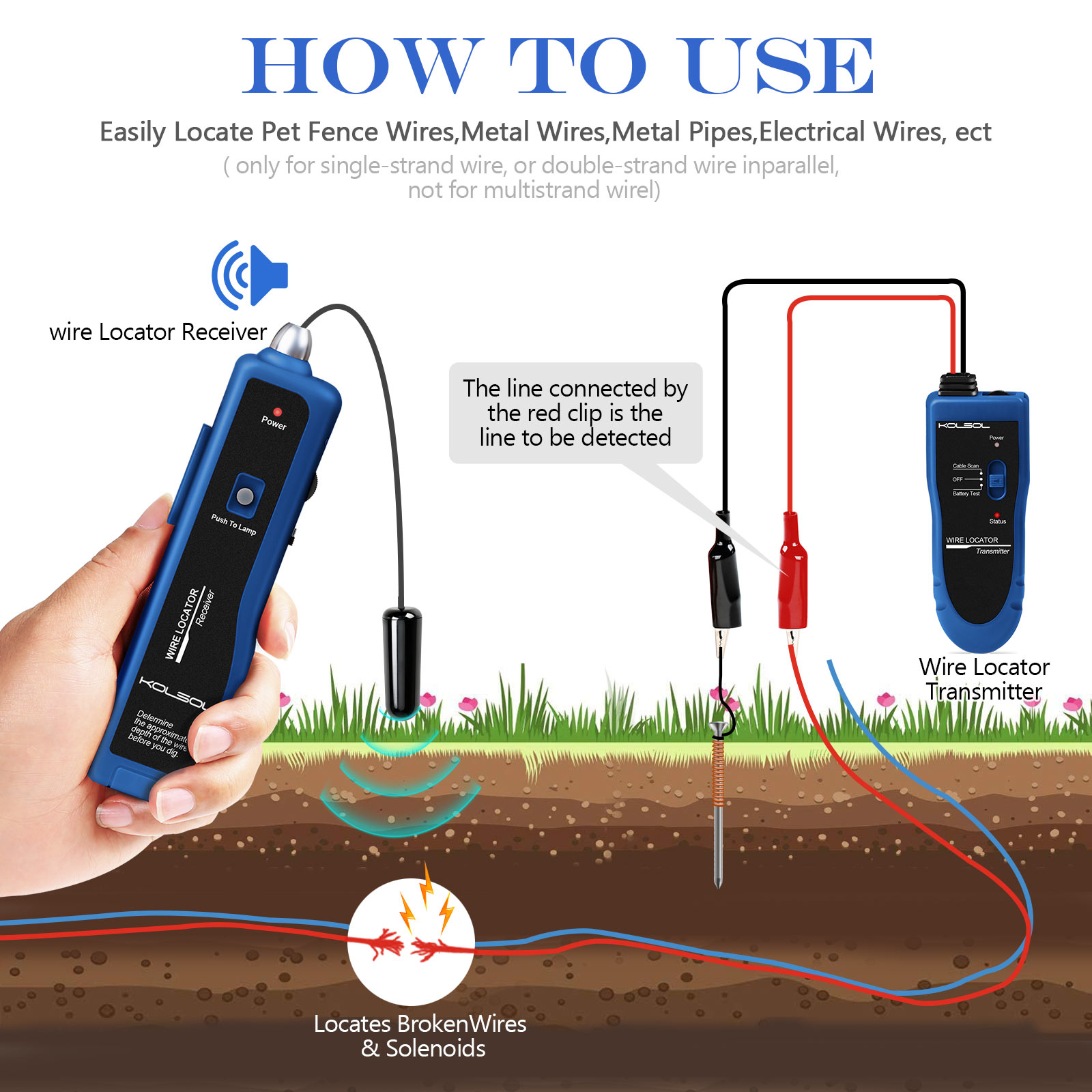

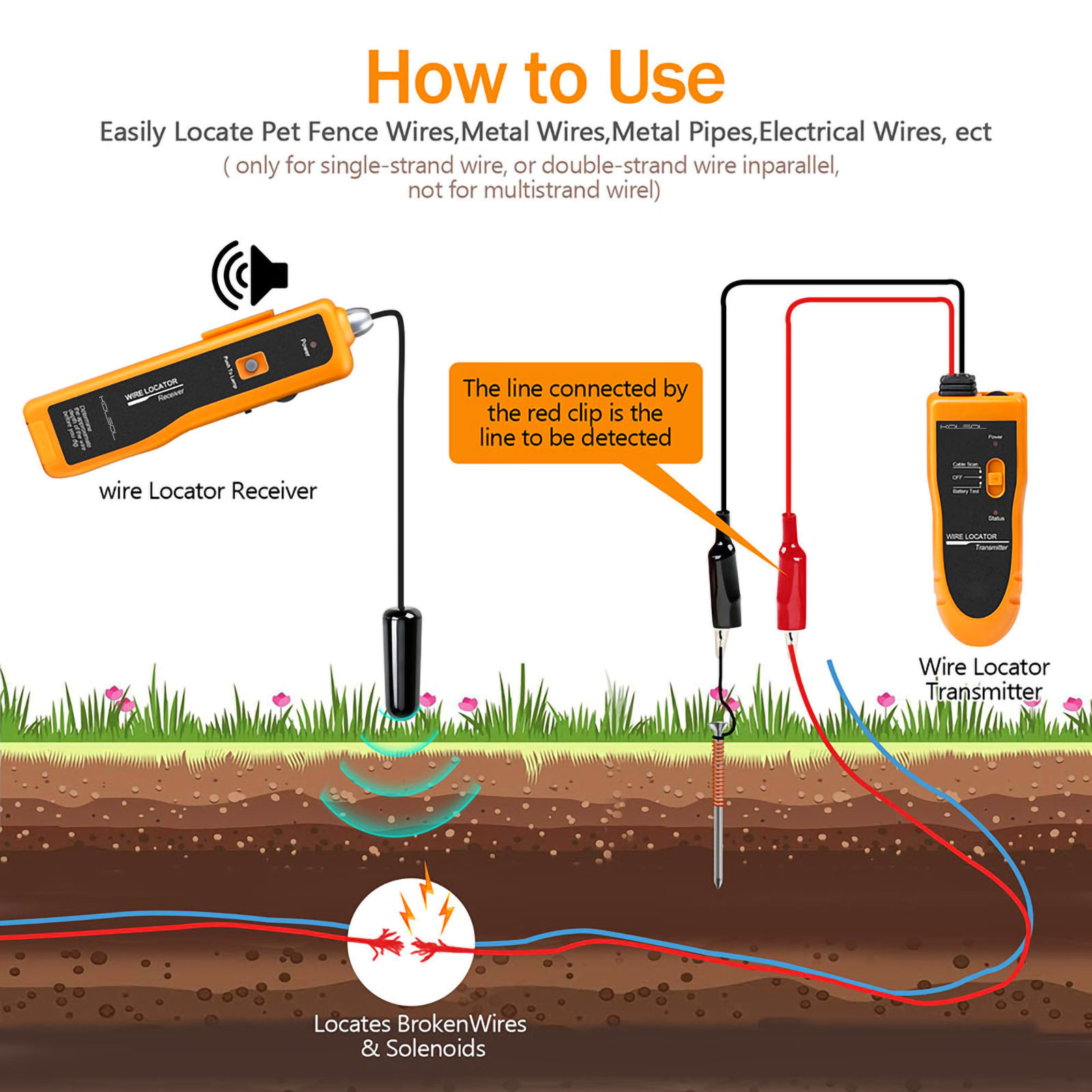

How to Use KOLSOL F02

Easily Locate Pet Fence Wires, Metal Wires, Metal Pipes, Electrical Wires, ect ( only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!)


The Specifications of KOLSOL F02：

Manufacturer

Shenzhen kolsol Technology Co. Ltd

Part Number

TL25

Item Weight

14.9 ounces

Package Dimensions

11.14 x 5.94 x 1.85 inches

Item model number

F02

Color

Yellow

Material

‎Plastic

Certificates

CE

Item Package Quantity

‎1

Batteries

2pcs 9V  Zinc manganese batteries required. (Not included)

Batteries Included?

Yes

Batteries Required?

Yes

‎Is It Discontinued By Manufacturer

No


F02 Transmitter specifications:

Tone frequency:200kHz

The Max length distance:1000 feet

The Max depth distance:3 feet

The Max. working current:Less than 70mA

Tone mode:1 Tone

Max. signal voltage:15Vp-p

Signal display:Signal tone, Antenna

Voltage protection:AC 60V/DC 42V

Battery type:DC9.0V（NEDA 1604/6F22) x 1pc

Dimensions (LxWxD):49 x 135 x 33mm


F02 Receiver specifications:

Frequency:200kHz

The Max. working current:Less than 70mA

Earphone jack:1

Battery type:DC9.0V（NEDA 1604/6F22) x 1pc

Dimensions (LxWxD):43 x 168 x 27mm

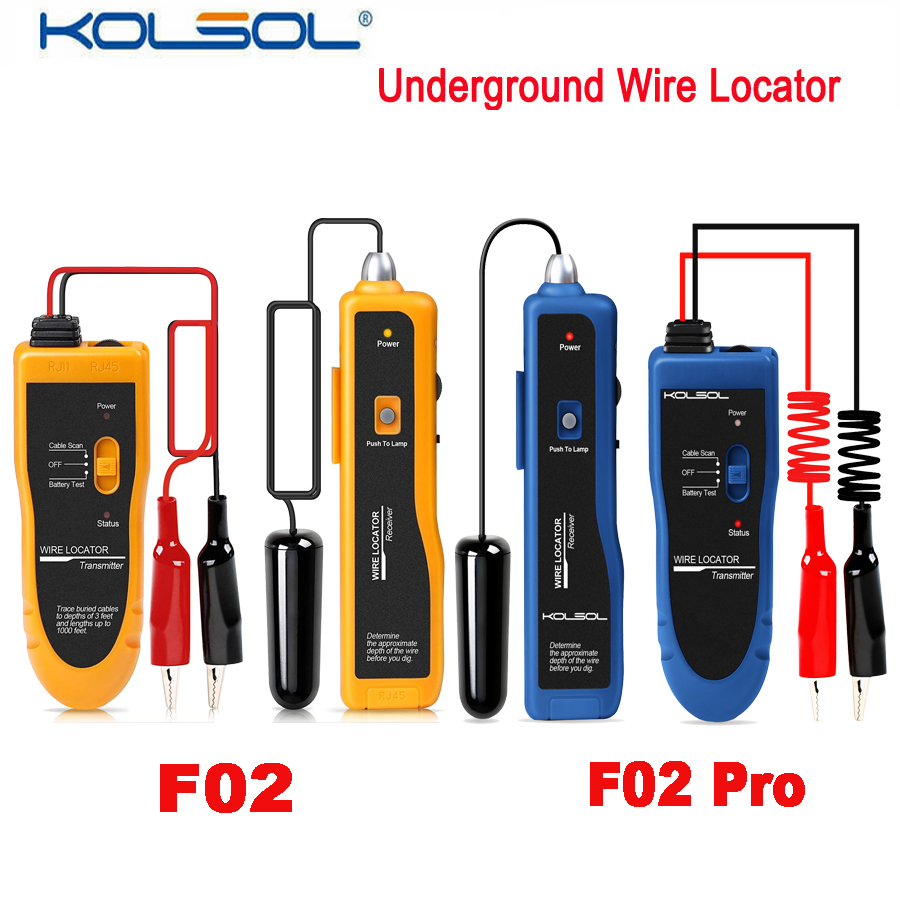

Product Comparison Chart:

Product Name

F02 Pro

F02

Product Picture





Depth

 3-4 feet

 2-3 feet

Length

 2000 feet

1000 feet

Battery

 Rechargeable 1100mAh battery

9V batteries

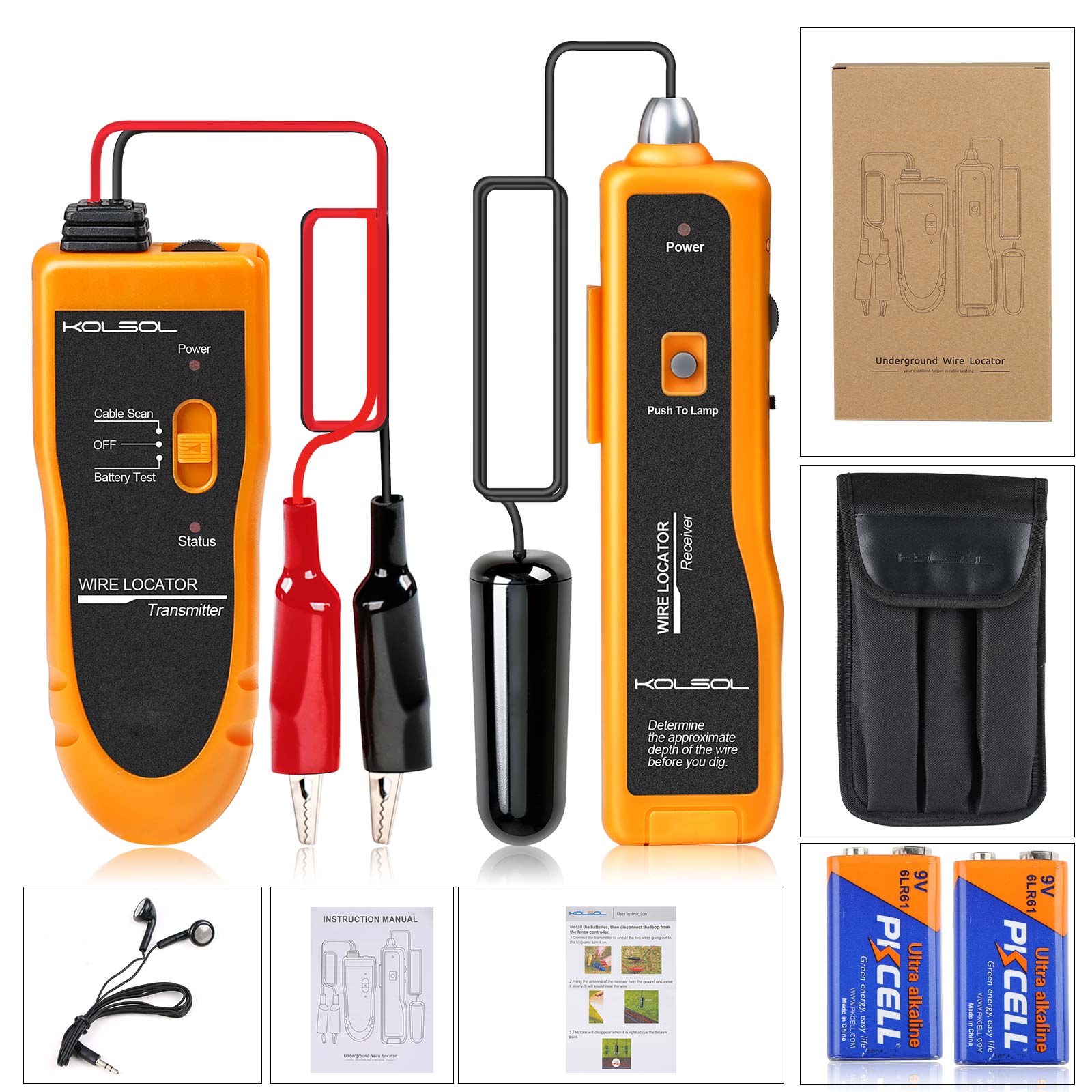

Package Includes:

1 pc x Emitter

1 pc X Receiver

1 pc x Earphone

1 pc x Kit Bag

1 pc  x Instruction Manual

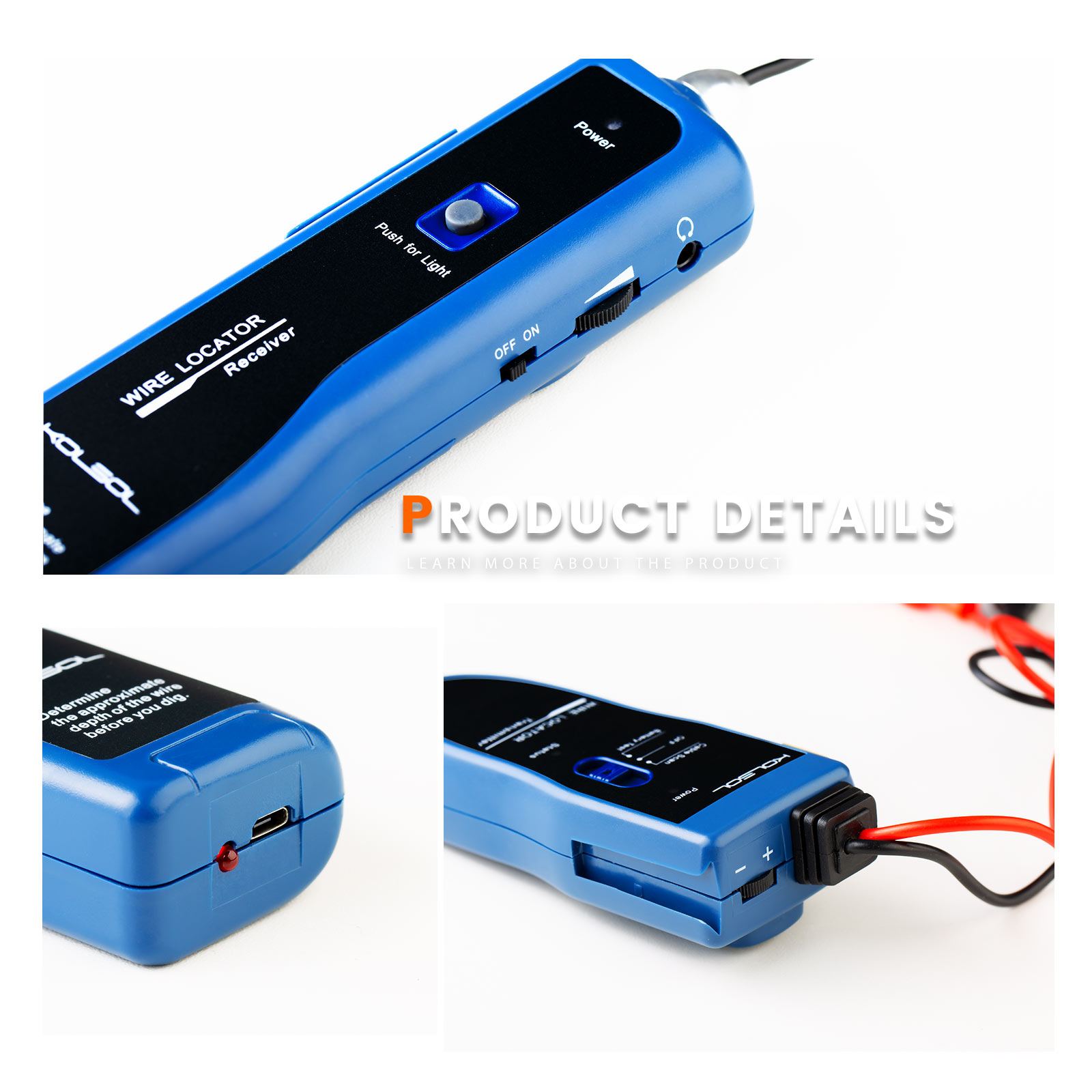

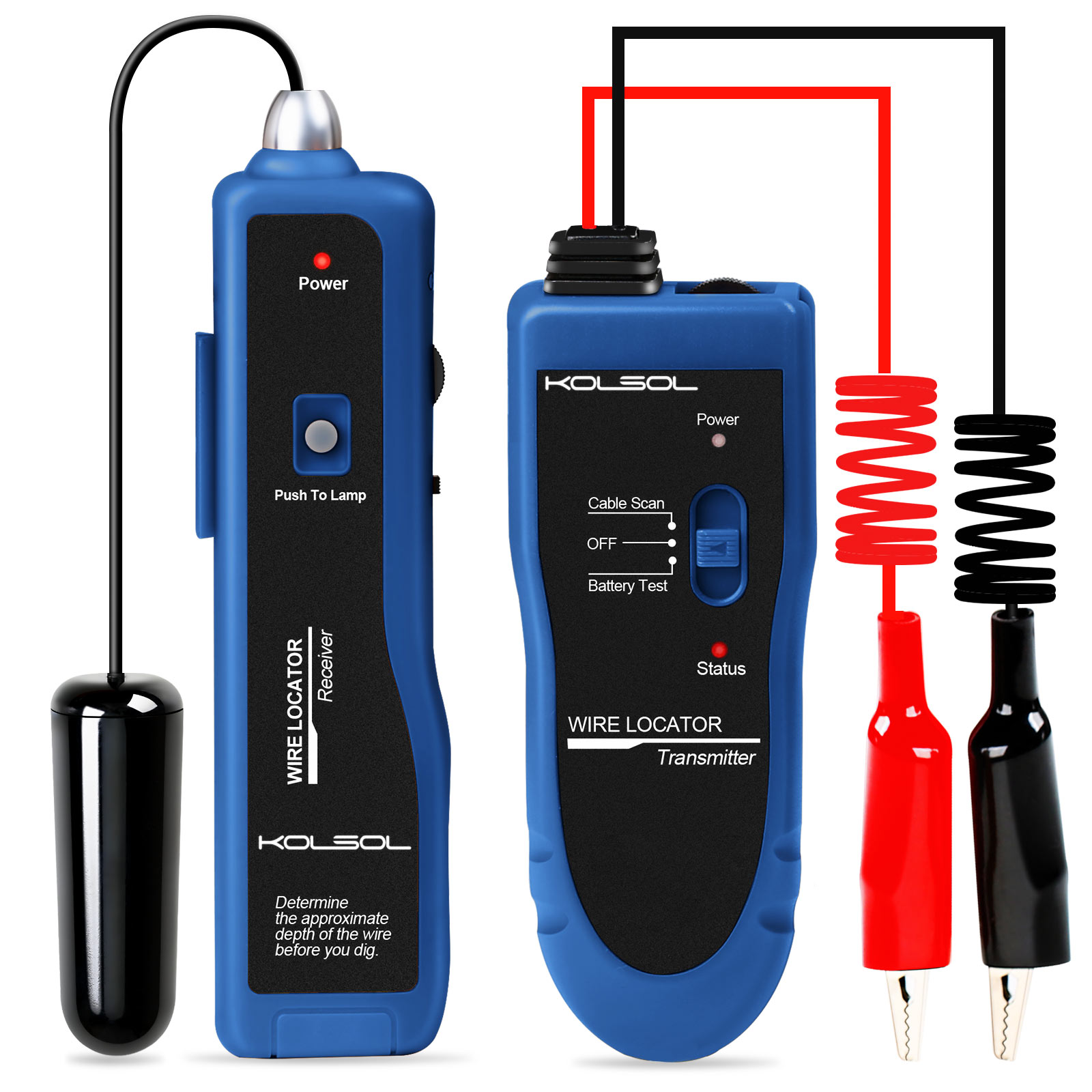

KOLSOL F02 Pro Underground Wire Locator, Cable Tester with Rechargeable 1100mAh Battery Pet Fence Wires


The KOLSOL F02 Pro is an underground wire locator which is designed to locate the path of non-energized wires behind & in walls and underground. It allows the users to track low voltage cables used for garden, landscape automatic watering systems and low voltage garden lighting systems. It is  also used to trace other metal cables. The detection depth range is 2 feet and the max cable length is 2000 feet. Moreover, KOLSOL F02 pro is also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground.


Product Features:

【Time and Money Saver】Locating & tracking buried and hidden wires. No more calls, no more cost, find and fix it by yourself. Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.

【Range of Parameters】Wire tracer range-Up to 3-4 feet deep and 2000 feet in length.

【Rechargeable Lithium Battery】The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.




Product Functions:

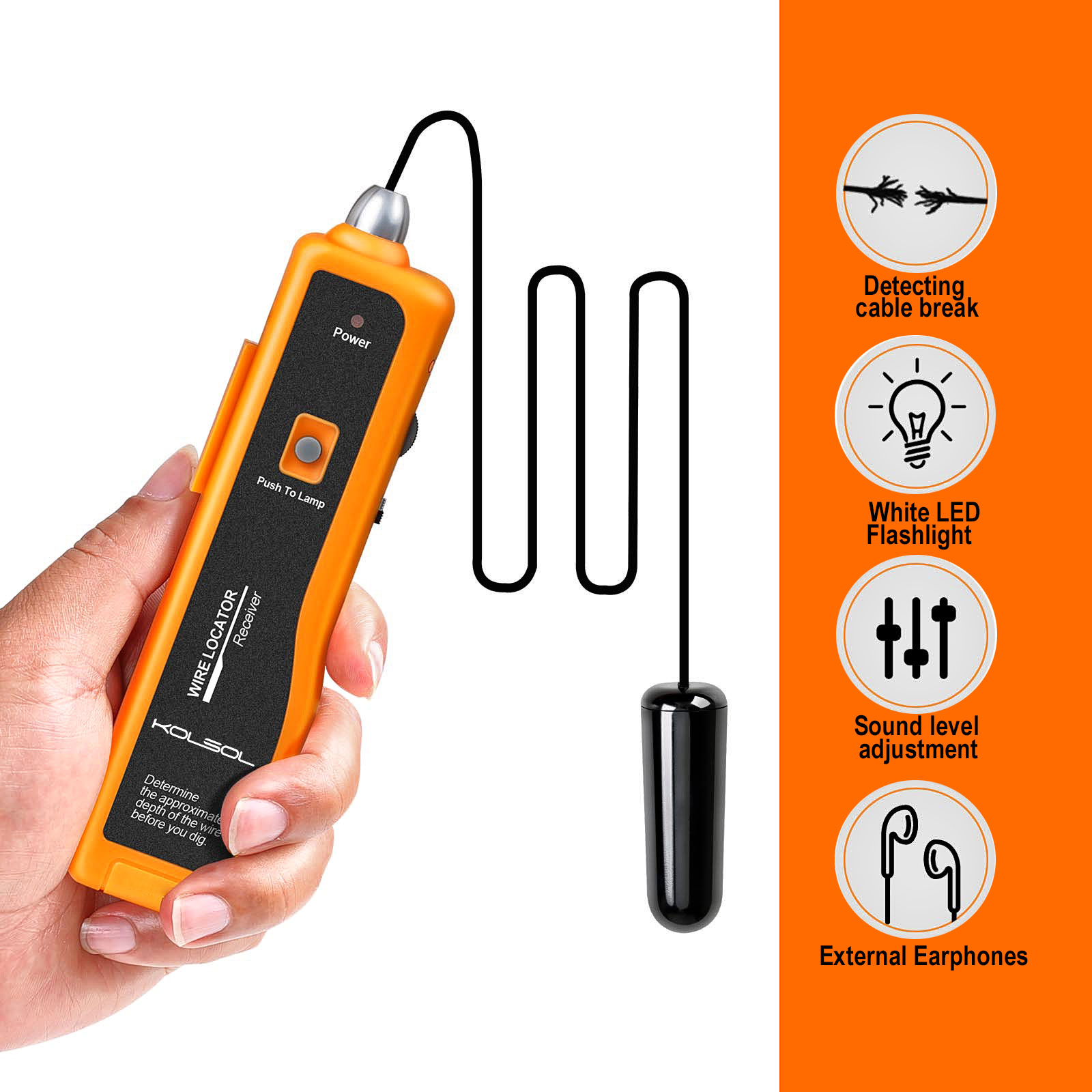

【Basic Functions】Locating and tracking buried & hidden wires, detecting cable break, locating alarm, sound & computer wires, measuring wire depth, and pinpointing drill sites.

【External Earphones】Equipped a pair of 3.5mm earphones that can be connected to the the receiver earphone jack to improve efficiency in a noisy environment.

【White LED Flashlight & Power Supply】Designed with white LED flashlight for auxiliary lighting in the darkness. The transmitter and receiver are both powered by the 3.7V rechargeable lithium battery, both with low battery indicator.

【Where You Can Locate】Locate-Determining Which Receptacles are on specific circuits, track-Pinpointing Drill Sites before drilling.


Warm Tips: Do not use it on live circuits because it will damage the Tester! This device is mainly to locate non-energized cable, or low-voltage situation less than 24V.


How to Use KOLSOL F02 Pro

Easily Locate Pet Fence Wires, Metal Wires, Metal Pipes, Electrical Wires, ect ( only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!)





Product Specifications:

ManufacturerKOLSOL
ColorBlue
Part NumberF02 Pro
Item Weight1.92 pounds
Package Dimensions14.17 x 5.98 x 1.93 inches
Batteries1 Lithium Metal batteries required. (included)
Material‎Plastic
Batteries Included?‎Yes
Batteries Required?‎Yes
Battery Cell Type‎1100mAh Lithium Ion


Transmitter:

Tone Frequency: 200kHz

Max. Length Distance: 800m / 2400ft

Max. Depth Distance: 60cm / 24in

Max. Working Current: Less than 70mA

Max. Signal Voltage: 15Vp-p

Signal Display: Tone

Power Supply: 1 * 3.7V 1100mAh lithium battery

Transmitter Size: 134 * 49 * 33mm / 5.28 * 1.93 * 1.30in

Transmitter Weight: 93g / 3.28oz


Receiver:

Frequency: 200kHz

Max Working Current: Less than 70mA

Earphone Jack: 1

Power Supply: 1 * 3.7V 1100mAh lithium battery

Receiver Size: 163 * 40 * 27mm / 6.42 * 1.57 * 1.06in

Receiver Weight: 119g / 4.20oz


Product Comparison Chart:

Product Name

Product Picture
Depth 3-4 feet    2-3 feet
Length 2000 feet1000 feet
Battery Rechargeable 1100mAh battery9V batteries







Package Includes:

1pc x Transmitter

1pc x Receiver

1pc x Earphones

1pc x Pouch

1pc x Manual (English)
