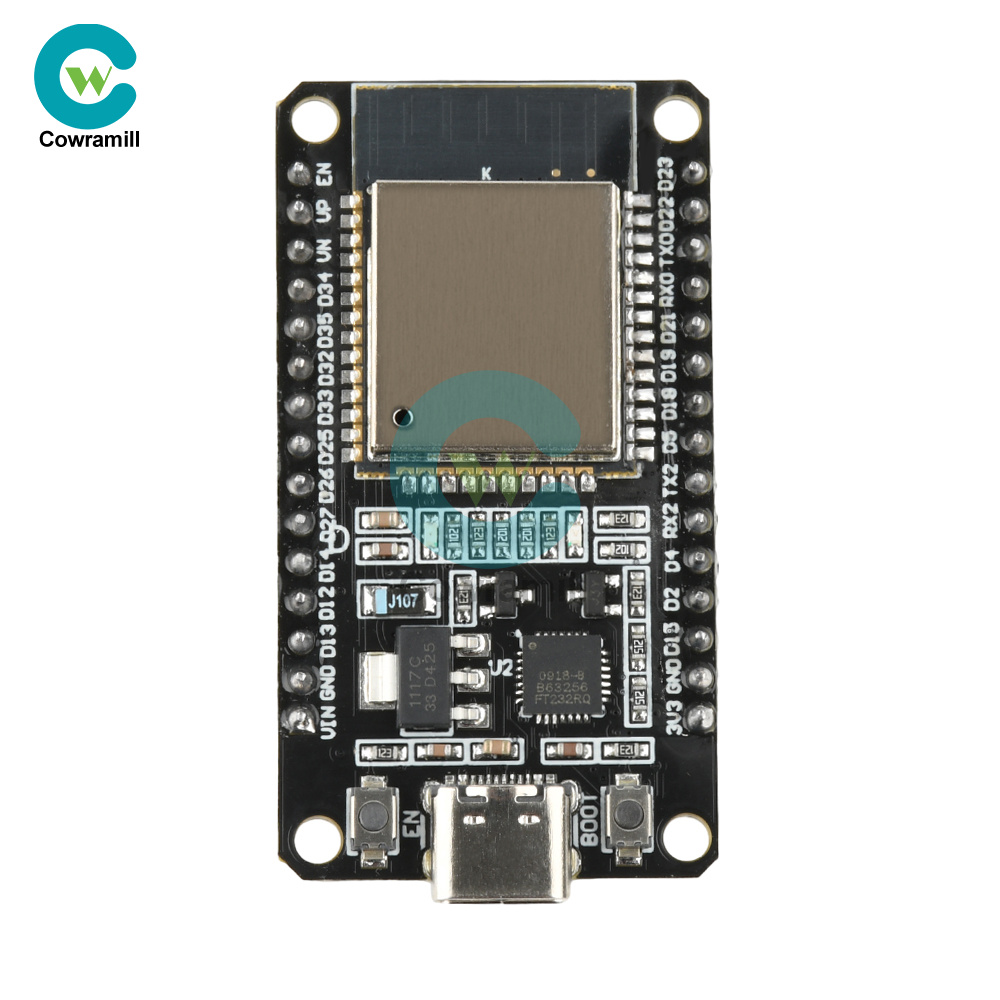

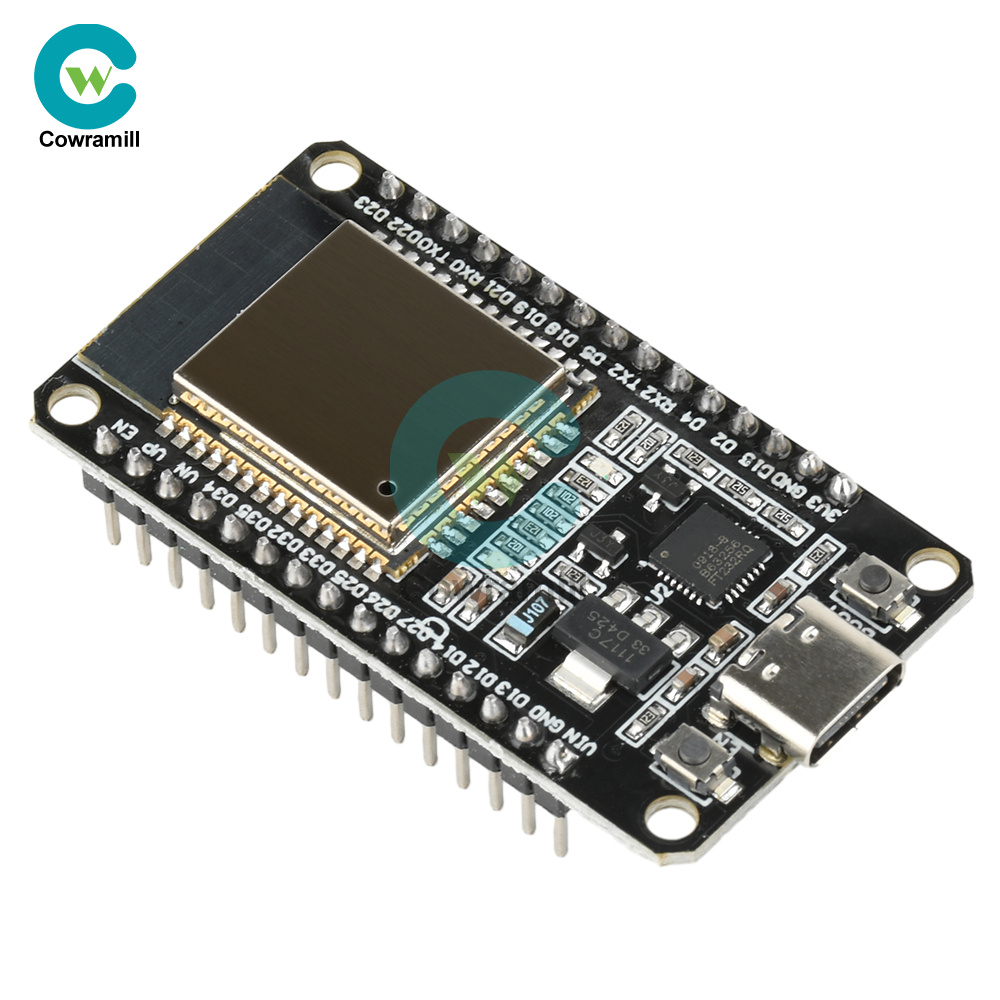

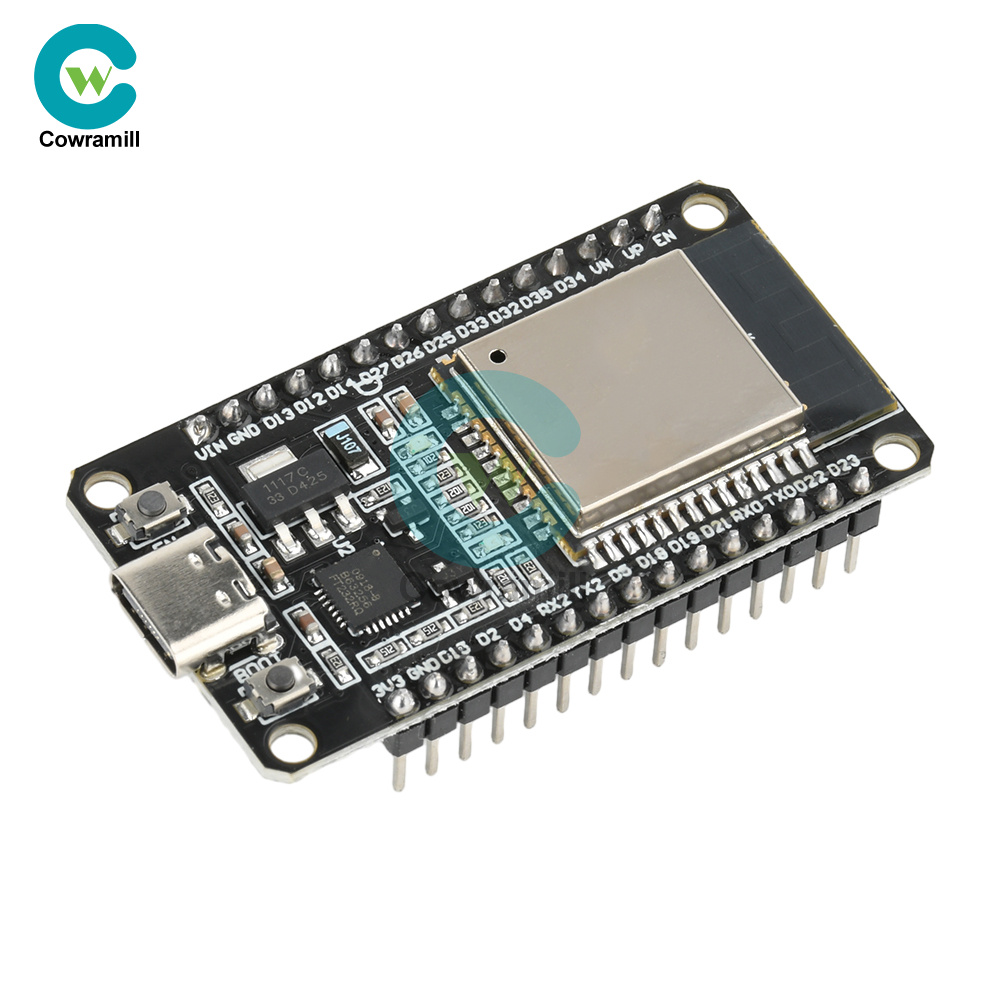

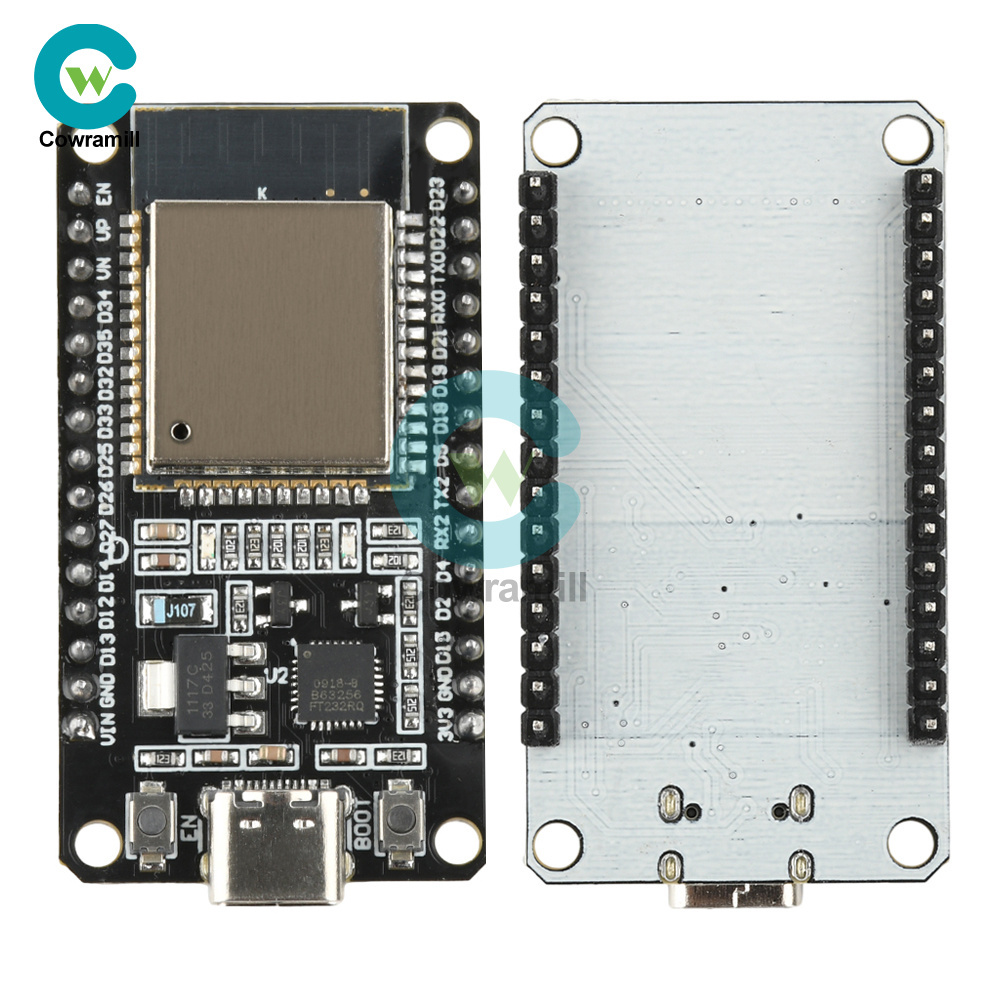

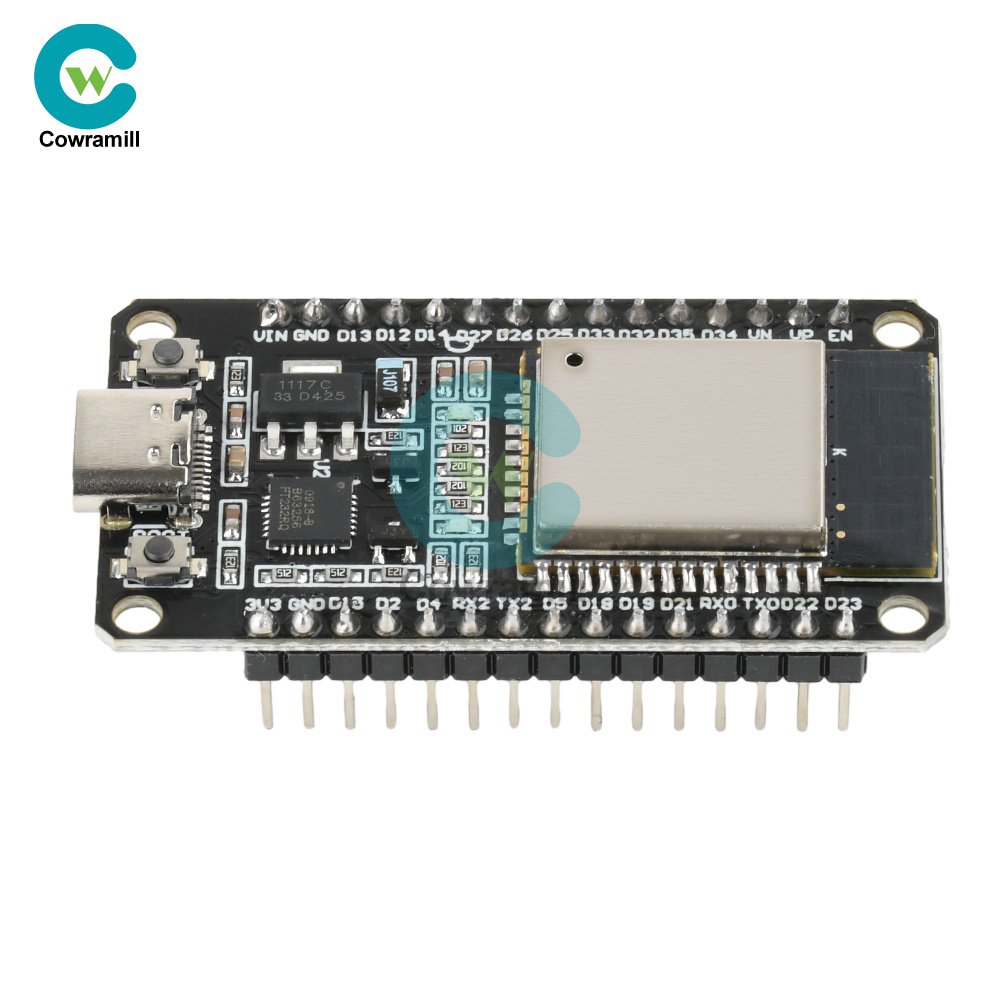

The main body of the module ESP-32 module, the peripheral use of USB to serial chip CP2102 to extend the TYPE-C interface, can be directly connected to the computer with TYPE-C debugging, fast and stable data transmission. It has a power indicator (red) and working status indicator (blue), you can always know the status of the module. There are two light touch buttons, one reset, the other to enable the module to enter the download program mode. In addition, the development board on both sides of the row of pins can be convenient for developers to connect to use.
The module has powerful Bluetooth, WIFI function. As a bluetooth, WIFI development board, it can get rich resources. In addition, the module supports a variety of development environments, expanding its access to resources, greatly improving the ease of learning and development. Of course, he can also be widely used in the Internet of Things, such as home automation, wireless industrial control, wireless positioning system signals and so on.
802.11B/G/WIFI+Bluetooth module.
Low power consumption dual-core 32-bit CPU, can be used as an application processor.
Main frequency up to 240MHZ, computing power up to 600DMIPS.
Built-in 520KB SRAM.
Support UART/SPI/I2C/PWM/DAC/ADC interfaces.
Support OPENOCD debugging interface.
Support multiple sleep modes, deep sleep, current as low as 6.5UA.
Embedded LWIP and FREERTOS.
Support STA/AP/STA+AP mode.
Support SMART CONFIG/AIRKISS one-key network allocation.
Common AT commands, easy to get started.
Support local serial port upgrade and remote upgrade.

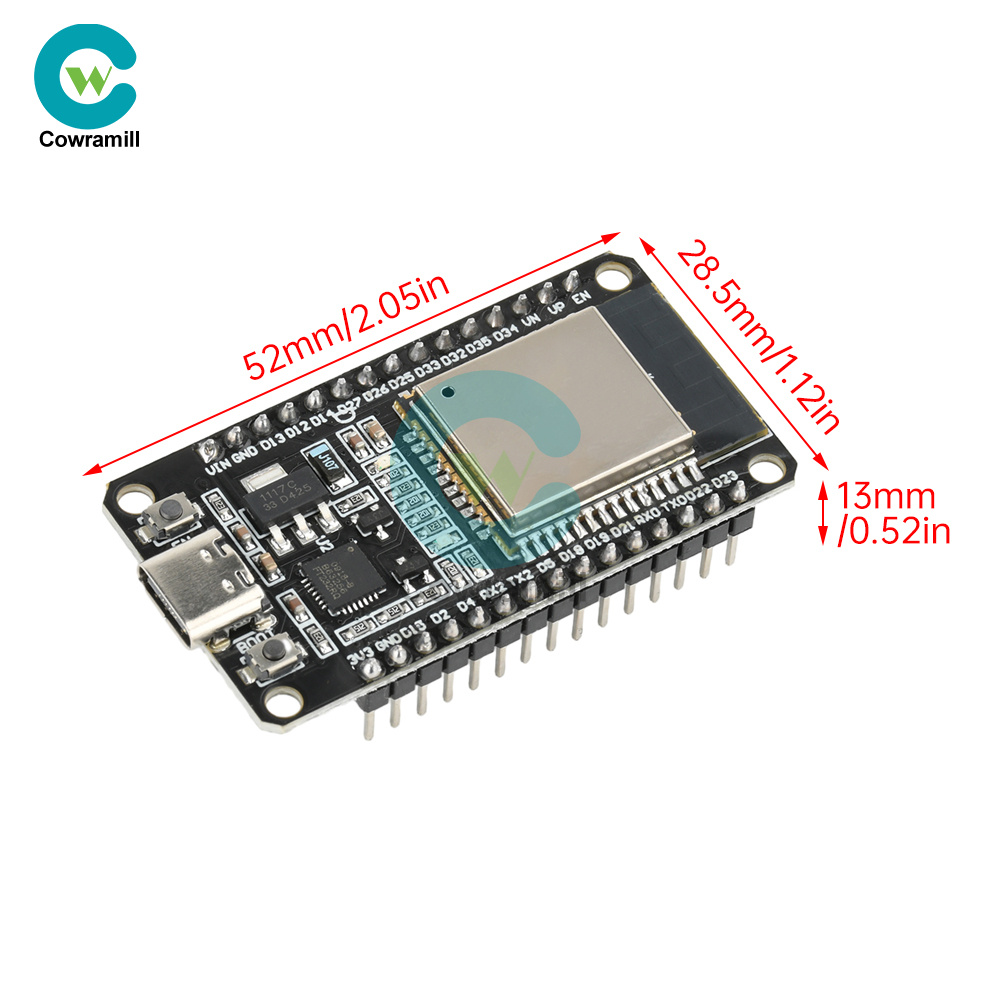

Size: W*L 28.5mm*51.8mm
SPIFlash: default 32M bit
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards
Wi-Fi: 802.11b/g/n/
Supported interfaces: UART, SPI, SDIO, 12C, PWM, 12S, IR, ADC, DAC
On-chip sensors: Hall sensor, temperature sensor, capacitive touch sensor
lO port: 22
Serial port rate: default 115200bps
Spectrum range: 2412~2484MHz
Antenna: On-board PcB antenna, gain 2dBi
Transmit Power: 802.11b: 802.11b: 802.11b: 802.11b
802.11b:17 earth 2dBm(@11Mbps)
802.11g:14+2dBm(@54Mbps)
802.11n:13±2dBm(@MCS7)
Receiving Sensitivity.
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6Mbps(1/2BPSK):-88dBm
54Mbps(3/ 464-QAM):-70dBm
MCS7(65Mbps,72.2Mbps):-67dBm
功耗:300mA@3.3v
Security:WPA/WPA2/WPA2-Enterprise/WPS
Power supply range: usB power supply: 5v
vin pin supply:5.0v~12v
1 x Development Board
