1T4/1T5 Waterproof cable for elelctric bike

Product Name:         Waterproof cable

Specification:            1T4 /1T5

Connector:                Julet

Warranty:                  1 year

Colour:                      Black

Certification:             CE, RoHS

Place of Product:      Jiangsu Province,China

This waterproof cable is for electric bike conversion motor kit, it is used for connecting other parts to the controller to form a whole system.

The length can be customized：

for 1T4 1T5 usually is 100+1000mm.

To connect what you need.

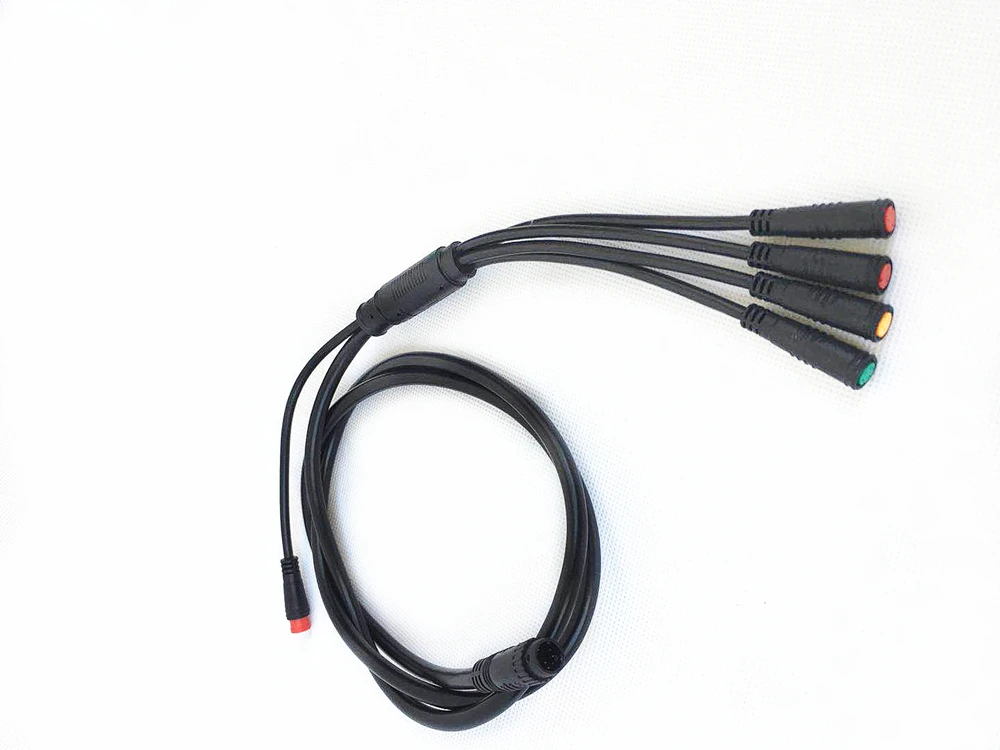

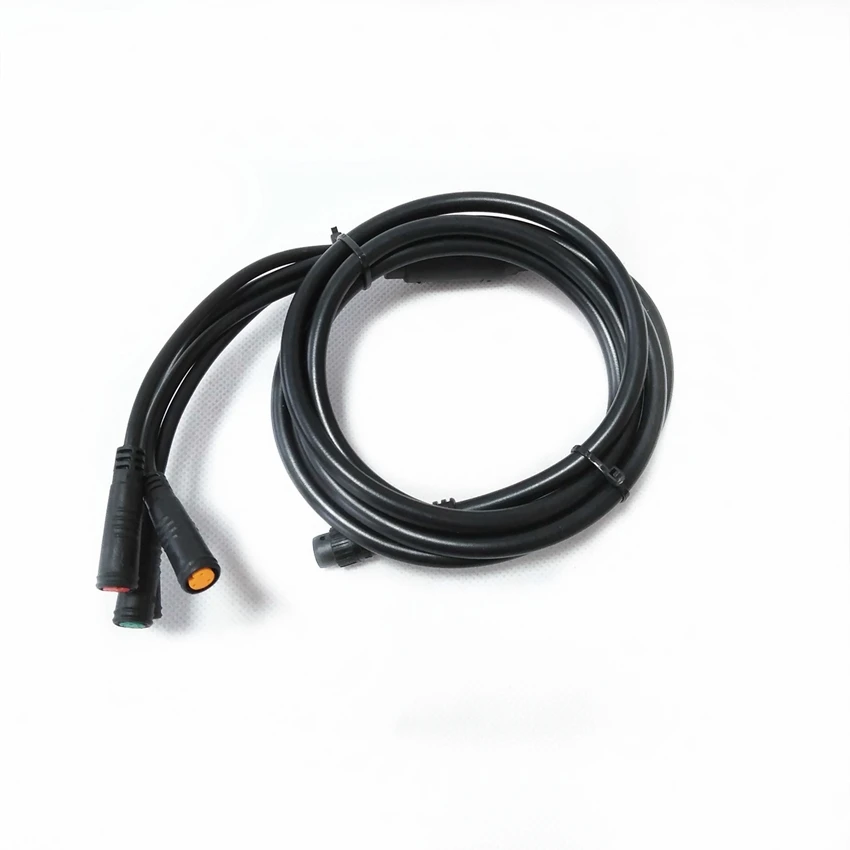

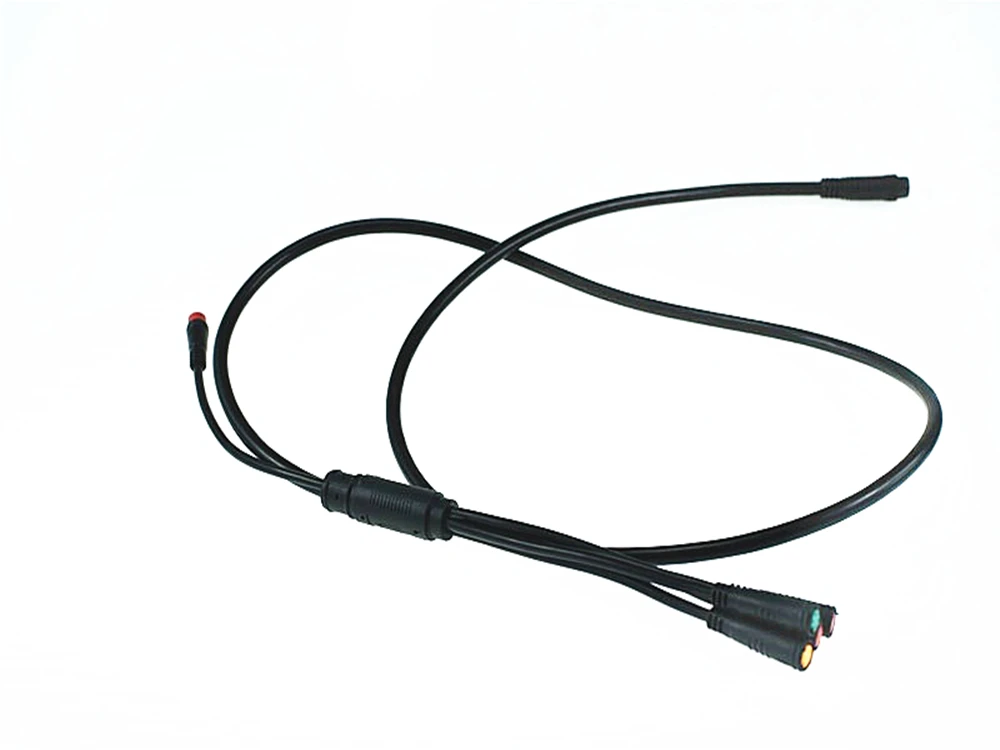

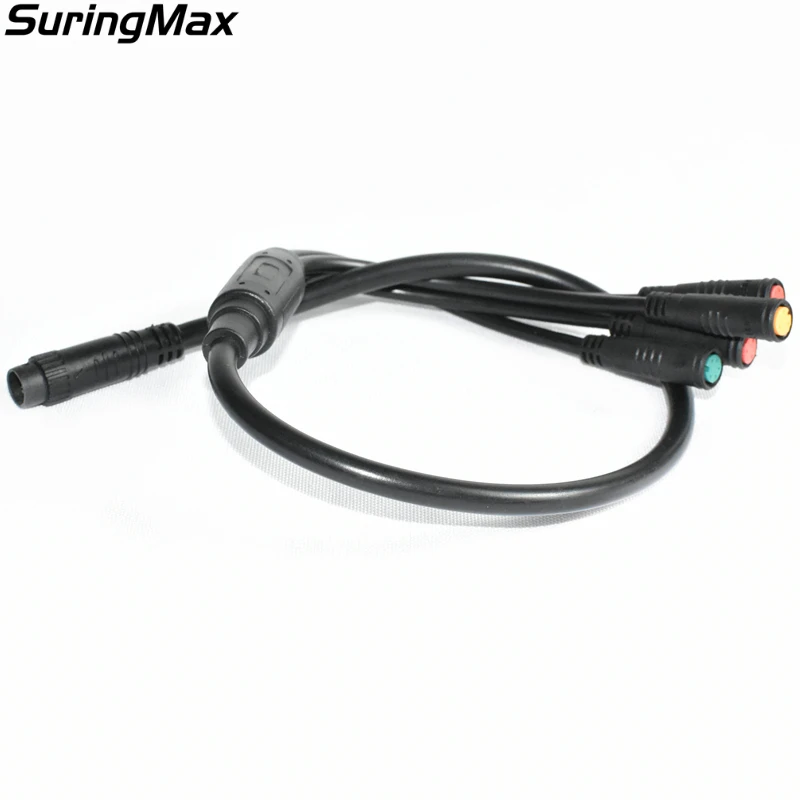

Waterproof cable Julet connector

Color of connectors fot 1T4:

Yellow: throttle

Green: display

Red: electric brake levers

Waterproof cable Julet connector--- 1T4 cable（9pin）

To connect throttle, ebrake levers and display to ebike controller

Cable length: 1000+100mm

Waterproof cable Julet connector--- 1T5 cable(9pin,8pin also use)

To connect throttle, ebrake levers and display, light or alarm to ebike controller

Cable length: 1000+100mm

Extra red for 1T5: light
