Product selling points:

1.Circuit measurement

2.Motor drive measurement

3.Device measurement

4.Fault analysis

5. With high-performance processing functions, small size and large role for most motors

6. It is a sensor that allows your multimeter to measure current data and enable the oscilloscope to measure current waveforms

7. Coil cable with straight banana plug or BNC plug is available.

8.FeaturesAC/DC Frequency range: up to 20 kHzEffective measurement range: 20mA to 65A DCIt is a transducer that allows your multimeter to measure current data and your oscilloscope to measure current waveforms. Its current sensor consists of a PoMo alloy and a Hall element that linearly converts AC or DC current to AC or DC current voltage.

Product Parameters:

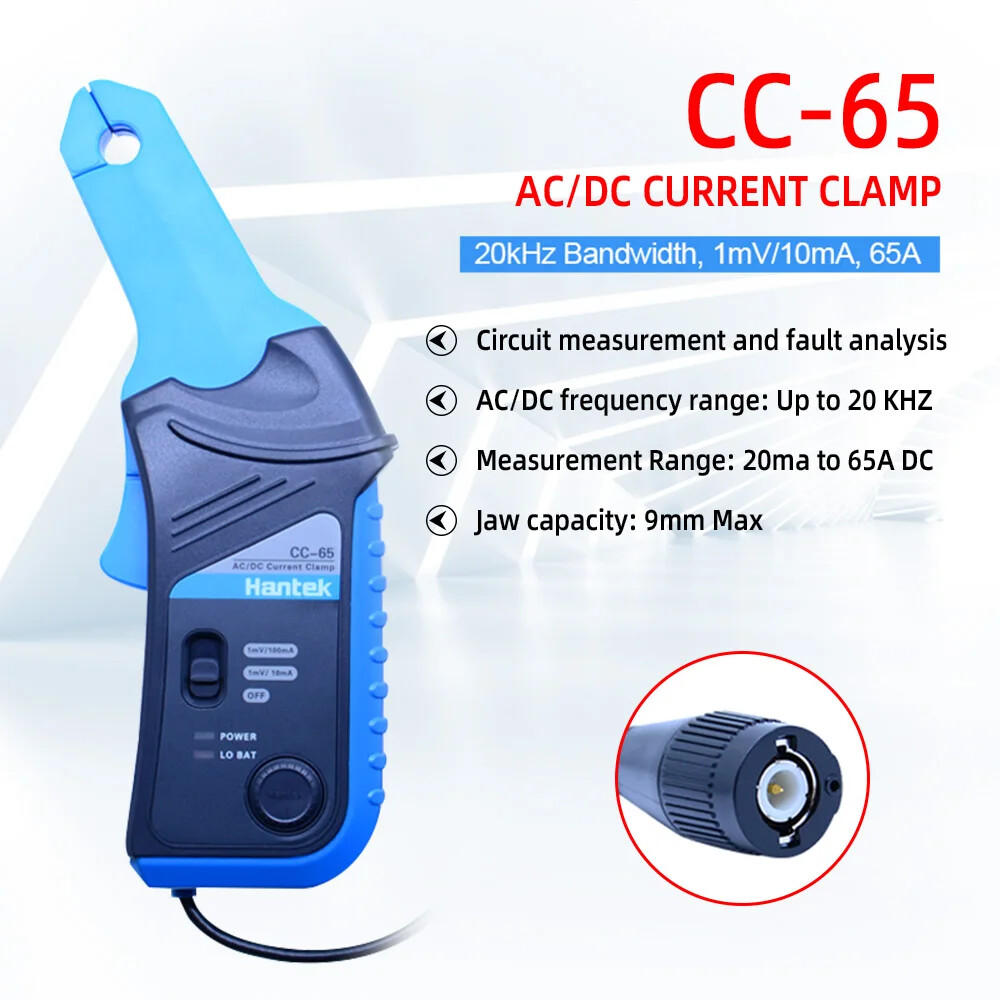

Product Model: CC-65 CC-650 (Optional)

Measuring conductor diameter: CC-65 up to 9mm, CC-650 up to 30mm.

Output: BNC or banana head (optional)

Battery: 9V alkaline battery (shipped without battery)

Packaging and list:

Colour box packaging

Model A CC-65 mainframe * 1 + manual * 1 + certificate * 1

Model B CC-650 Main unit*1+Manual*1+Certificate of Conformity*1
