Electric bike pedal assist system KUNTENG 12 magnets PAS left and right side

Approvals: RoHS
Weight: 0.05kg
Waterproof: IPX5
Materials: PVC/ABS
Wiring: 3 core wiring
Voltage: 24/36/48/72V
Position: Left, right

KT-D12 power sensor has the characteristics of 12 signal output, fast power response, good accuracy, strong water resistance and high reliability. Easy to install and remove. There are two types of sensors installed on the left and right, which can be installed in different positions and adapt to various models.

Model and specification: right: KT-D12L, KT-D12R.

Installation

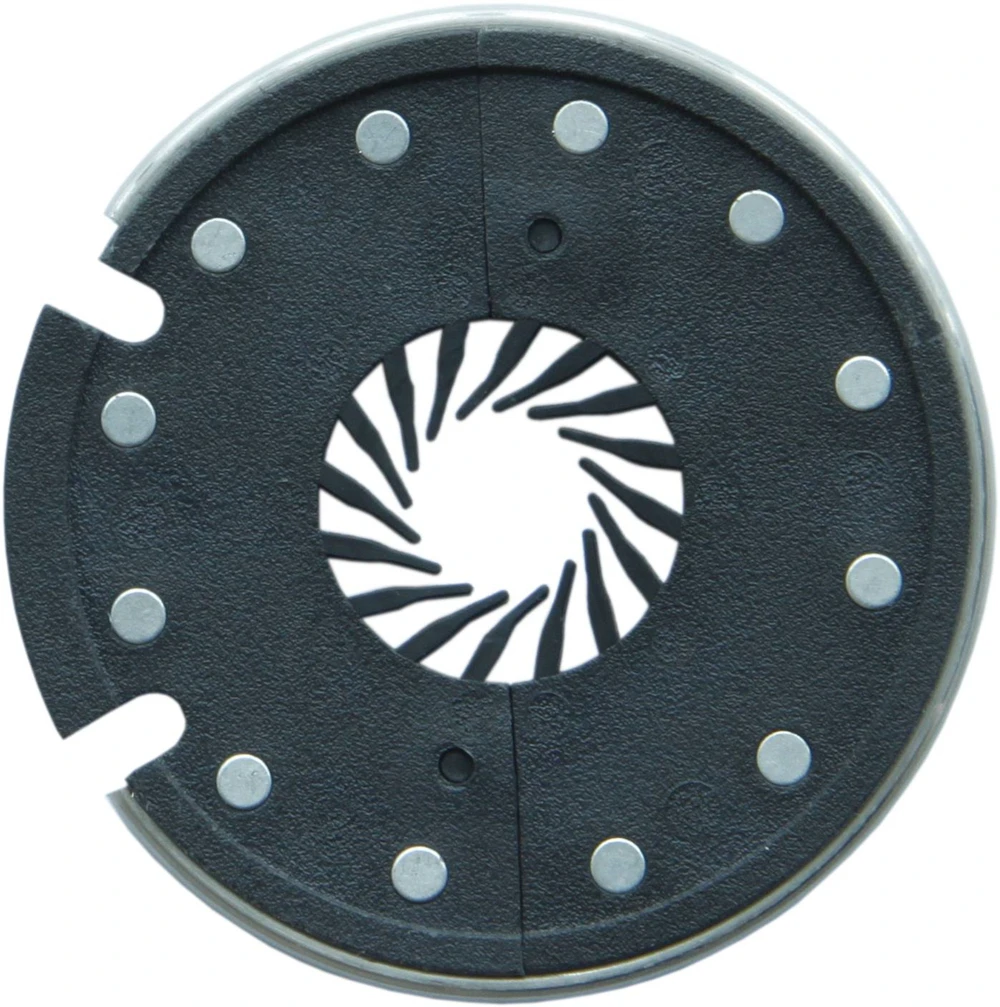

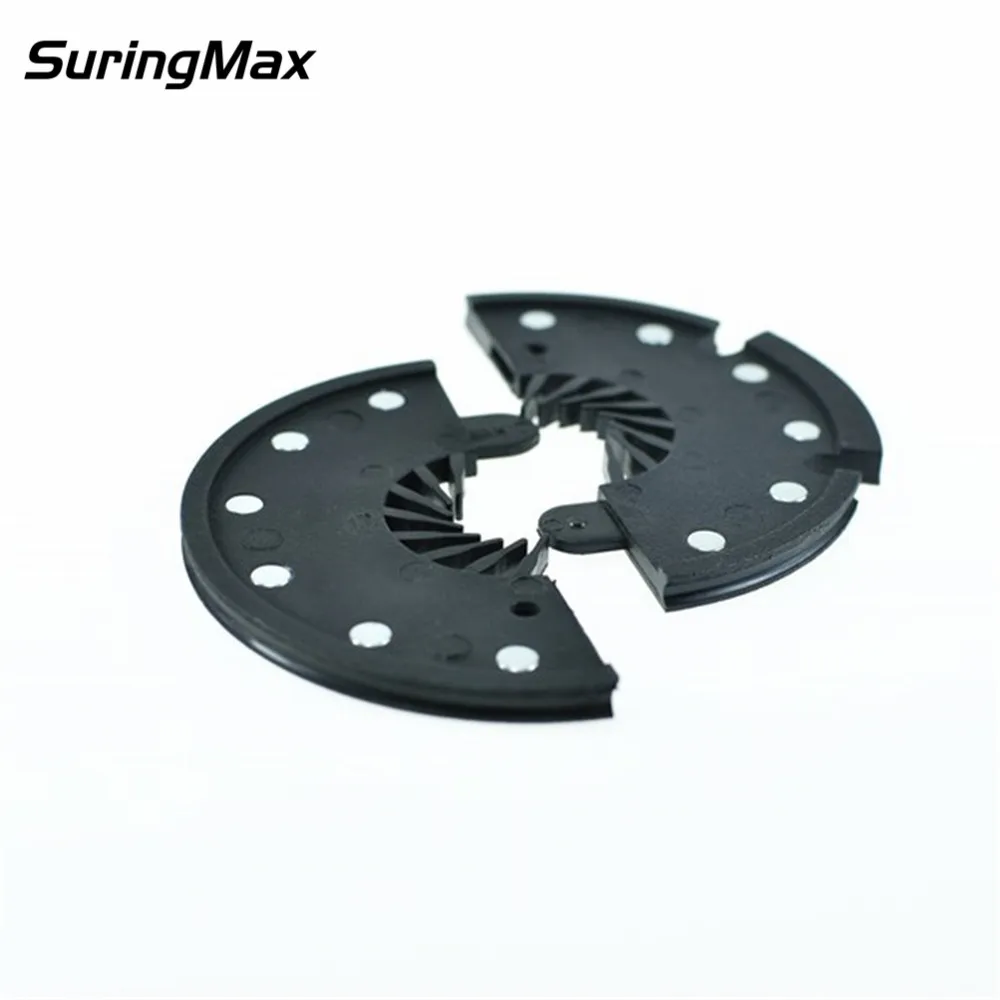

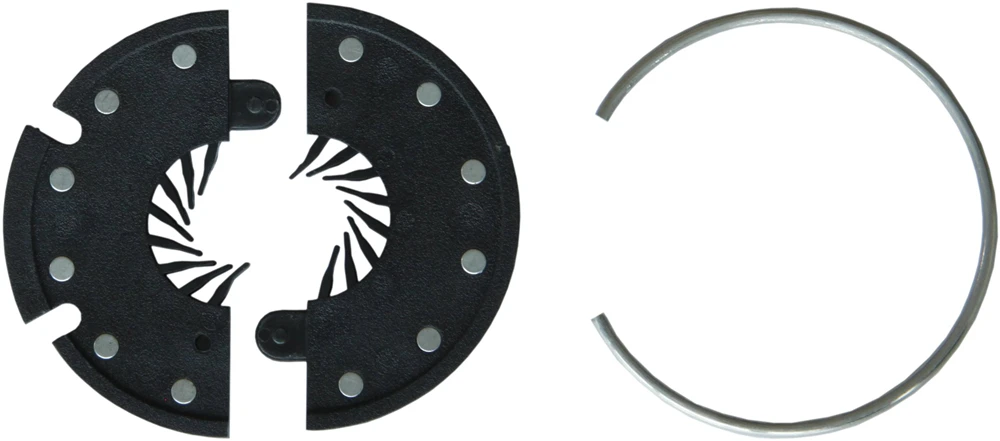

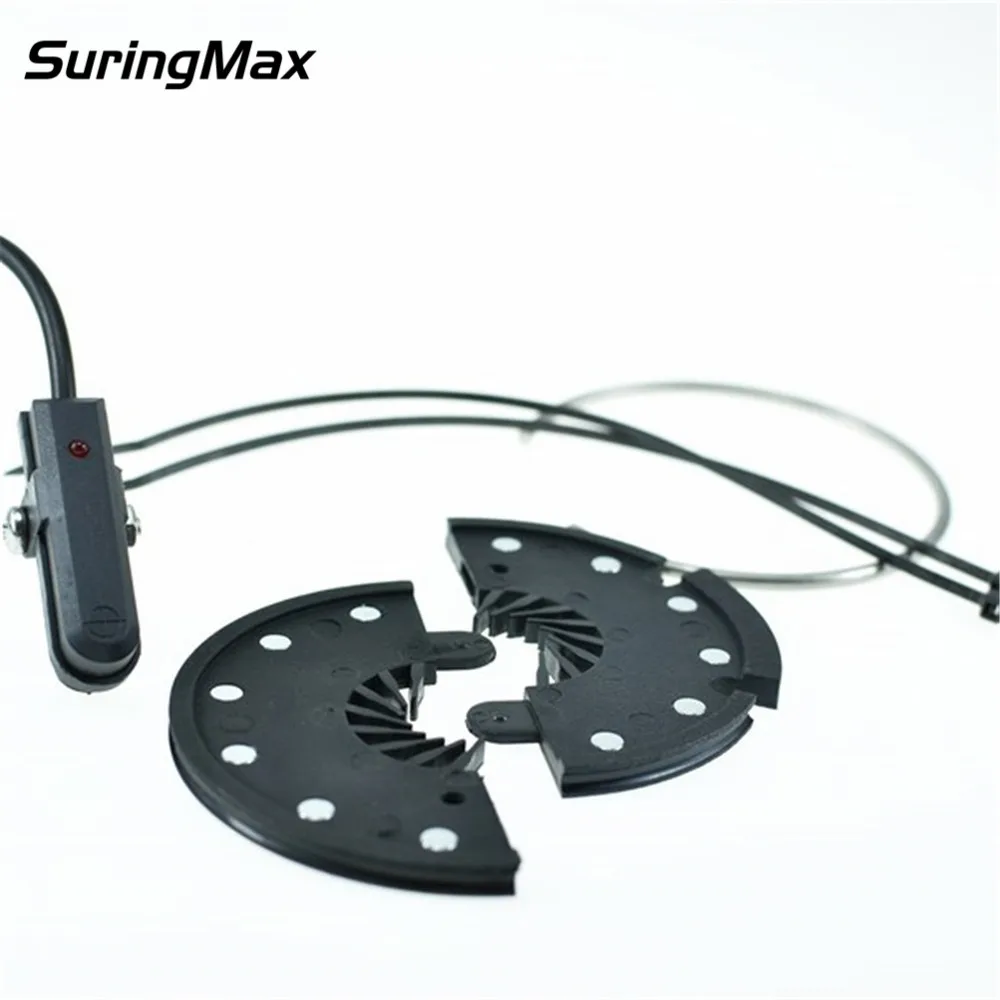

For the assembly of the magnetic steel disk, insert the two magnetic steel disks in pairs according to the following figure, and fix them with the snap spring. The assembled magnetic steel disk is as shown in the figure.

Connector

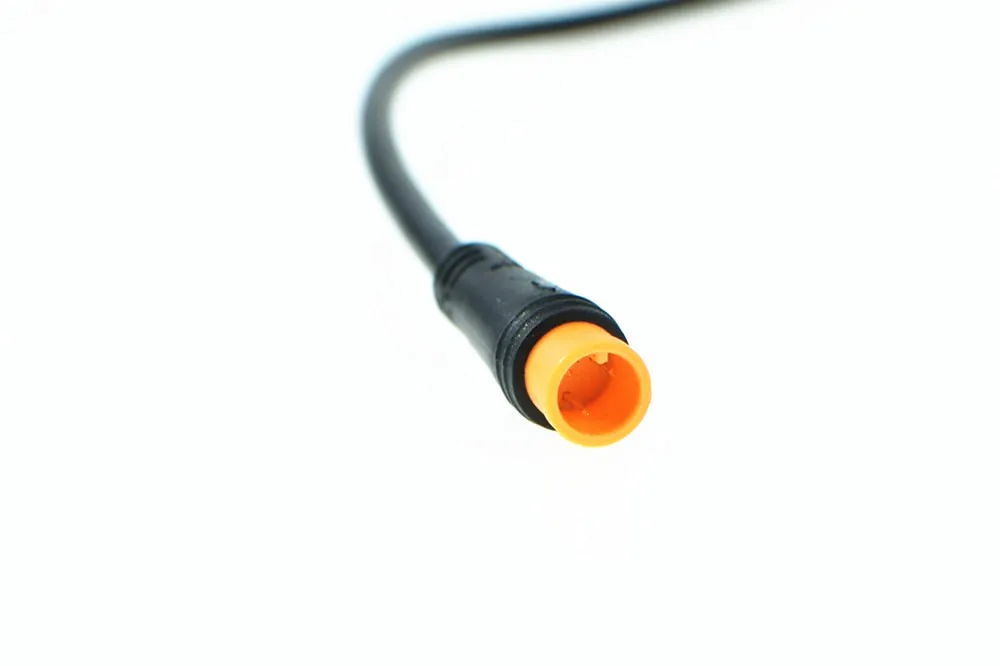

Waterproof connector----Julet connector, 3 pins inside.
