Product Details
1. Based on differential Hall technology, providing absolute angle measurement from 0° to 360
2. Linearity deviation <±1° typical, <±1.5° over full temperature range
3. System latency is as low as 5us or less, and can support up to 55,000 rpm
4. Provide I²C/SSI interface to read 14-bit angle data inside the chip.
5. Incremental output ABZ supports any resolution from 1 to 1024 lines.
6. Incremental output UVW supports 1~16 arbitrary poles.
7. Provide 12-bit PWM output or analog output (12-bit DAC)
8. Dedicated press detection output (sensing magnet and chip spacing changes), to achieve single-chip button applications
9. Built-in EEPROM, >1000 times of repeated programming
The MT6701 is MagnTek's new generation of magnetic angle encoder chip based on differential Hall sensing principle. The MT6701 senses the magnetic field component perpendicular to the chip surface, and with the rotation of 1 pair of pole magnetized radial magnets on the chip surface, the MT6701 correspondingly outputs angle signals from 0~360°. In addition to providing ABZ/UVW incremental outputs and Analog/PWM absolute angle outputs, the MT6701 also provides 14 bit digital angle outputs through the I2C/SSI interface. angle outputs via the I2C/SSI interface. In addition to rotary angle measurement, MT6701 also provides a "press" output to realize the single-chip button (rotary + press) function.
Model No.: MT6701
Operating voltage 3.3~5.0V
Operating temperature -40℃~125

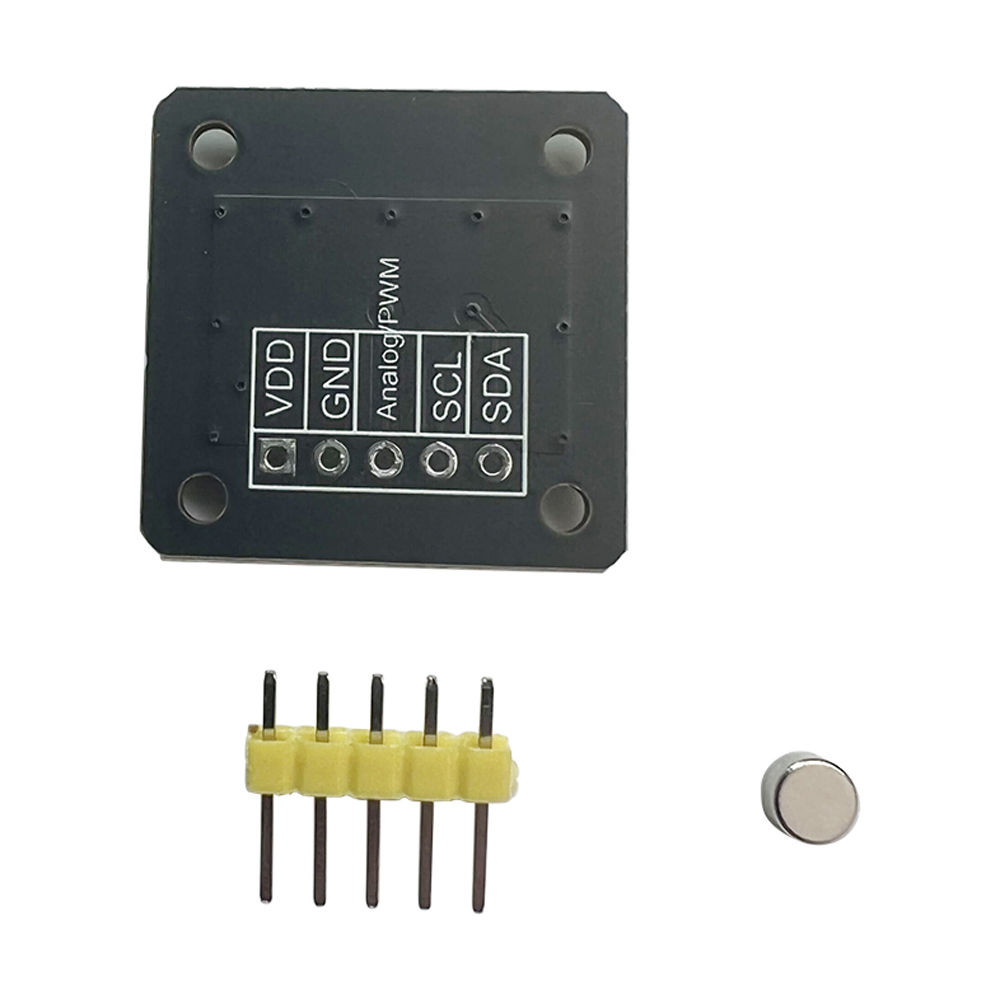

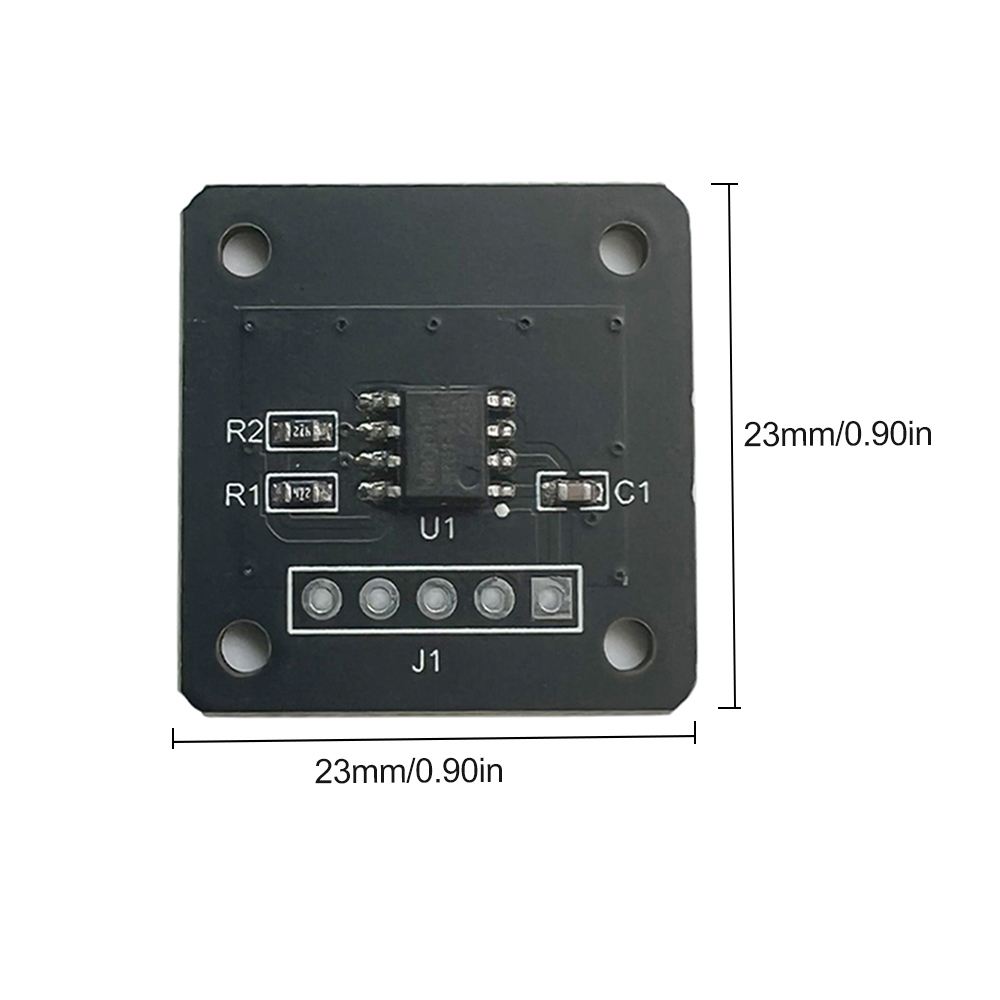

Product Size：23*23mm

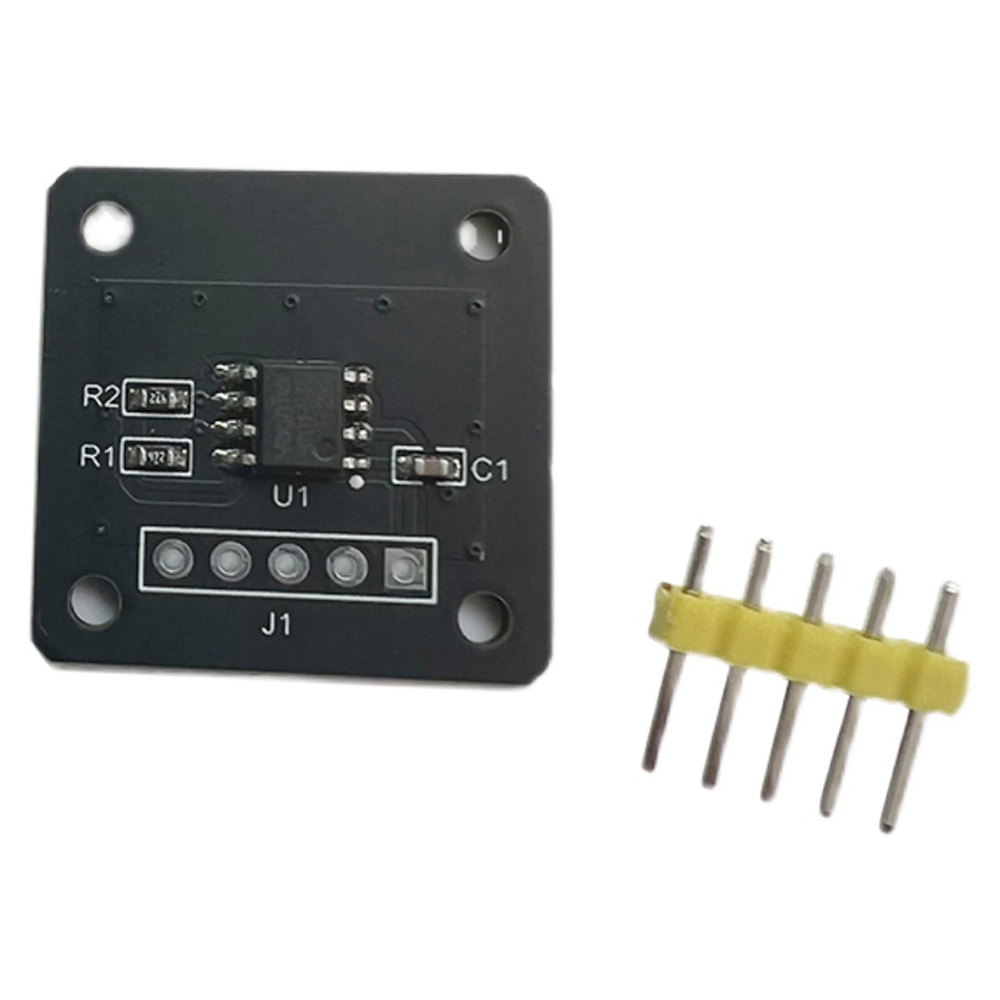

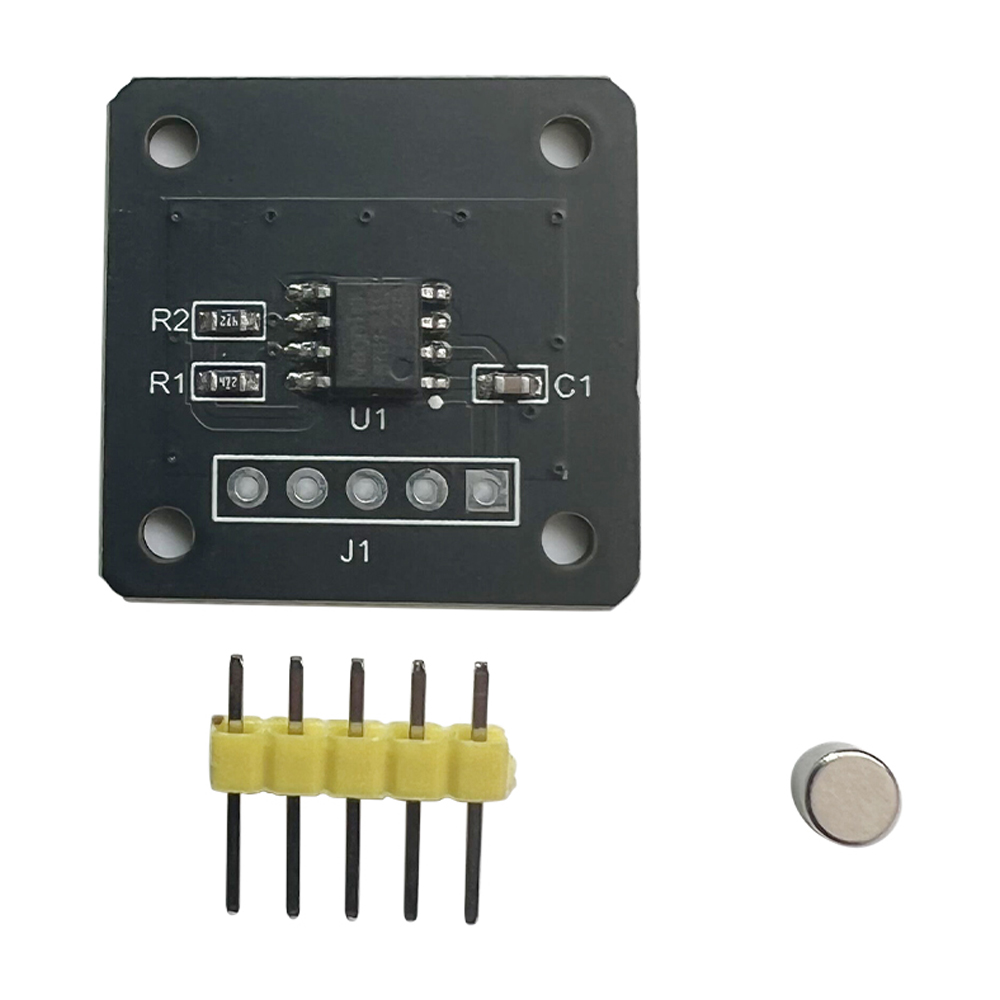

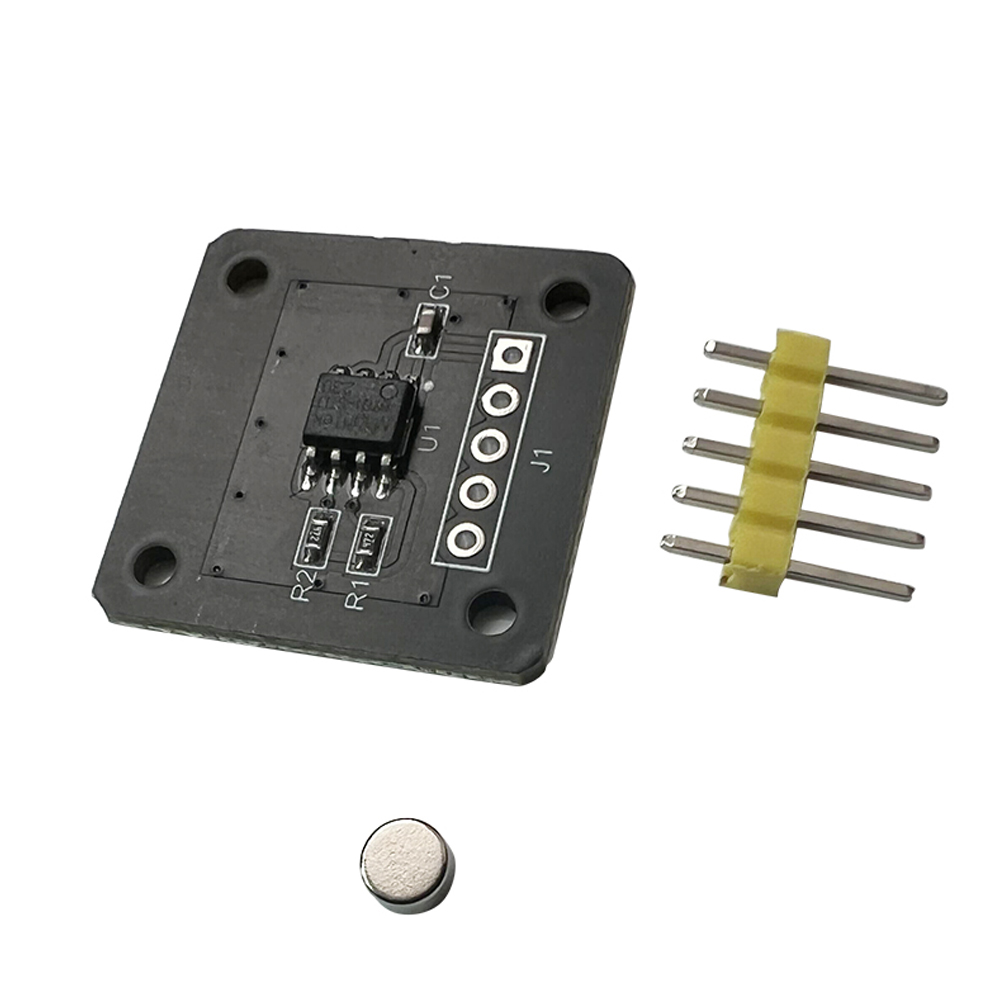

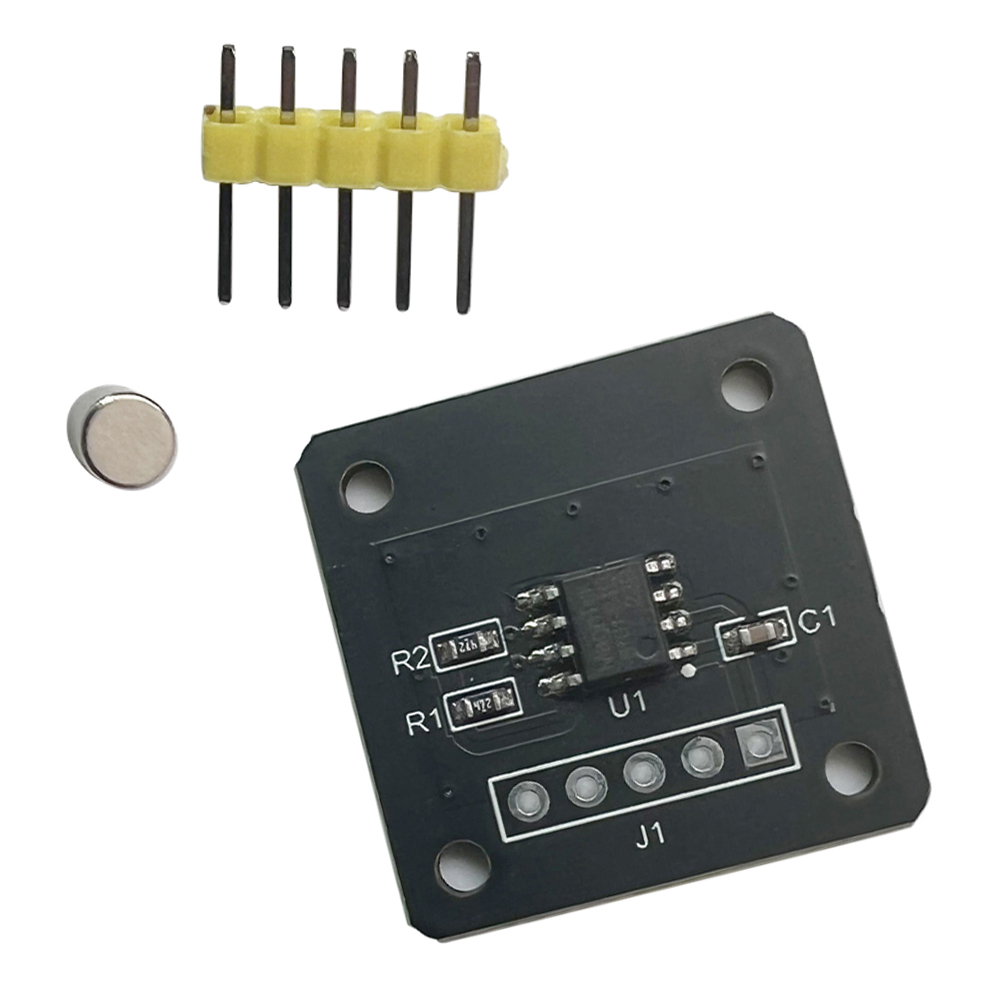

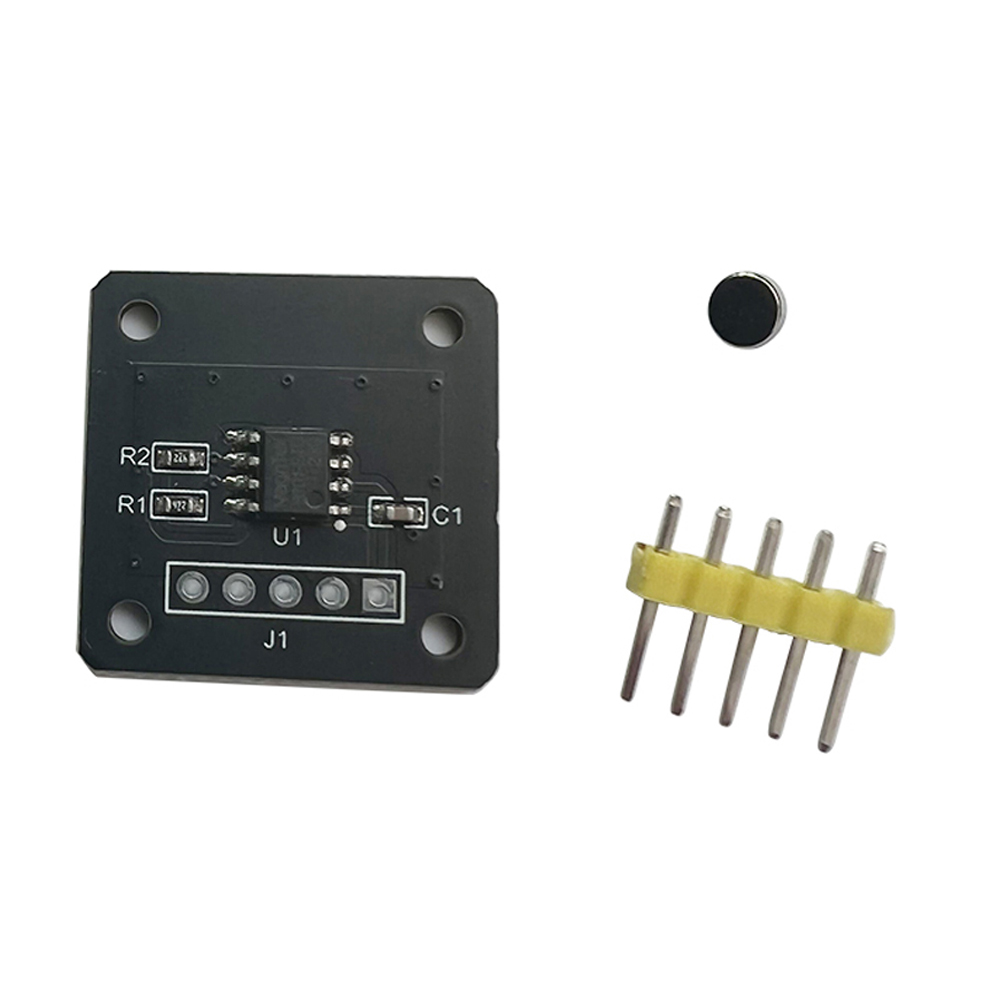

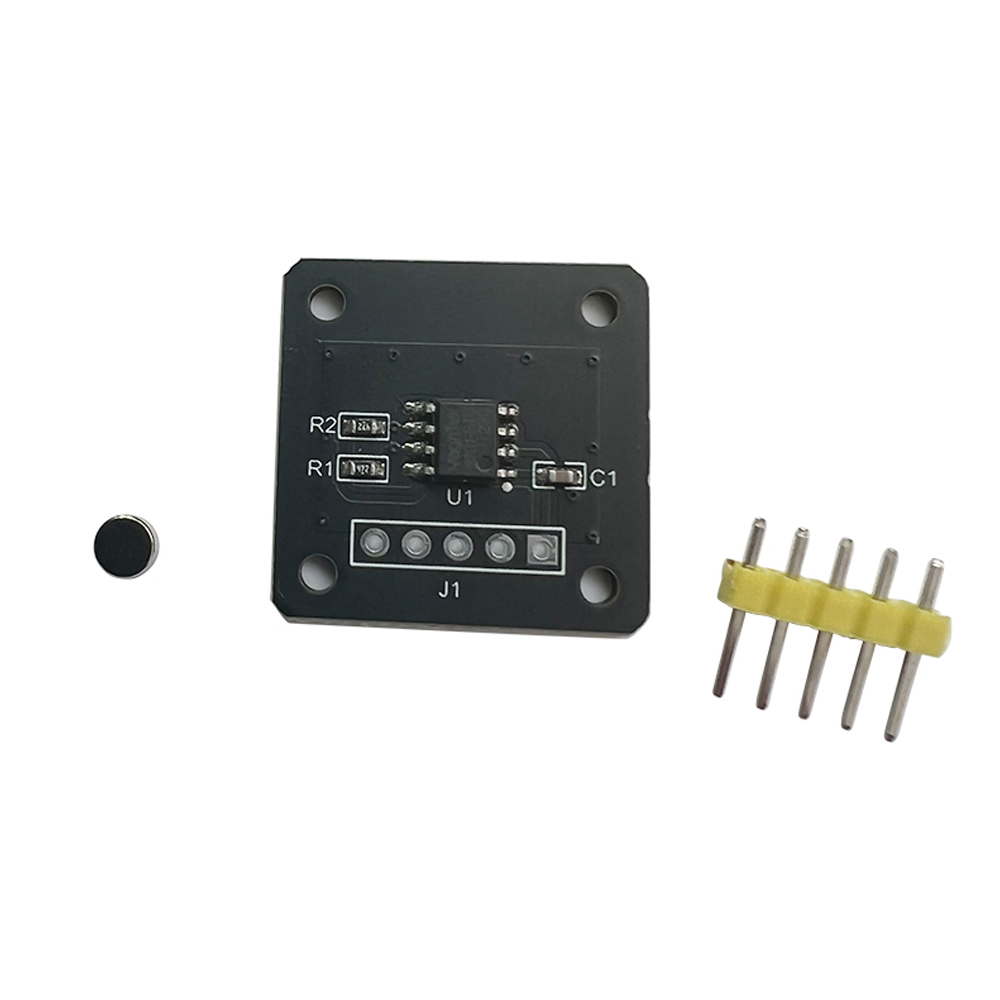

Sensor module*1
Pin*1
Magnet *1
