2.PCB circuit board size reduction, component layout is more reasonable, increase product service life
3. The left and right channels use a low-power audiophile-grade audio special chip TDA1517P for the output stage, which really provides a high-quality effect

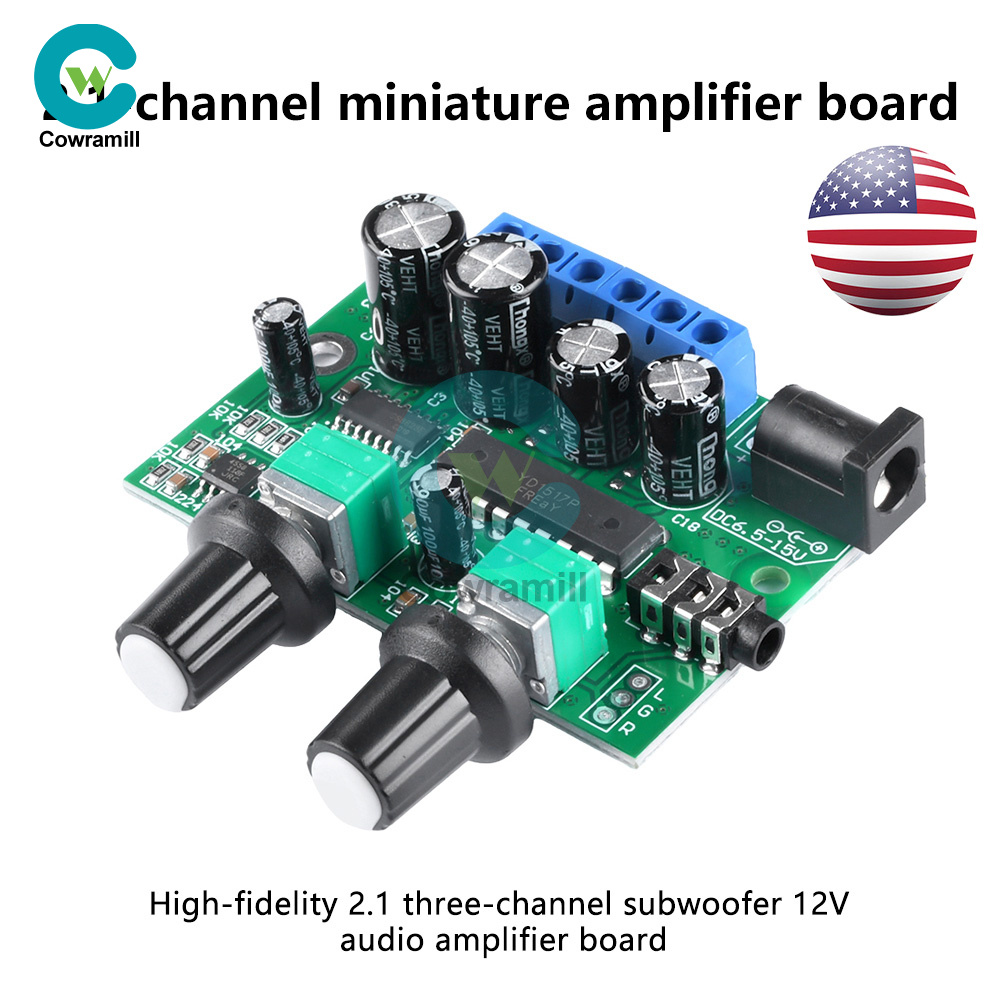

4. Stable performance, high-fidelity 2.1 three-channel subwoofer 12V audio amplifier board
5. Wide range of applications, small size can be easily embedded in a variety of occasions
Power supply: DC6.5-15V (depending on the required output power), power adapter, switching power supply, battery can be recommended to use the current in the 3A or more!
Bass output power: maximum 25W, recommended 4-6 inch, 4-6 Europe 20-50W subwoofer
Left and right channel output power: 6W + 6W, it is recommended to use 2-4 inch, 4-8 Europe 3-25W full-range speakers
The above power requirements of the power supply 13.5V or so
PCB material: FR-4 glass fiber board, thickness: 1.6mm
Potentiometer axis distance: 24mm Potentiometer mounting hole diameter should be 7mm.
Input connector: 3.5mm socket

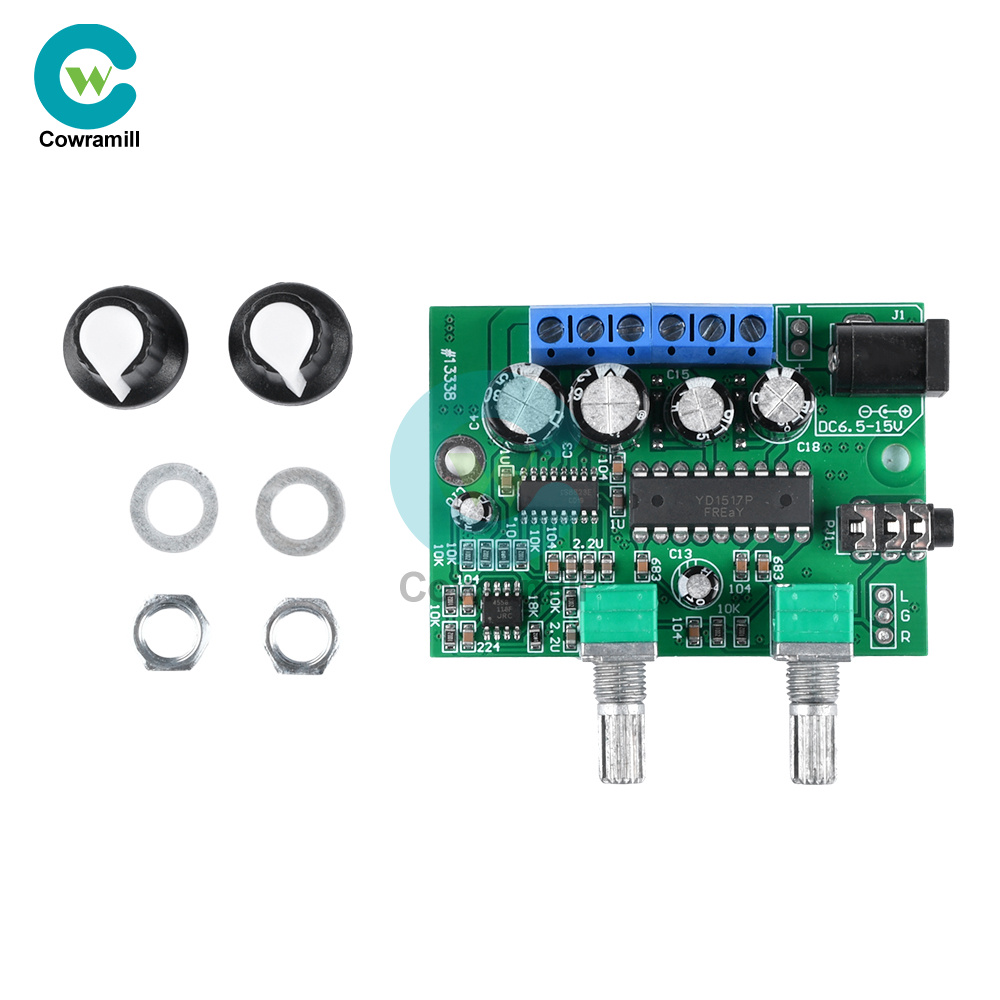

1 x Amplifier board
1 x Accessories
