Item Description

Product Feature:
1. Flame retardant material

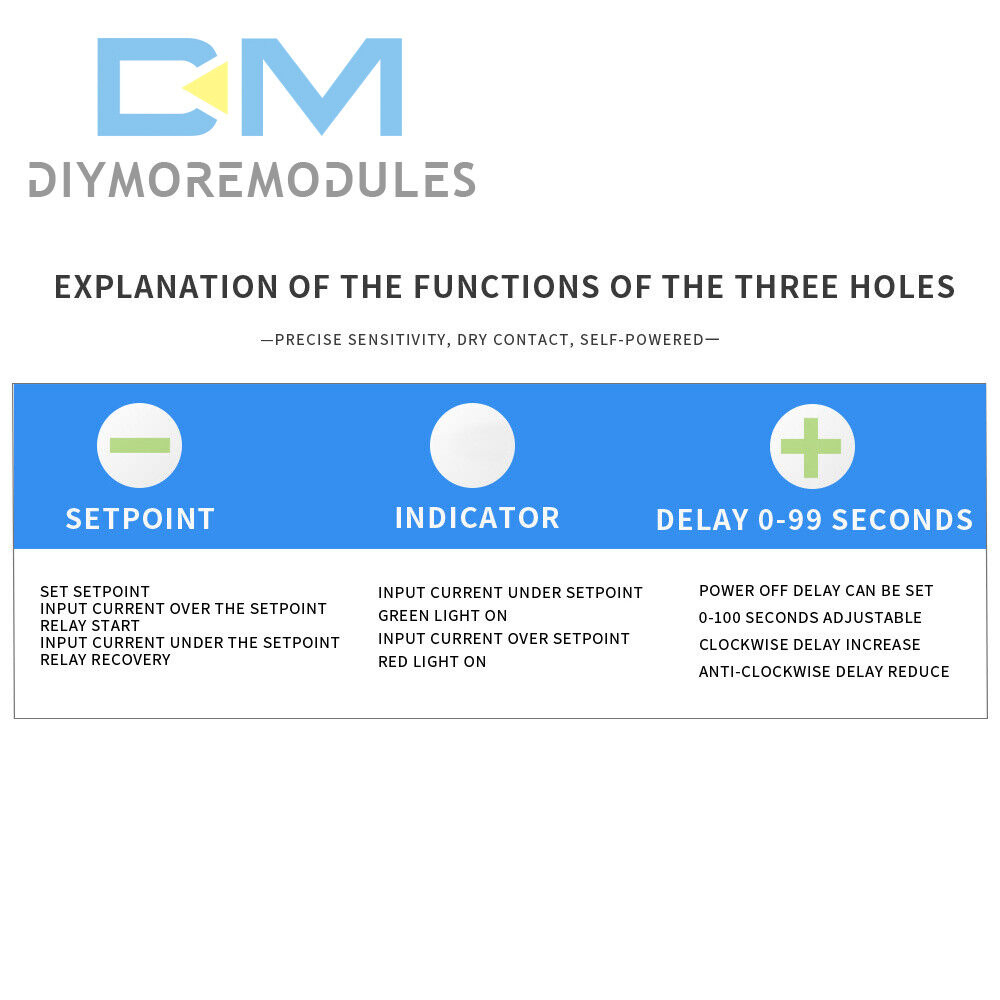

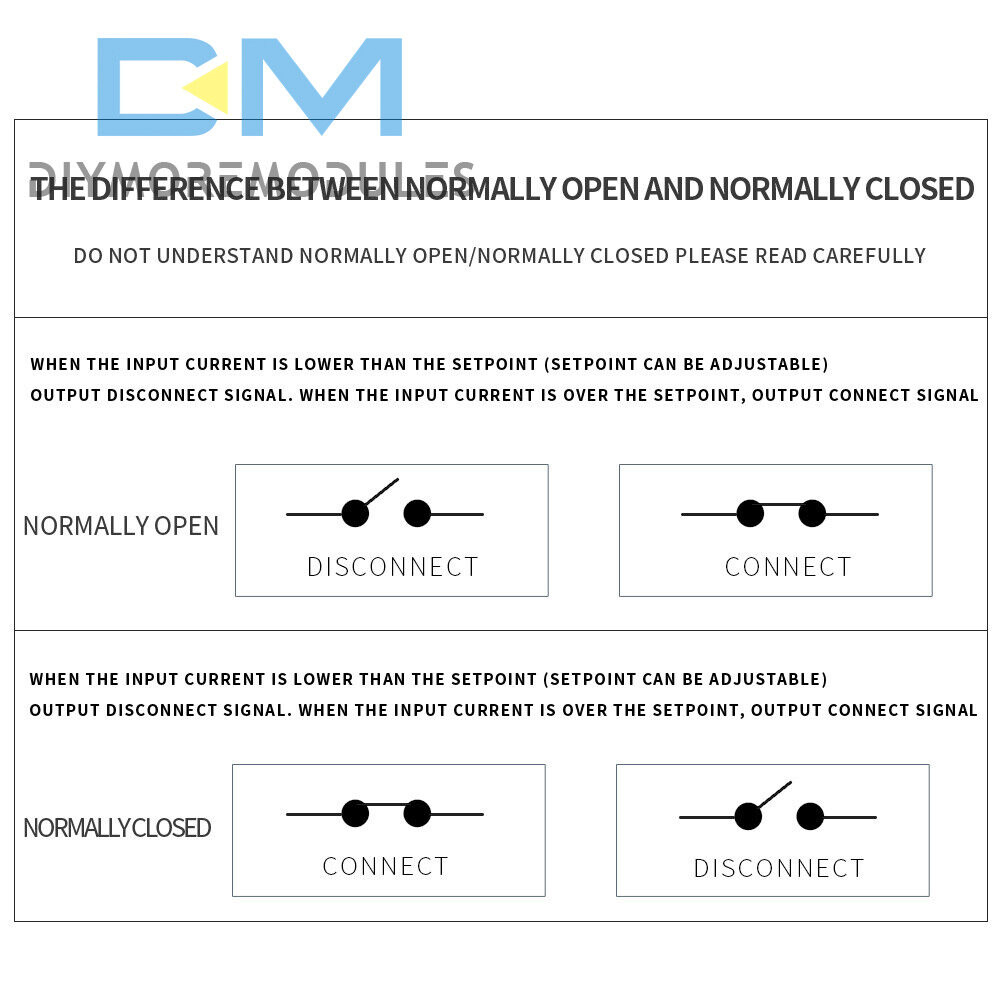

2. The action indicator light does not light up when there is no current, the green light is on when the current is lower than the threshold, and the red light is on when the current is higher than the threshold
3. Action threshold: when the perforation current exceeds the set value, the output switching value will act. When the perforation current is less than the set value, it will automatically reset
4. The power-off delay can be set to 0-100 seconds and adjustable. The clockwise delay can be increased and the counterclockwise delay can be decreased (only for D366)
5. Compact product

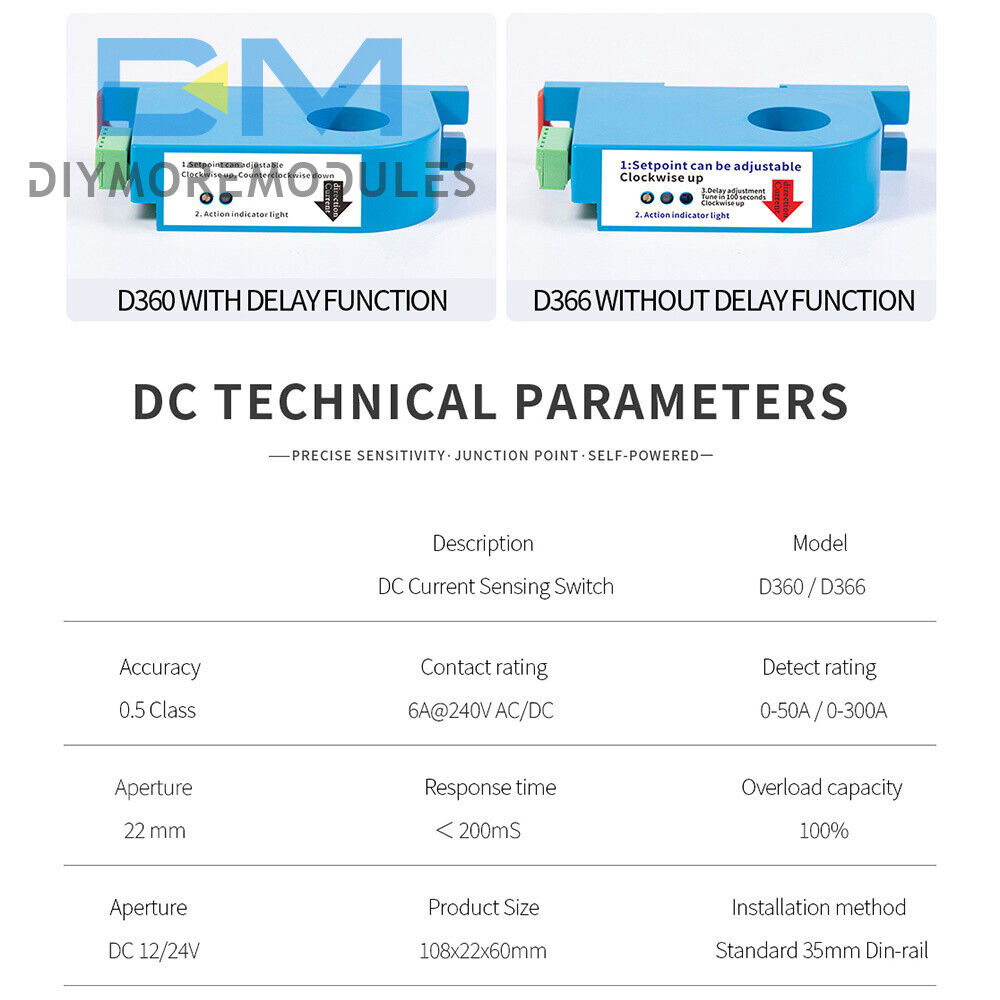

Product parameters:

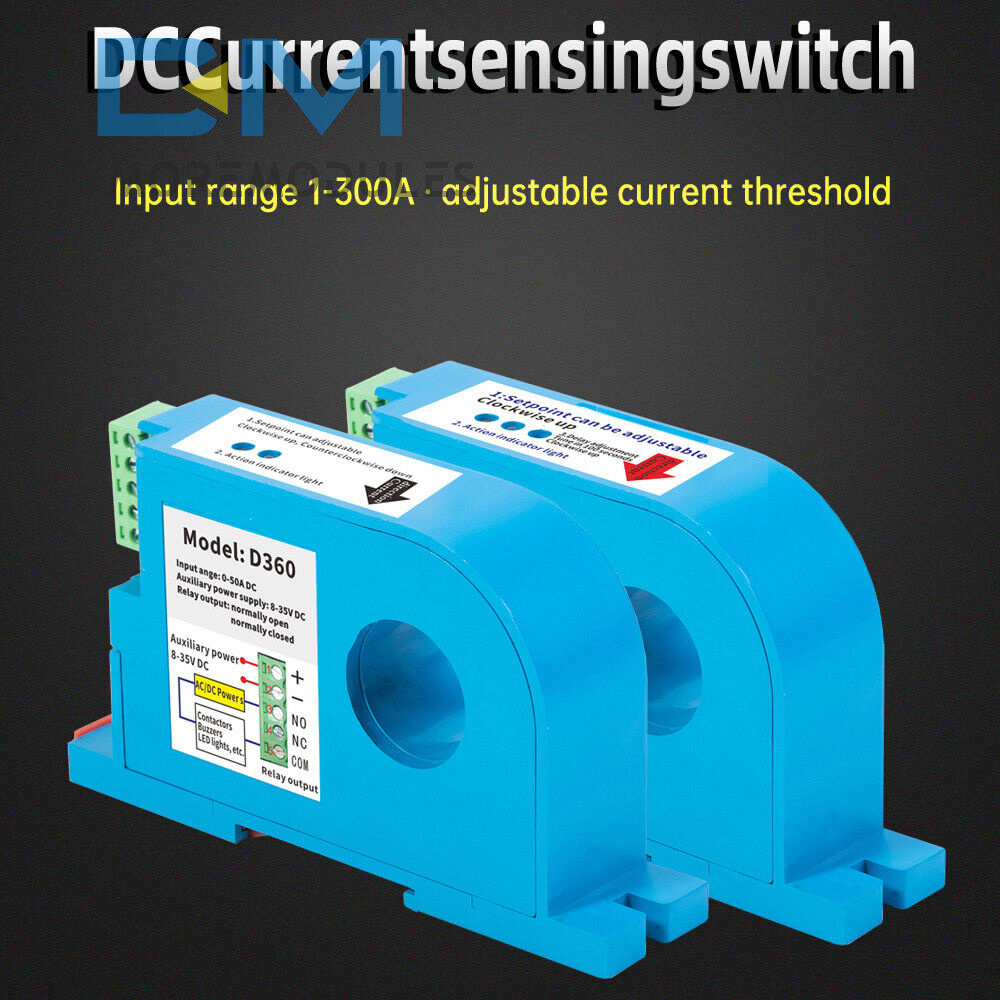

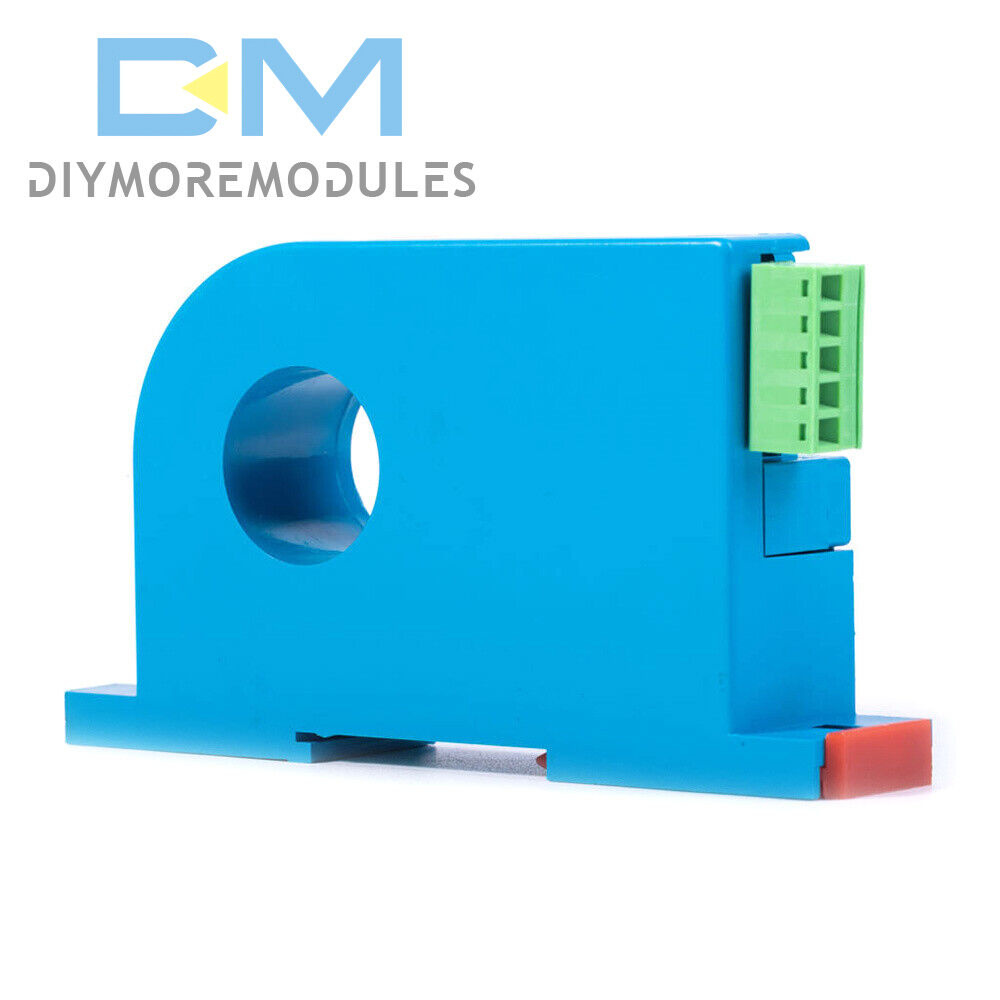

Product name: DC induction switch

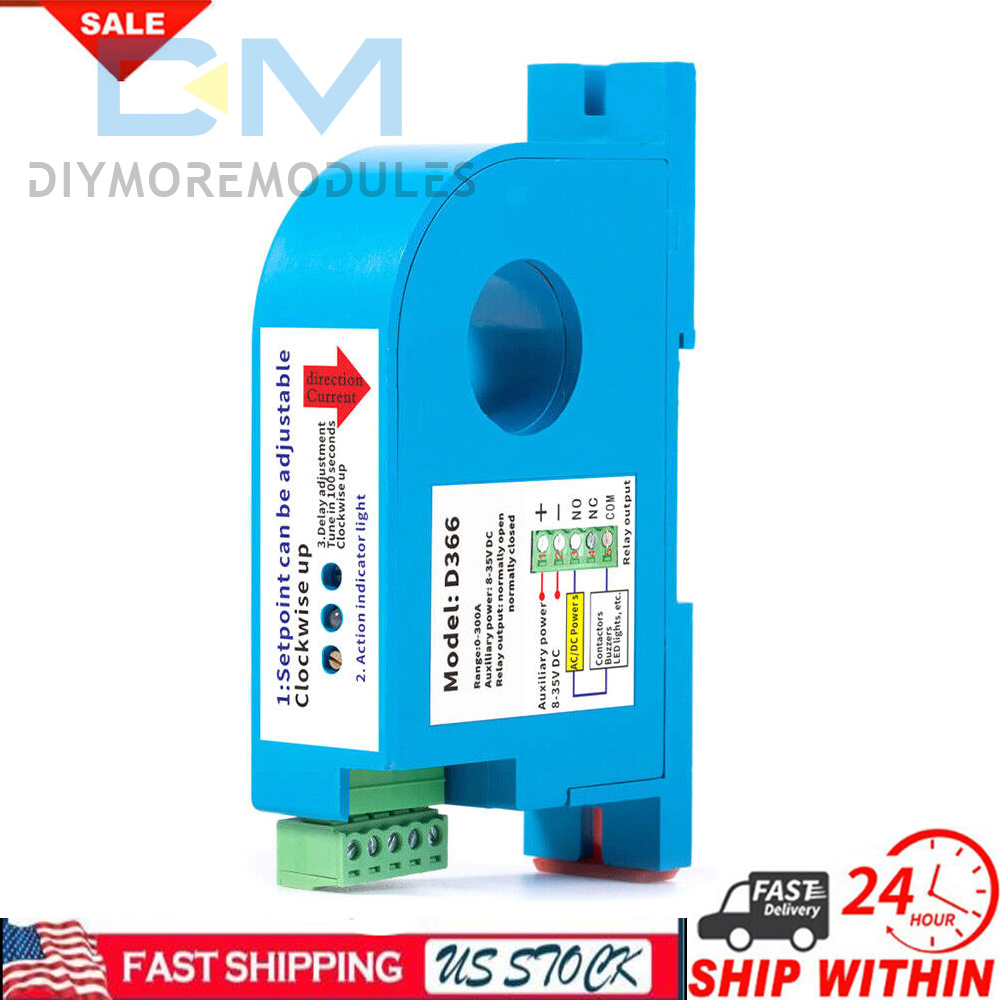

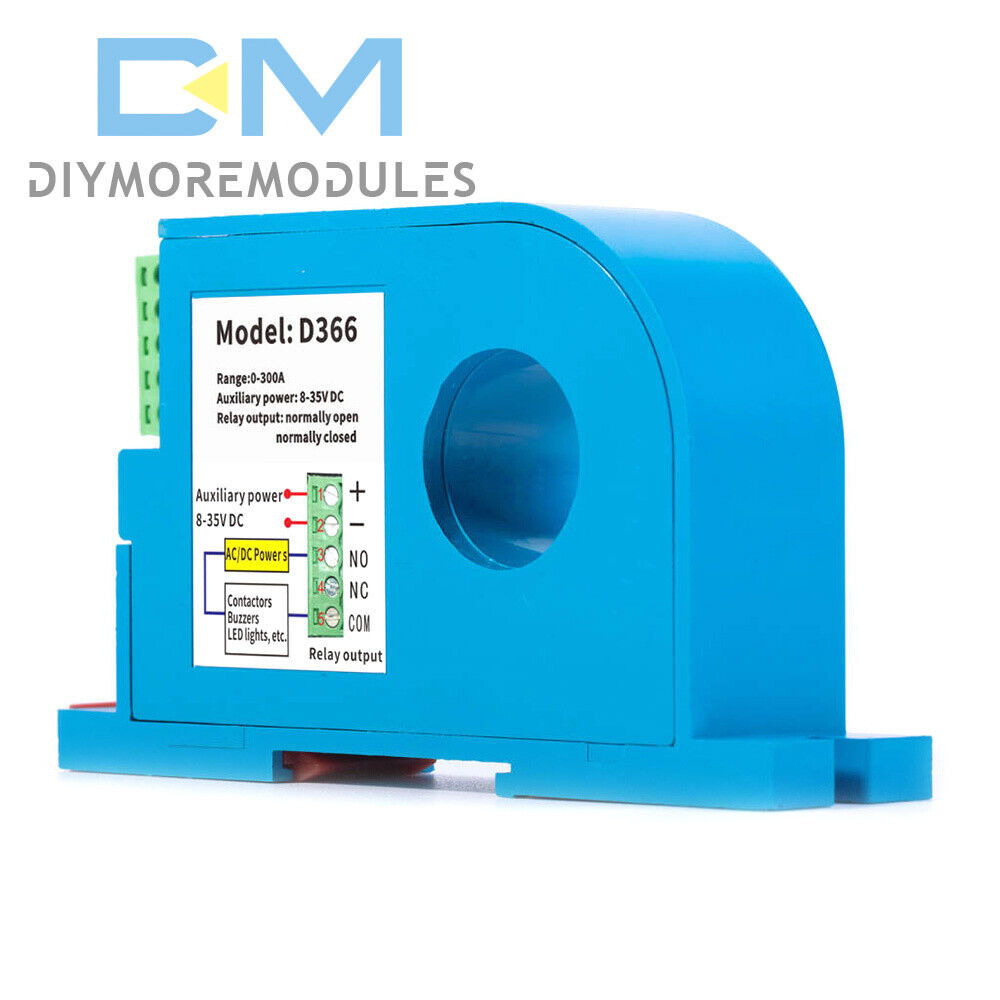

Model: D360/D366 (optional)
Accuracy: Class 0.5

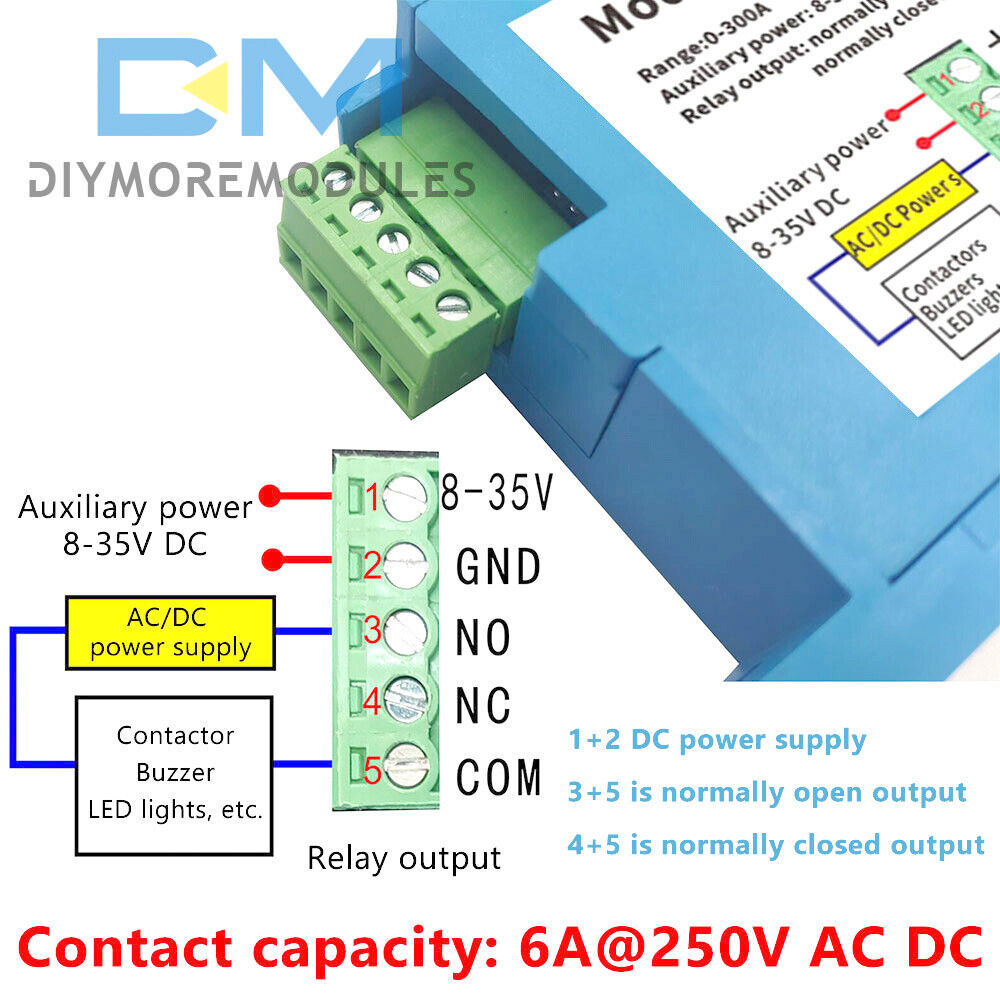

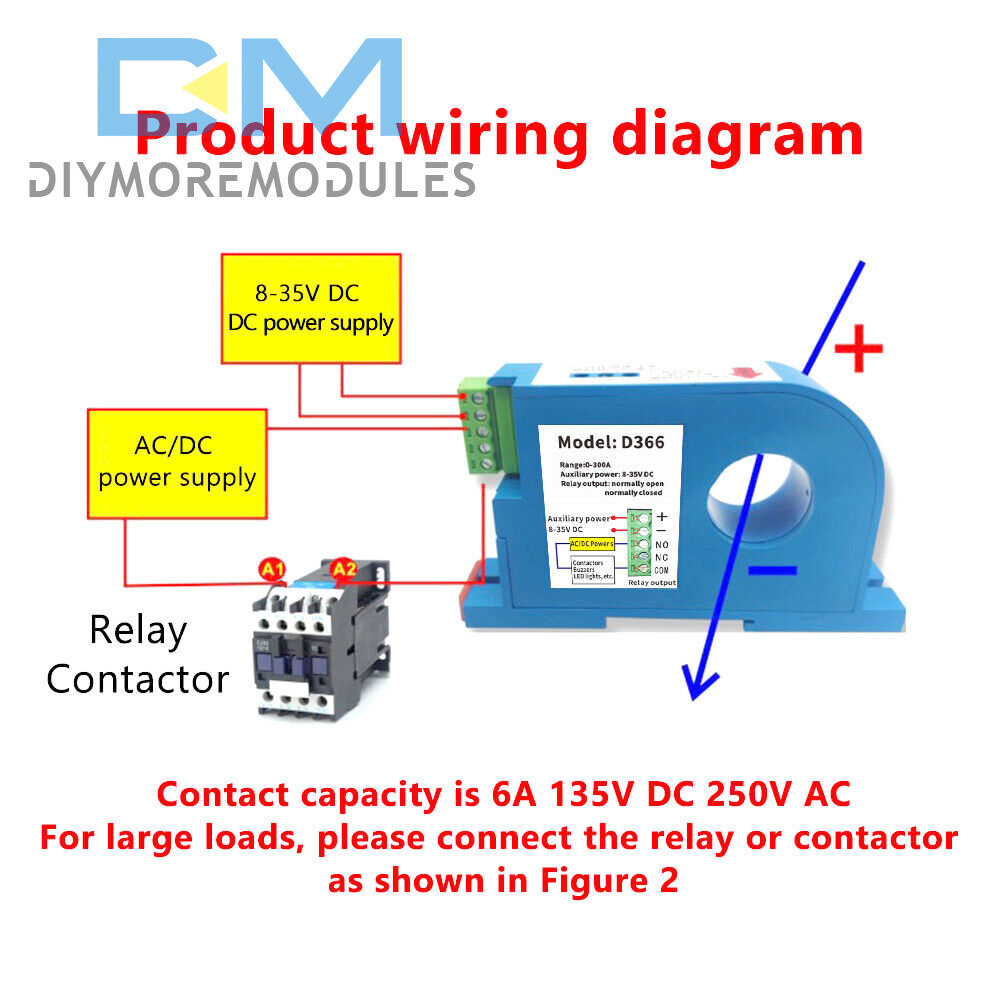

Contact capacity: 6A 240V AC/DC
Detection range: 0-50A/0-100A
Aperture: 22mm
Response time: ＜ 200ms
Overload capacity: 100%
Auxiliary power supply: DC 24V

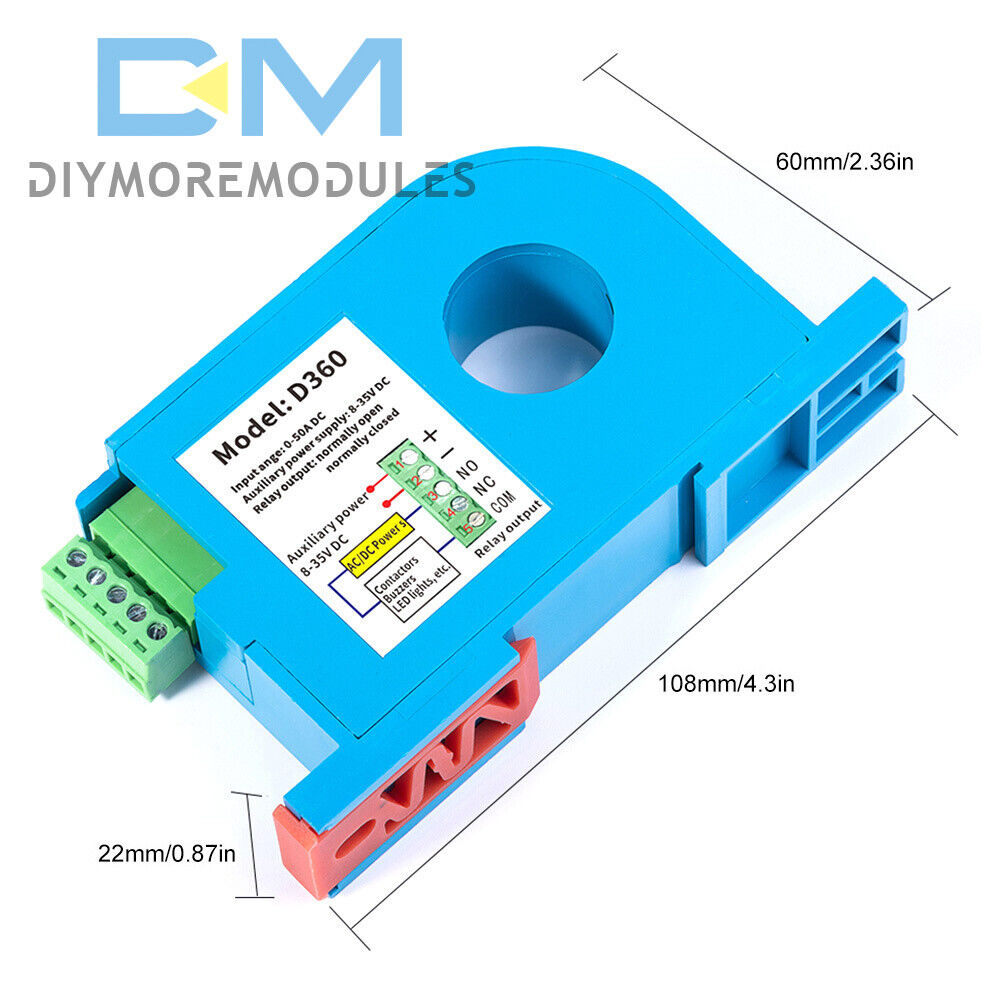

Product size: 108x22x60mm
Installation method: standard 35mm guide rail

Package list:
D360-50A DC current induction switch * 1
D366-300A DC current sensing switch with delay function * 1（optional）
