Item Description
LT1083 Module
Features:

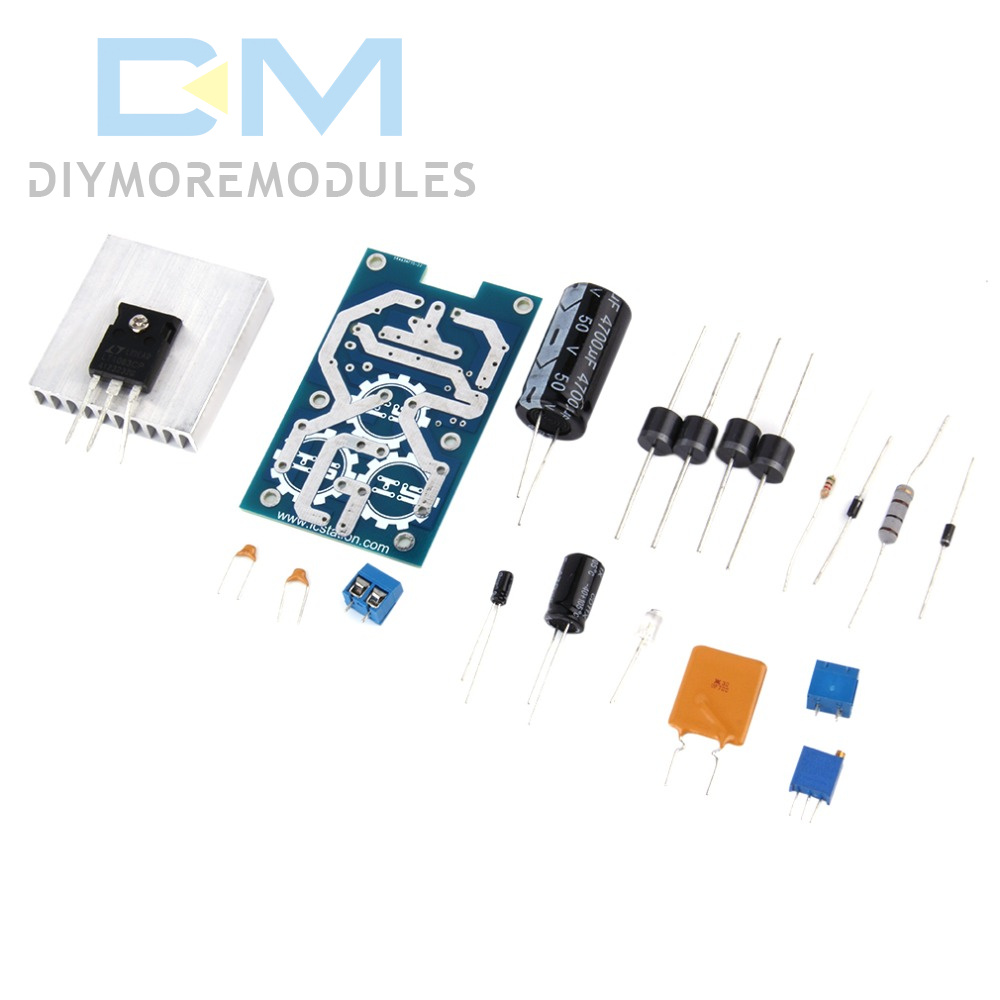

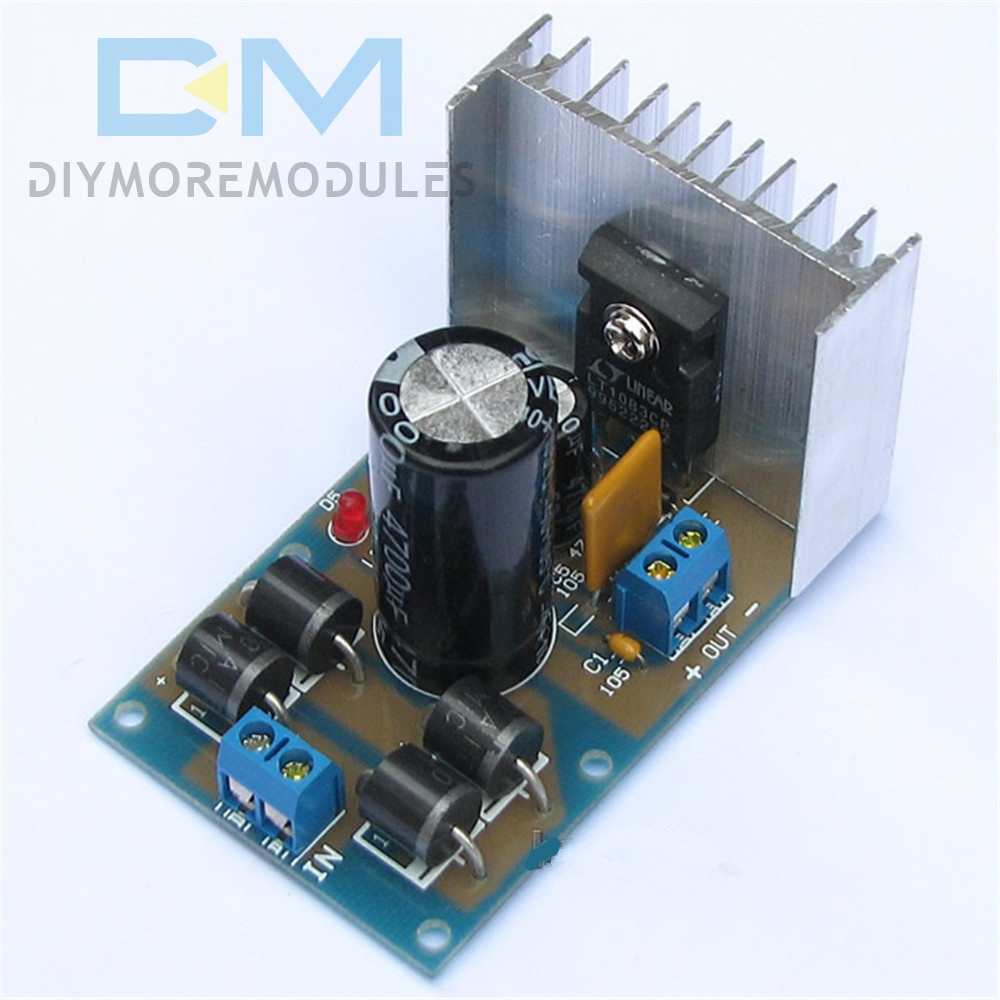

LT1083 adjustable regulated power supply is based on a low three steadied LT1083 chip adjustable regulated power supply.
Circuit 10 has four main a10 rectifier diode rectifier circuit, comprising 50 v / 4700 uf capacity,
TL1083, adjustable voltage regulator circuit, comprising W502 potentiometer, the output circuit 7 and a recovery car fuse
the four 10 a10 rectifier diode, AC power conversion to DC power supply, through 50 v / 4700 uf capacitor filter
W502 adjusting potentiometer, can adjust the output voltage LT1083 7 a recovery car fuse, can prevent the 'output of the circuit is too large, with output protection function
Technical specifications:

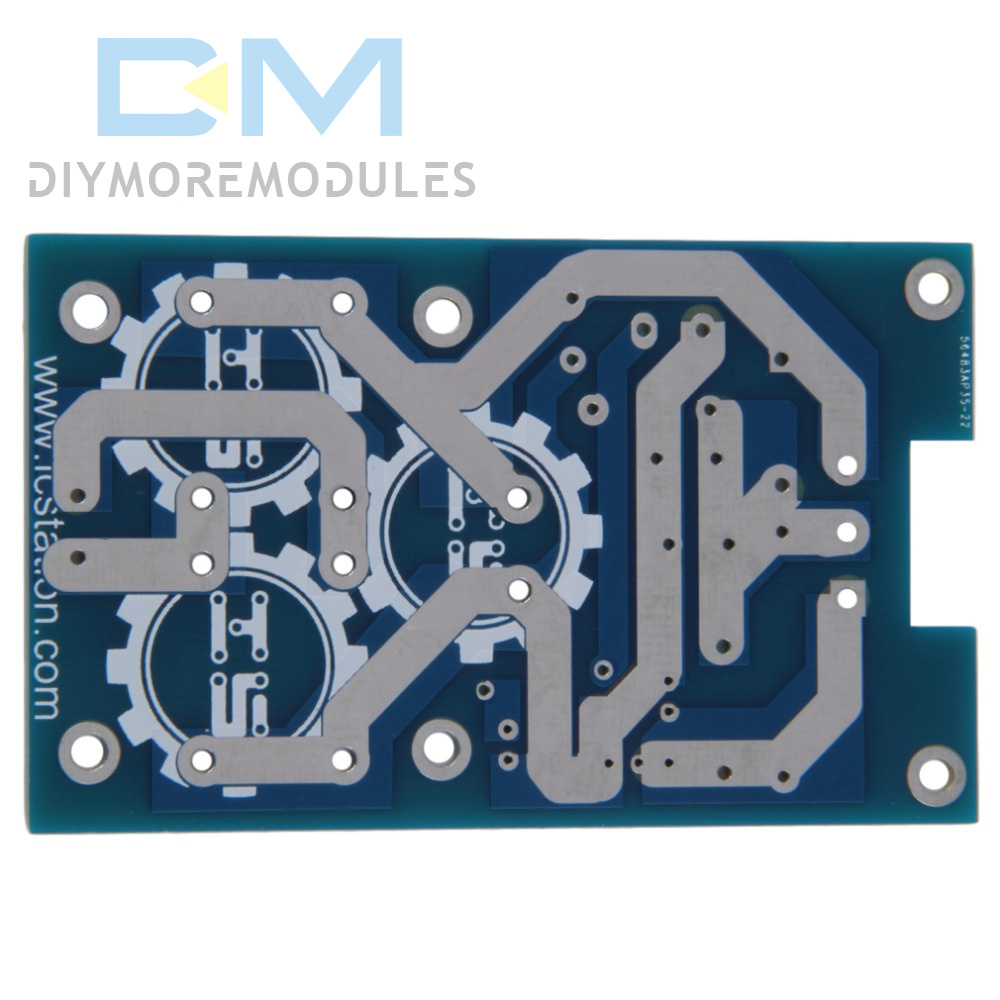

board size: 74mm x 46mm;
DC Input: 2.5 V-38 V;
Input AC: 2.5 V-27 V;
DC output: 2.5 V-35 V;
maximum current: 7A;
inlet and outlet pressure differential minimum: 2.5 volts;
Package Included:
1 x DIY Module
LT1083 adjustable regulated power supply is based on a low three steadied LT1083 chip adjustable regulated power supply.
Circuit 10 has four main a10 rectifier diode rectifier circuit, comprising 50 v / 4700 uf capacity,
TL1083, adjustable voltage regulator circuit, comprising W502 potentiometer, the output circuit 7 and a recovery car fuse
the four 10 a10 rectifier diode, AC power conversion to DC power supply, through 50 v / 4700 uf capacitor filter
W502 adjusting potentiometer, can adjust the output voltage LT1083 7 a recovery car fuse, can prevent the 'output of the circuit is too large, with output protection function
Technical specifications:
board size: 74mm x 46mm;
DC Input: 2.5 V-38 V;
Input AC: 2.5 V-27 V;
DC output: 2.5 V-35 V;
maximum current: 7A;
inlet and outlet pressure differential minimum: 2.5 volts;
Package Included:
1 x DIY Module

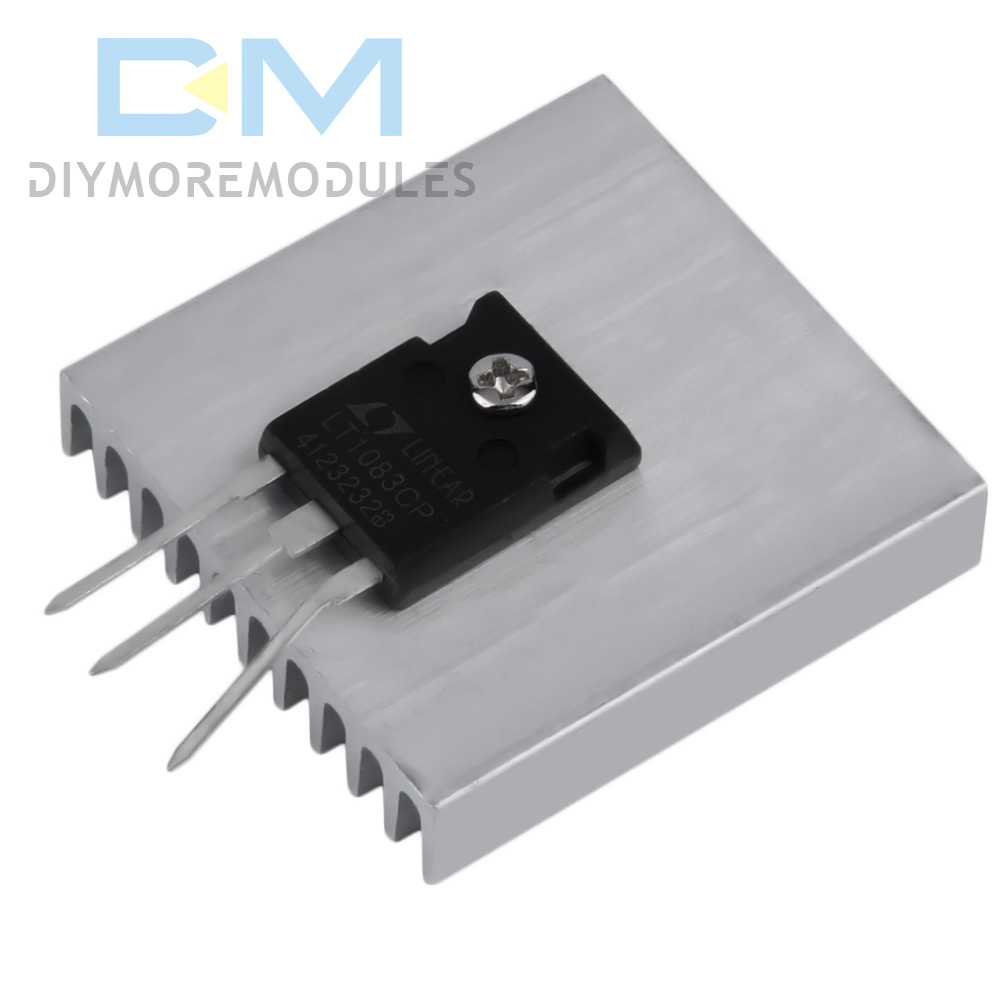

LT1083CP IC
Positive Adjustable Regulators TO-3P LT1083CP LT1083CP#PBF LT1083CP-ADJ IC
Package Included:
1PC x Positive Adjustable Regulators TO-3P LT1083CP LT1083CP#PBF LT1083CP-ADJ IC
