Details
Product Features
1. Easy to use and easy to install
2. Stable performance and long service life
3. Normally open and normally closed as one, convenient and flexible
4. It is not easily broken and has characteristics such as compression resistance, impact resistance, and corrosion resistance
5. Can be installed in more complex environments: the size of the door magnetic switch is small, suitable for various door types
Product parameters
Product Name: MC-38B Door Magnetic Alarm
Appearance size: 27 * 14 * 8 mm
Switch mode: normally open and normally closed integrated
Voltage: 100V DC
Maximum load current 200mA
Drive distance: 10-20mm
Wire: 24AWG approximately 320mm long
Installation method: SMD (using screws or double-sided tape)
Application suggestion: wooden doors and windows

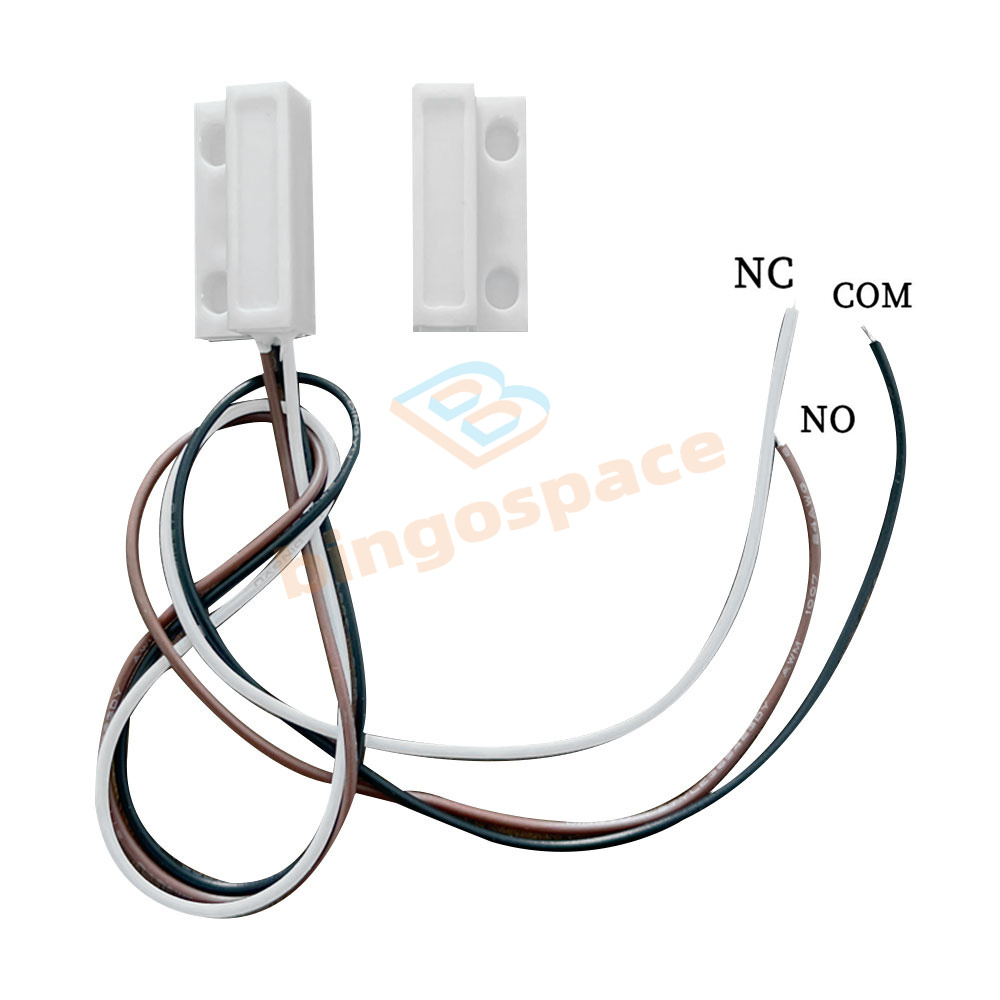

Normally open: When the magnet and reed switch are together, they are in the off state (NO)
Normally closed type: When the magnet and reed switch are together, they are in a conductive state (NC)
Shipping List

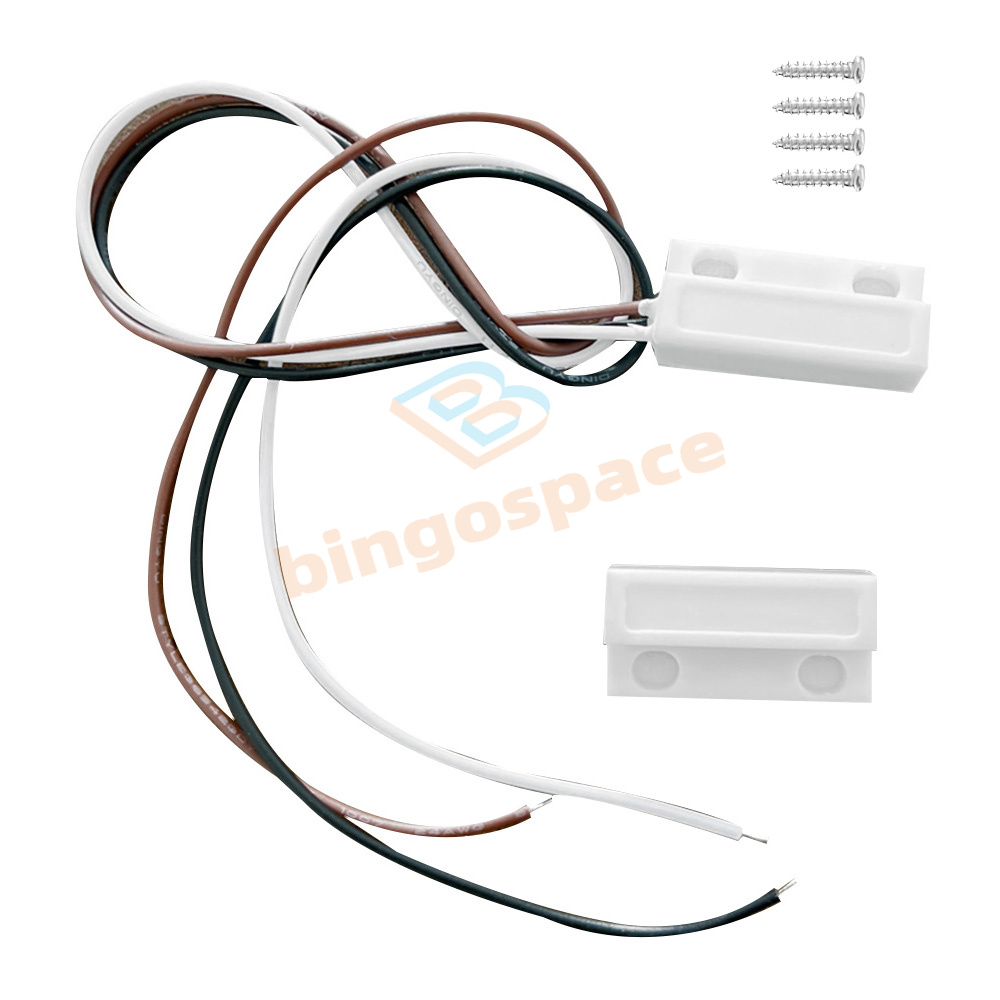

Door magnetic switch (Set) * 1
Screw * 4
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！
MC-38B Door/Window Sensor N/C N/O Switch Magnetic Alarm Normally Closed/Opened
DESCRIPTION
Product Features
1. Easy to use and easy to install
2. Stable performance and long service life
3. Normally open and normally closed as one, convenient and flexible
4. It is not easily broken and has characteristics such as compression resistance, impact resistance, and corrosion resistance
5. Can be installed in more complex environments: the size of the door magnetic switch is small, suitable for various door types
Product parameters
Product Name: MC-38B Door Magnetic Alarm
Appearance size: 27 * 14 * 8 mm
Switch mode: normally open and normally closed integrated
Voltage: 100V DC
Maximum load current 200mA
Drive distance: 10-20mm
Wire: 24AWG approximately 320mm long
Installation method: SMD (using screws or double-sided tape)
Application suggestion: wooden doors and windows
Normally open: When the magnet and reed switch are together, they are in the off state (NO)
Normally closed type: When the magnet and reed switch are together, they are in a conductive state (NC)
Shipping List
Door magnetic switch (Set) * 1
Screw * 4
