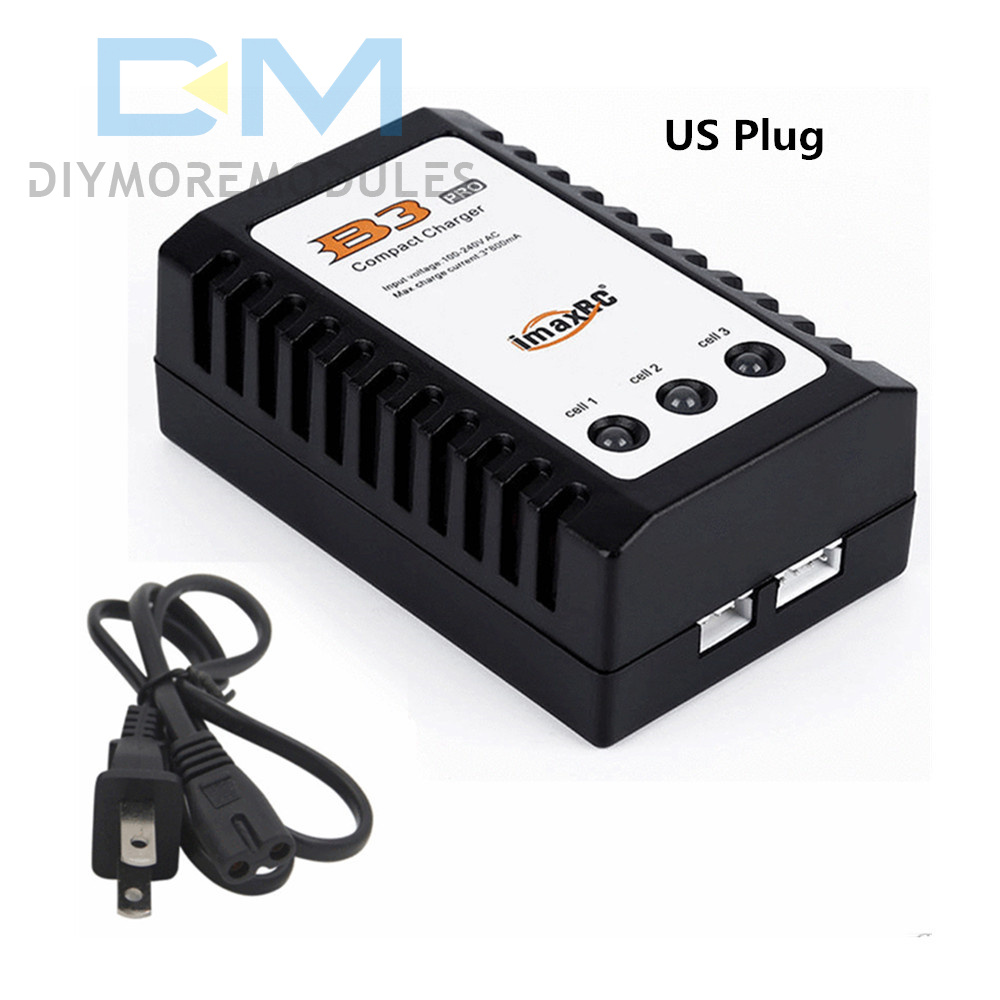

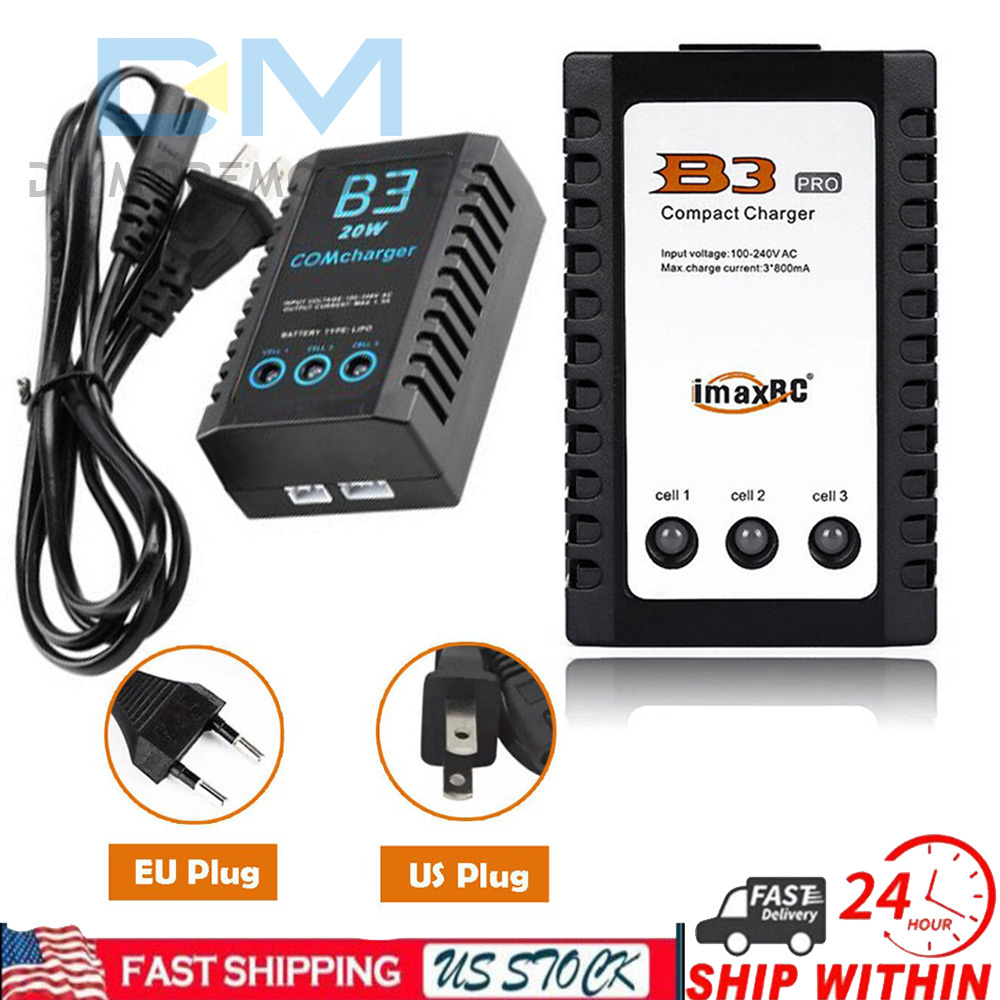

Item Description

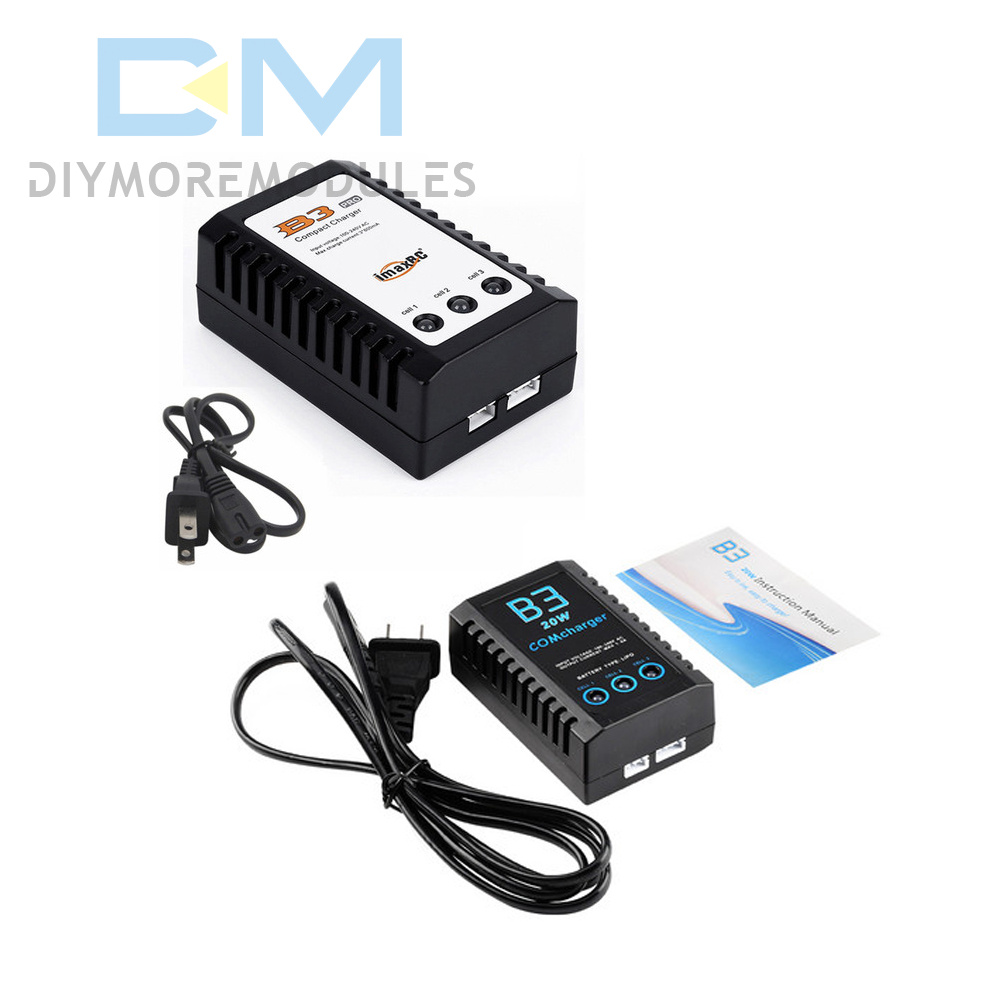

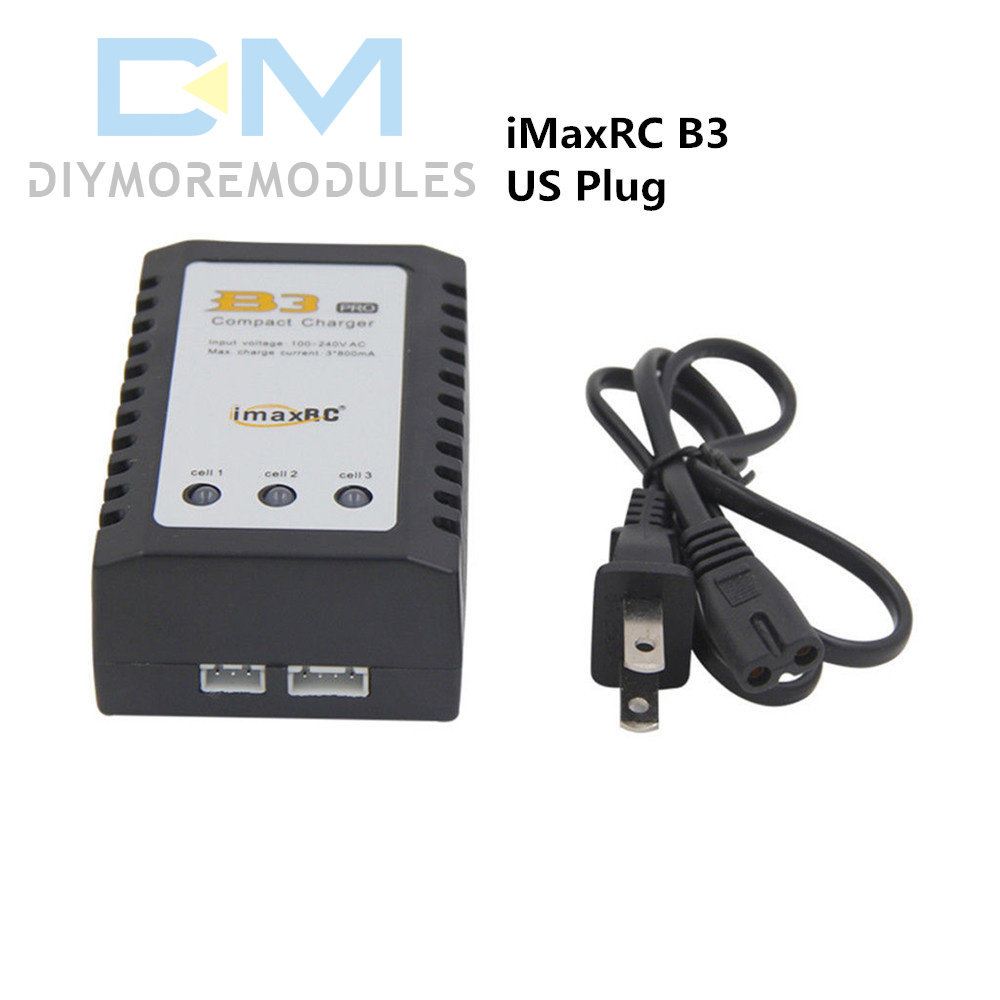

10W EU Plug 10W US Plug 20W EU Plug 20W US Plug
Specifications:
Input voltage: AC 100V-240V
Balance charge current: 850mA
Max charger current: 3*800mA
Display:3x Bicolor LED
Power plug: US/EU Plug
Display: Green & Red LED
Case material: ABS Plastic
Dimension: 90 x 55 x 35mm/3.5 x 2.2 x 1.4 inch
Main color: Black
Specifications:
Input voltage: AC 110V-240V
Balance charging current: 1600mA
Charging power: 20W
Size: 92mm x 59mm x 35.5mm
Power plug: US/EU Plug
Weight: 100g
Shell material: ABS plastic
Display: Green and red LED lights
Main color: Black


Description:
100% brand new and high quality
Features:

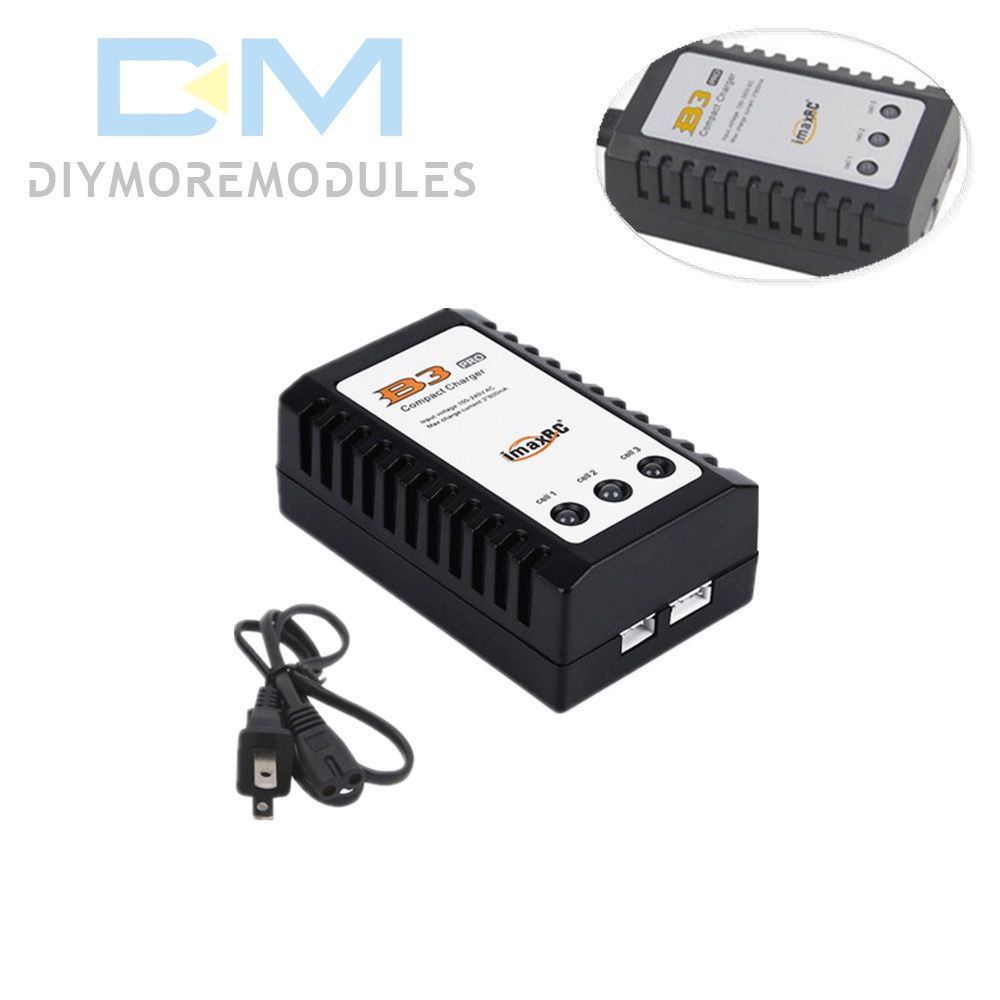

With the development of electric technology, we have a new design of easy compact balance charger for 2 and 3 cells LiPo battery fast charging with wide AC input.
A internal 100-240V AC switch power is built in, and the high precision balance circuit can supply larger current up to 850mA per cell.
Double colour LED can display the process of charging (RED: charging; GREEN: full).
This charger is compact and light, especially there is separated corresponding balance port for each battery pack.

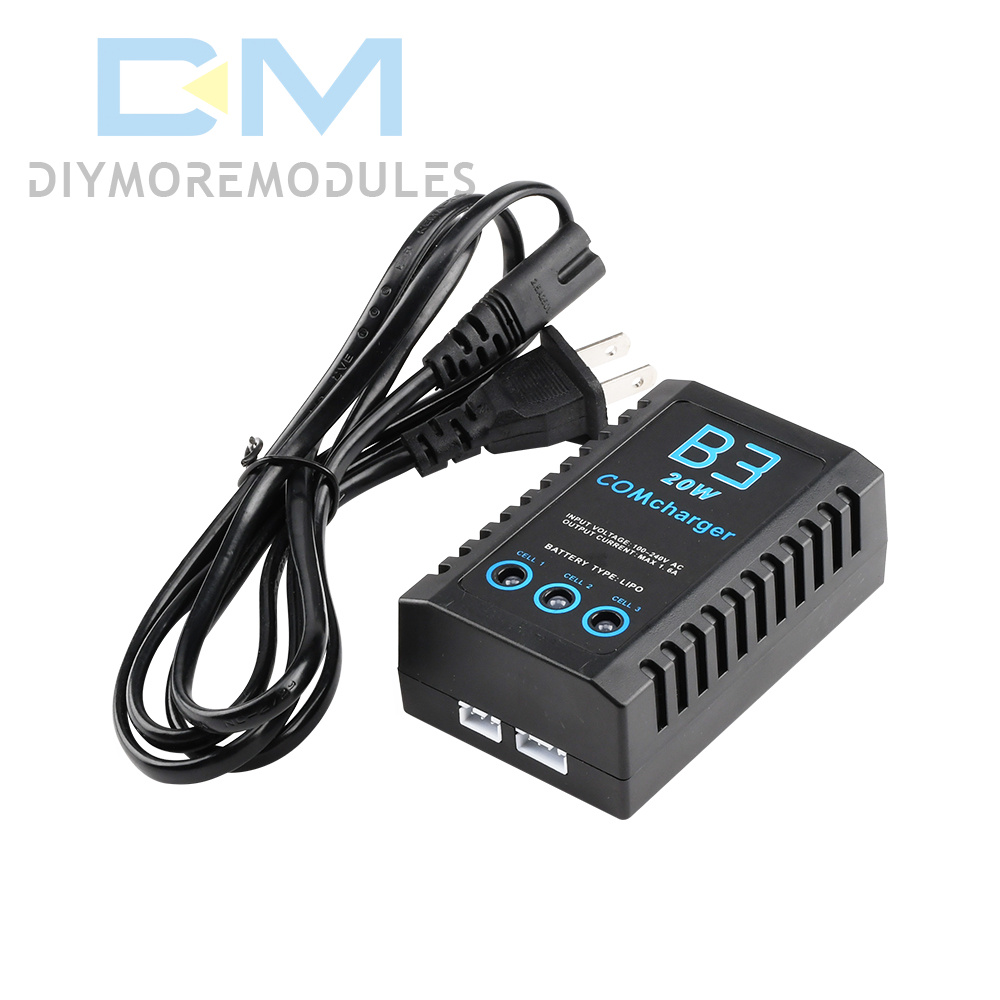

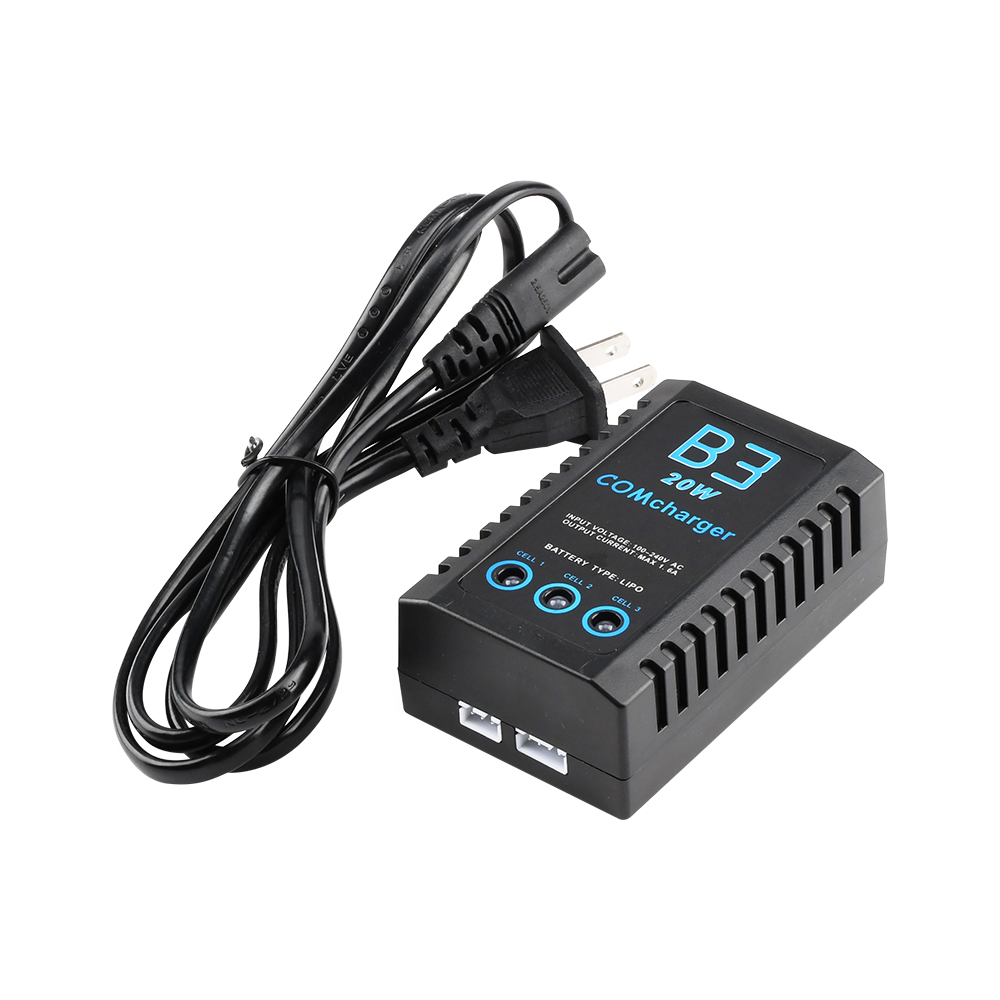

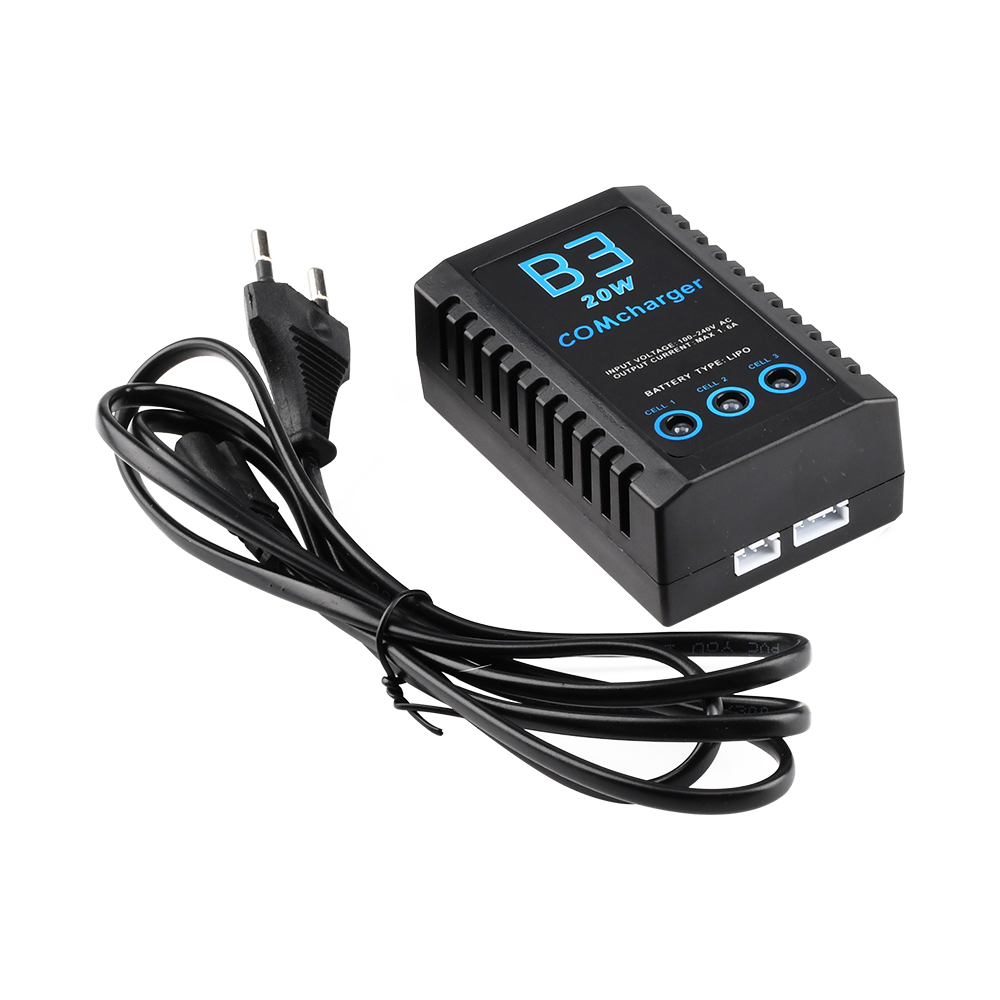

B3 20W Simple Balance Charger is the best solution for 2S-3S batteries, because it is lightweight and exquisite, with a maximum power of 20W, uses charging current, AC functions, and especially separates the corresponding balance ports for each battery pack. This is very suitable for remote control cars and helicopters.
Charger connection:
1. First, please connect B3 to the power supply, and then the three LED lights will turn green, which indicates that the charger is in good condition.
2. Secondly, please connect the 2S or 3S battery balance port, then the LED light turns red and it starts to charge the battery.
3. All the LED lights turn green, and the charging process ends. Please terminate the charging process.
Caveat:
1. Only use the charger and battery type. Don't try to use other types of batteries. The charger is not compatible with LILO or NiMH/NiCd batteries.
2. Observe any battery that warns you.
3. Please observe the charging process of the charger. If any failure is found, terminate the process immediately.
4. Keep the charger away from moisture, dust, dirt, heat, direct sunlight and vibration.
5. All connections are before starting the charging process. Do not connect with reverse polarity.
6. The charger and battery should be placed on a heat-resistant, non-flammable and non-conductive surface. Don't put them on car seats, carpets or similar. Keep combustible materials away from the work area.
7. Avoid short circuit between the output power cord and the input connector, always connect the charger of the adapter cord, and then charge the battery. When the sequence is reversed, disconnect.

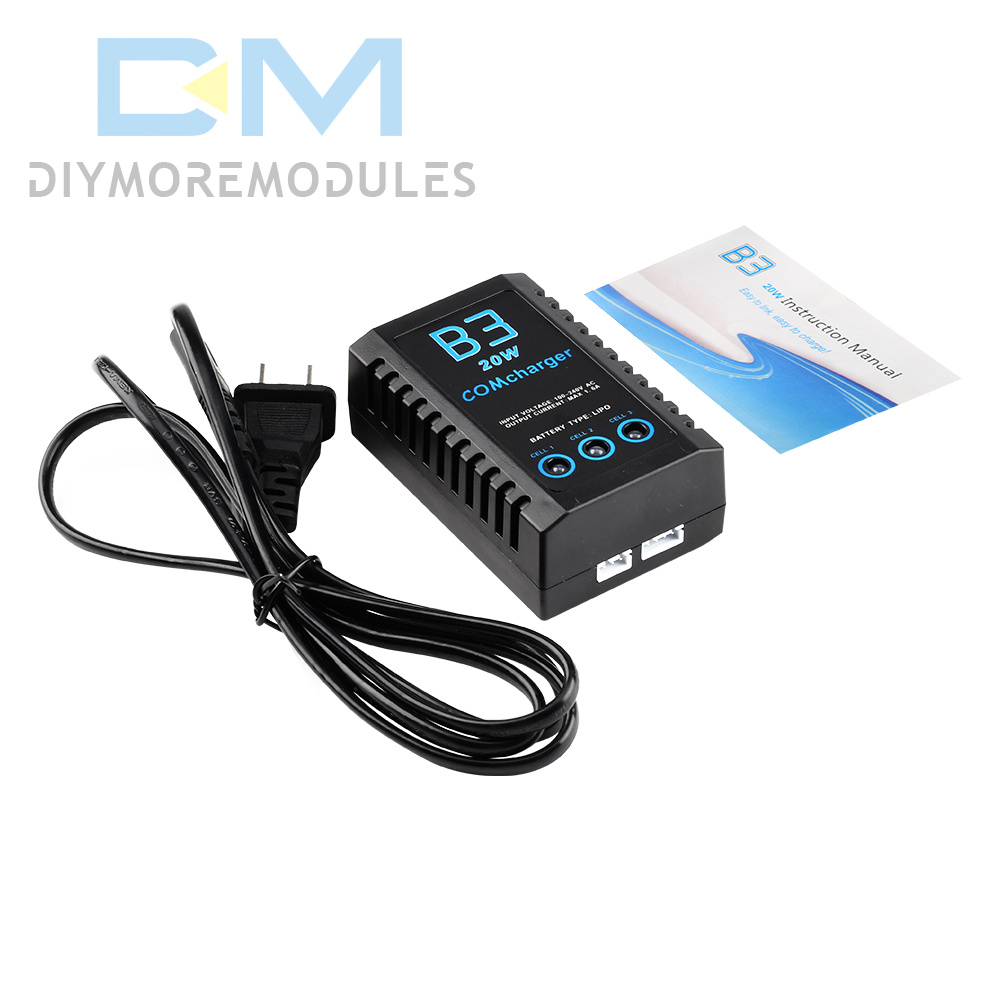

The attachment contains:
●B3 charger x 1
●AC power cord x 1
●English manual x 1

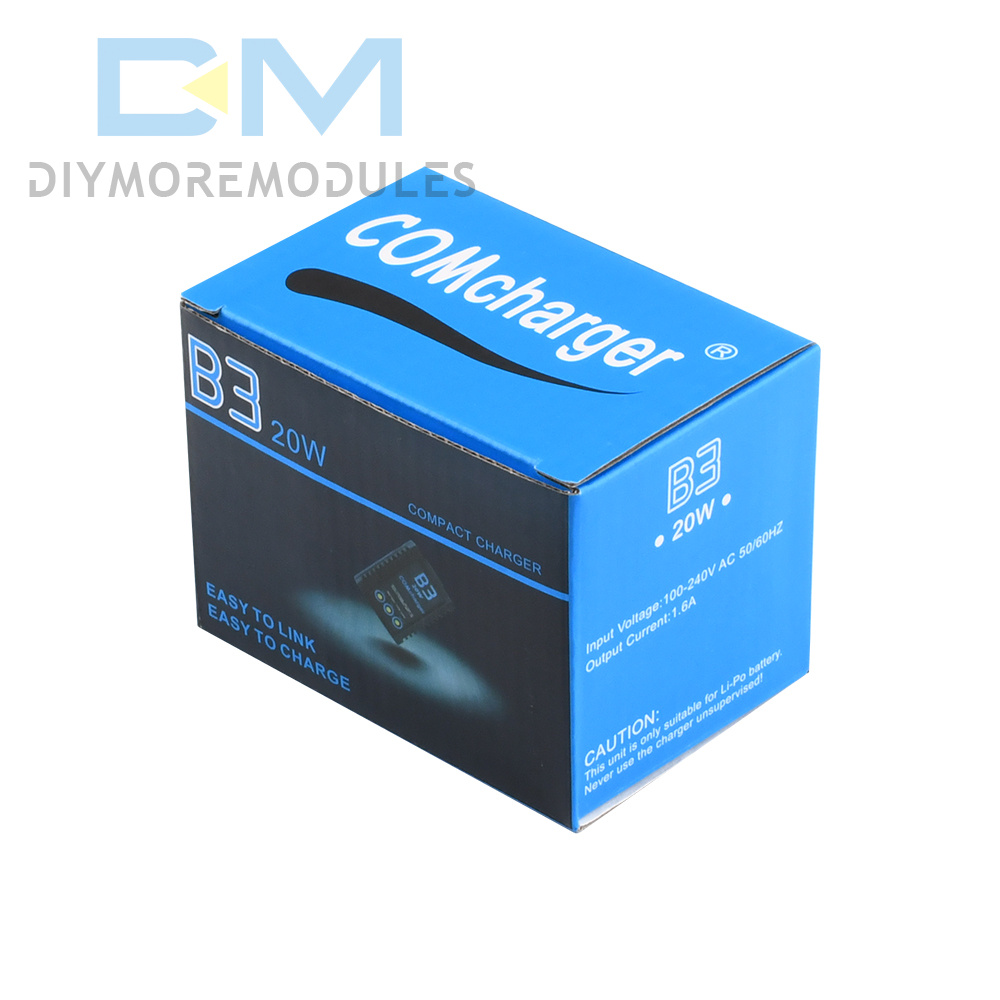

●Colorful packing box
