Item Description
Product features:
1. Use of high-quality materials, quality assurance
2. Stable performance
3. Easy to use
4. Exquisite and beautiful appearance
5. Wide range of applications
1. Use of high-quality materials, quality assurance
2. Stable performance
3. Easy to use
4. Exquisite and beautiful appearance
5. Wide range of applications
Parameters:
Working voltage: DC 8~30V
Working current: 14-25MA
MODBUS RTU protocol, 03 read command, 06 or 16 write command.
Serial port baud rate: 9600 (default), N, 8, 1

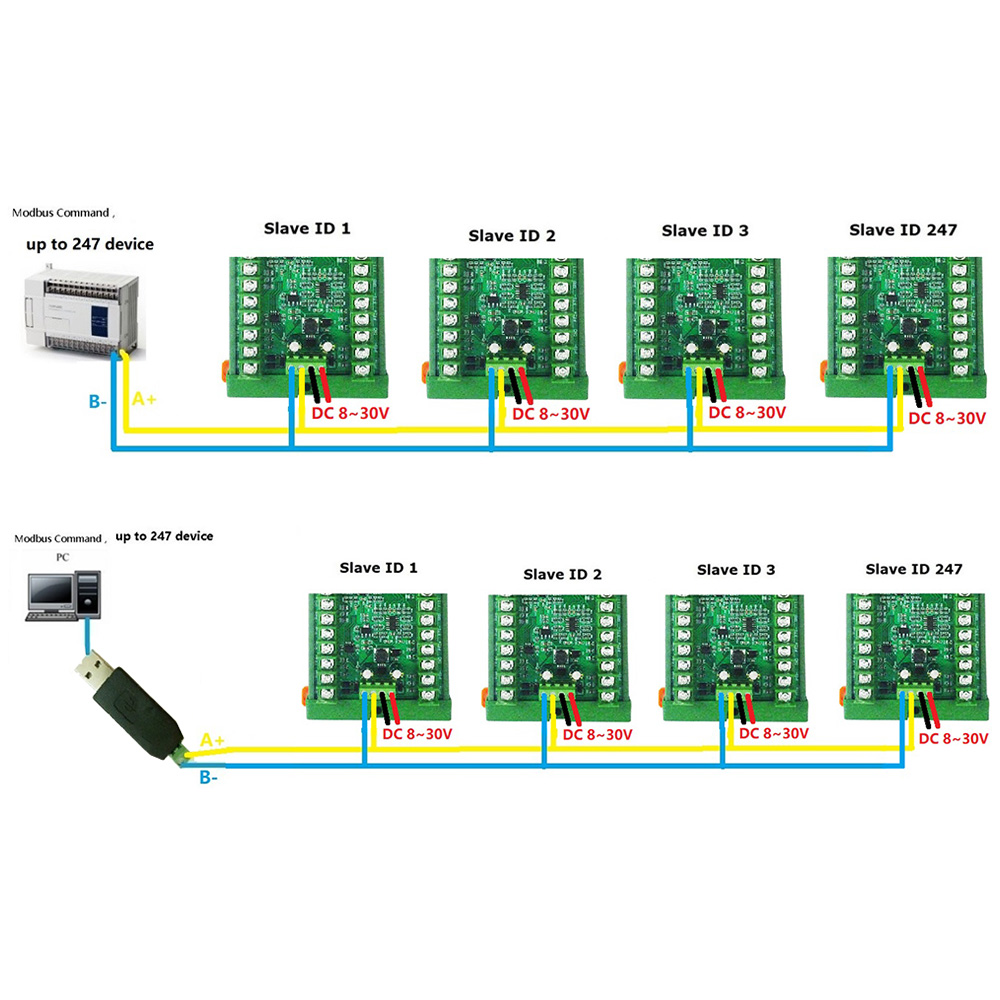

Up to 247 modules can be cascaded by modifying the 485 address (more than 16 please use R485 repeater)
Readable temperature and PT100 resistance values

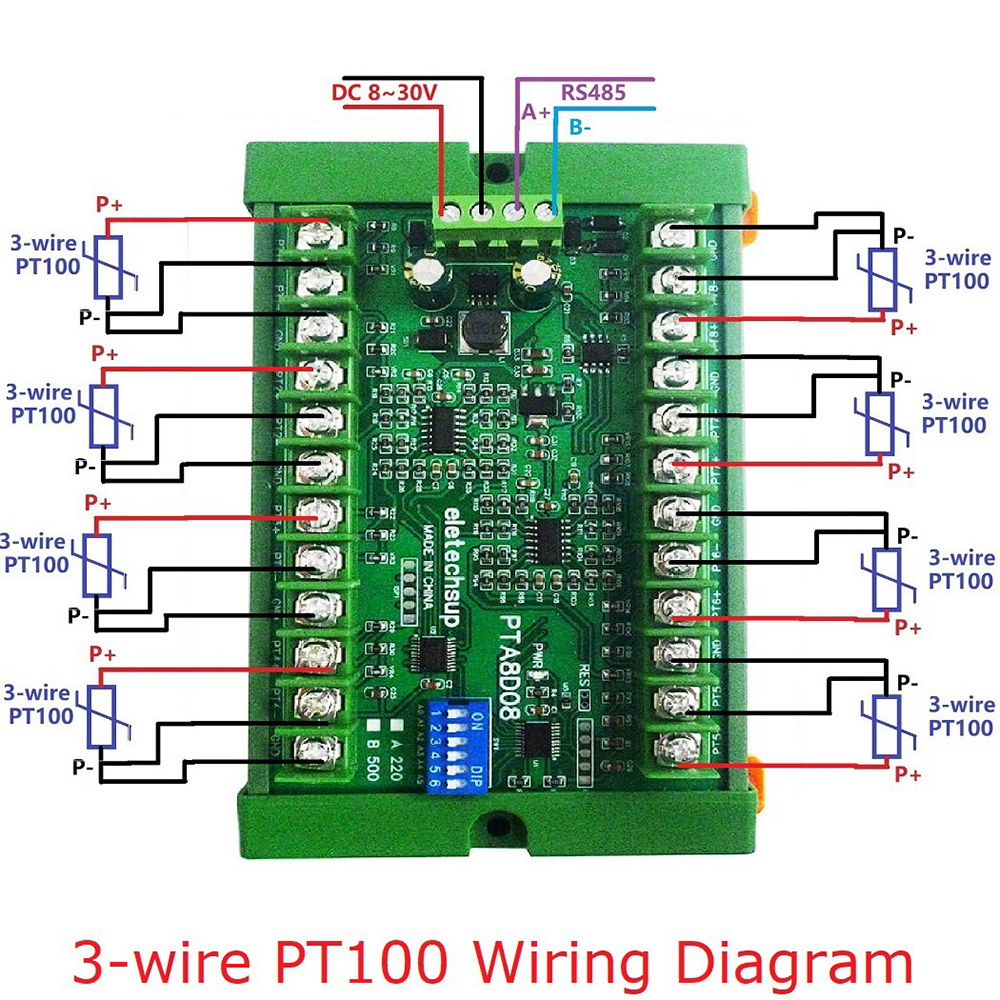

Adaptive sensors: PT100 3-wire or 2-wire sensors

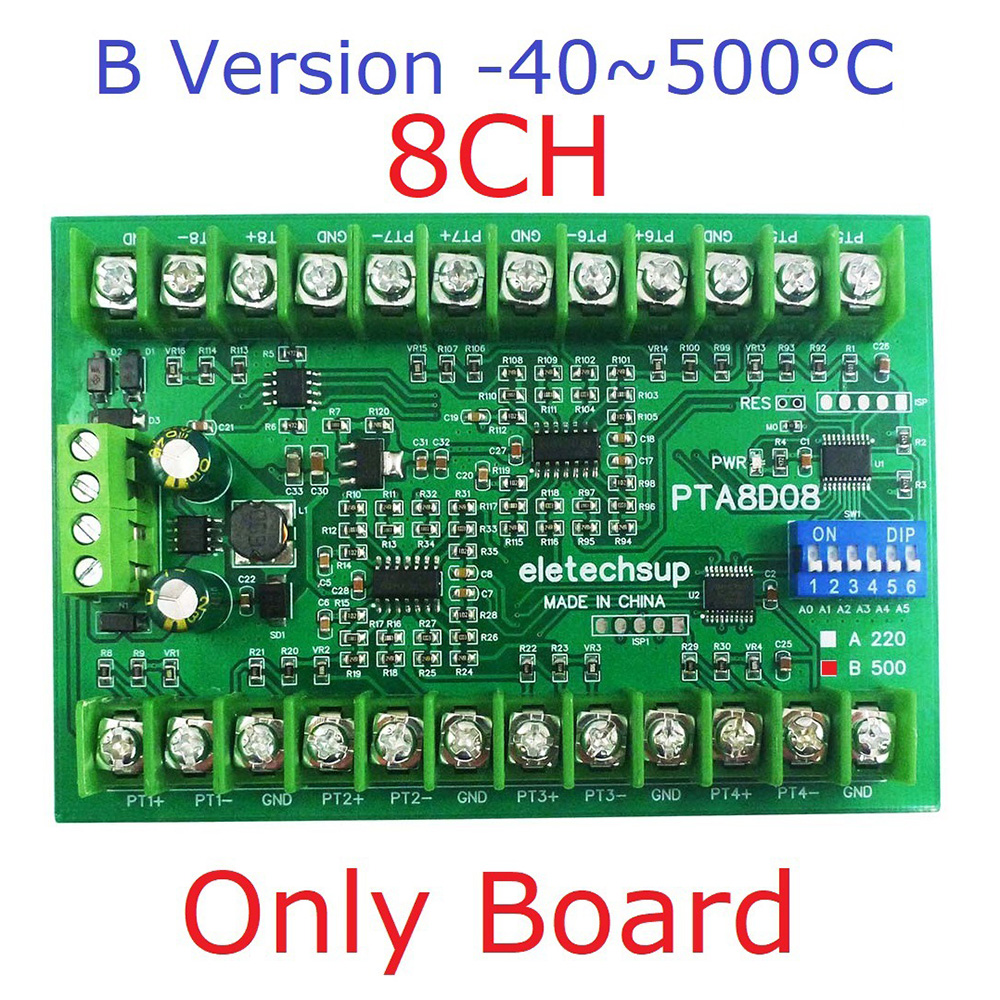

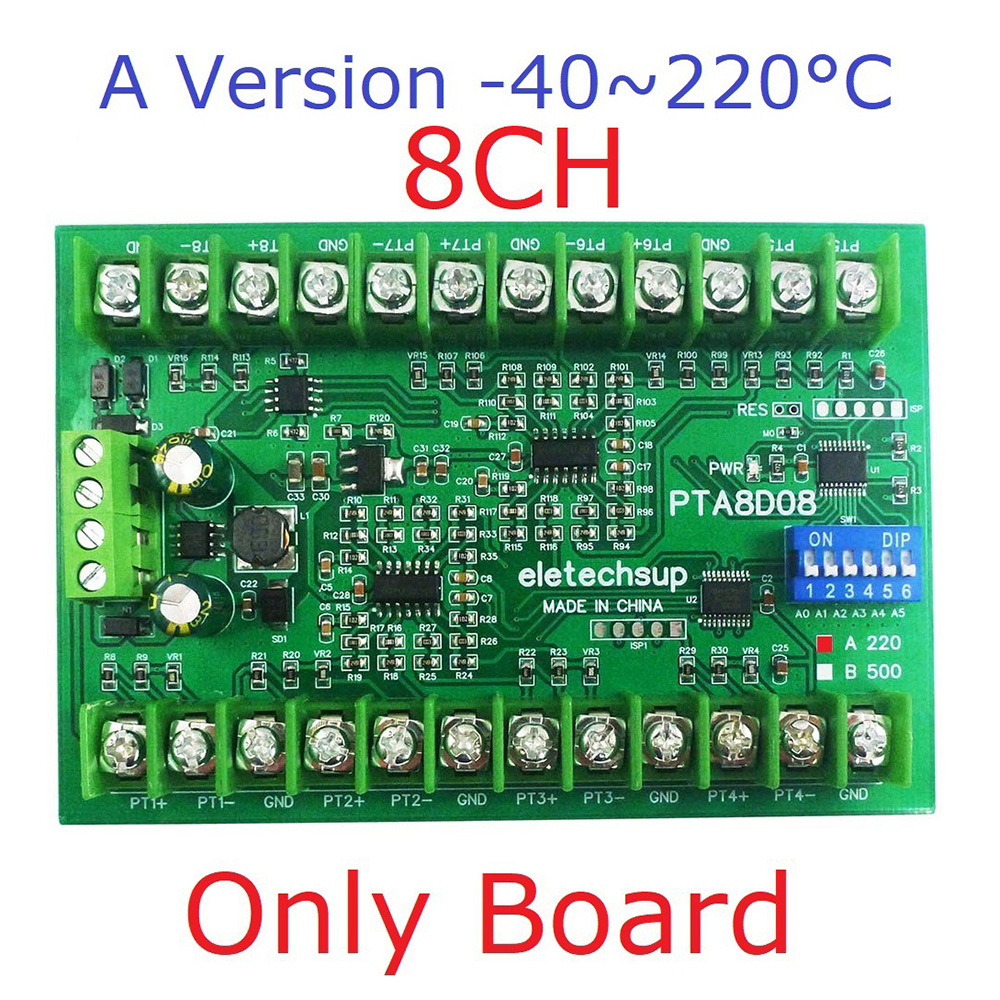

Temperature measurement range: Type A -40°C to +220°C; Type B -40°C to +500°C It is recommended to choose a version with a smaller range within the range that matches the measured value.
Temperature measurement accuracy: 1%
MODBUS RTU protocol please refer to: PTA8D08 8CH PT100 RS485 sensor protocol
Working voltage: DC 8~30V
Working current: 14-25MA
MODBUS RTU protocol, 03 read command, 06 or 16 write command.
Serial port baud rate: 9600 (default), N, 8, 1
Up to 247 modules can be cascaded by modifying the 485 address (more than 16 please use R485 repeater)
Readable temperature and PT100 resistance values
Adaptive sensors: PT100 3-wire or 2-wire sensors
Temperature measurement range: Type A -40°C to +220°C; Type B -40°C to +500°C It is recommended to choose a version with a smaller range within the range that matches the measured value.
Temperature measurement accuracy: 1%
MODBUS RTU protocol please refer to: PTA8D08 8CH PT100 RS485 sensor protocol

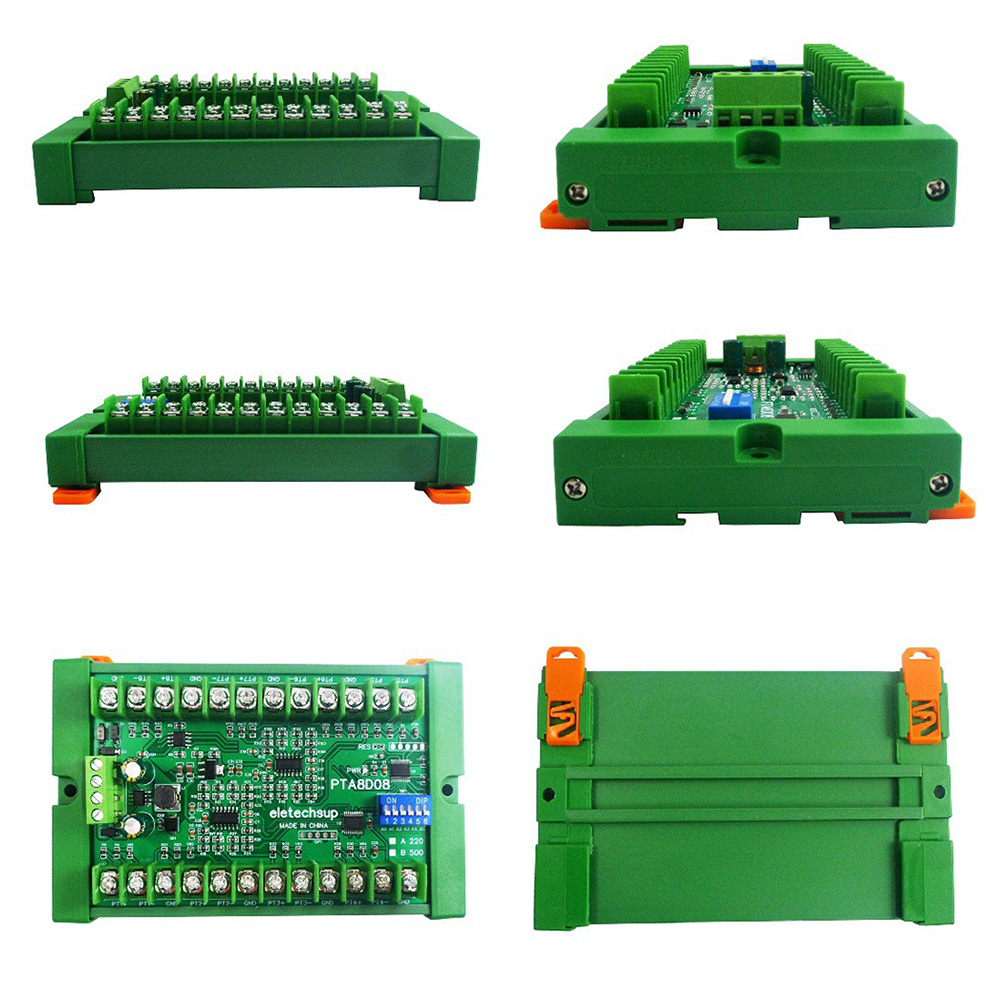

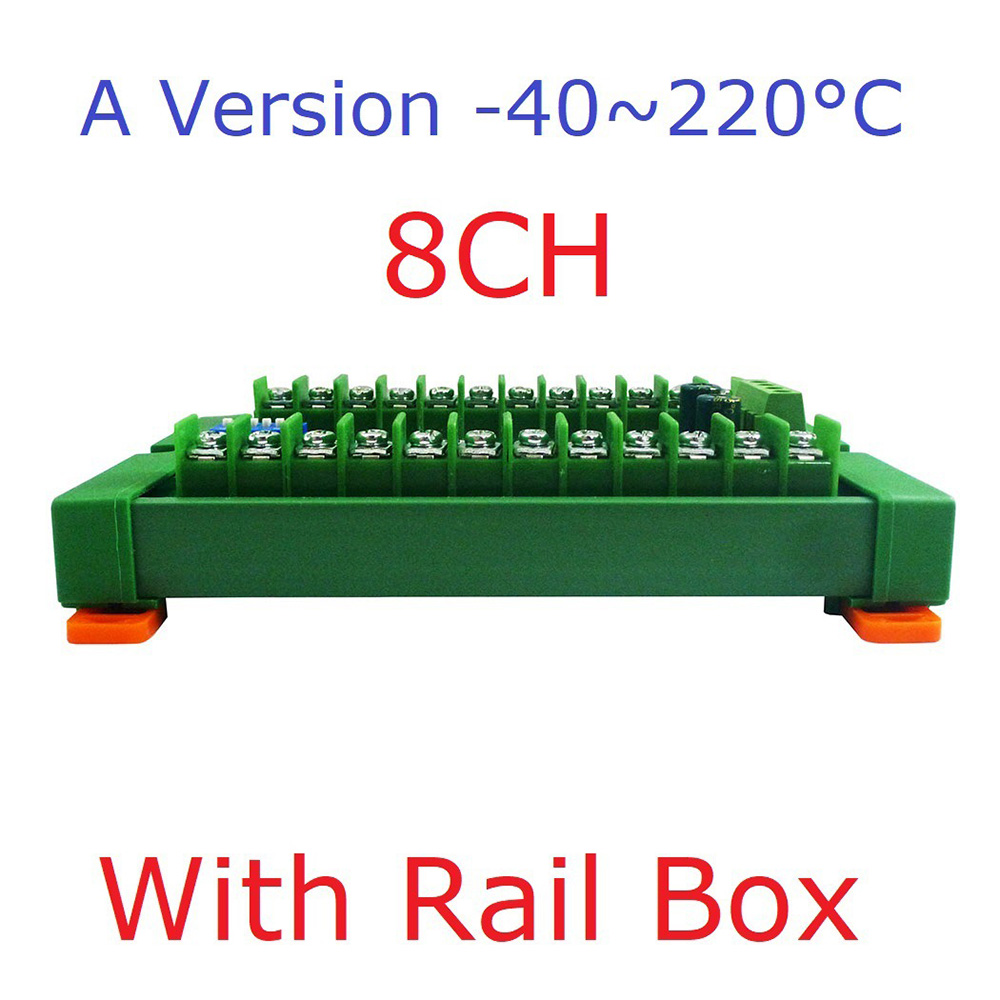

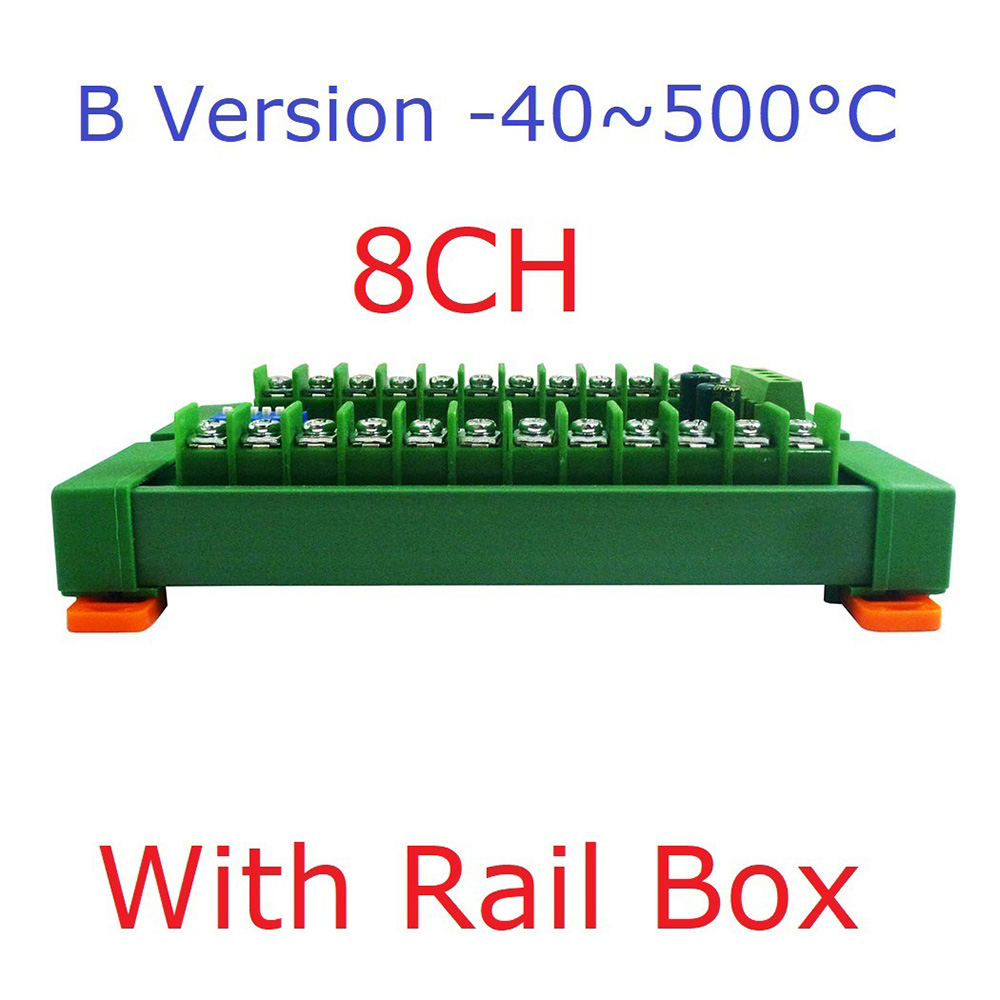

IN rail box parameters:
Product Model: UM80
Color: green
Width: Applicable to PCB board width UM80 (80mm)
Insulation grade: Flame retardant VO grade
Backplane length: applicable to 117 mm PCB board
Mounting: DIN35 and C45 rail
Product Model: UM80
Color: green
Width: Applicable to PCB board width UM80 (80mm)
Insulation grade: Flame retardant VO grade
Backplane length: applicable to 117 mm PCB board
Mounting: DIN35 and C45 rail

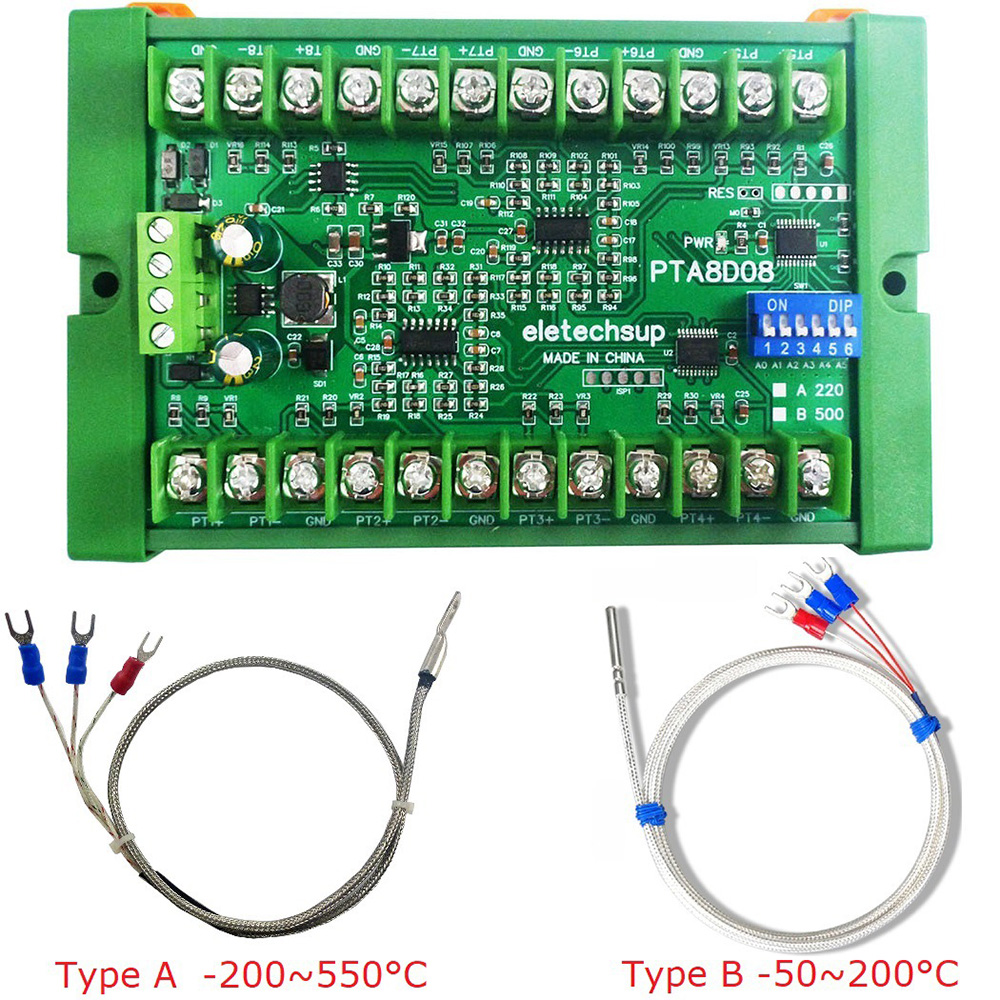

PT100 sensor specifications (Type A).
Type: PT100
Probe diameter: 6.5 mm
Probe length: 30 mm
Probe material: stainless steel
Cable length: 0.5M
PTFE sheath 3-wire type
Temperature -200～550°C
Nominal accuracy: 0.1%
Type: PT100
Probe diameter: 6.5 mm
Probe length: 30 mm
Probe material: stainless steel
Cable length: 0.5M
PTFE sheath 3-wire type
Temperature -200～550°C
Nominal accuracy: 0.1%
PT100 sensor specifications (Type B).
Type: PT100
Probe diameter: 4mm
Probe length: 30mm
Probe material: stainless steel
Cable length: 0.5M
PTFE sheath 3-wire type
Temperature -50~200°C
Nominal accuracy: 0.3%
Type: PT100
Probe diameter: 4mm
Probe length: 30mm
Probe material: stainless steel
Cable length: 0.5M
PTFE sheath 3-wire type
Temperature -50~200°C
Nominal accuracy: 0.3%
Package list:
Temperature acquisition module *1(combination of your choice)
Temperature acquisition module *1(combination of your choice)
