Product selling points:
1.Stable performance, the module uses quality materials with quality assurance.
2. Exquisite and compact appearance, very small size, easy to carry, suitable for a variety of DIY.
3. Easy to use, the connector is connected to the PCB board, easy to solder and wire.
4. The converter head adopts aluminum alloy metal simple design, to ensure a longer service life.
5. Wide range of application, the module adopts Type-C male connector, widely used in cell phones, tablets, laptops, extended data cables, charging heads, mobile power and other digital accessories.
1.Stable performance, the module uses quality materials with quality assurance.
2. Exquisite and compact appearance, very small size, easy to carry, suitable for a variety of DIY.
3. Easy to use, the connector is connected to the PCB board, easy to solder and wire.
4. The converter head adopts aluminum alloy metal simple design, to ensure a longer service life.
5. Wide range of application, the module adopts Type-C male connector, widely used in cell phones, tablets, laptops, extended data cables, charging heads, mobile power and other digital accessories.
Product Parameters:

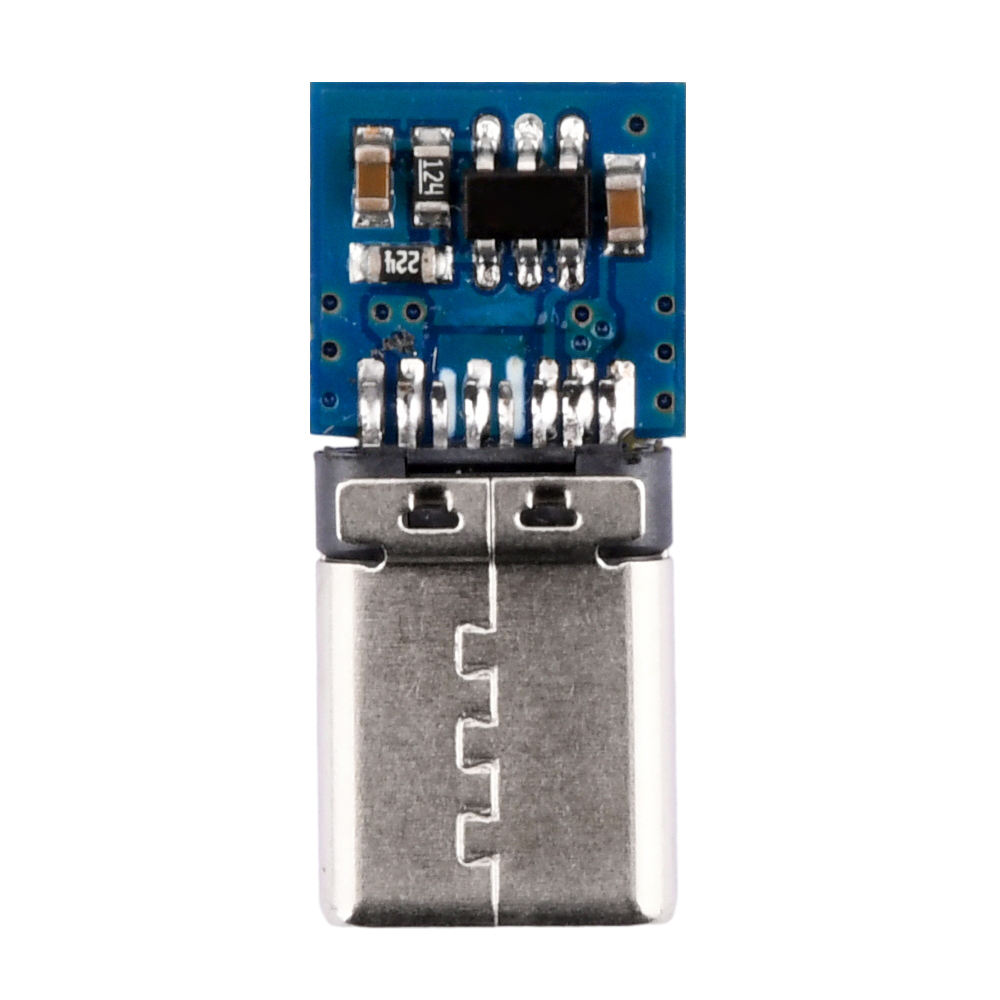

Style 1: Blue MINI single PD decoy header:
Color: blue
Connector: Type-C male connector
Voltage: 9V/12V/15V/20V optional
Current: 3A
Support protocol: PD
Size: Length 20MM*Width 9MM*Panel thickness 3MM
Product Description:
This product is suitable for power supply with PD protocol, make sure the power supply supports the voltage you need, otherwise it will not be able to lure out the corresponding voltage. Note that this product only supports PD protocol, other protocols can only be out of 5V.

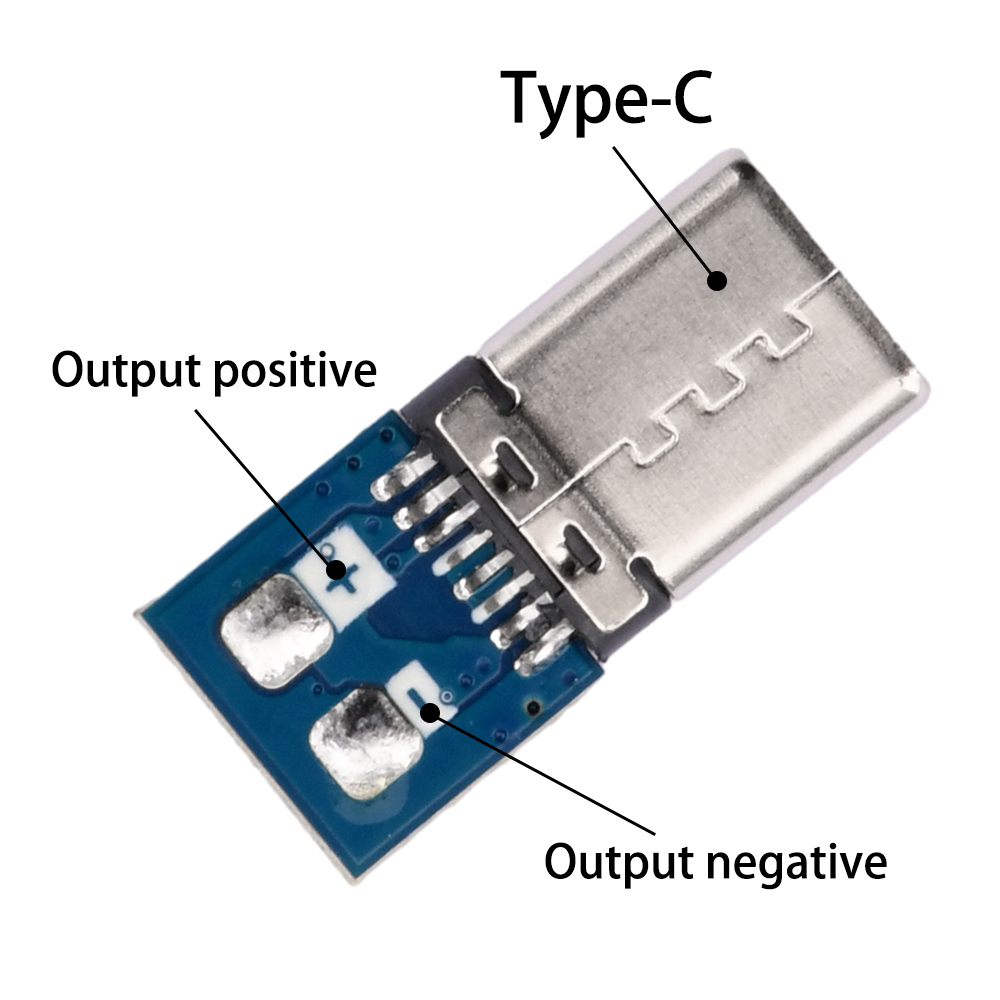

This product supports if the power supply is detected does not support the voltage set by the module, it will automatically downshift to the module to support the voltage enticement. Module on the back of the two welding store welding points for the output positive and negative poles, module protocol output 3A current, line design can withstand 5A current.
Note: This module is a decoy, not a boost module. Module is to simulate the cell phone request voltage only.

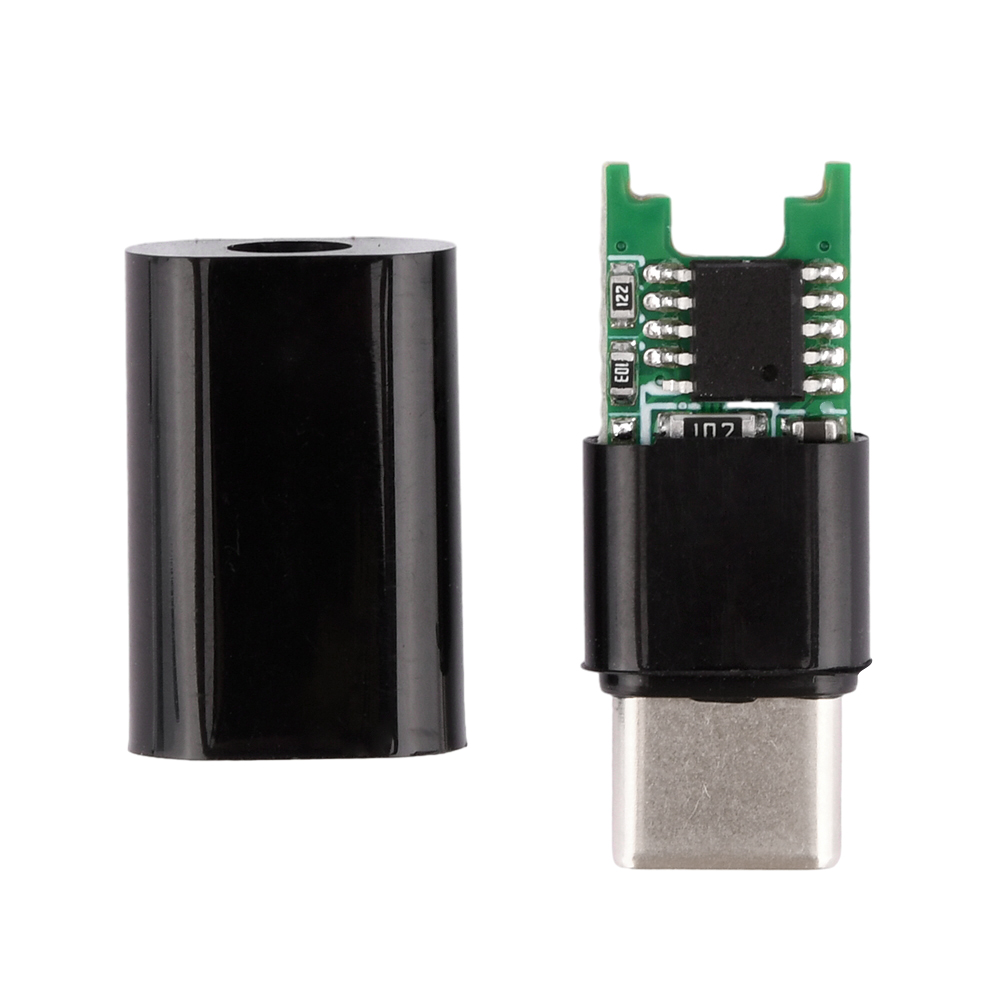

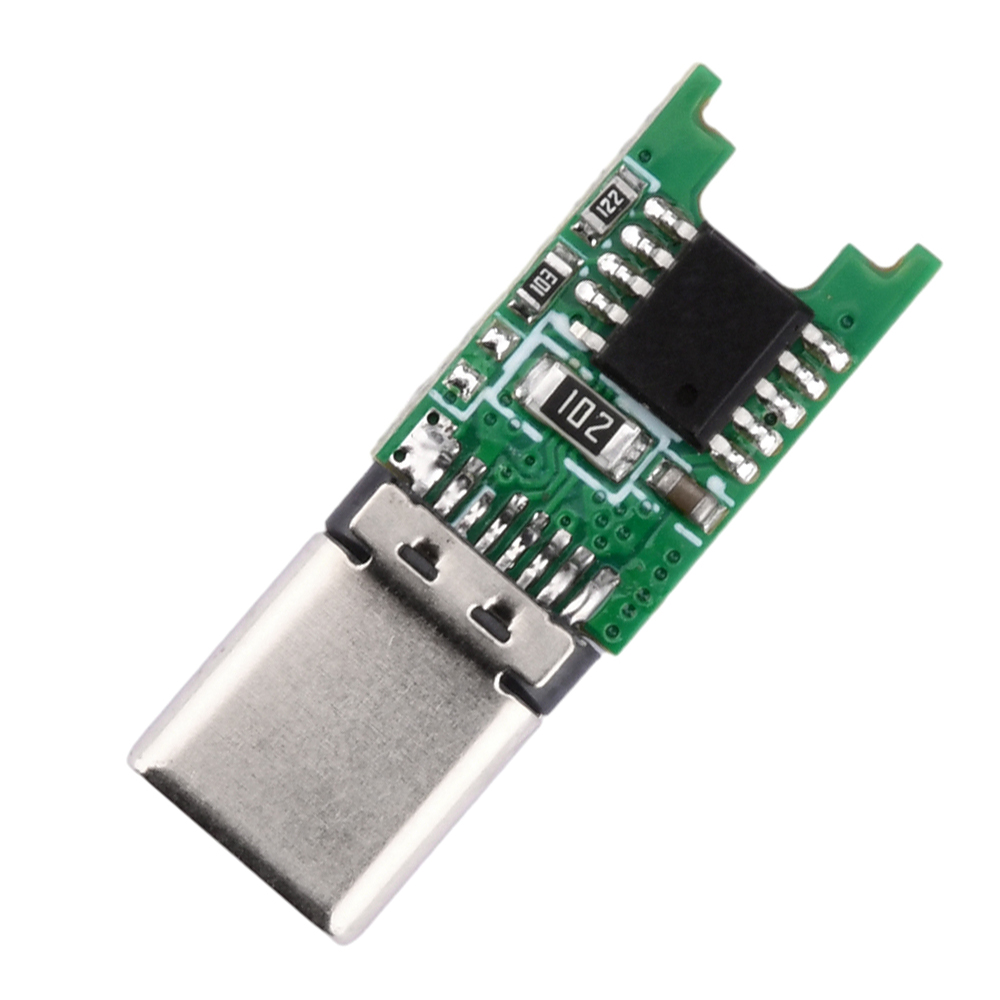

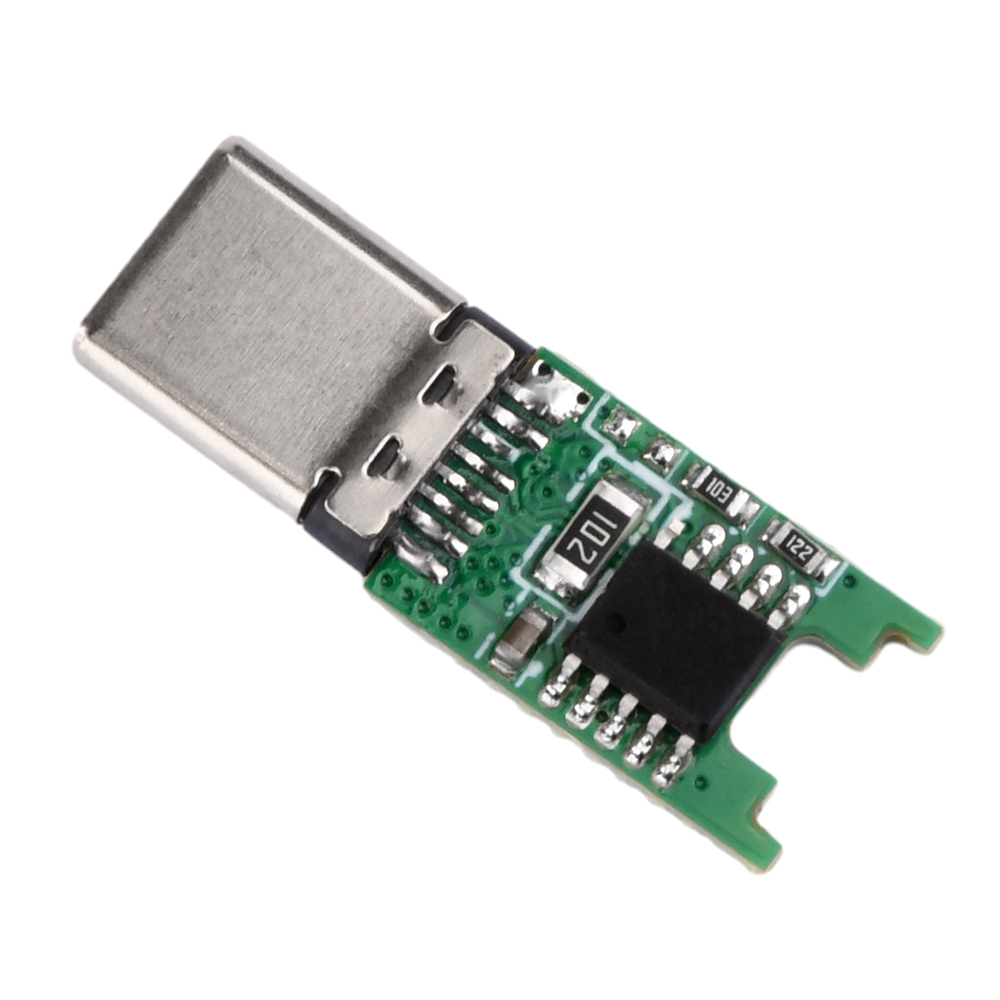

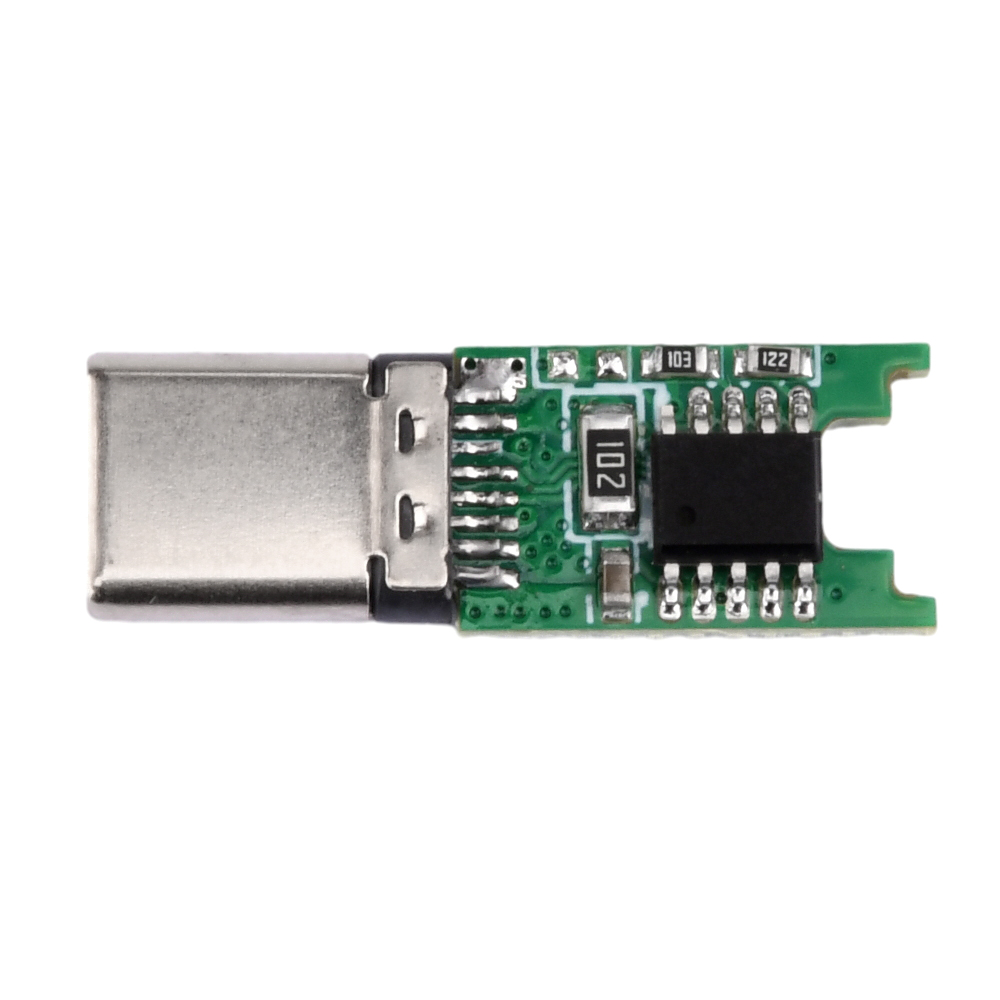

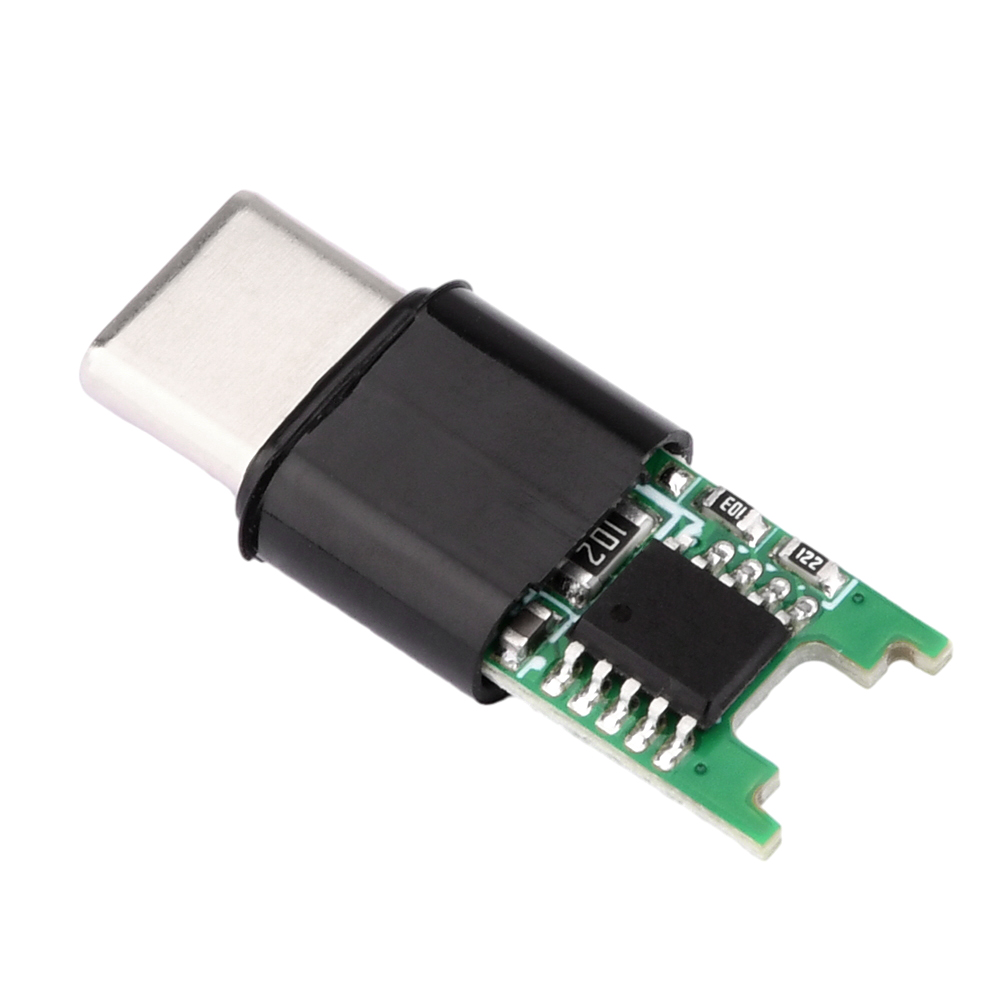

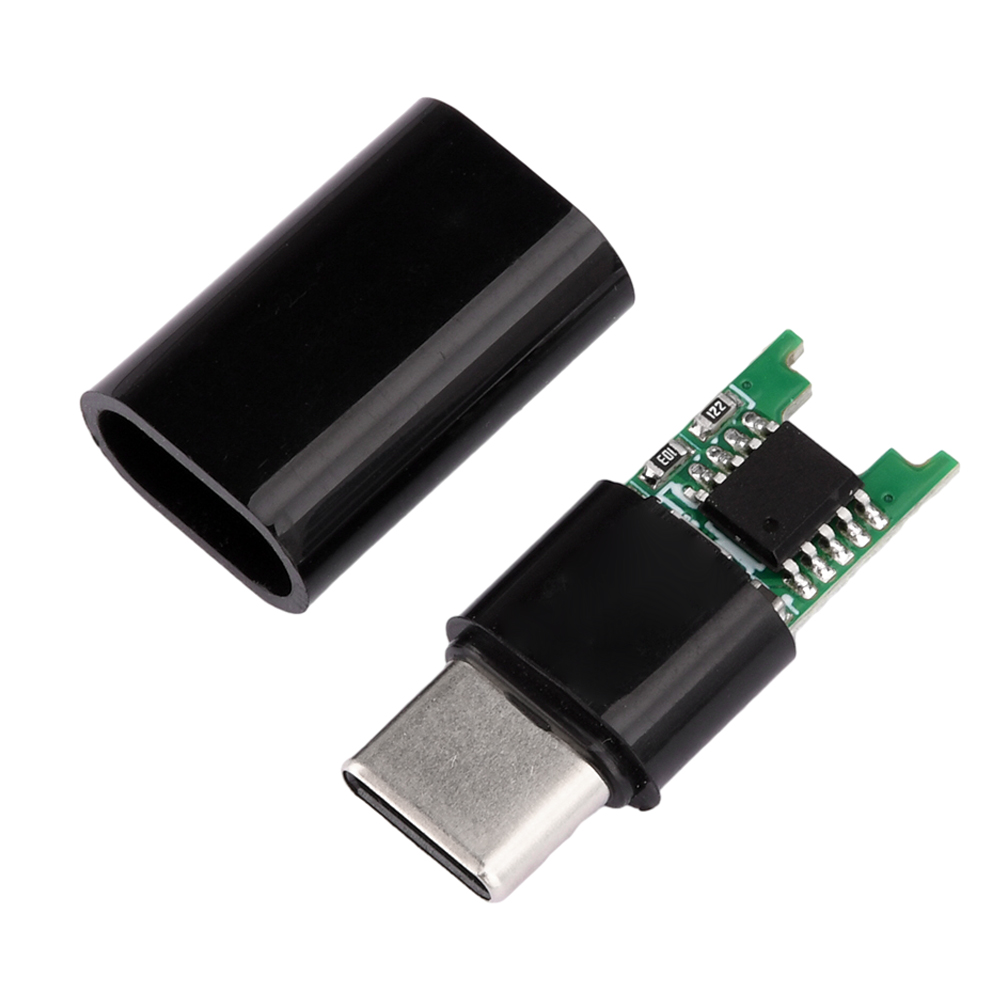

Style II: green PD / QC decoy head (without shell / with shell optional):
Color: green
Connector: Type-C male interface
Voltage: 9V/12V/15V/20V optional
With EMAK
Current: 5A
Support protocol: PD/QC

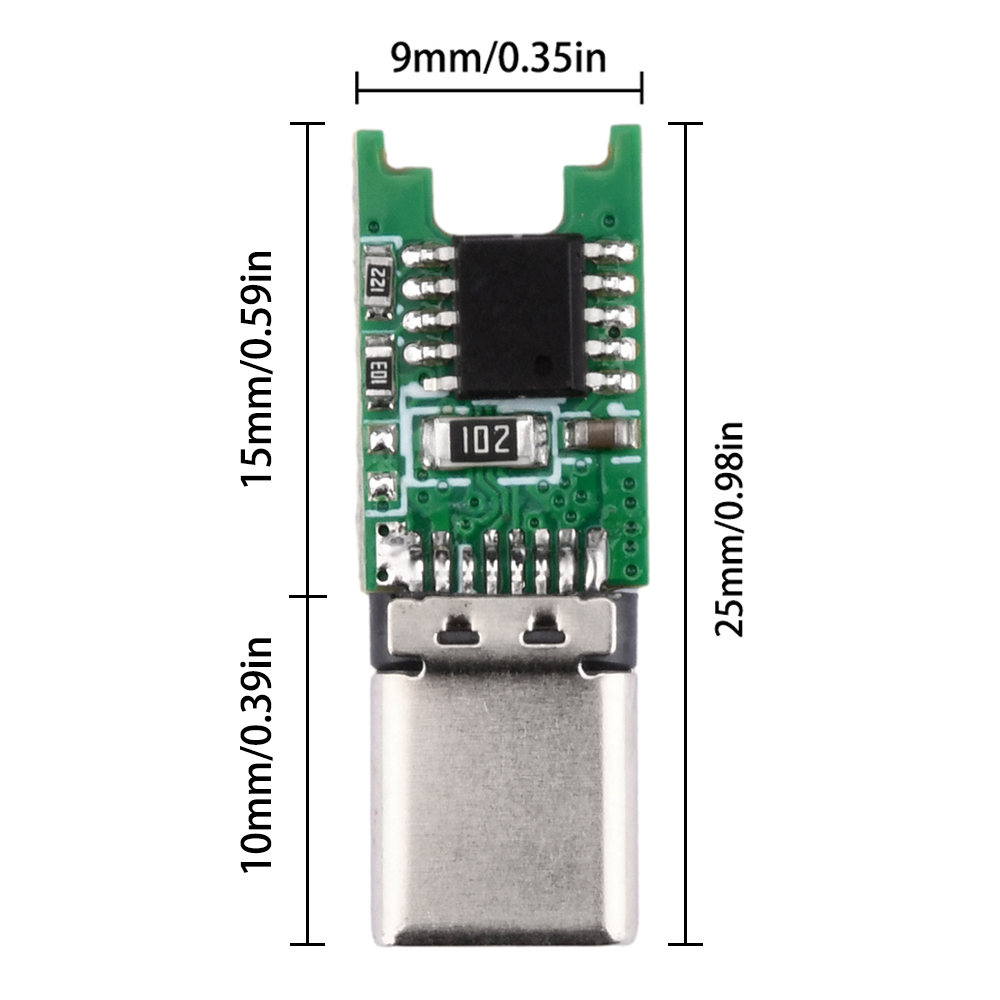

Size: Length 26MM*Width 9MM*Panel thickness 3MM
Product Description:
This product is suitable for power supply with PD/QC protocol, make sure the power supply supports the voltage you need, otherwise it will not be able to lure out the corresponding voltage. Unsupported protocols can only out 5V.

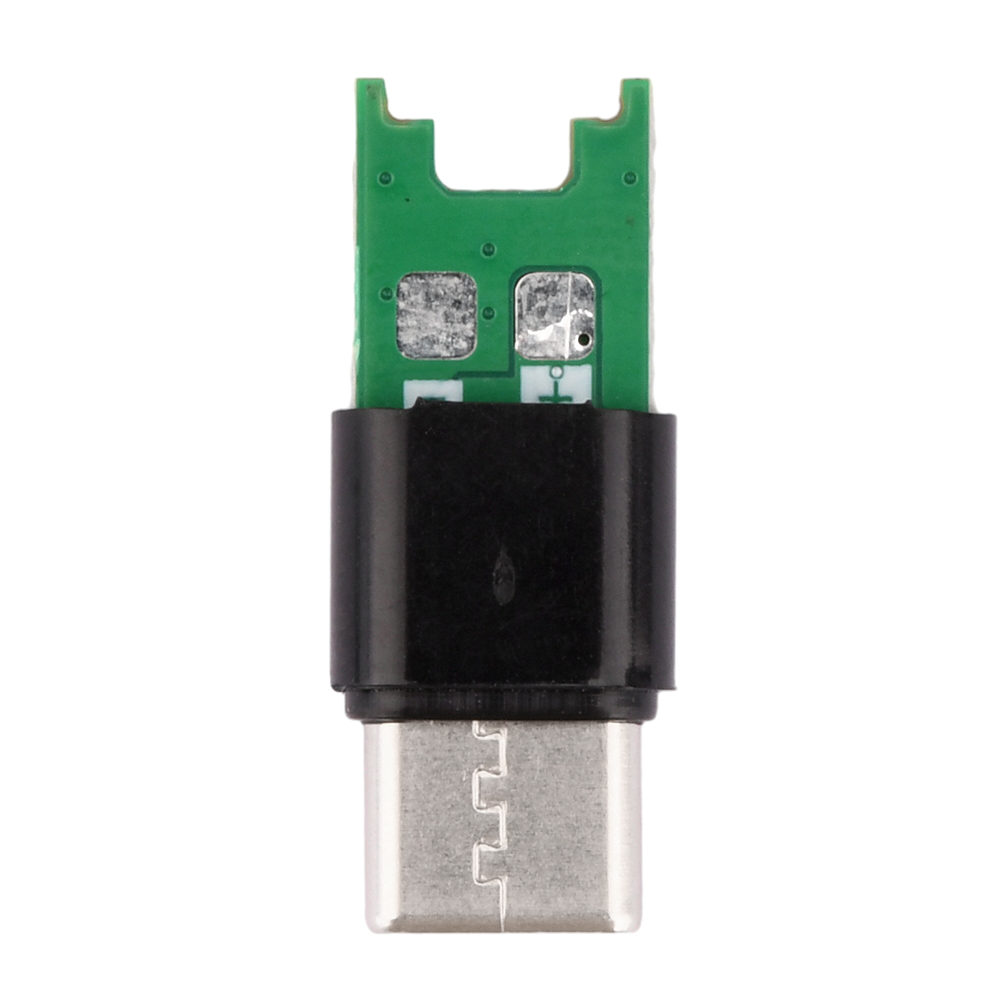

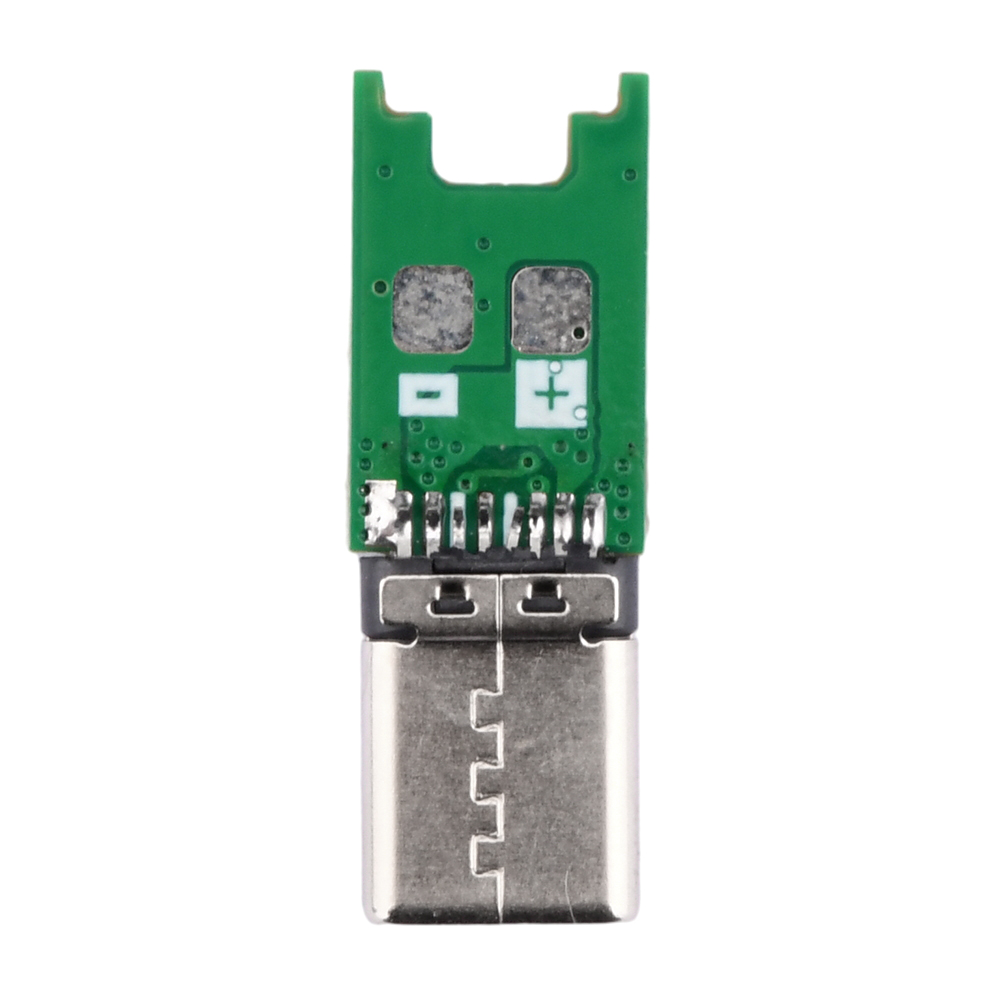

This product supports if the power supply is detected does not support the voltage set by the module, it will automatically downshift to the module to support the voltage enticement. Module back two welding store welding point for the output positive and negative poles, the module comes with EMAK, the maximum support 5A, the actual current is determined by the power supply. Circuit design can withstand 5A current.
Style III: Type - C male common 5V output:
Color: blue
Connector: Type-C male connector
Voltage: 5V
Current: 5A
Size: Length 20MM*Width 9MM*Thickness 3MM
Product Description:
This product can open the PD power supply 5V output, does not have other voltage decoy.
Module on the back of the two welding points for the output positive and negative poles, the module in addition to open the output, no other function, equivalent to the wire, so the output current and the module does not matter, the line is designed to withstand 5A current.

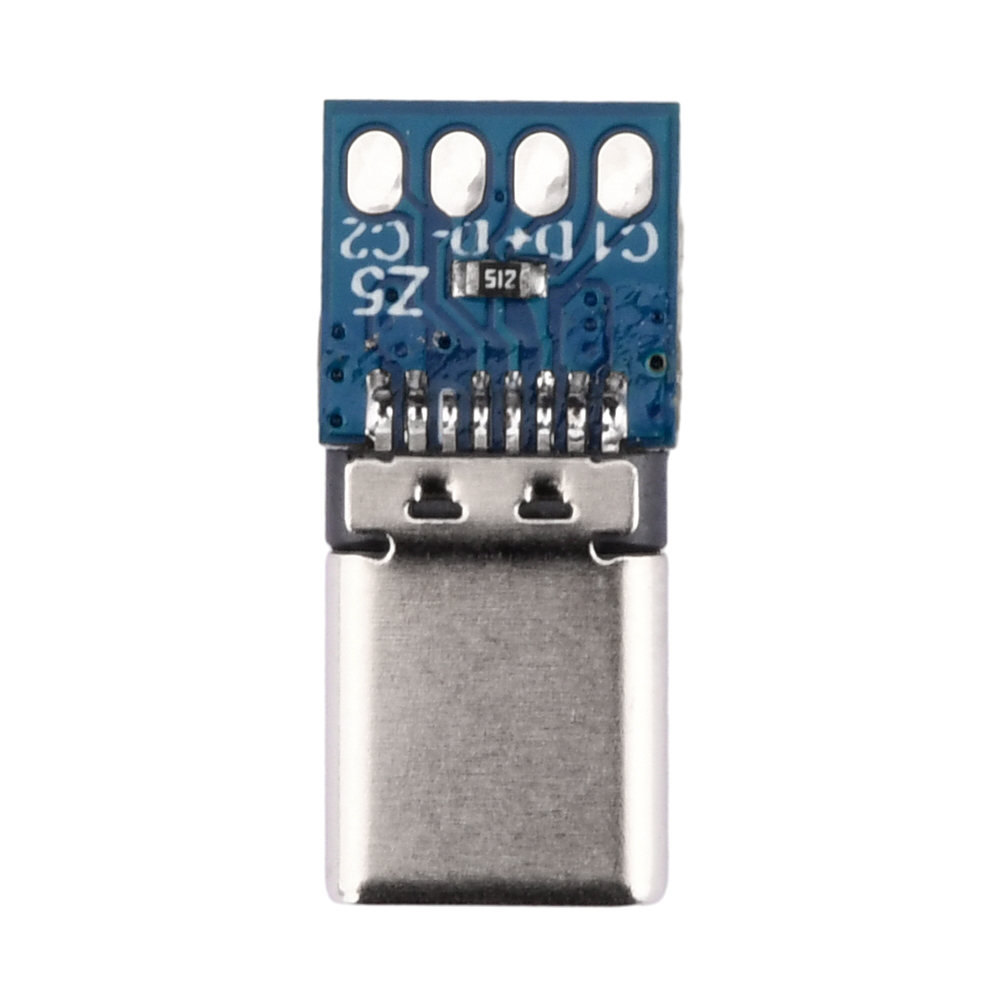

Module lead out CC1, CC2D+, D+ communication line. Convenient to choose, CC1 default resistor pull-down to the negative pole.
This product can open the PD power supply 5V output, does not have other voltage decoy.
Module on the back of the two welding points for the output positive and negative poles, the module in addition to open the output, no other function, equivalent to the wire, so the output current and the module does not matter, the line is designed to withstand 5A current.
Module lead out CC1, CC2D+, D+ communication line. Convenient to choose, CC1 default resistor pull-down to the negative pole.
Product list:
1X module
