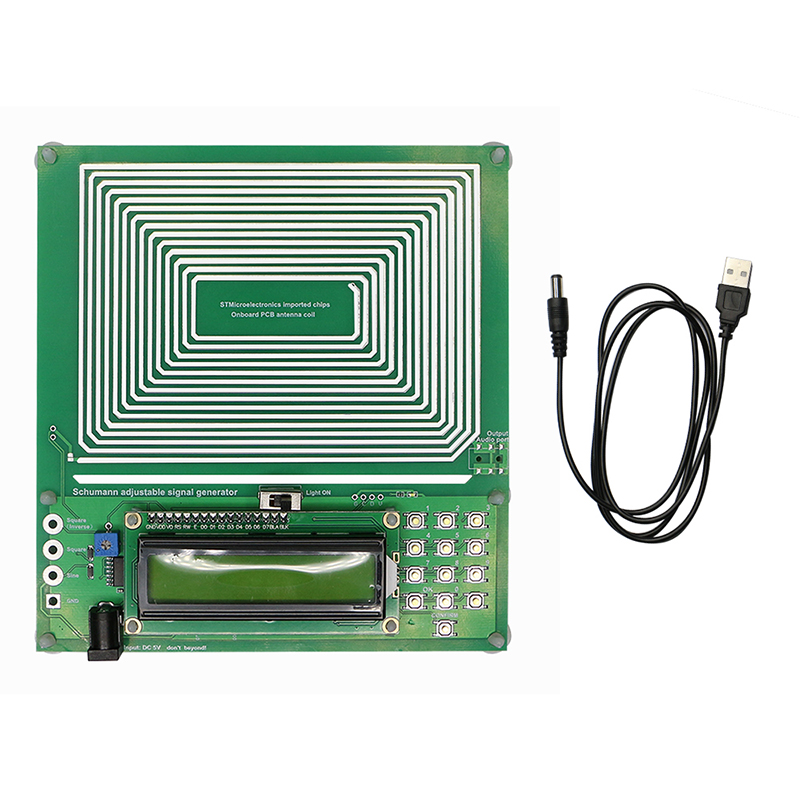

Features:
1. Digital circuit crystal oscillator frequency reference, good frequency stability, stronger anti-interference
2. Schumann wave generator, new optimized circuit design, 7.83HZ very low frequency pulse
3. Not only can output 7.83Hz Schumann wave, but also joined the programmable frequency modulation technology, can be adjusted in the range of 0.1Hz ~ 30KHz frequency
4. The power supply interface adopts DC5.5*2.1 interface, and the USB terminal can be plugged into the rechargeable treasure or USB charging head or other USB power supply equipment to work.
5. Wide range of applications: can be used in audio-visual spaces, bedrooms, offices, operating spaces and other fields
Parameter:
Power supply interface: DC 5.5*2.1
Power supply voltage: DC 5V
Antenna waveform: sine wave
Rated power: <1W
Square wave signal voltage amplitude: 5V
Sine wave signal voltage amplitude: 3V
Interface waveform: sine wave + square wave + inverted square wave
Default frequency: 7.83Hz
Frequency range: 0.1~30000Hz
Adjustment range: 0.1~30000Hz
PCB size: 14*15mm
Package include:
Host *1
Power cord *1

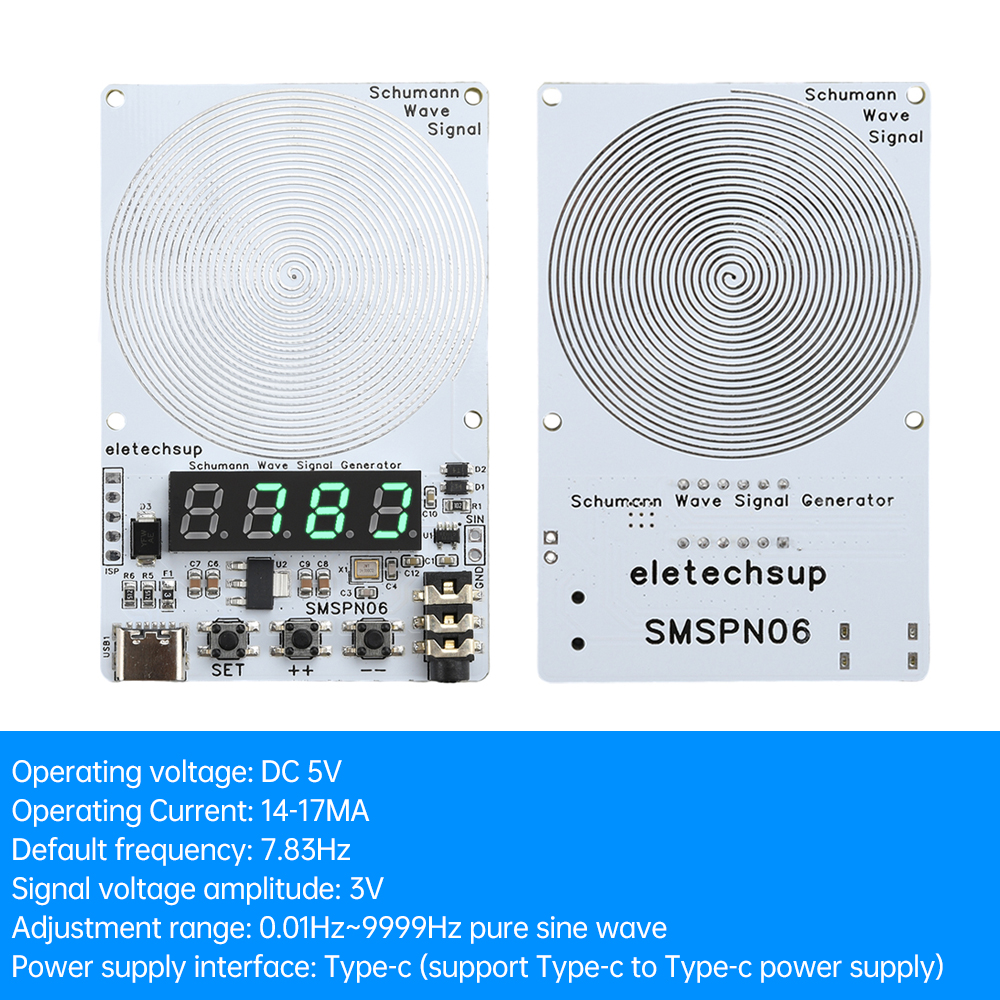

2# 0.01Hz~9999Hz Type-C w/o Case
Features:
1. Using high-quality materials, the product has good frequency stability.
2. This product can not only output 7.83Hz Schumann waves, but also adjustable sine waves from 0.01Hz to 9999Hz.
3. This model adopts a 4-digit digital tube display for clearer display.
4. Connect the TYPE-C power supply, the digital display shows 7.83, and the board will automatically emit a 7.83HZ Schumann wave.
5. The power interface adopts TYPE-C USB interface, which is convenient to use.
Product Description:
Shumanbo itself does not directly act on sound or video products to improve sound quality, but rather acts on the spatial environment to relax the body and mind, enhance the body's perception of sound and images, improve the efficiency of human health work, and relieve psychological pressure. This product can not only output 7.83Hz Schumann waves, but also adjust the frequency within the range of 0.01Hz~9999Hz. The high-speed DAC can generate pure sine wave signals.
Parameter:
Working voltage: DC 5V
Working current: 14-17MA
Power interface: Type-C (supports Type-C to Type-C power supply)
Default frequency: 7.83Hz
Adjustment range: 0.01Hz~9999Hz pure sine wave
Signal voltage amplitude: 3V
With 3.5MM audio output
Size: 78 * 50 * 8MM
Usage: Connect TYPE-C power supply, the digital display shows 7.83, and the board will automatically emit 7.83HZ Schumann wave
Basic Function Introduction:
1. Double sided ultra long antenna
2. Overcurrent and overvoltage protection
3. 3.5MM audio interface
4. Dedicated pure sine wave chip
5. High speed operational amplifier
Package Include:
1X Schumann wave signal generator

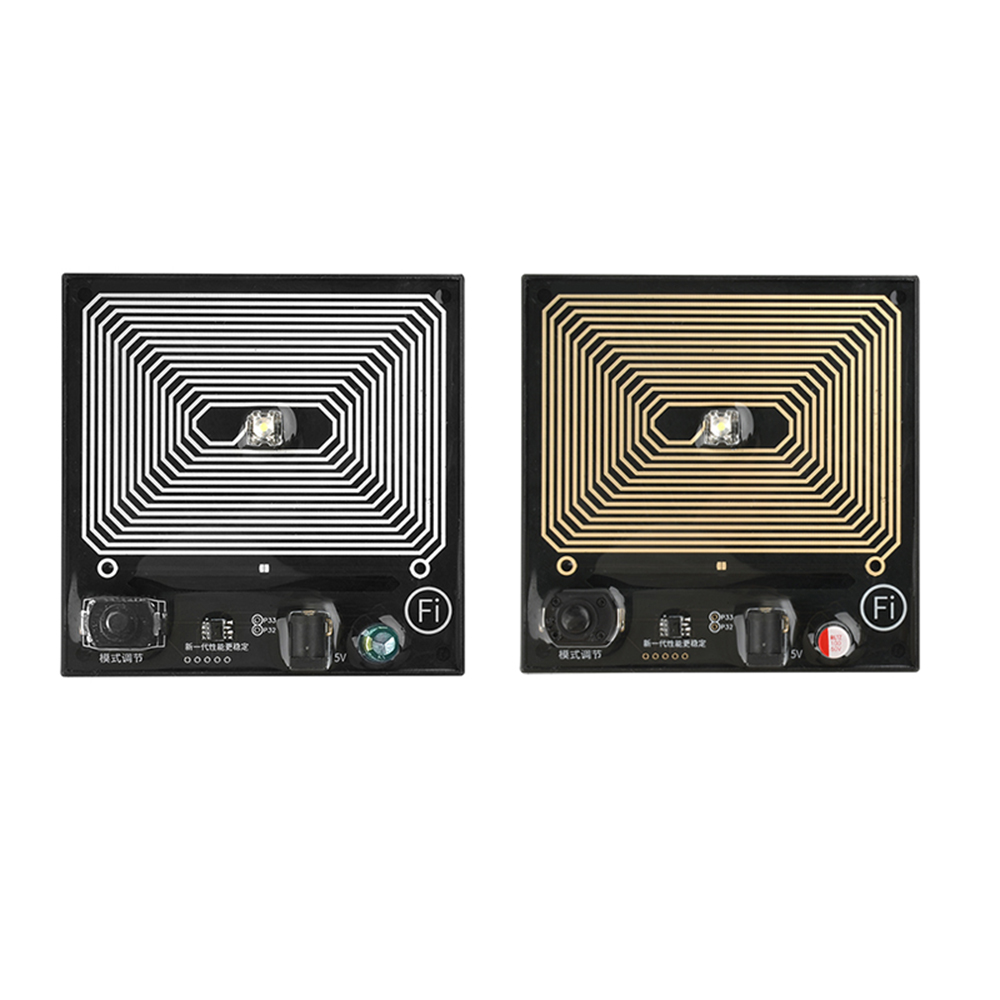

3# DC5V 7.83Hz w/o Case
Features:
1. High frequency stable output: 7.83Hz Schumann frequency output ensures signal stability.
2. Portability and ease of use: Designed to be portable, easy to operate, suitable for home, office, or travel scenarios.
3. LED frequency indicator: The LED light flashes with frequency, visually displaying the working status for easy observation.
4. High integration design: Digital circuit technology replaces complex analog circuits to improve anti-interference ability and stability.
5. Shuman wave simulation: Simulating the natural Shuman waves on Earth can help with physical and mental relaxation and health.
Product Introduction:
The product prototype is a wireless power transmission experimental board, using STC main control microcontroller, 7.83Hz Schumann frequency output, equipped with LED flashing with frequency, and 4 mode buttons that can be switched! This product is just a circuit board, without the cost of plastic board shell packaging box, so the cost-effectiveness is very high. Most of the products on the market are classic Schumann wave generators. The circuit prototype is derived from a NE555 Schumann resonance experimental board, with a large number of analog circuits on the periphery. It is not only complex and has poor anti-interference ability, but also easily affected by its own signal crosstalk;
The antenna diagram of this product refers to the SDYG transmitter, which has a wide range of electromagnetic field emission. The originally complex analog circuit is directly written into the STC microprocessor through program code. The highly integrated digital circuit technology optimizes the classic complex analog circuit together, not only supporting one click switching of higher-level power modes, but also further improving its stability and resistance to signal crosstalk.
Parameter:
Power supply interface: DC5.5*2.1
Supply voltage: 5V
Rated power consumption:< 1W
Frequency: 7.83Hz
Circuit board size: 10.3 * 10.3cm
usage method:
Take out the USB cable provided with the product, connect the circular end to the circuit board, and plug the USB end into a power bank, USB charging head, or other USB powered device to start working; The button can switch between multiple working modes: standby mode, high-power transmission mode, low-power transmission mode, and lighting mode.
Package Include:
1X signal generator module
1X power cord
4# 0.01Hz~100000Hz Type-C
Features:
1. This product is made of high-quality materials, using low-temperature drift crystal oscillators and high-precision DAC dedicated chips, resulting in good frequency stability of the product;
2. This product not only outputs 7.83Hz Schumann waves, but also incorporates programmable frequency modulation technology, which can adjust the frequency in the range of 0.01Hz to 100000Hz;
3.2 specifications, available in two options: without casing and with casing, to be selected according to demand;
4. Digital circuit crystal oscillator frequency reference, more stable and stronger anti-interference;
5. The power interface adopts Type-C interface, which is convenient to use and supports Type-C to Type-C power supply.
Product Description:
Schumann waves themselves do not directly act on sound or video products to improve sound quality, but rather on the spatial environment, relaxing the body and mind, improving the body's perception of sound and images, improving the efficiency of human health work, and relieving psychological stress. They also have good effects. This product can not only output 7.83Hz Schumann waves, but also adjust the frequency within the range of 0.01Hz-100KHz. The digital circuit crystal oscillator frequency reference is more stable and has stronger anti-interference capabilities. It uses low-temperature drift crystal oscillators and high-precision DAC dedicated chips, which can accurately output frequencies and pure sine waves.
Parameter:
Shell free version:
Working voltage: DC 5V (DC 4-15V)
Working current: 8-14MA
Power interface: Type-C (supports Type-C to Type-C power supply)
Default frequency: 7.83Hz
Adjustment range: 0.01Hz~100000Hz pure sine wave
Signal voltage amplitude: 3V
PCB board size: 150 * 100 * 12mm

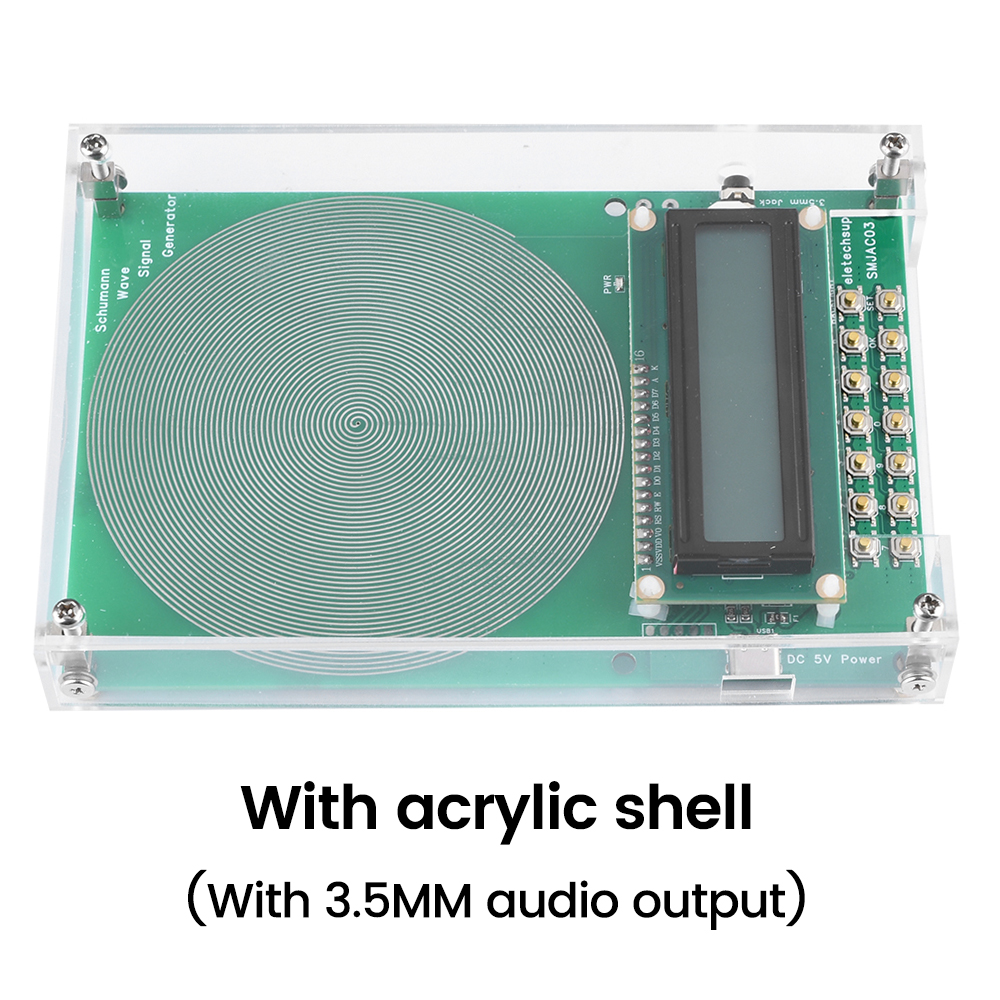

Version with acrylic shell:
Working voltage: DC 5V (DC 4-15V)
Working current: 9-14mA
Power interface: Type-C (supports Type-C to Type-C power supply)
Default frequency: 7.83Hz
Adjustment range: 0.01Hz~100000Hz pure sine wave
Signal voltage amplitude: 3V
Featuring a 3.5MM audio output interface
With acrylic shell
Size: 155 * 105 * 26MM (with shell)
Package include:
Set 1:
1X signal generator
Set 2:
1X signal generator
1X acrylic shell (assembled and shipped)

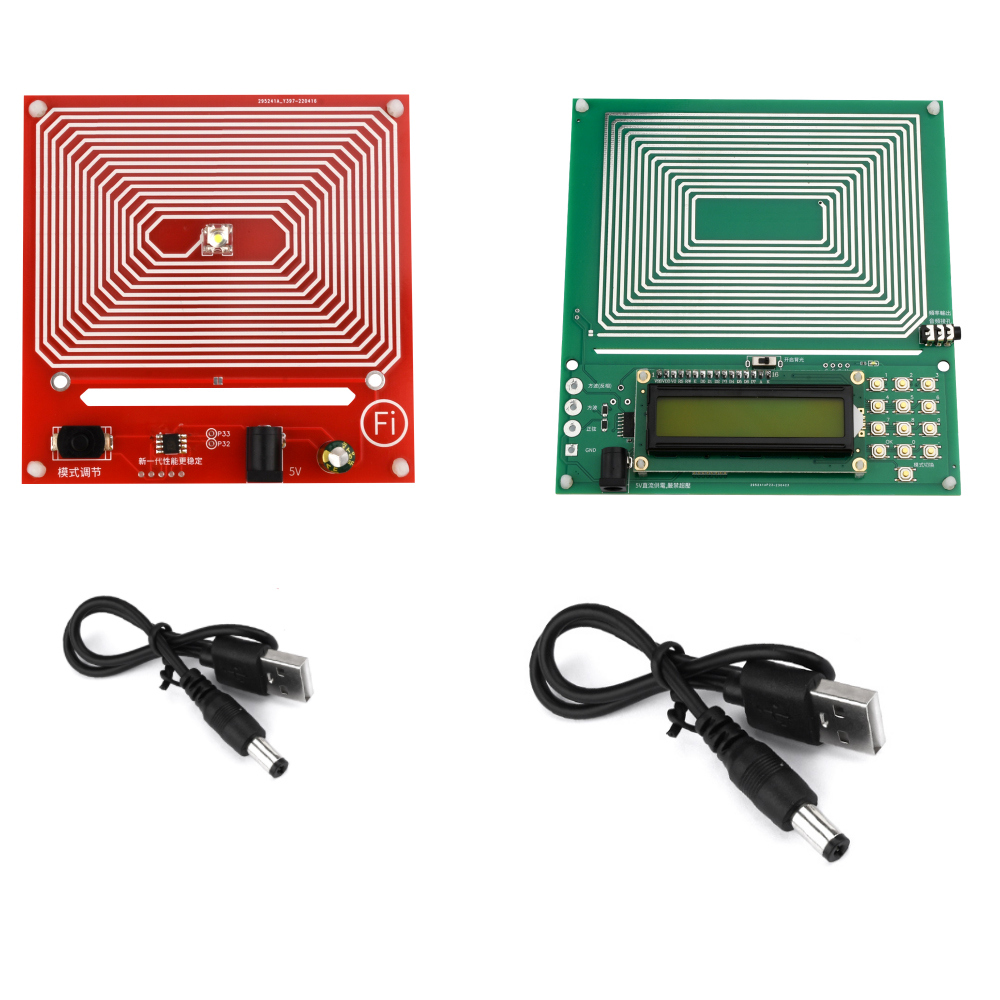

5# Green: 0.1Hz~30KHz DC Port w/o Case; Red: 7.83Hz Fixed Frequency DC Port w/o Case
Features:
1.Adopting high-quality materials, the product has good frequency stability;
2.This product can not only output 7.83Hz Schumann resonances wave, but also add programmable frequency modulation technology, which can adjust the frequency in the range of 0.1Hz~30KHz;
3.There are two specifications to choose from according to demand. The red square wave cannot be adjusted with a fixed frequency of 7.83Hz, while the green standard model has adjustable frequencies ranging from 0.1Hz to 30000Hz;
4.Digital circuit crystal oscillator frequency reference, more stable and more anti-interference;
5.The power interface adopts a DC5.5 * 2.1 interface, which is convenient to use. The USB end can be plugged into the power bank, USB charging head, or other USB powered devices to work.
Product Description:
Schumann resonances itself does not directly act on sound or video products to improve the sound quality, but on the space environment, which can relax the body and mind, improve the body's perception of sound and images, improve the health work efficiency of the human body, and relieve Psychological stress. This product can not only output 7.83Hz Schumann resonances wave, but also adjust the frequency in the range of 0.1Hz~30KHz. The digital circuit crystal oscillator frequency reference is more stable and more anti-interference.
Parameters:
Green standard version:
Circuit board size: 15 * 15cm
Antenna waveform: sine wave
Interface waveform: sine wave+square wave+inverse square wave (the bottom left corner is the output interface, and the waveform is output simultaneously)
Power supply interface: DC5.5 * 2.1
Power supply voltage: 5V
Rated power consumption:<1W
Default frequency: 7.83Hz
Adjustment range: 0.1Hz~30000Hz
Sinusoidal signal voltage amplitude: 3V
Square wave signal voltage amplitude: 5V
Change frequency method:
Directly input the frequency and press the bottom left button to complete the setting
For example, by pressing [7] [.] [8] [3] and then [OK], you can set the default power on output to 7.83Hz, with a range of 0.1~30KHz
Red non adjustable version:
Circuit board size: 10 * 10cm
Waveform: square wave
Power supply interface: DC5.5 * 2.1
Power supply voltage: 5V
Rated power consumption:<1W
Default frequency: 7.83Hz
Adjustment range: non adjustable
The frequency of this model is not adjustable, and the output is a square wave. The frequency is fixed at 7.83Hz Schumann frequency. Press the mode adjustment button to switch between strong flashing high power, weak flashing low power, and constant lighting
Usage:
Take out the USB cable that comes with the product, connect the round hole end to the circuit board, and plug the USB end into the power bank, USB charging head, or other USB powered devices to work properly
Green adjustable version change frequency: directly input the frequency and press "OK" to complete the setting
Note: This product does not have a transparent plastic shell
Package include:
1 * Schumann resonances wave generator
1 * USB cable

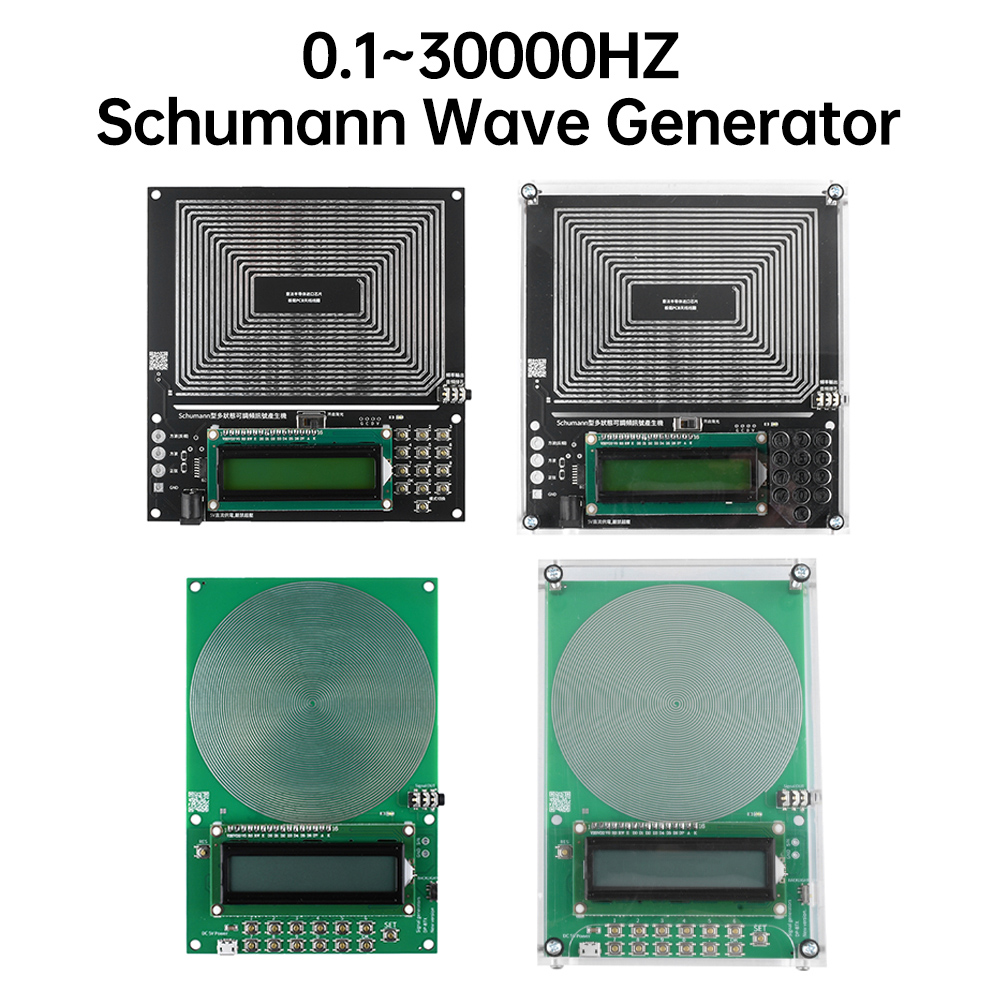

6# 0.1Hz~30KHz USB Port
Features:
1. Using high-quality materials, the product has good frequency stability;
2. This product not only outputs 7.83Hz Schumann waves, but also incorporates programmable frequency modulation technology, which can adjust the frequency in the range of 0.1Hz to 30KHz;
3. There are two specifications to choose from according to your needs. The green version only has sine output, while the black board version supports multiple waveforms such as sine wave, square wave, and inverse square wave, which can be selected according to your needs;
4. Digital circuit crystal oscillator frequency reference, more stable and stronger anti-interference;
5. The power interface adopts DC5.5 * 2.1 or Micro USB interface, which is convenient to use. The USB end can be plugged into the power bank, USB charging head, or other USB powered devices to work.
Product Description:
Schumann waves themselves do not directly act on sound or video products to improve sound quality, but rather on the spatial environment, relaxing the body and mind, improving the body's perception of sound and images, improving the efficiency of human health work, and relieving psychological stress. They also have good effects. This product can not only output 7.83Hz Schumann waves, but also adjust the frequency in the range of 0.1Hz to 30KHz. The digital circuit crystal oscillator frequency reference is more stable and has stronger anti-interference ability.
Parameter:
Antenna waveform: sine wave
Interface waveform: sine wave+square wave+inverse square wave (the bottom left corner is the output interface, and the waveform is output simultaneously)
Power supply interface: DC5.5 * 2.1
Power supply voltage: 5V
Rated power consumption:<1W
Default frequency: 7.83Hz
Adjustment range: 0.1Hz~30000Hz
Sinusoidal signal voltage amplitude: 3V
Square wave signal voltage amplitude: 5V
Circuit board size: approximately 15 * 14CM
Size with shell: approximately 15.5 * 14.5 * 2.8CM
Green minimalist version:
Antenna waveform: sine wave
Interface waveform: sine wave
Power interface: Micro USB
Power supply voltage: 5V
Rated power consumption:<1W
Default frequency: 7.83Hz
Adjustment range: 0.1Hz~30000Hz
Sinusoidal signal voltage amplitude: 3V
Square wave signal voltage amplitude: 5V
Circuit board size: approximately 15 * 10CM
Size with shell: approximately 15.5 * 10.5 * 2.8CM
Change frequency method:
Directly input the frequency and press the bottom left button to complete the setting
For example, pressing [7] [.] [8] [3] and then [OK] can set it to 7.83Hz. The default power on output is 7.83Hz, with a setting range of 0.1~30KHz
Usage:
Take out the USB cable that comes with the product, connect it to the circuit board, and plug the USB end into the power bank, USB charging head, or other USB powered devices to work.
Package include:
1 * Schumann wave generator (optional with or without casing)
1 * USB cable
