Overview

Quick Details

Part:Pedal
Place of Origin:Jiangsu,China
Brand Name: Kunteng
Name:E-bike PAS Sensor
Color:Black Color
Warranty:1 Year
Model:12 magnets
Position:left or right
Combo Set Offered:0
Certification:RoHS
Material:PC

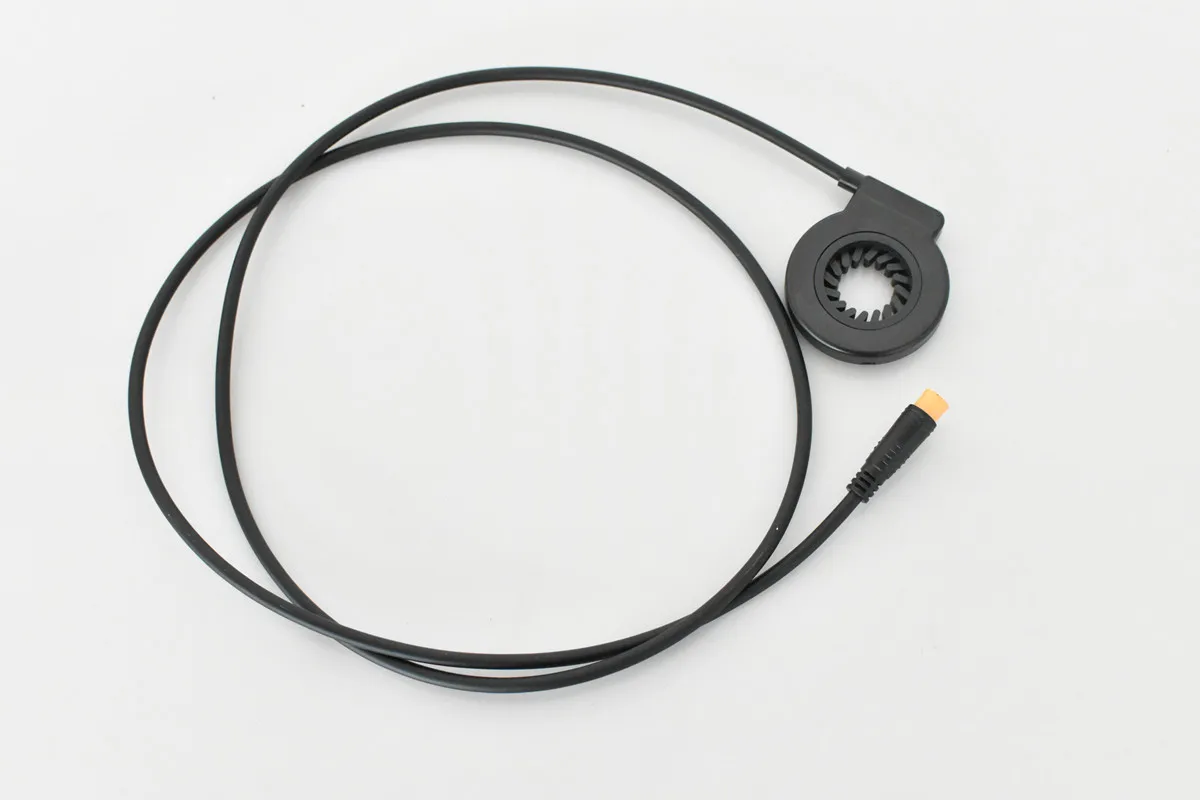

default lenght:1000mm

Packaging&Delivery

Selling Units:Single item
Single package size:10*5*5 cm
Single gross weight:0.050kg
Package Type:All products will be packed in good quality carton
Lead Time:
Quantity(Pieces)1-30Est.Time(days)10
Quantity(Pieces)31-100Est.Time(days)20
Quantity(Pieces)101-500Est.Time(days)25
Quantity(Pieces)>500Eat.Time(days)To be negotiated

Functions and Features:

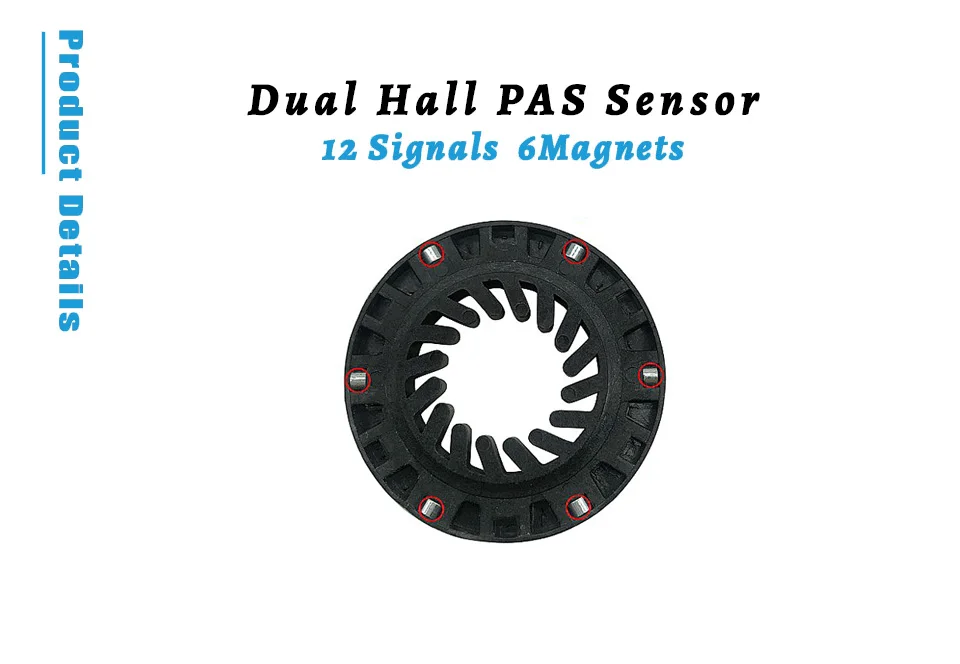

1.It adopts the integrated structure design of double hall detection element and built-in disk,which has unique novel and beautiful appearance;

2.Compared with the traditional separate sensor,it can realize the movement of the coaxial center between the magnetic sensor and the magnetic sensor,with high sensitivity and stable signal;

3.12 signal output,fast response speed,and automatic identification of forward and reverse rotation when pedaling;

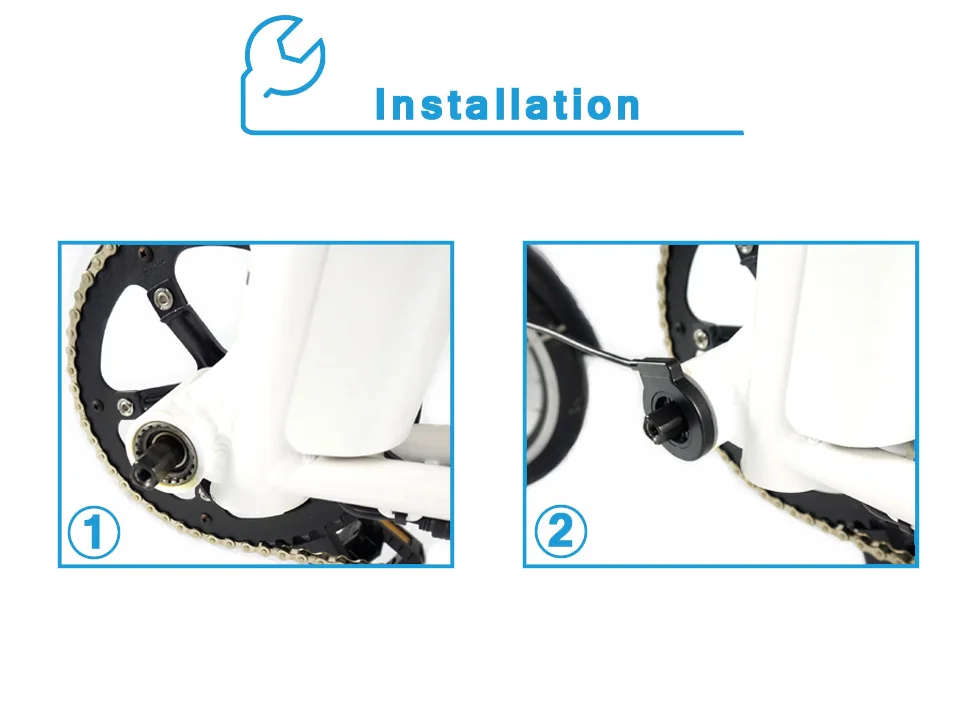

4.Convenient installation and disassembly.The sensor is divided into two types:left type KT-V12L and right type KT-V12R.

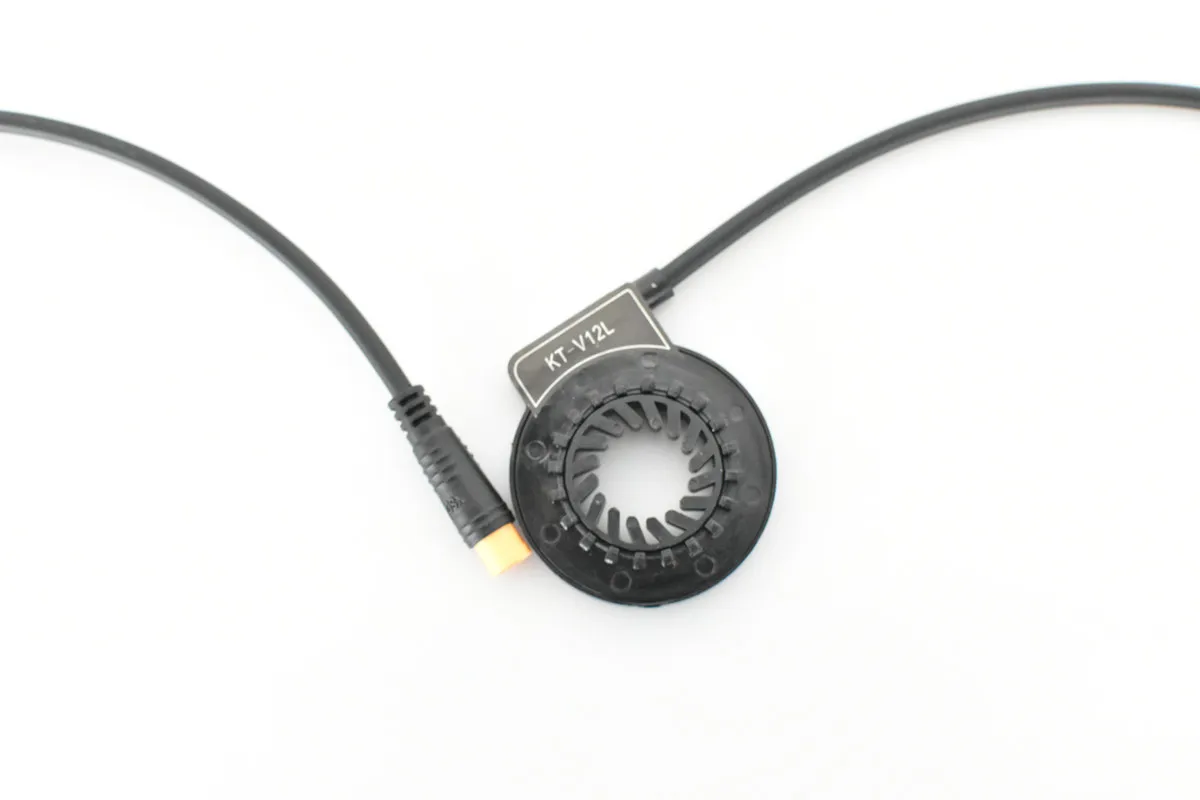

Model and specification:left KT-V12L right KT-V12R

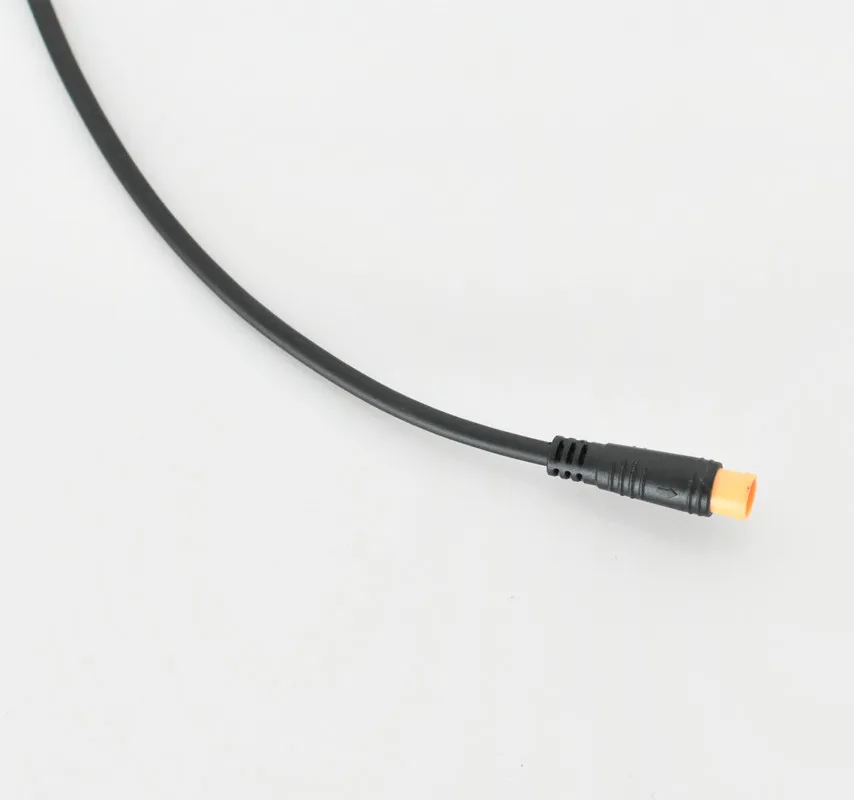

Lead way:three wire system

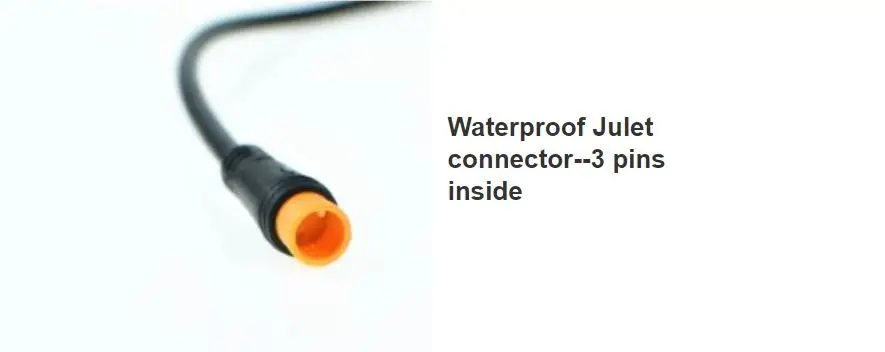

Standard interface: sm-3a
