RATTMMOTOR ZBX80 500mm Stroke CNC Linear Stage Motion Actuator X Y Z Axis Linear Slide Rail Aluminum Alloy Cross Sliding Table Linear Rail Guide SFU1605 Ballscrew+Nema23 57 Stepper Motor for CNC
Application
Commonly used in welding machines, automatic feeding, parts processing, drilling, etc. in the fields of machinery manufacturing, smelting, light industry, petrochemical, building materials, electricity.

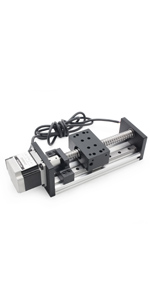

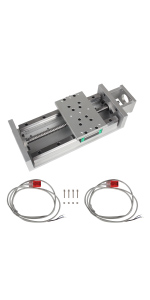

ZBX80 CNC LINEAR STAGE MOTION ACTUATOR
500mm (16.69in) Length Travel
Linear stage motion actuator is an important hardware device that composes industrial automation machinery, which can precisely control the accuracy and speed of moving parts of mechanical equipment
Selected high-quality alloy aluminum material, surface anodized, the product surface is smooth, no burr, good hand feeling; the product profile has high hardness, compact and firm structure, wear-resistant performance, not easy to deform during processing, good linearity and parallelism.
- Package Include: 1 × 500mm Length Travel Linear Stage Actuator (With 57 stepper motor, without limit switch)
Nema23 Stepper Motor
- Motor size: 57 * 57mm * 56mm
- Torque: 1.2N.m
- Step angle: 1.8°
- Current: 3A
- Phase inductance: 3.8mH; Phase resistance: 1.1Ω
- Shaft: single out shaft; Voltage: 12-36V (typical value 24V)
- Control mode: pulse control
- Wiring: Balck is A+, Green is A-, Red is B+, Blue is B-
Stepper Motor Bracket
Add the motor support seat, the rational design between the main support seat and the motor ensures the coaxiality of the fixed end and prolongs the service life of the motor, screw and coupling.
Load Bearing
- Horizontal load: 80KG / 176.37lb
- Vertical load: 20KG / 44.09Ib
Double Linear Rail
Double linear rail design, can withstand large turning moment, side hanging operation is also calm, higher bearing capacity, stronger stability.
SFU1605 Ballscrew
High-precision SFU1605 type ball screw, with flange screw nut, the accuracy can reach 0.003mm, it can be used under high speed and large load, and the operation is very stable.
HGW12 Linear Bearing Slide Block
12mm linear slider, the inside of the bearing in the slider is designed with 4 rows of balls, which makes the slider run more smoothly, wear-resistant and low-resistance.
Slider
The opening upward is designed to facilitate disassembly and assembly, and screw mounting holes and connecting pin holes are reserved. The single-axis module can be freely selected and assembled according to technical requirements.
Limit Switch Mounting Slot
The side mounting slot is equipped with M5 type nut, which can install the limit switch in any position.
Bottom Mounting Slot
Bottom M5 type mounting nut, the position is linearly adjustable, easy to install and locate.
