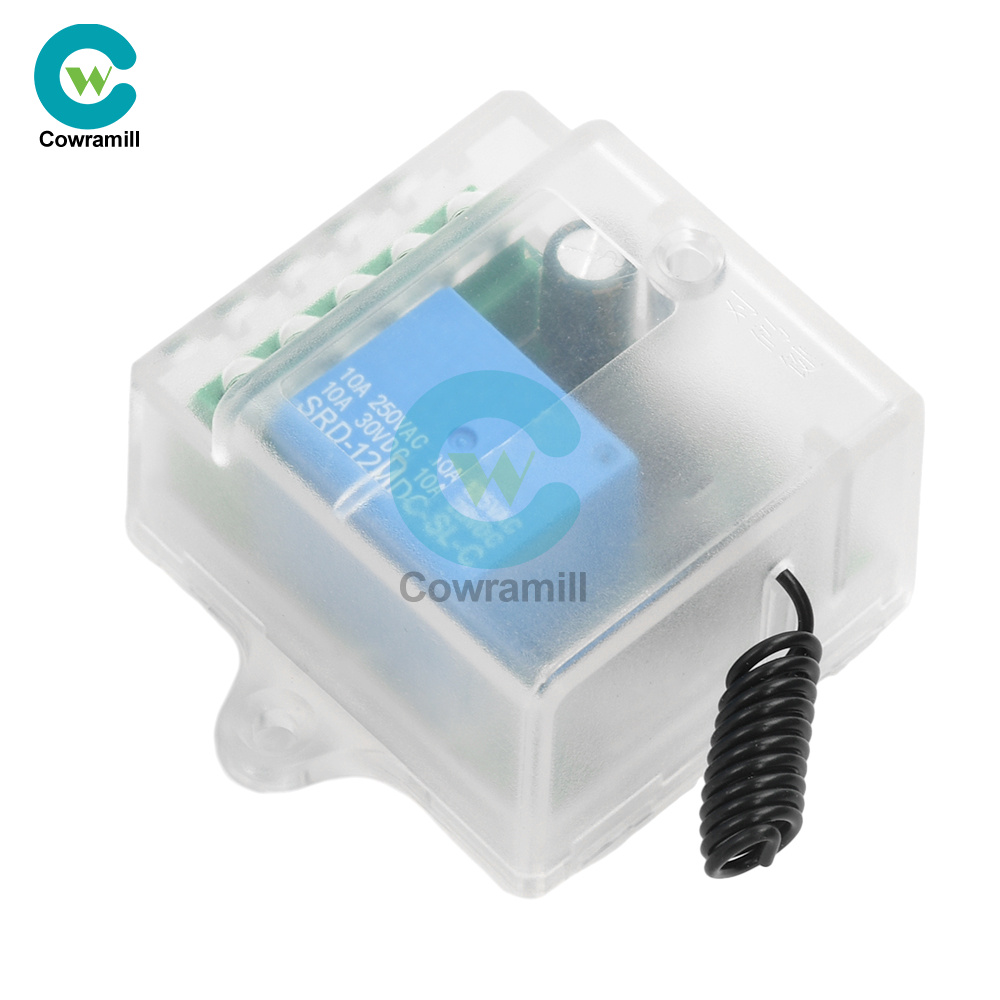

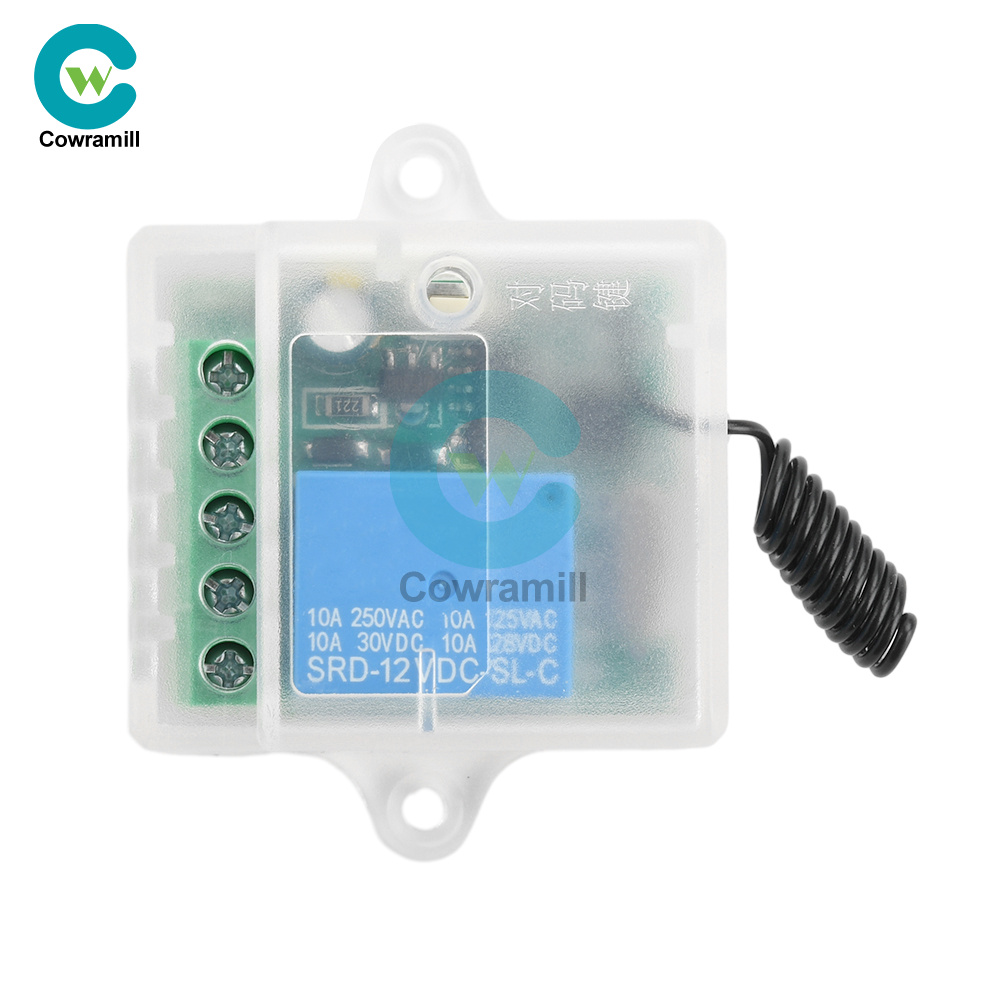

1. Transparent flame-retardant shell, with high temperature resistance, wear-resistant, electrical insulation performance, wiring debugging and easy to install
2. Adopting high quality high frequency electrolytic capacitor, ultra-aberrant acceptance module, high reception sensitivity, easy to set up and use.
3. Easy to use, four working modes are: pointing, self-locking, interlocking, time delay.
4. Wireless remote control switch, can control one or more indoor lamps and equipment, stable and reliable performance.
5. Can control all kinds of lamps, access control, curtains, lifting equipment, gates, elevators and security industry and other fields.
Working voltage: DC 12V
Static current: 8mA
Frequency: 433MHZ
Maximum current: 10A
(Note: Inductive loads such as water pump motor greater than 2A need to add contactor)
Acceptance sensitivity: -105dbm
Frequency deviation: ±0.2MHZ
Coding mode: learning type
Operating mode: point, self-locking, interlocking, time-delayed
Modulation mode: ASK
PCB size: 30*35*18mm
Product size: 41*36*25mm

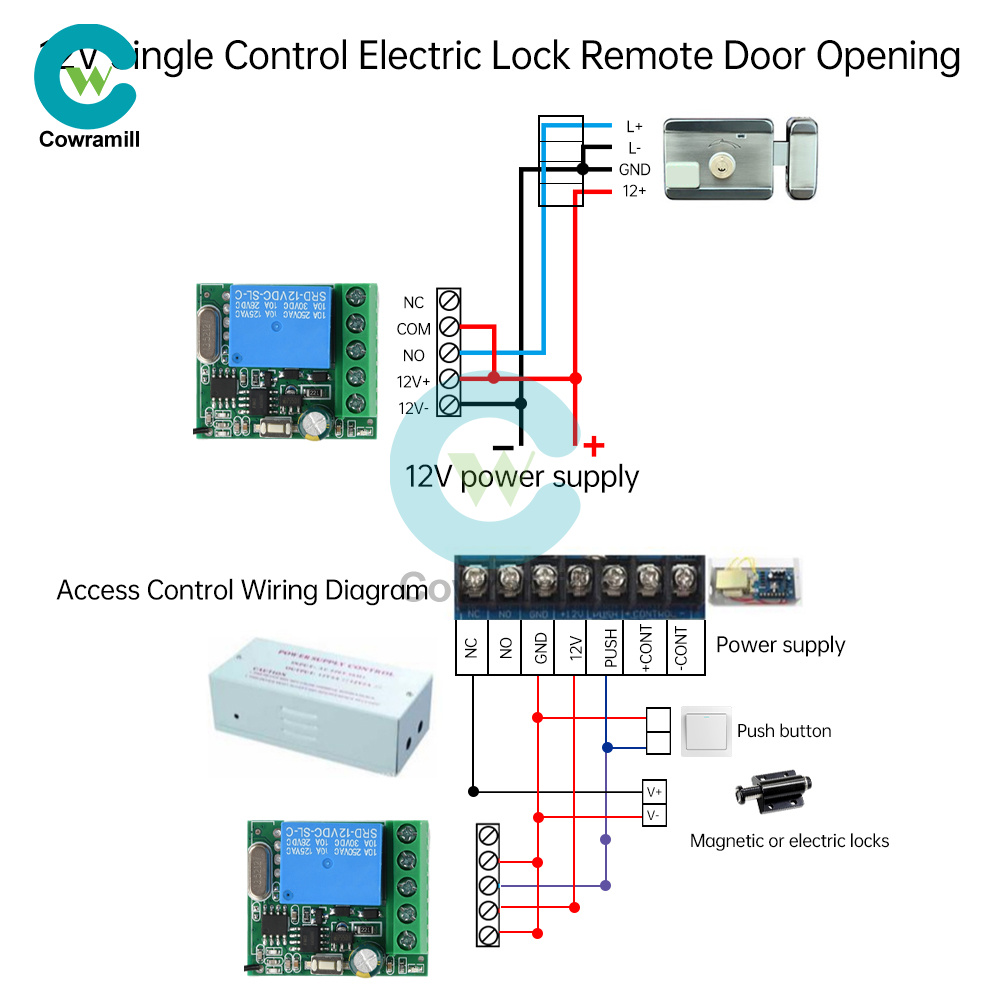

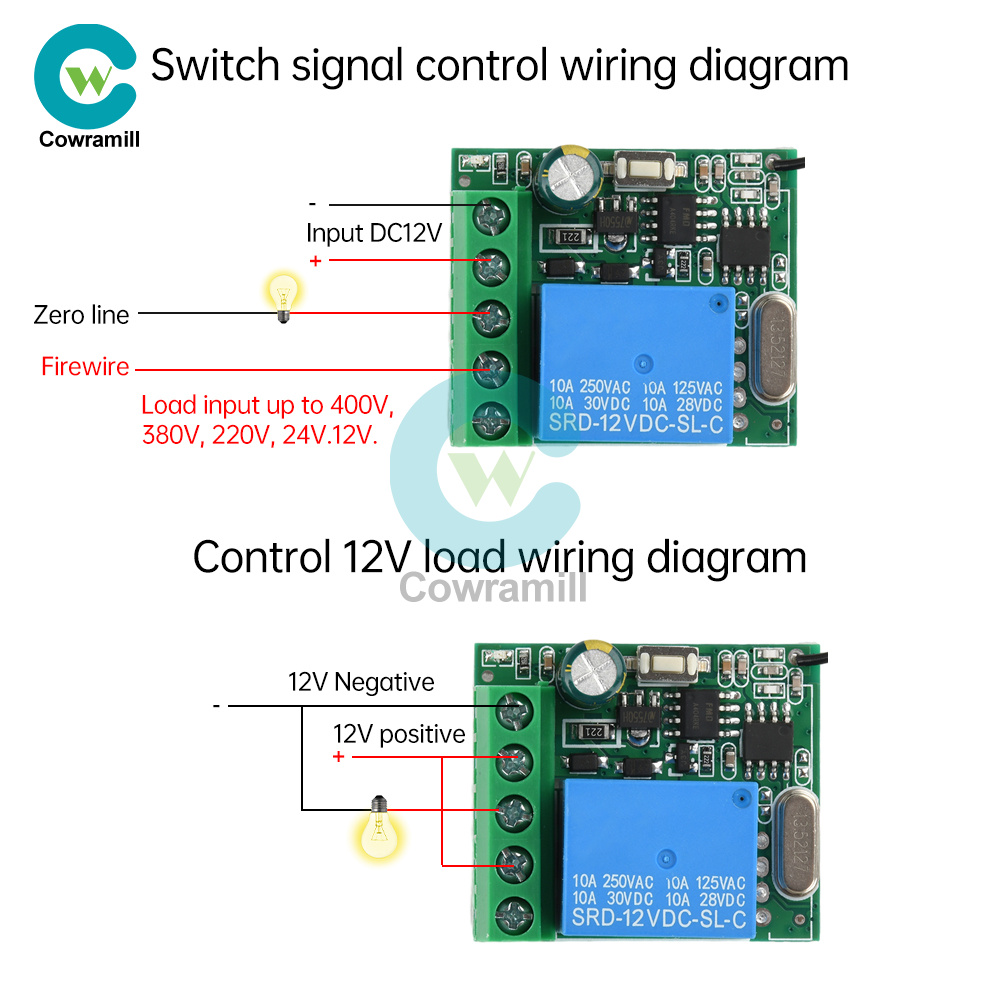

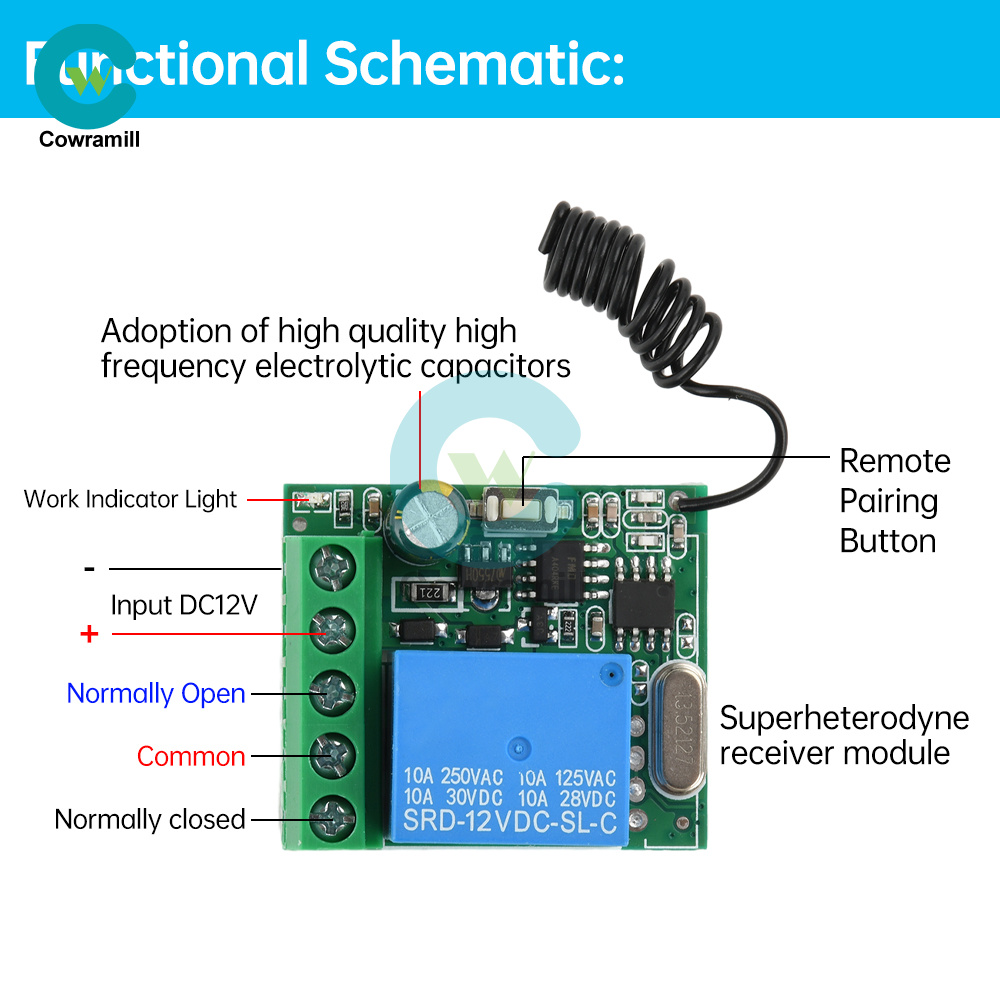

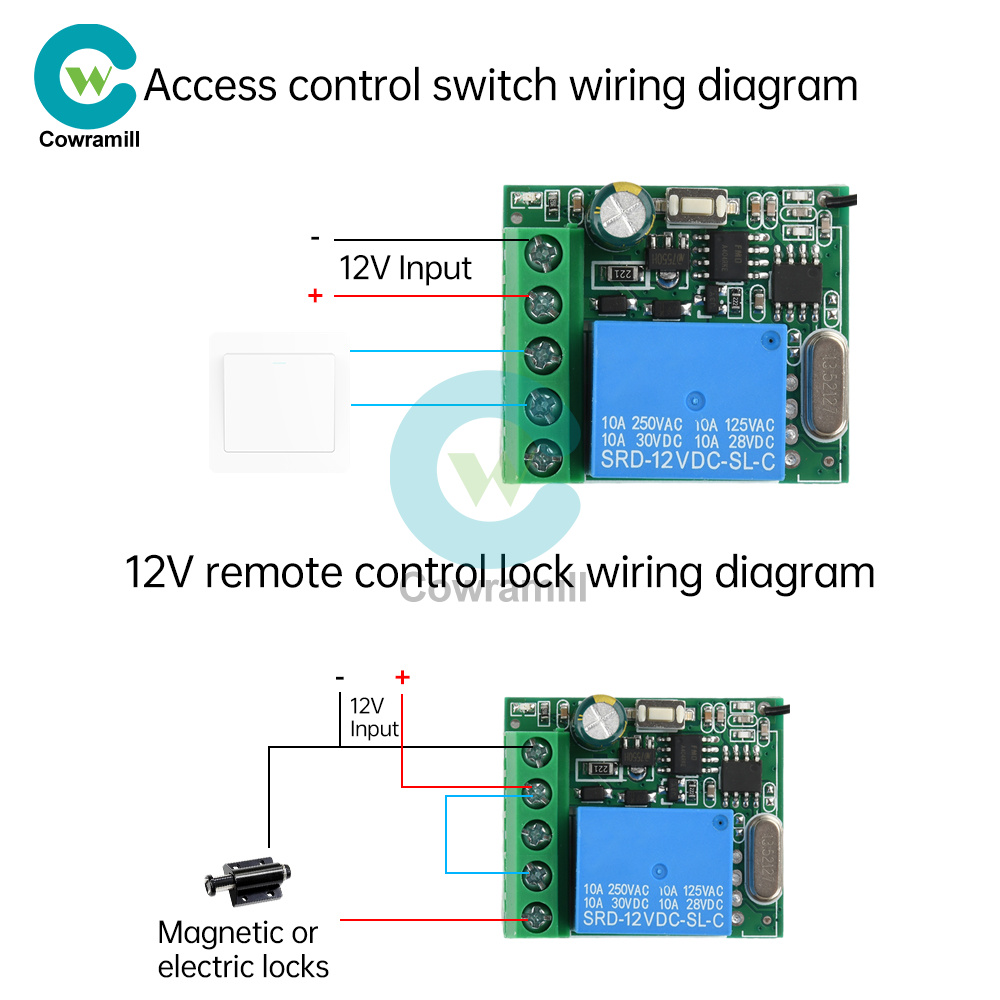

1.+: connect to the positive pole of 12V power supply
2.-: connected to the negative terminal of 12V power supply
3.NO: input terminal; normally open terminal of the relay
4.COM: output terminal; common terminal of the relay
5.NC: output terminal; normally closed terminal of the relay
After pressing the learning button on the control board for 8 times in a row, it will automatically clear all the remote controllers that have learned the code. After clearing, the original remote controls that have learned the code will no longer be controlled.
