Features:
*Module Specifications: This module features a non-isolated design with synchronous rectification. It operates with an input voltage range of 4.75V to 23V and can provide an output voltage between 1.0V and 17V, with a maximum output current of 3A.
*Enhanced Efficiency: The 3A DC-DC voltage step-down power converter utilizes integrally molded power inductors and synchronous rectifier control chips, resulting in a smaller, more efficient design with a maximum efficiency of 96%.

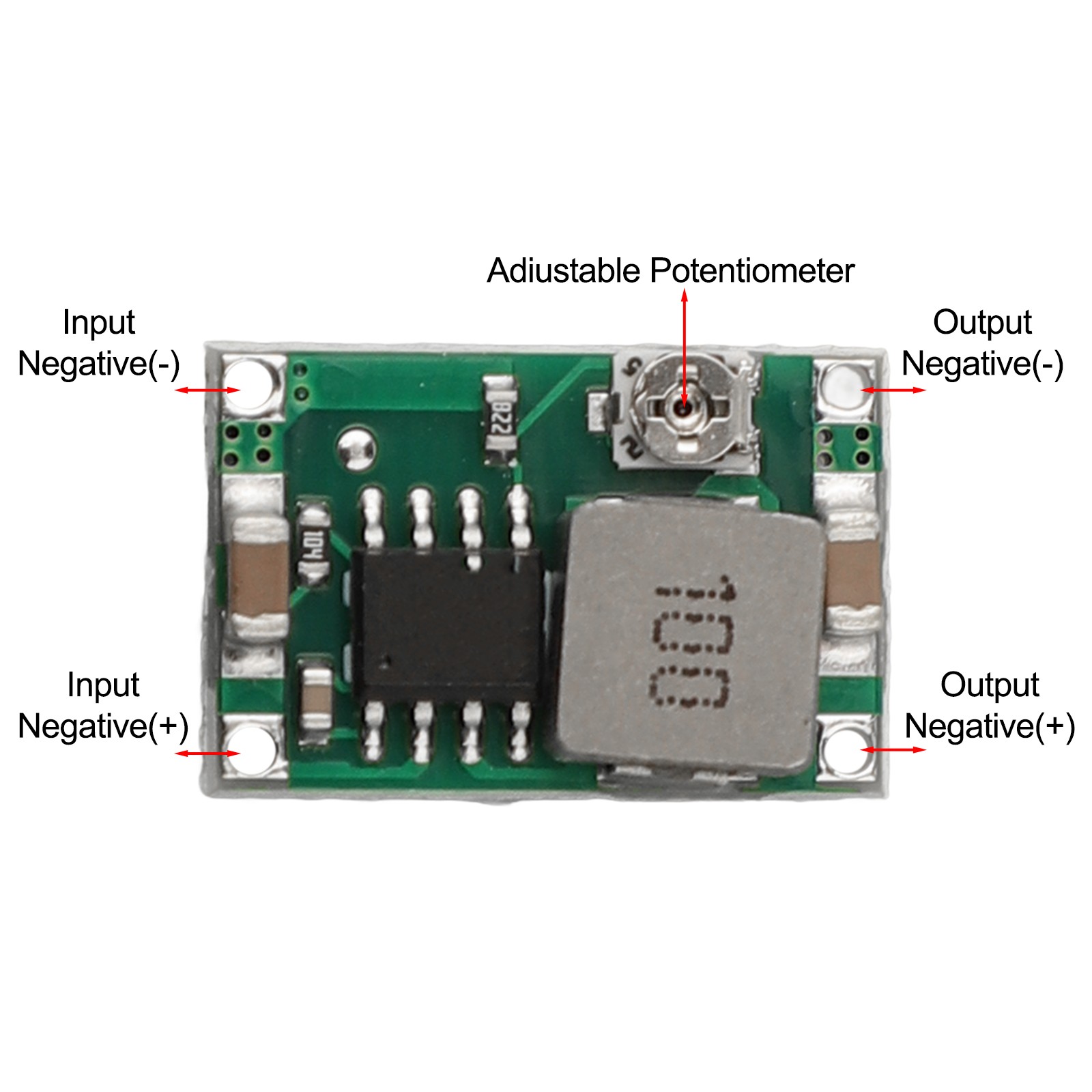

*Adjustable Voltage Output: Users can easily adjust the output voltage by modifying the precision resistor on the module. The voltage can be set up to 17V, with a regulation tolerance of ±2.5%. Rotating the adjustable resistor clockwise will decrease the voltage, while counterclockwise will increase it.
*Versatile Applications: This module is great for a variety of applications, including for DIY projects, for LED lighting, for microcontrollers, for battery chargers, and other low-power devices, operating at a switching frequency of 340 KHz.

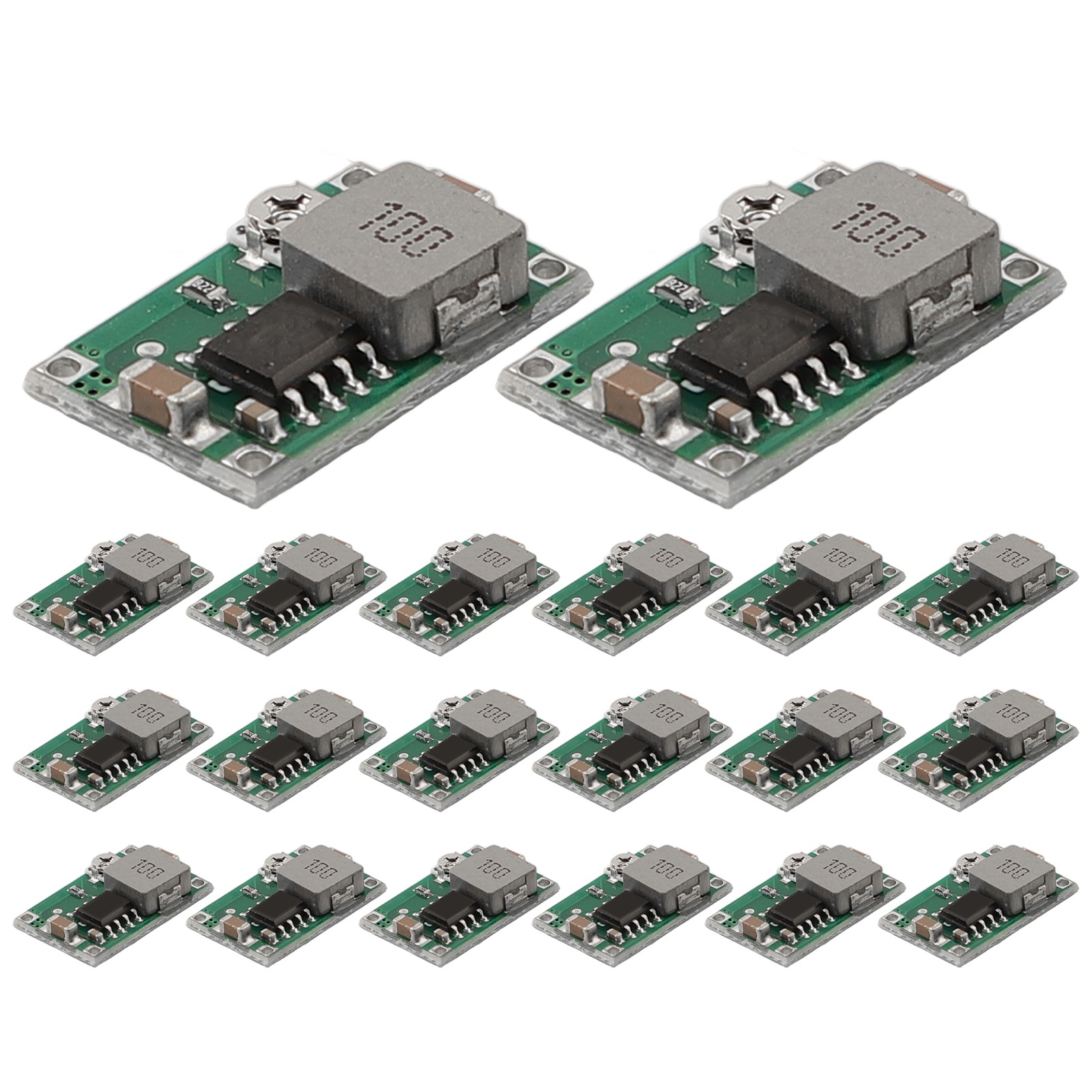

*Package Contents: The package includes 20 pieces of 3A DC-DC voltage step-down power converter modules. These modules are characterized by high efficiency, ultra-compact size, and high frequency, making them suitable for numerous projects.
Specifications:
Part Name: Step Down Power Converter
Material: Plastic,Metal
Color: Green
Module properties: non-isolated
Rectification: synchronous rectification
Input voltage: 4.75- 23 V
Output voltage: 1.0- 17 V
Input current: 3 A
Operating temperature: -40 to 85 degree Centigrade
Output frequency: 30 mV (no load)

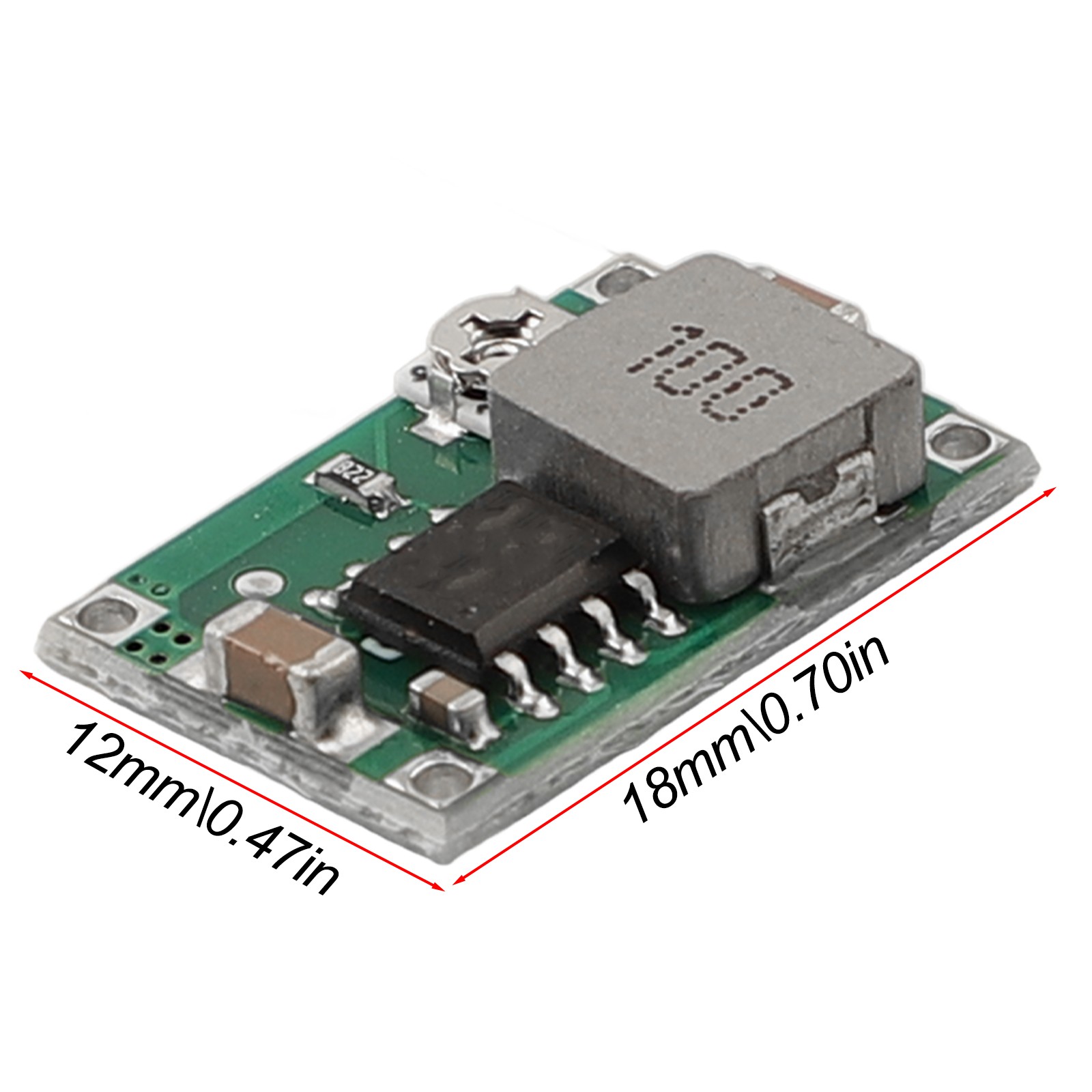

Size: approx. 18 * 12 * 3.8 mm(L * W * H)
Quantity: 20PCS
Package Content:
20 x Step Down Power Converter
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
