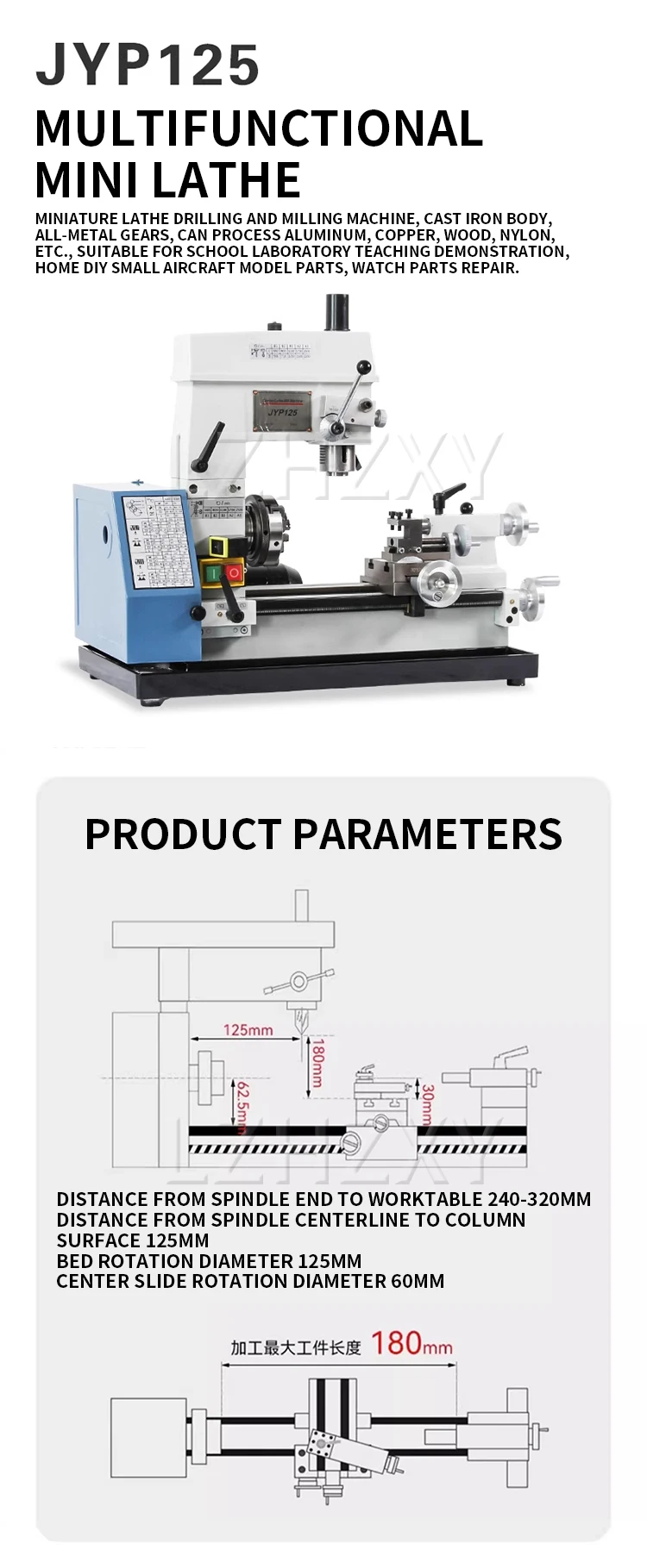

JYP125 Multifunctional Mini Machine Tool Drilling and Milling Machine Mini Lathe

JYP125 Multi-function mini machine tool Drilling and milling machine Micro lathe drilling and milling machine Teaching machine tool


Name: Multifunctional mini lathe
Model: JYP125
Machine size: 520*300*410MM
Packing size: 570*350*480MM
Net weight/gross weight: 22KG/25KG
Turning parameters:
Maximum workpiece rotation diameter: 125MM
Maximum workpiece length: 180MM
Maximum workpiece rotation diameter on tool holder: 60MM
Spindle through hole diameter: 9MM
Spindle taper hole: MT1
Number of metric thread types: 8
Metric thread pitch range: 0.4-1.5MM
Number of imperial thread types: 8
Imperial thread pitch range: 0.0028-0.0055 1/n"

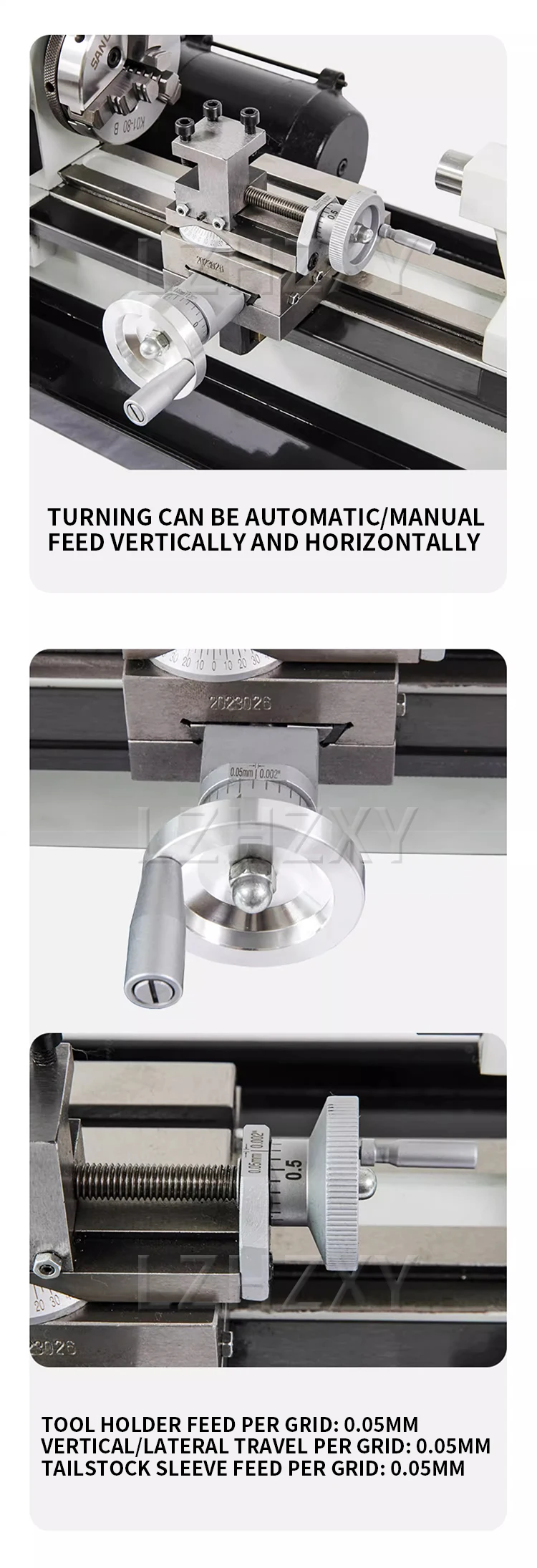

Number of longitudinal feeds: 2
Number of longitudinal feeds per spindle rotation: 0.07-0.14MM

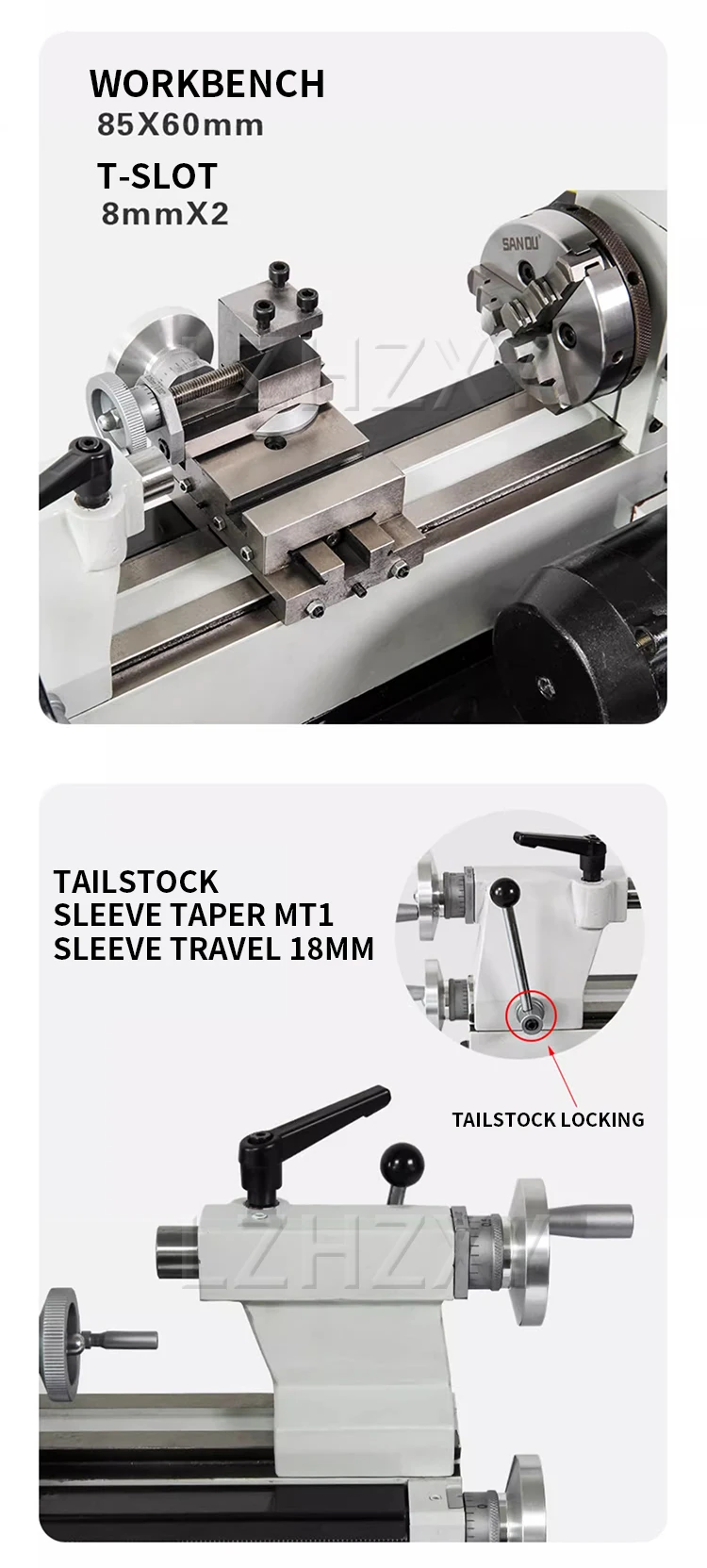

Tailstock sleeve simple stroke: 18MM
Tailstock sleeve taper hole: MT1
Spindle speed range and levels: 560-2500RPM 5 levels
Motor power: 120W
Drilling and milling parameters:
Maximum drilling diameter: 6MM
Distance from spindle end face to worktable: 180MM
Distance from spindle center line to column surface: 125MM
Main drilling and milling head box rotation angle around column: 360°

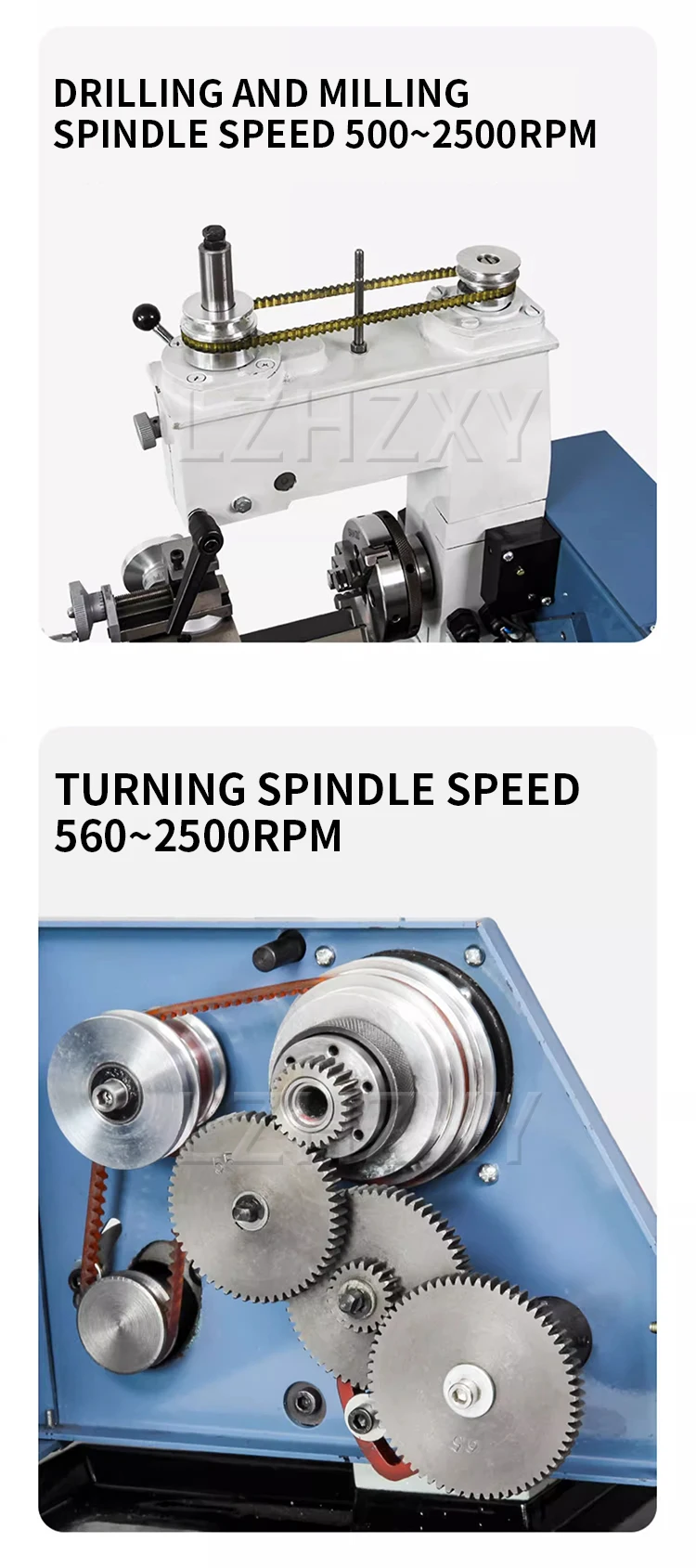

Spindle speed range and levels: 500-2500RPM 10 levels
Vertical lifting stroke of drilling and milling head box: 60MM
Working surface length and width: 85*60MM
T-slot width of worktable: 8MM
Spindle sleeve movement: 40MM
Chuck model: 80 chuck
Diameter: 77MM
Clamping range: positive jaw 2-35MM/reverse jaw 35-70MM
