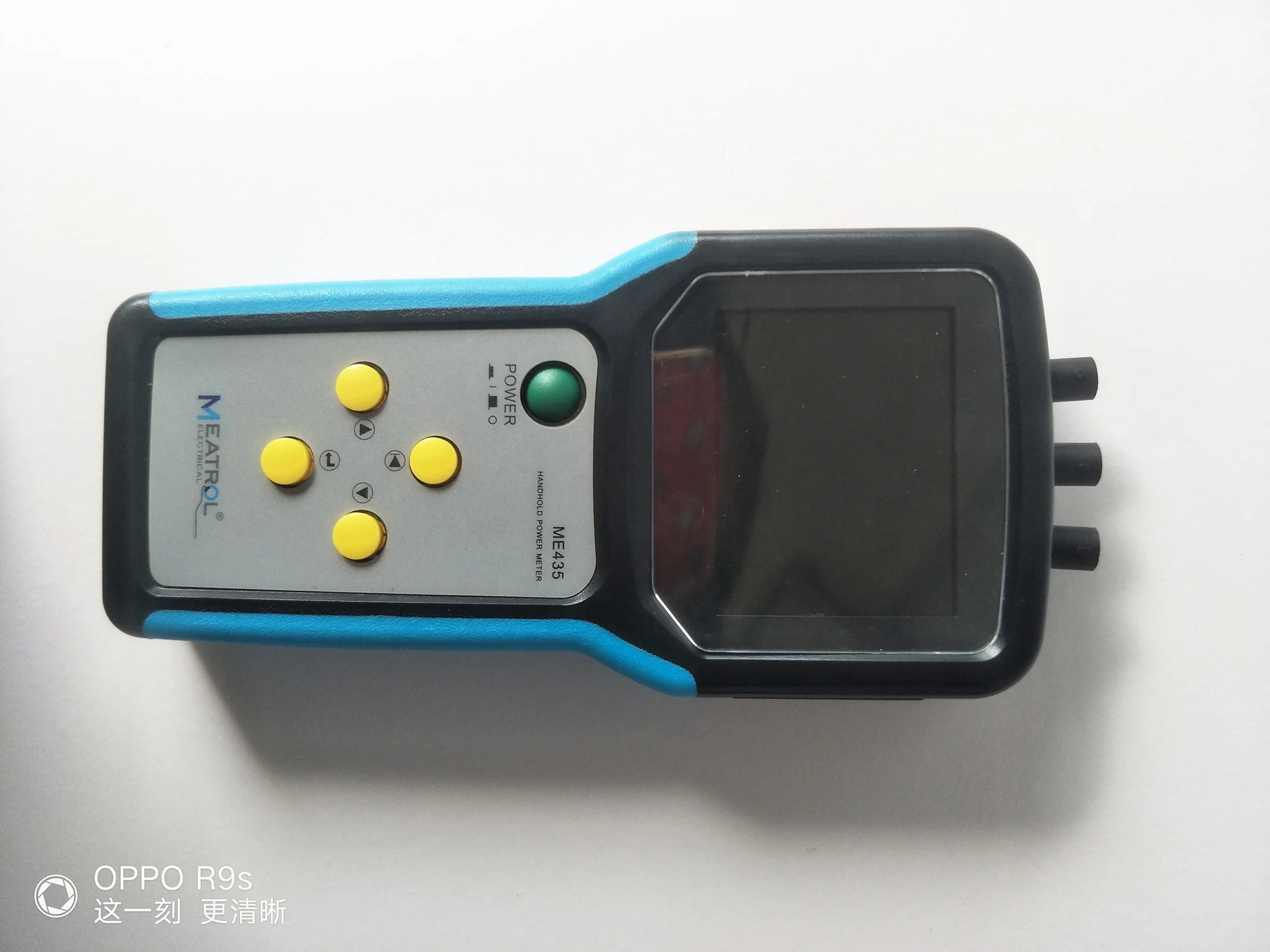

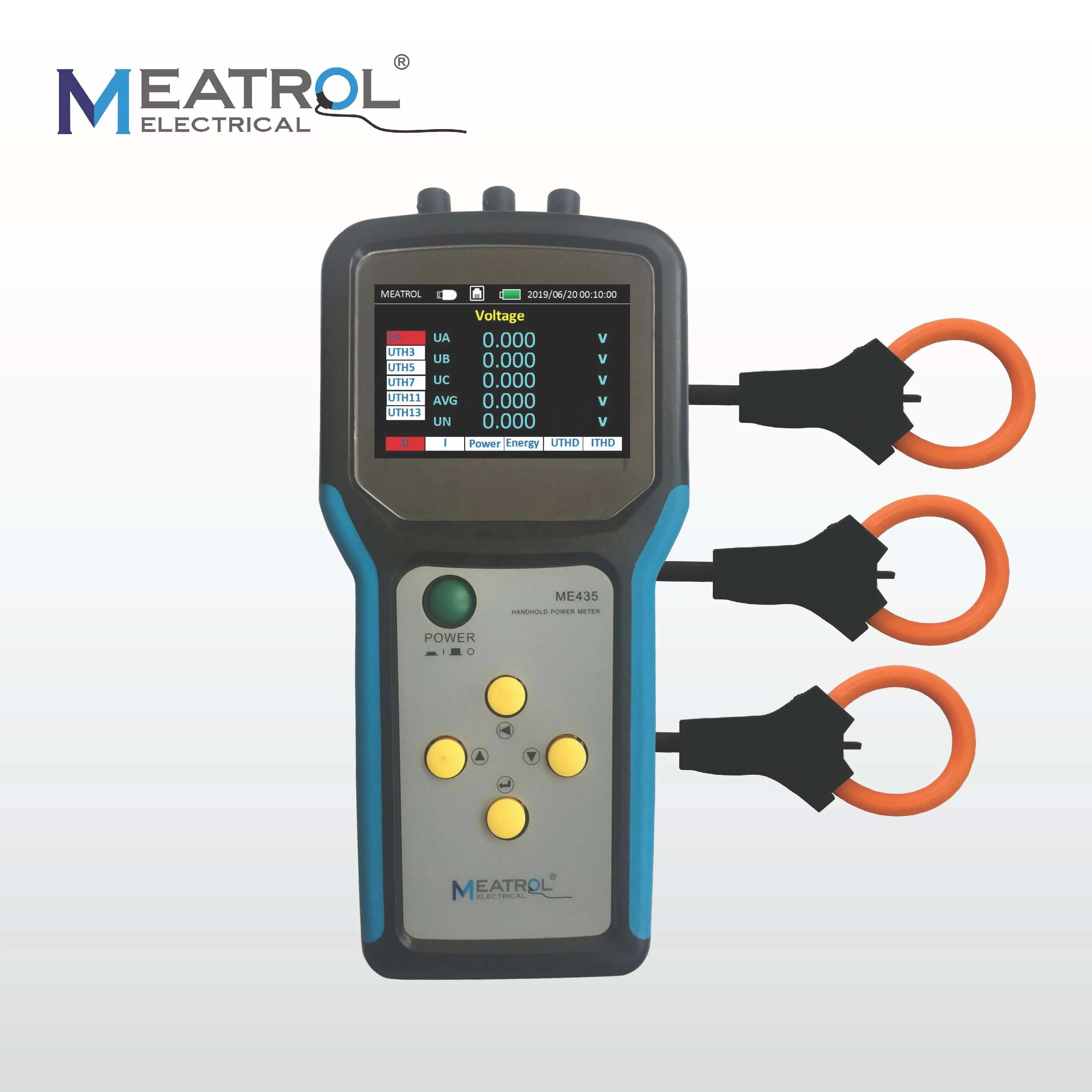

ME435 Tragbares Energiemessgerät Dreiphasen-Leistungsmesser 4GB Datenlogger
Products Description
Connectivity advantages

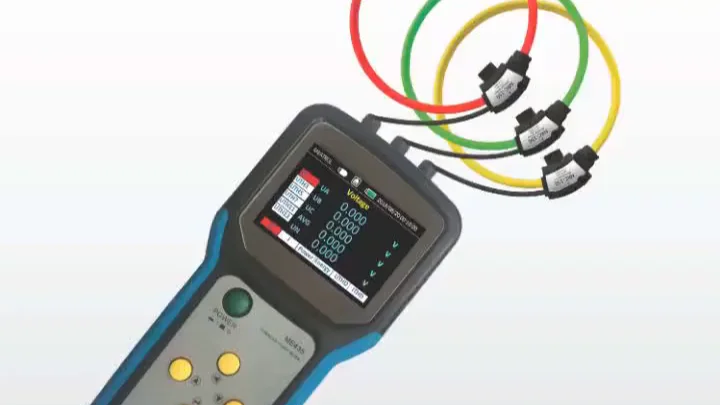

Support Extra sensor:
3pcs BNC terminal 333mV CT
3pcs BNC terminal 320mV current clamp
3pcs BNC terminal Rogowski coil
Storage:
1GB SD card(Max 4GB) (save intervals 1 mins default)
Power:
4*AA battery(wroking time: approx 7 hours) Or USB Type-C
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.
When any one-second real-time reading reaches its highest or lowest value, the power meter saves the minimum and maximum values in its nonvolatile memory. From the power meter display, you can: • view all min./max. values since the last reset and the reset date and time. • reset min./max.
Specification
|
Specification
|
|
|
Product component type
|
Handheld three phase rogowski power meter
|
|
Poles description
|
3PH4W 3PH3W
1PH2W (L-N); 1PH2W(L-L); 1PH3W(L-L-N)
|
|
Input type
|
BNC terminal 333mV CT
BNC terminal Rogowski coil
|
|
Device application
|
Power analysis
Energy meter
|
|
Display
|
3.5 inch TFT screen display
|
|
Sampling rate
|
8k samples per second
|
|
Harmonic
|
52th Max
|
|
Power
|
4*AA battery (working time: approx 7 hours)
Or 9V DC power supply (included adaptor)
|
|
|
|
|
Mechanical characteristics
|
|
|
Weight
|
350g
|
|
Dimension
|
L*W*D:21.5*10*3.5CM
|
|
Storage
|
1 GB SD card (Max 4 GB) (save intervals 1 mins default)
|
|
Measurement accuracy
|
|
|
Rated current (5 level selectable)
|
100A(0.5% from 10A to 120A)
600A(0.5% from 10A to 720A)
1000A(0.5% from 10A to 1200A)
3000A(0.5% from 30A to 3600A)
6000A(0.5% from 60A to 7200A)
|
|
Rogwoski coil connect setting
|
100A MRC-16
600A MRC-36
1000A Y-FCT-200 or Y-FCT-350 or NRC-100
3000A NRC-150 or Y-FCT-510
6000A NRC-200 or Y-FCT-800
|
|
ST08 current clamp
|
5A 0.5% (100mA～5A) 1%(10mA～10mA)
10A 0.5% (100mA～10A) 1%(10mA～100mA)
|
|
CTs connect setting
|
Primary setting: from 1A to 999999A
Secondary setting: from 0.001mV to 333mV
|
|
Voltage
|
0.2% from 60V to 500V
|
|
Power factor
|
±0.005
|
|
Active/Apparent Power
|
IEC62053-22 Class 0.5
|
|
Reactive power
|
IEC62053-21 Class 2
|
|
Frequency
|
0.01% from 45 to 65Hz
|
|
Active energy
|
IEC62053-22 Class 0.5s
|
|
Reactive energy
|
IEC62053-21 Class 2
|
|
Wire diameter for terminals
|
|
|
Current input
|

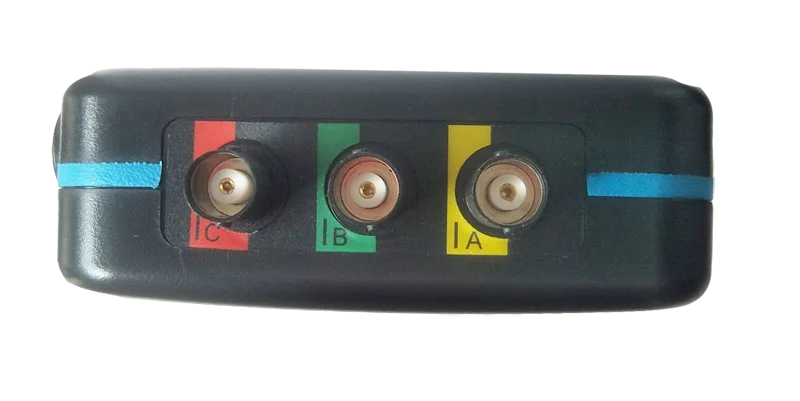

BNC connector
|
|
Voltage input
|

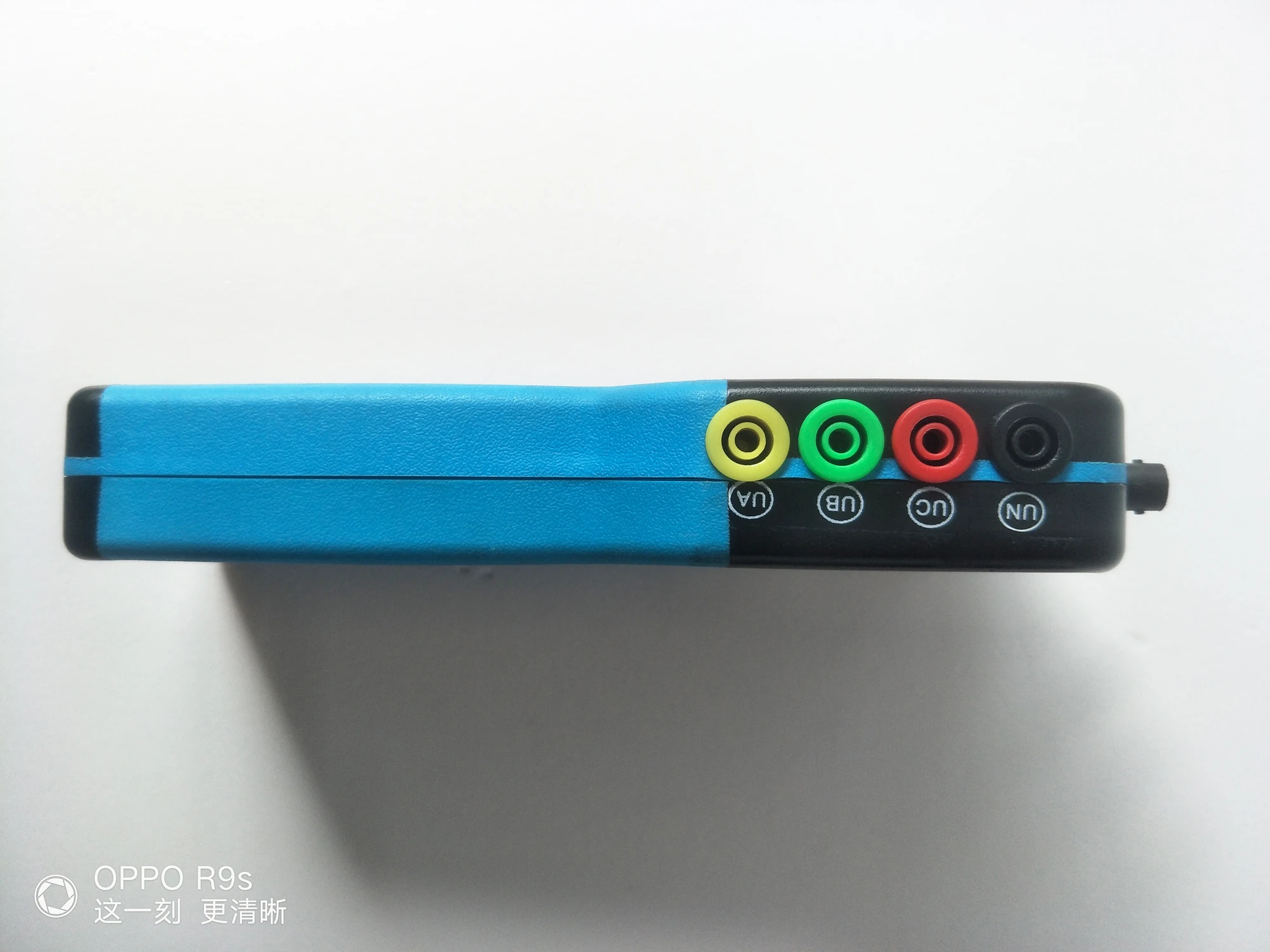

Banana plug
|
|
DC power supply
|
DC 5.5*2.1 plug
|
|
Environmental conditions
|
|
|
Operating temperature
|
-25℃ to +55℃
|
|
Storage temperature
|
-40℃ to +85℃
|
|
Humidity rating
|
5 to 95% RH at 50℃(non-condensing)
|
|
Pollution degree
|
2
|
|
Overvoltage category
|
III,for distribution systems up to 277/480VAC
|
|
Dielectric withstand
|
As per IEC61010-1, Doubled insulated front panel display
|
|
Altitude
|
3000m Max
|
|
IP degree of protection
|
IP20 conforming to IEC 60629
|
|
Colour
|
White
|
|
Contractual
|
12months
|
1 set/carton
Contain accessories:4pcs voltage clamp, adaptor, SD card.
Optional:Rogowski coil sensor
100A MRC-24
600A MRC-36
1000A NRC-100
3000A NRC-150
6000A NRC-200
