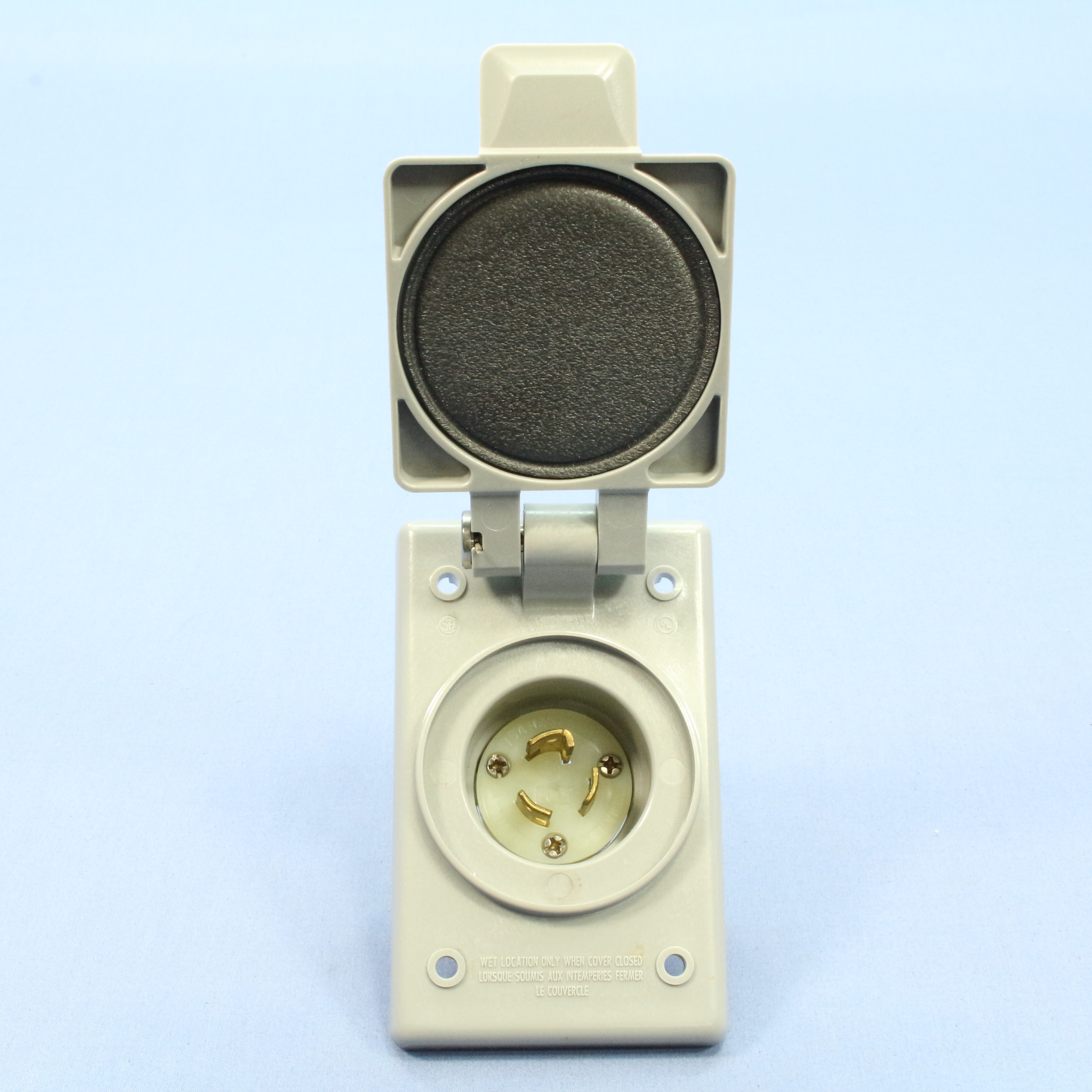

Leviton Weather Resistant Cover Locking Flanged Inlet Plug Nema L5-15P 4716-FWP

Leviton 4716-FWP locking flanged inlet with integrated wallplate and weather-resistant cover. Suitable for indoor and outdoor use. Industrial Grade, NEMA L5-15P, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged with mounting screws. Features include:

• Glass-filled thermoplastic cover and wallplate provides outstanding impact resistance and durability
• IP 64 Suitability rating protects against dust particles and splashing water
• NEMA Type-3R enclosure Rating (when properly installed) ensures protection against rain, sleet and damage from external ice formations
• Dual gaskets, one under plate and one under lid, for weather-resistant fit
• Stainless steel external hardware resists corrosive effects of moisture
• Large thumb-tab makes it easy to open cover with gloved hand
• Mounts to panels or FS/FD boxes
• Solid brass blades are fitted and held tightly and securely in place
• Individual wire wells accept wire or fork terminals. Clear housing allows inspection of wire termination and provides molded-in wire strip gauge
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Transparent wiring chambers provide a means of visual inspection of conductors and terminals
• Wire clamps move in individual chamber provide positive crimp lock without cutting wire strand
• Captive, color-coded brass #8 terminal screws
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• NEMA configuration and rating molded on front

This is New Old Stock and is returnable for any reason. (SKU # L4716-FWP-EA; Weight: 0.4000 lbs.)
