Notice：
This display is Li No. 2 Protocol，
It could be used for Sabvoton Controller with Li No. 2 Protocol.
Confirm the display protocol method:
1: Whether the display used before is Li No. 2 Protocol
2: Ask the controller seller whether the controller can be used with Li No. 2 Protocol
If you receive the display, it cannot be used due to the display Protocol and refunds are not supported
Product Description
3.5 inch IPS screen
24V/36V/48V/52V/60V/72V battery supply
Rated operating power : 1W
Max operating power : 5W
USB charging port : 5V 500mA
Off leakage current < 1uA
Support current to controller : 100mA

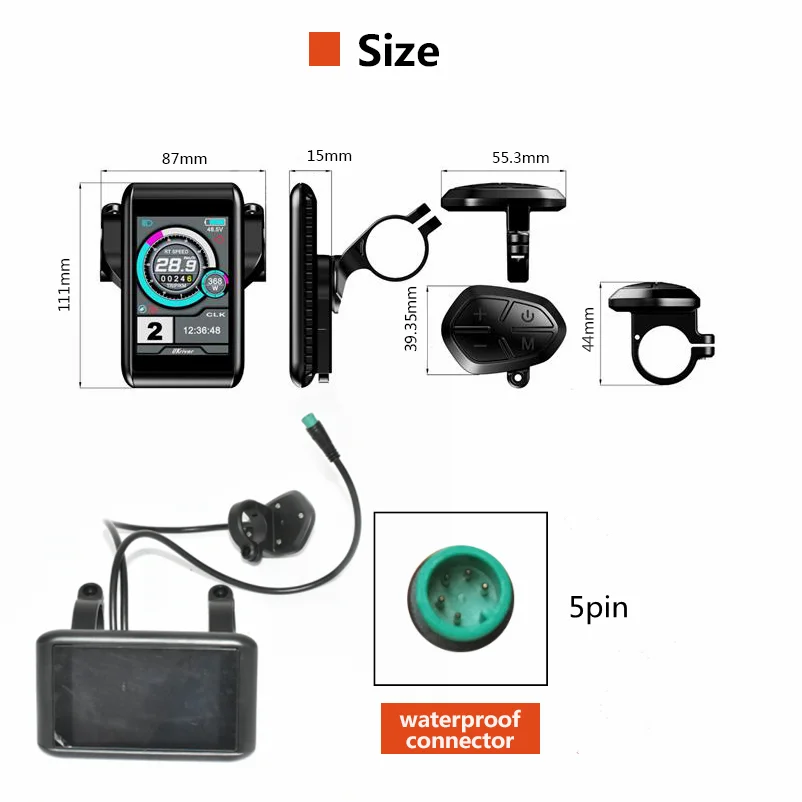

Size:111.1*66.8*82.8mm
Place of Product:Jiangsu,China
Waterproof grade:IP65
Operating temperature : -20~70℃, Storage temperature : -30~80℃

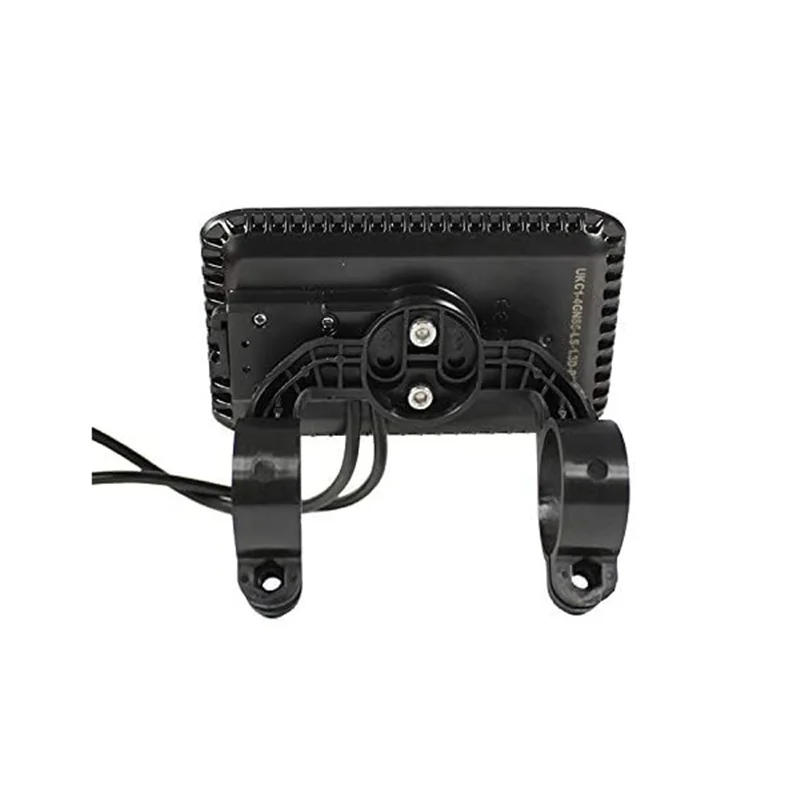

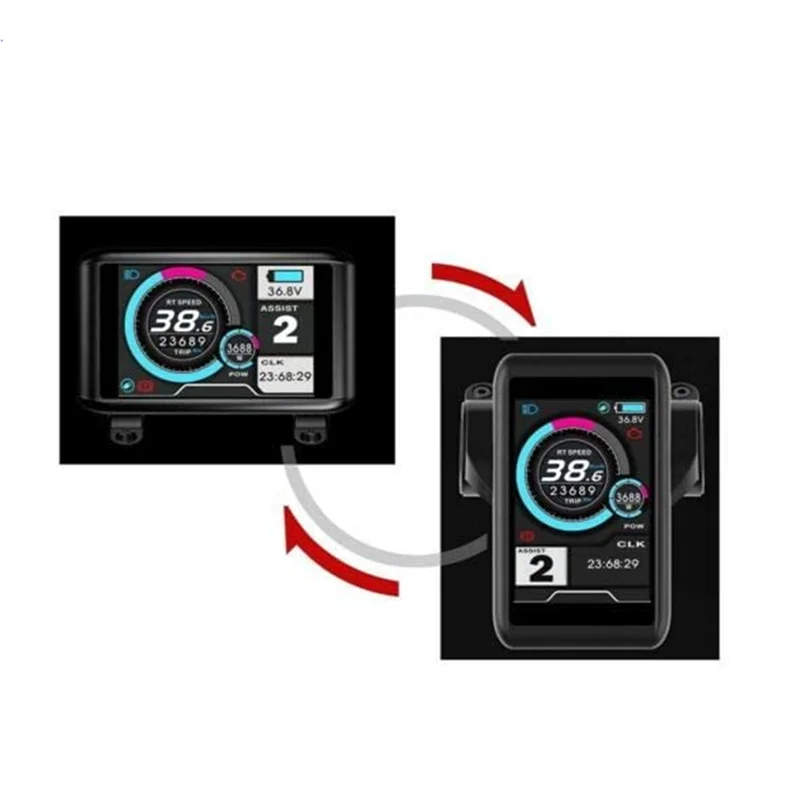

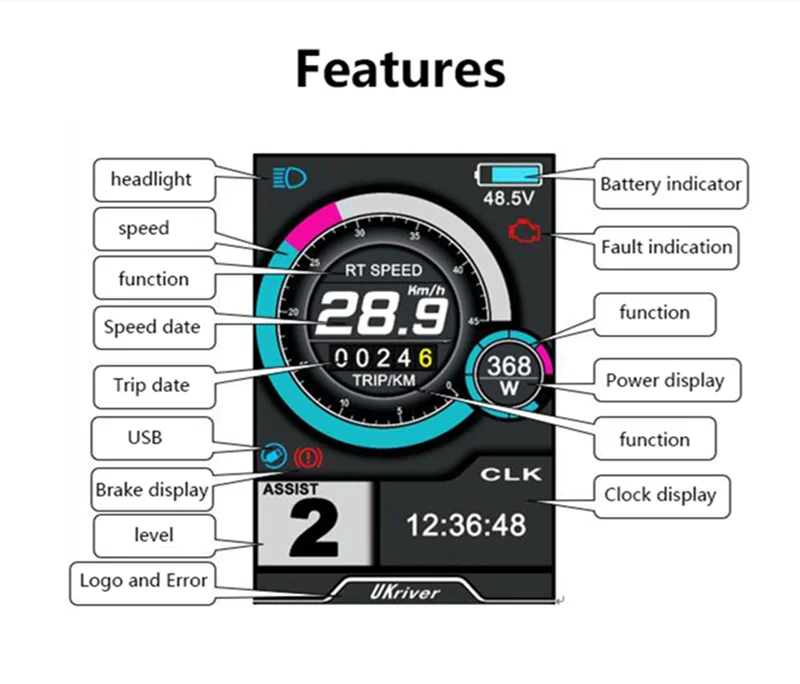

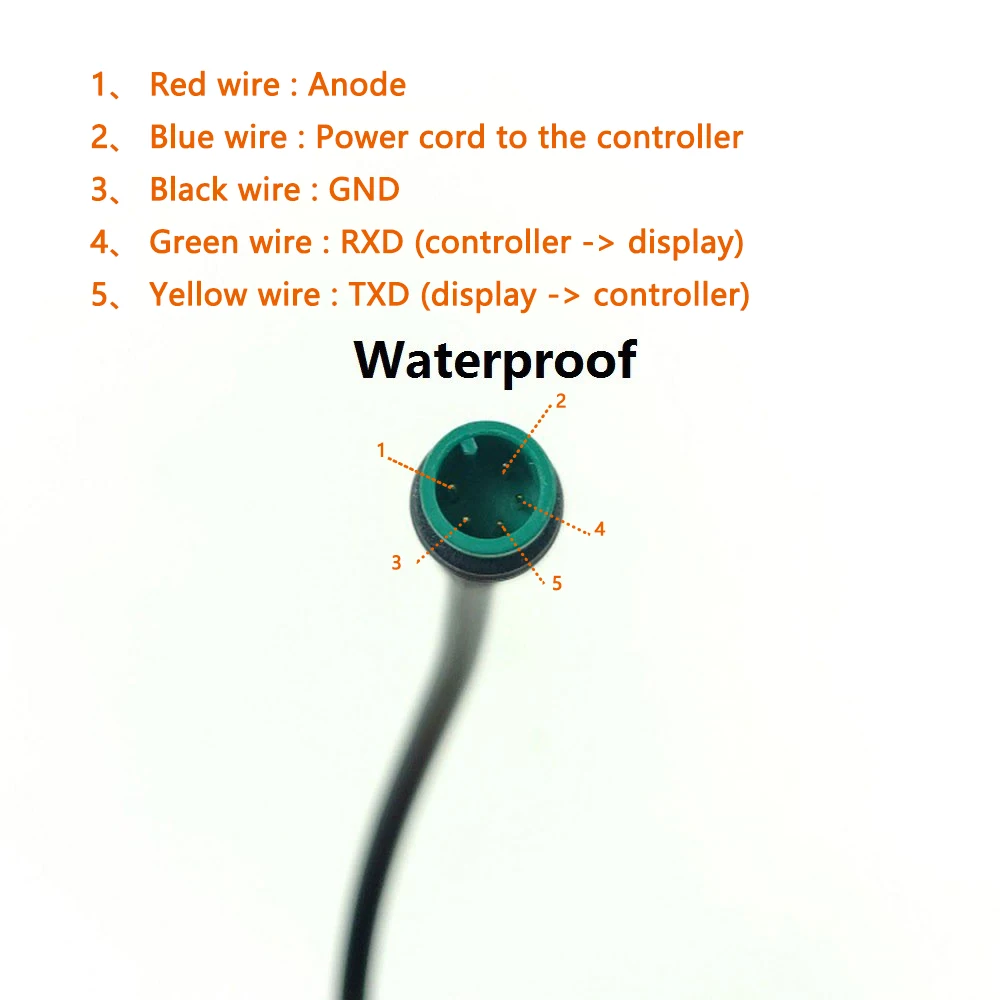

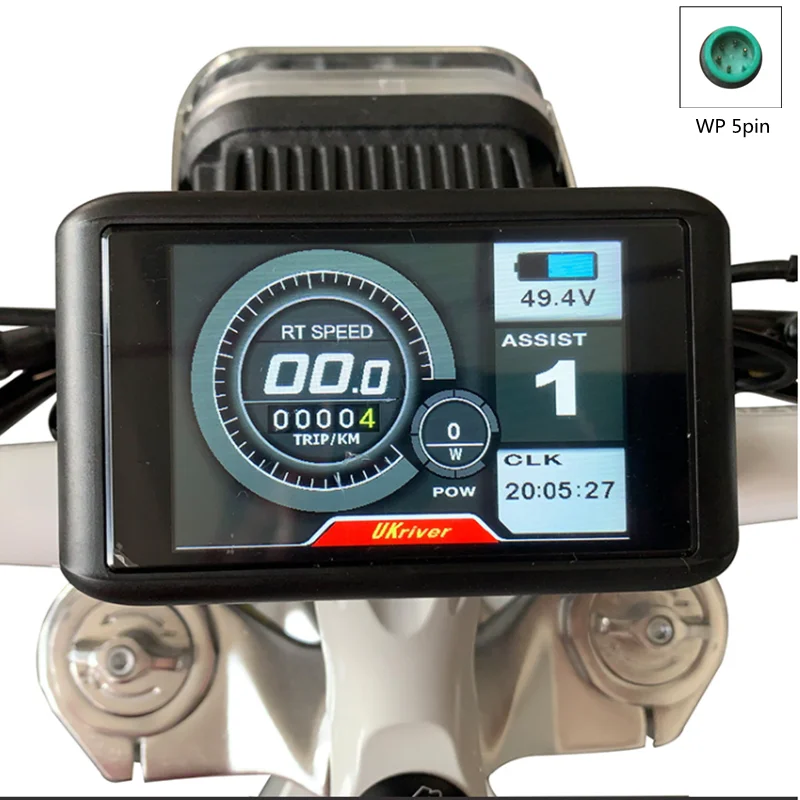

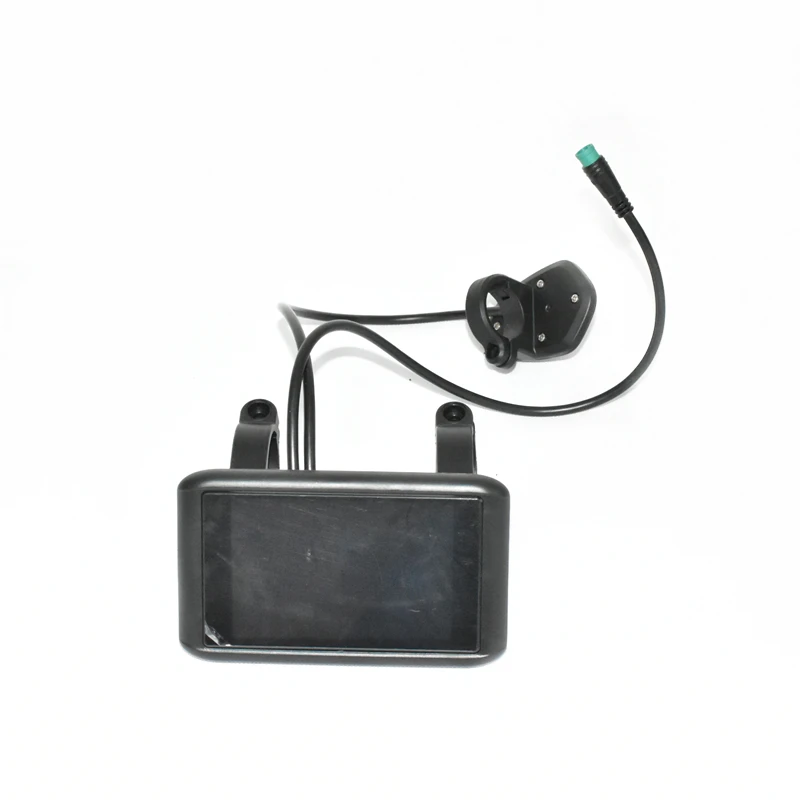

Detailed Images

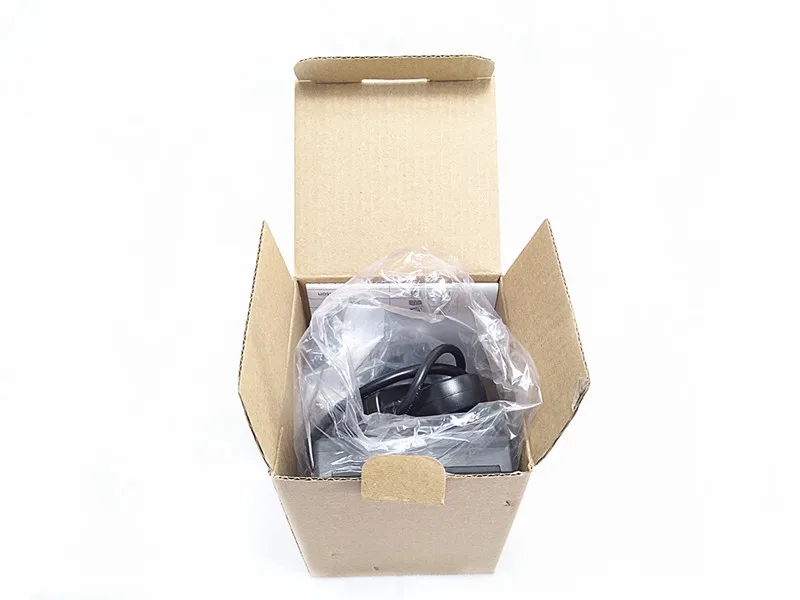

Packing and shipping
Company information
