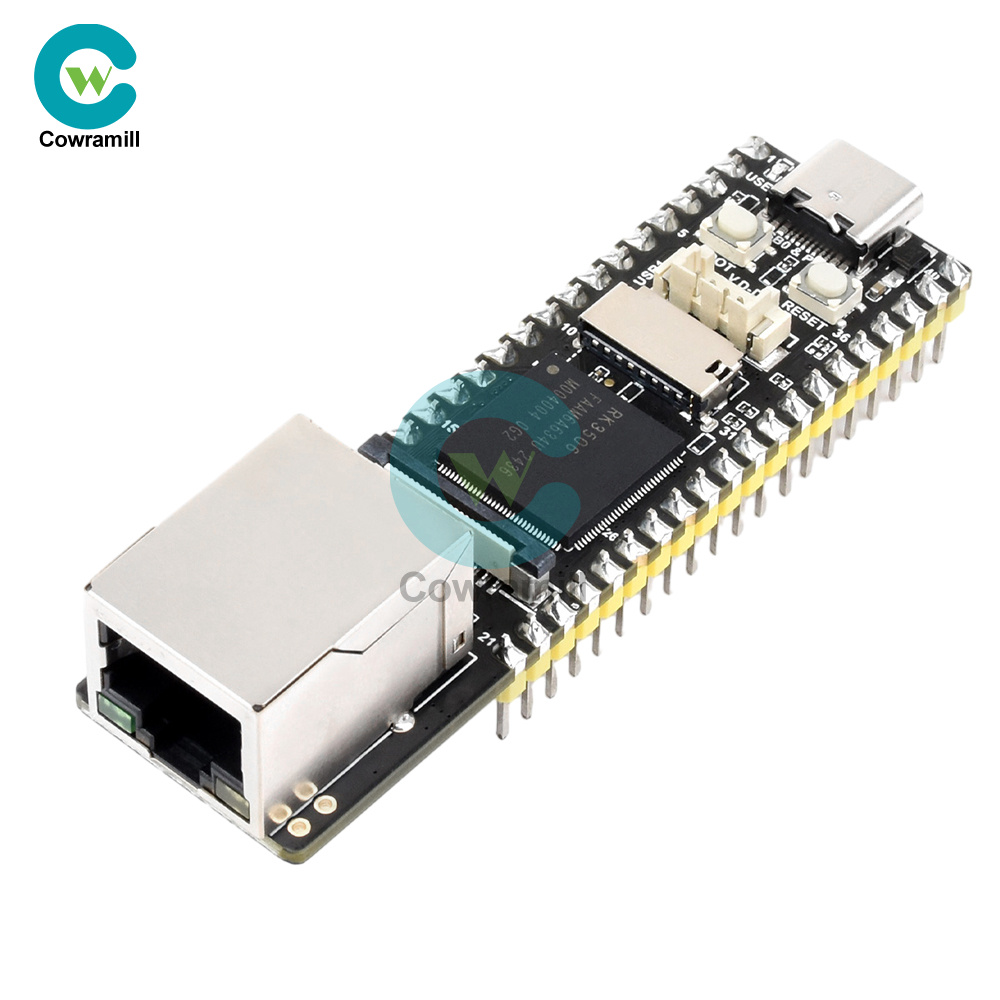

Luckfox Lyra Plus is a miniature Linux development board based on Rexchip RK3506G2 chip, which aims to provide developers with a simple and efficient development platform. It supports a variety of high-speed interfaces, including MIPI DSI, RMII, and USB, etc., which can fulfill various application scenarios. The low-speed interface adopts Rockchip Matrix IO design, which enables the pins supporting this design to share 98 kinds of multiplexing functions, and can be freely combined with PWM, UART, I2C, SPI and I2S, etc., which is convenient for rapid development and debugging.
1. Triple-core ARM Cortex-A7 32-bit core with integrated VFP, supporting single- and double-precision floating-point operations
2. Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configurations.
3. Built-in 128MB DDRL3 to meet the needs of multi-core applications.
4. Low-speed interface adopts Rockchip Matrix IO design, which allows rich multiplexing functions to share the limited chip pins, and makes the peripheral circuits more flexible.
5. Built-in audio and video codecs support multiple audio inputs and outputs, providing high-quality audio playback and recording functions.
6. Built-in 128MB DDR3L, onboard 256MB Flash, 24 RM_IO pins.
7. Onboard MIPI DSI 2-lane and USB OTG2.0 x 2 interfaces.

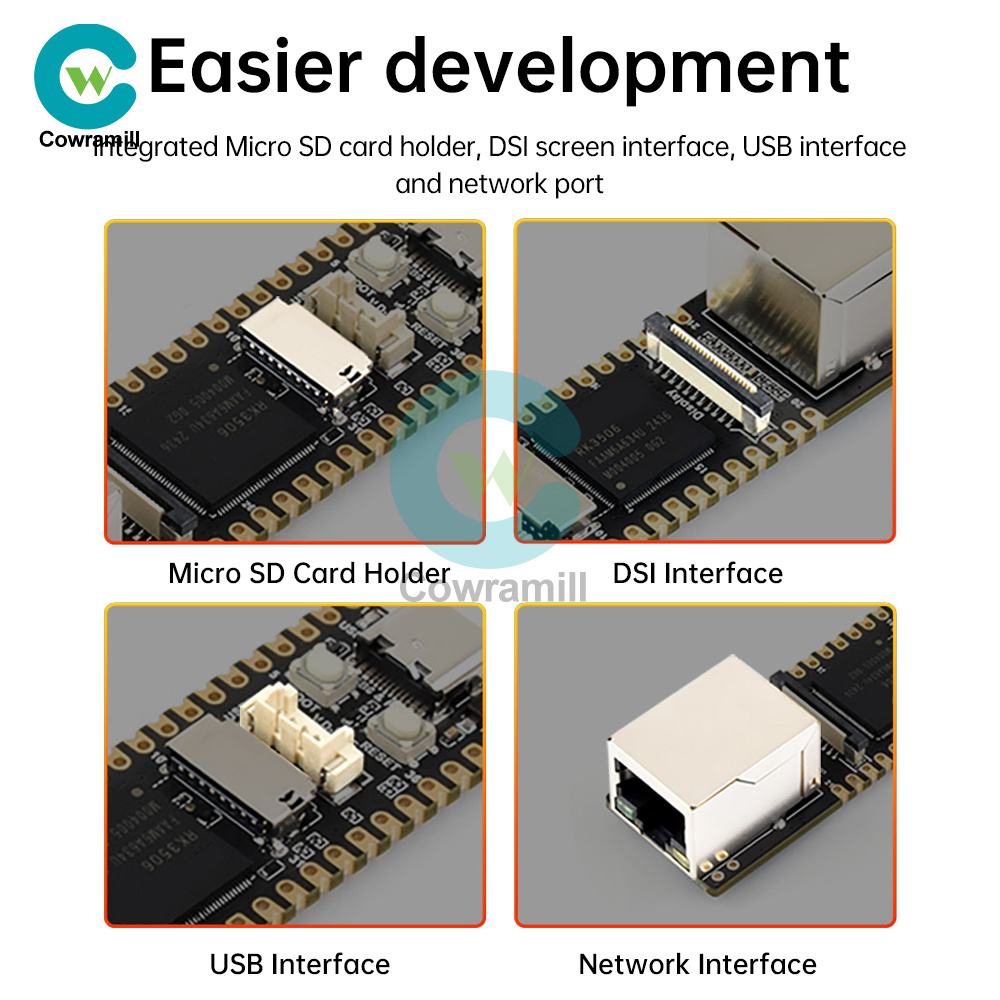

8. Simpler development, integrated Micro SD card holder, DSI screen interface, USB interface and network port
Processor: Tri-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory: 128MB DDR3L
USB: USB OTG2.0 × 2
Screen Interface: MIPI DSI 2-lane

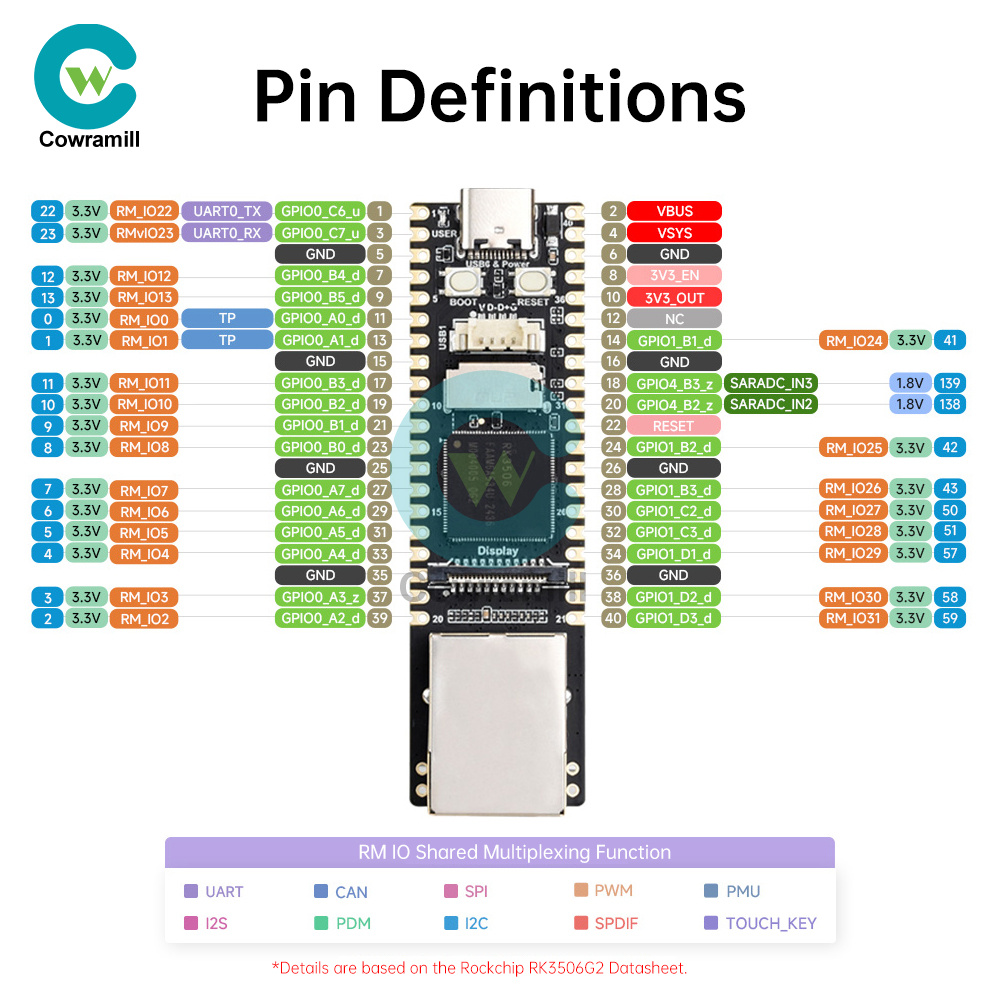

GPIO: 24 Rockchip Matrix IO pins
Network Port: 10/100M Ethernet controller

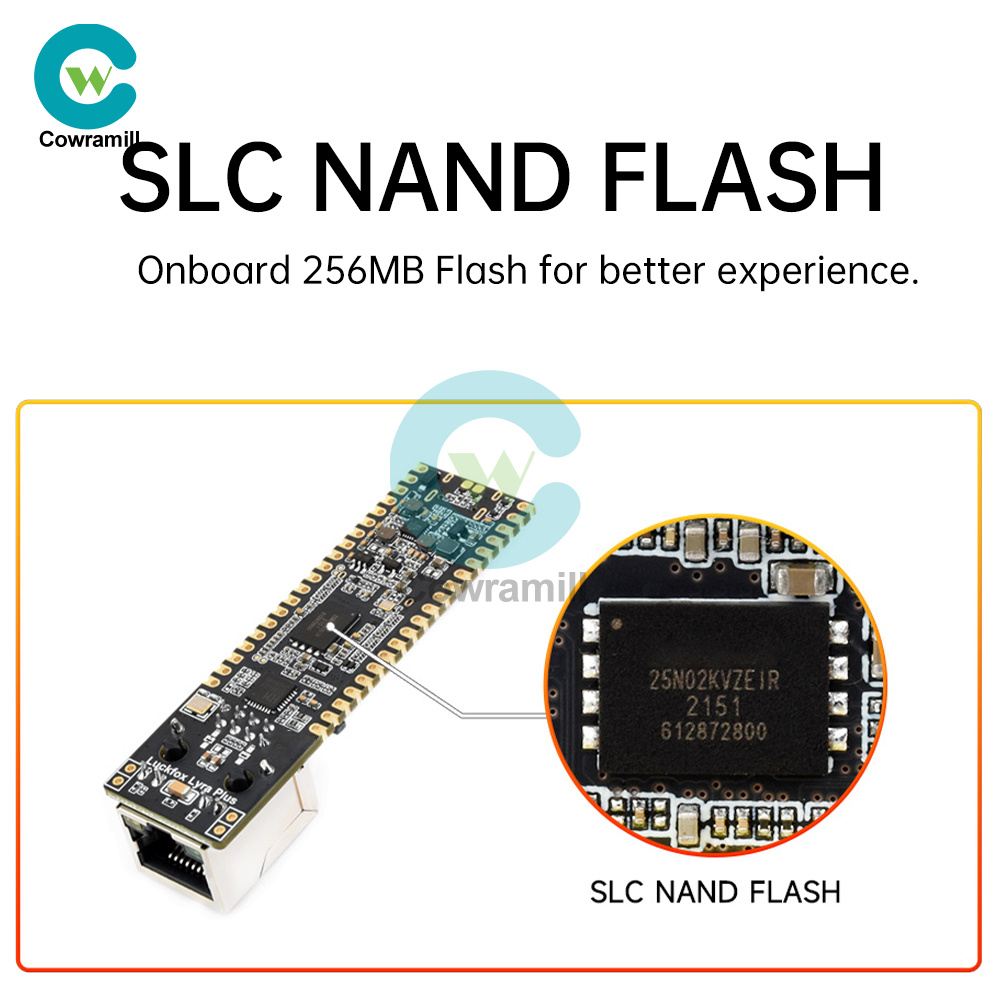

Default Storage Media: SPI NAND FLASH (256MB)
Dimension: 72mm*21mm
1 x Development Board
