Audio Technica ATW-3212/C510EE1 3000 Wireless Handheld Microphone and Mic Receiver

Click Thumbnails to Enlarge

Condition and Warranty

Condition: AN OPEN BOX ITEM

Warranty: 1 YEAR AUDIOSAVINGS

Product Description

Authorized Audio-Technica Dealer!

What’s In the Box:

  • ATW-R3210 receiver
  • ATW-T3202 handheld transmitter
  • ATW-C510 cardioid dynamic microphone capsule

Description:

Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – EE1 (530–590 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

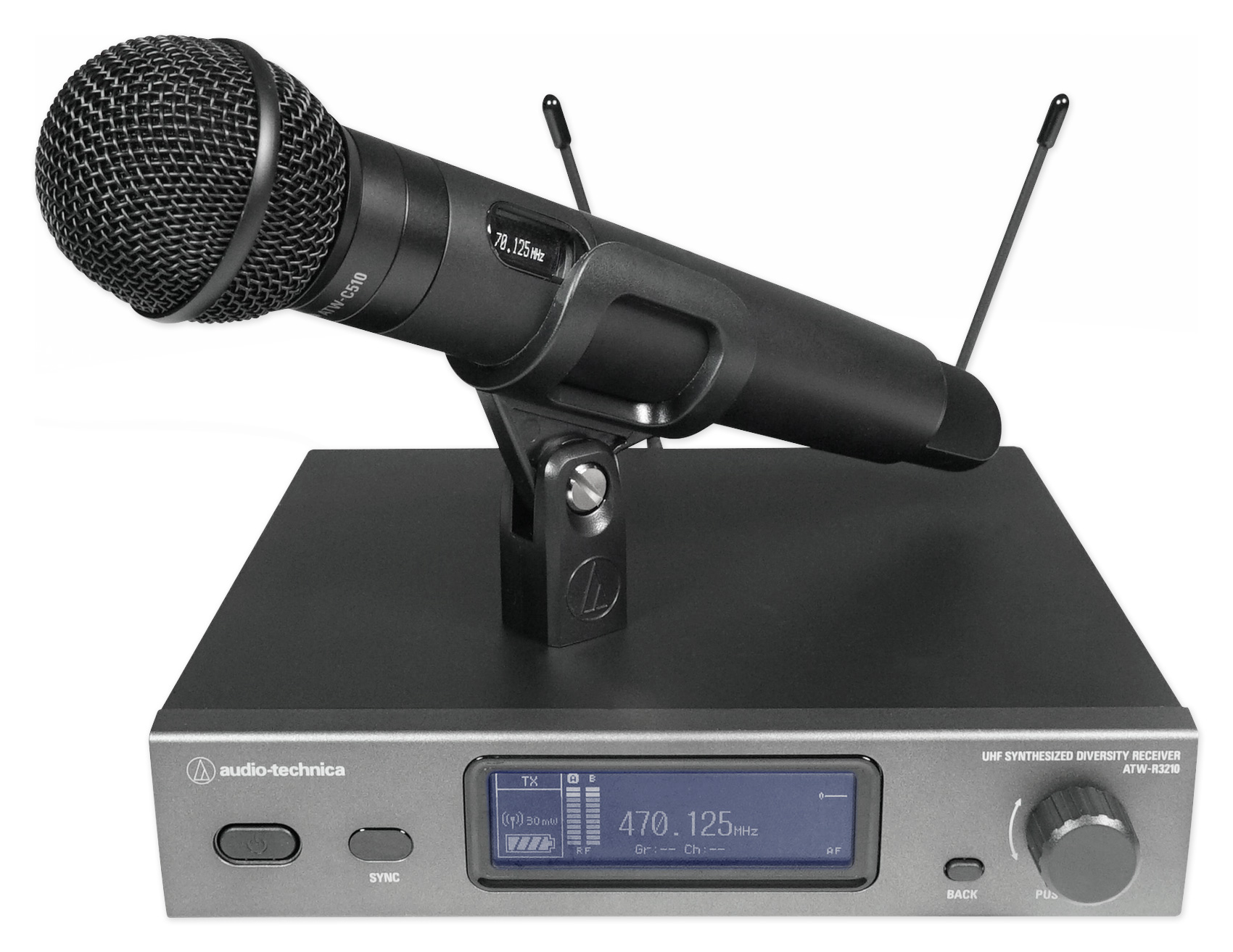

This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C510 interchangeable capsule. The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

60 MHz Tuning Range
With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in frequency bands – EE1 (530–590 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

Interchangeable Cardioid Capsule
The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules

Multi-Function Button
Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency

Charging Terminals
Charging terminals on each transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries

OLED Screens
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

Features:

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in frequency bands: EE1 (530–590 MHz).
  • Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks
  • ATW-C510 dynamic interchangeable cardioid capsule

Specifications:

Microphone
Element Dynamic
Polar Pattern Cardioid
Frequency Response 90 - 12000 Hz

Impedance 50 Ohms

Weight 129 g

Dimensions 78.5 mm long, 53.7 mm max. diameter

Output Connector Interchangeable industry-standard thread

Overall System
Operating Frequencies Band EE1: 530.000 to 589.975 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.

Minimum Frequency Step 25 kHz

Modulation Mode FM

Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use 40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Frequency Response ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
Operating Range 100 m

Dynamic Range ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)

Operating Temperature Range -5 ºC to +45 ºC

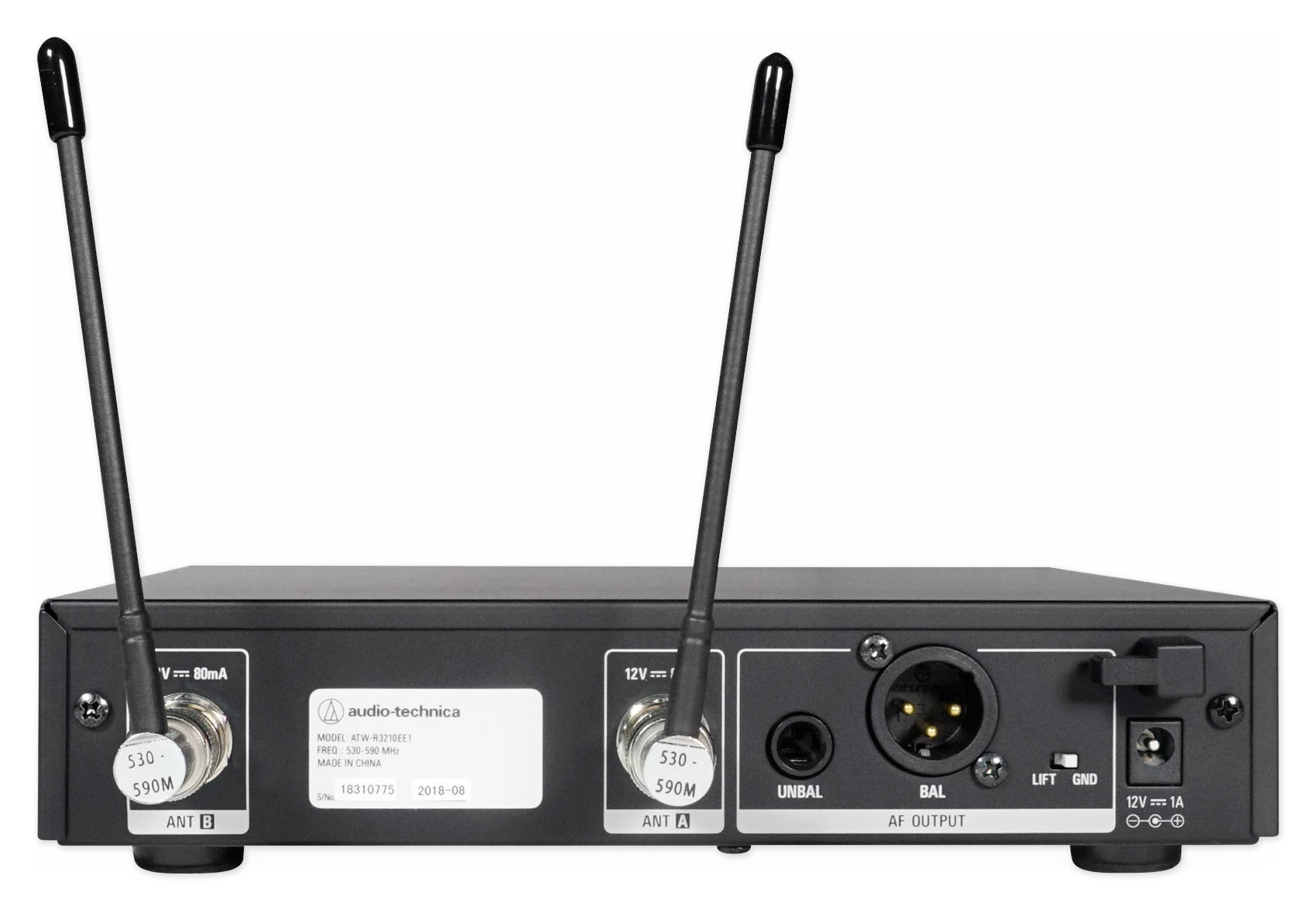

Receiver
Receiving System True Diversity

Sensitivity 20 dBuV at 60 dBA S/N ratio (50Ω termination)

Maximum Output Level XLR / Balanced: +14 dBV
6.3 mm (¼"") / Unbalanced: +8 dBV
Antenna Input BNC-type, 50 O

Power Output 12 V DC, 160 mA (combined)

Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x H x D)

Weight 1100 g, without accessories

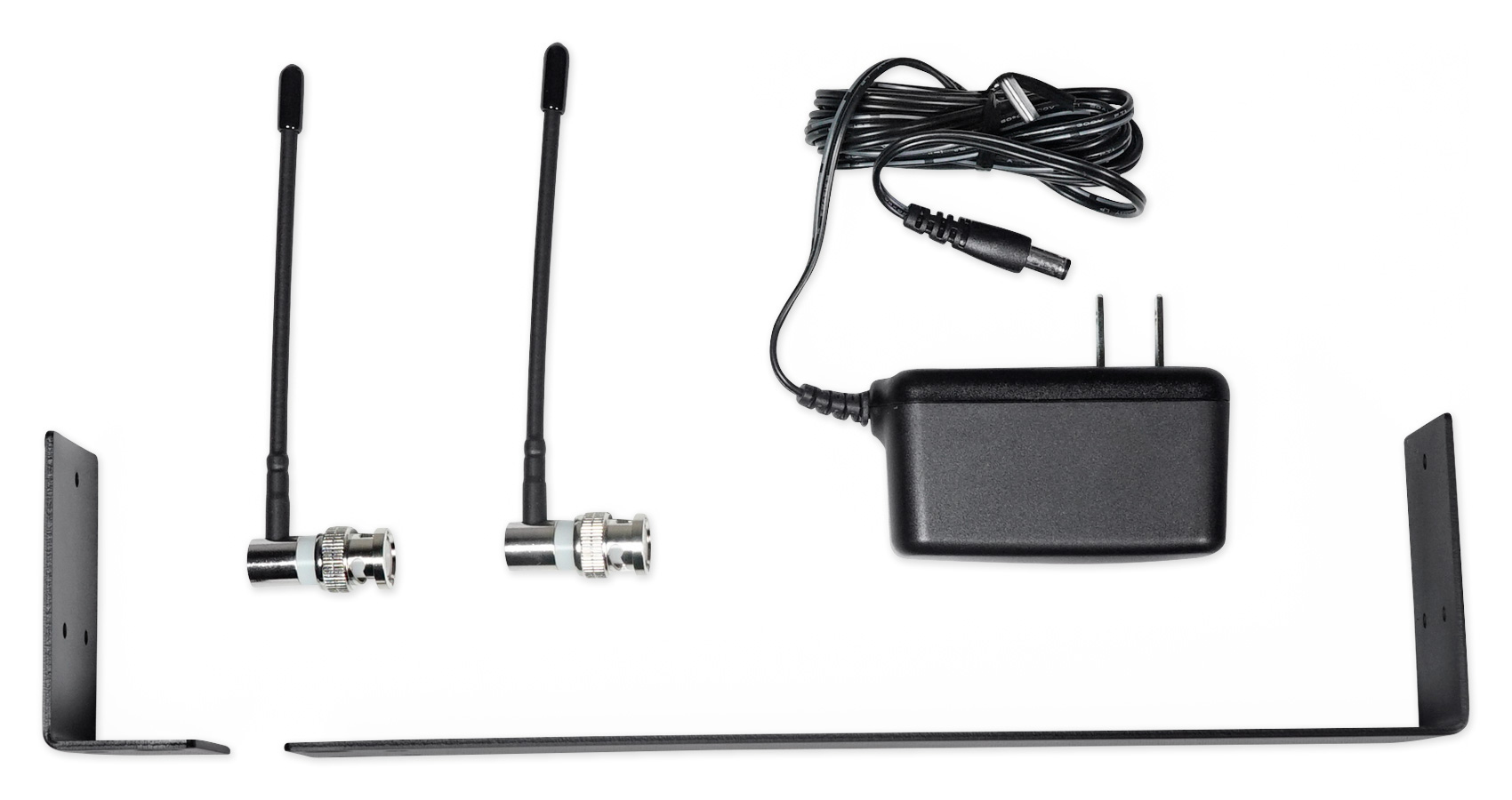

Accessories Included Two Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors

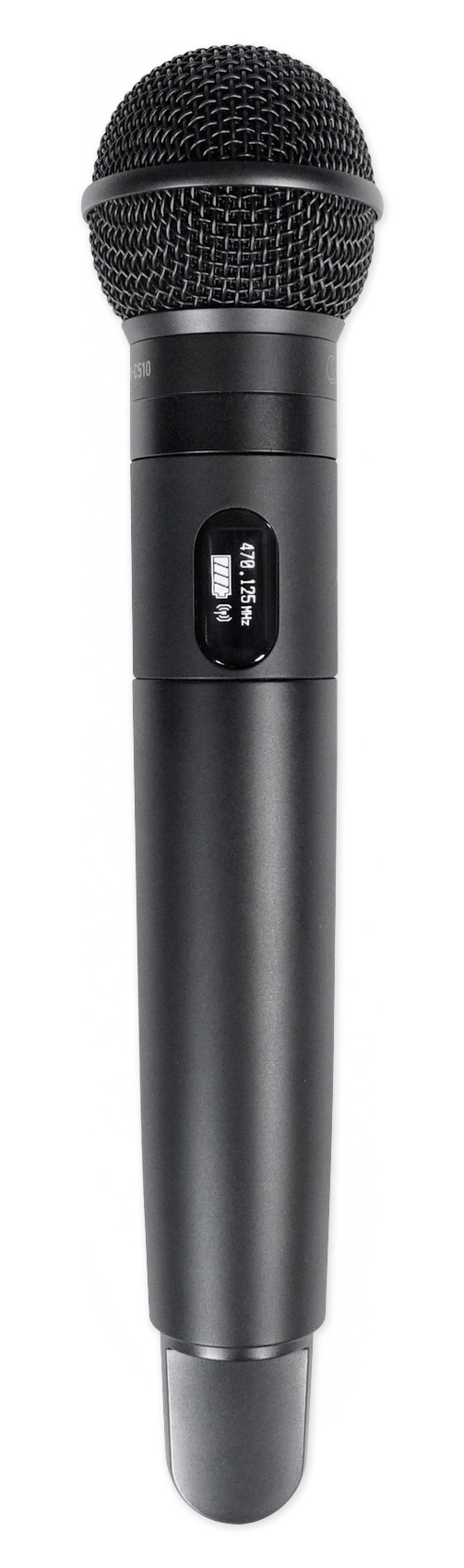

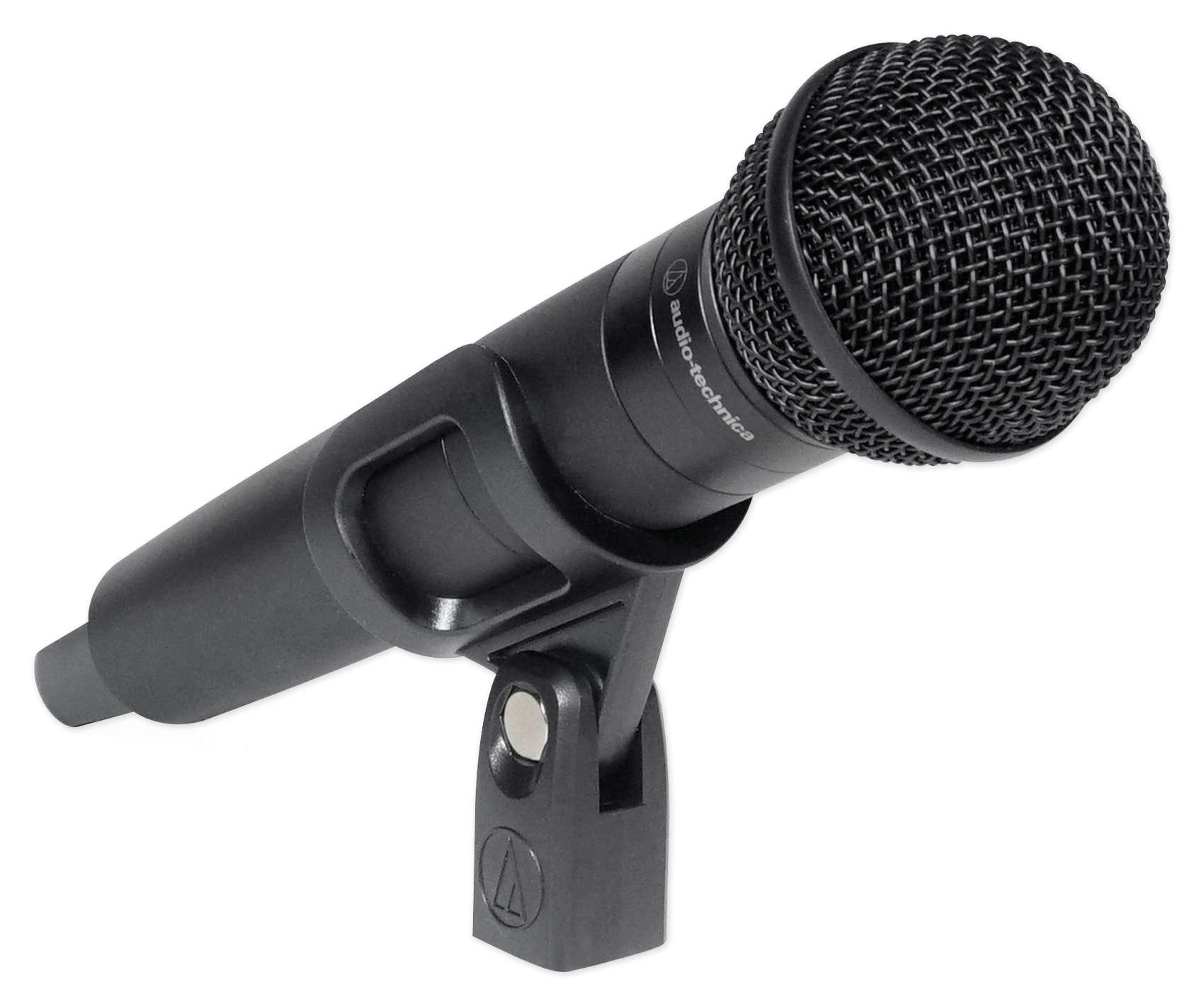

Handheld Transmitter
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 O

Spurious Emissions Following Federal and National Regulations

Microphone Element Interchangeable industry-standard thread

Battery Type Two 1.5V AA, not included

Battery Life High: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions 193.0 mm long, 37.0 mm maximum diameter

Net Weight 200 g

Accessories Included AT8456a Quiet-Flex™ stand clamp; ⅝″-27 male to ⅜″-16 female threaded screw adapte
