Product Description
Single Speed 3.0HP Pool Pumps delivers outstanding performance and reliability at a fraction of the price of the big-name brands. With energy savings, up to 35% compared to regular pumps. Heavy-duty construction and advanced engineering provide high efficiency and quiet operation.

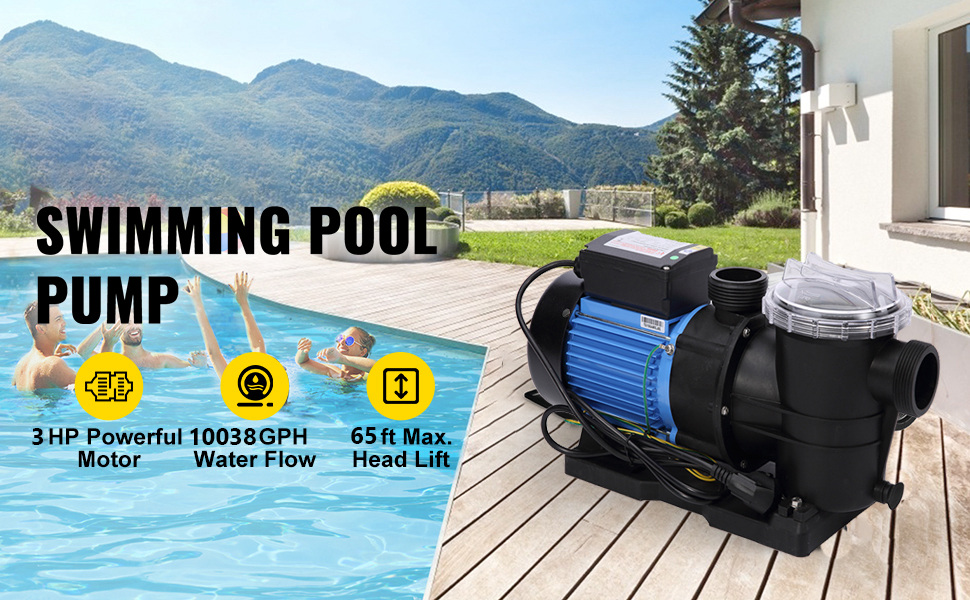

Built-in Single Speed settings give more user control to adjust the speed of water transfer with the low and high settings between 1,750 to 2,900 rotations per minute Powerful 3 HP Pool Pump: Our swimming pool pump features a 2900 RPM copper wire motor that maximizes flow and minimizes noises.

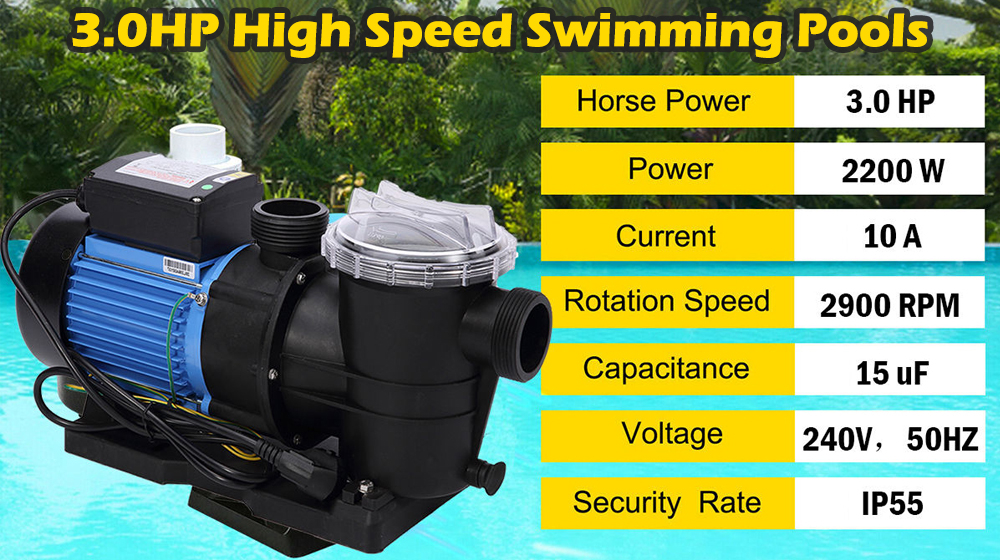

Model: K-STP-300
Power: 2200 W;

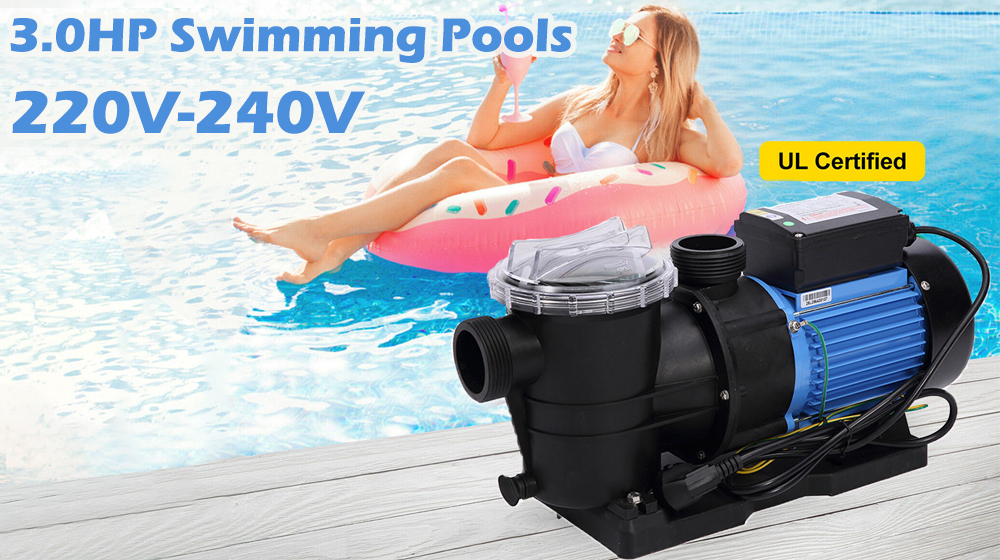

Voltage: 220-240 V;

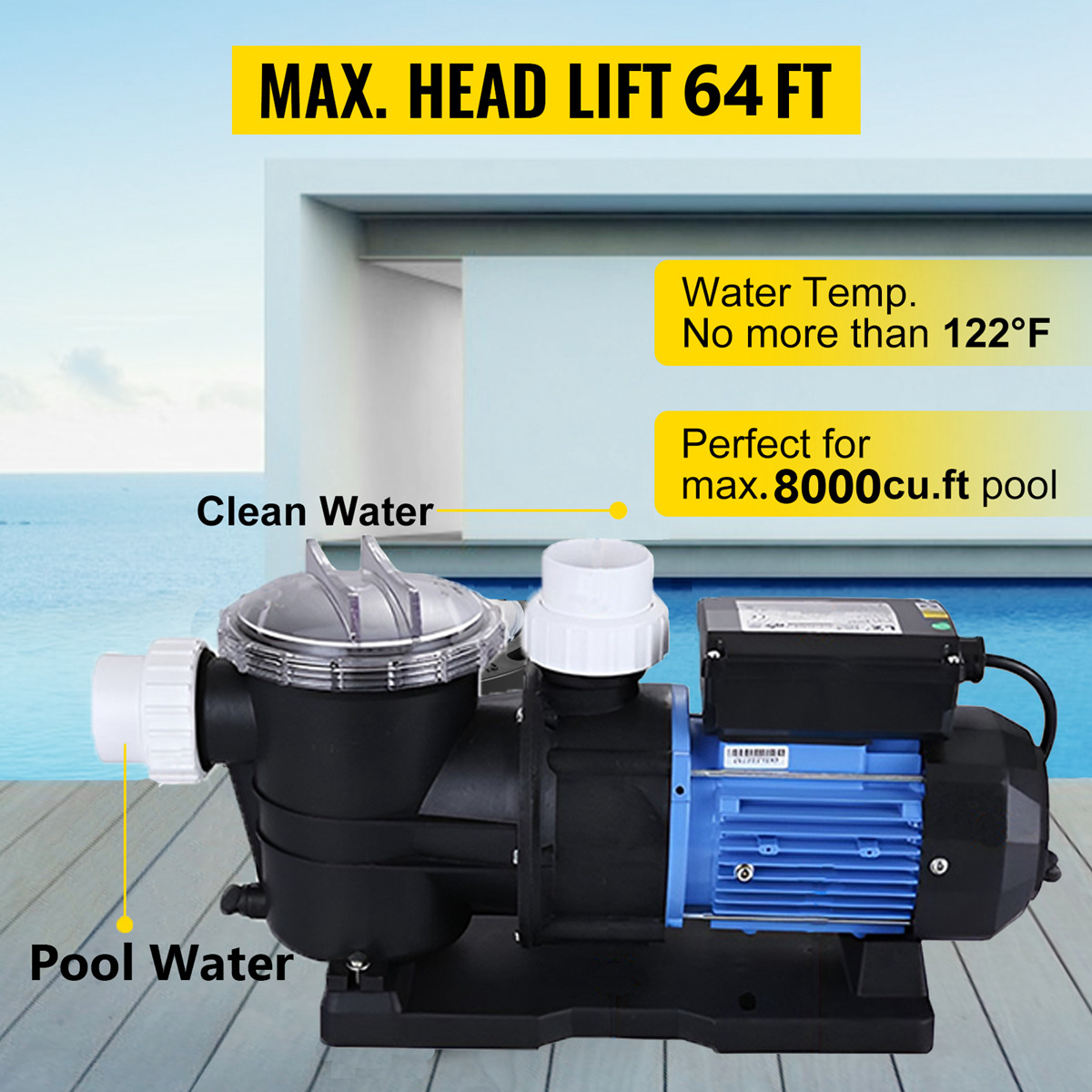

Water Head Lift: 64 ft/19.5 m;
Water Pipe: 60mm or 63mm interfaces
Max. Water Flow: 10038 GPH. UL certified.
Motor Speed: 2900 RPM
Max. Flow: 10038 GPH
Material: PP
Water Temperature: 122 °F/ 50 °C
Waterproof Standard: IPX5
Item Size: 23.54 x 9.05 x 11.29 in/ 59.8 x 23 x 28.7cm
Item Weight: 39.68 lbs/ 18 kg
Stable Flow & Easy Clean: The 3 hp pool pump is suitable for max. 5594 cu.ft swimming pool. Its airflow ventilation ensures a constant and sanitary water circulation. Also, it is equipped with an extra-large filter basket that is detachable for easy cleaning, while the transparent lid helps you maintain in time.
Sturdy Construction: The whole body of the in-ground pool pump is constructed with commercial-grade reinforced PP plastic, ensuring superior strength and non-leakage durability. Our excellent waterproof quality based on IPX5 rating can withstand liquid temperature up to 122 °F for years to come.
2 Interfaces Included: 60mm or 63mm interfaces for hassle-free installation to fit the water inlet and outlet of this ground pump;
Note: Please fill the pump with water to keep the motor from overheating for the first use.
*** Notes on installation ***:
1, need to be installed under the pool, lower than the water level of the pool, the water volume is sufficient and stable.If installed above the pool, must be filled with water before starting, can not just start the pump. Especially when newly installed, installed can not be immediately turned on to test, need to fill with water to turn on the machine. Otherwise it will lead to dry burning, burn the engine, or generate noise, not according to the requirements of the installation is not protected.
2、It needs to be installed indoors or outdoors with sufficient waterproofing measures, if installed outdoors without sufficient waterproofing measures, it will not be protected.
3, there is a high-speed engine in the pump, there will be a sound when running, have tried to control the volume, but the existing technology can not do completely silent, do not shoot if you mind
Only qualified, licensed personnel should install pump and wiring.
1. Check that the mains power voltage and frequency correspond to those indicated on the identification plate affixed to the pump.
2. Check that the pump shaft turns frely.
3. Unscrew the pre-ilter cover and fll the pump with water up to the lower level of the suction.
4. Screw firmly the pre-filter cover back in place.
5. If the motor does not start, or if no water is extracted, refer to the table of possible failures and remedies on the instruction.
6. NEVER OPERATE THE PUMP WHEN NOT FILLED WITH WATER or with water inlet sucked.
7. After fling the pump with water, open all the suction and delivery valves and start the motor. Then Starting the pump.
8. Wait for self-priming to take place. The pump is correctly primed when the water level is just below the transparent cover.
9. Our pumps require no particular servicing .It is nevertheless recommended to clean the pre-filter periodically.
10. If the pump is not used over the winter period, it must be emptied (by removing the drain plug) to avoid damage throught
freezing, cleaned and stored in a dry and well aired place.
