Condition: BRAND NEW IN ORIGINAL PACKAGING
Warranty: 2 YEAR MANUFACTURER

Authorized Audio-Technica Dealer!

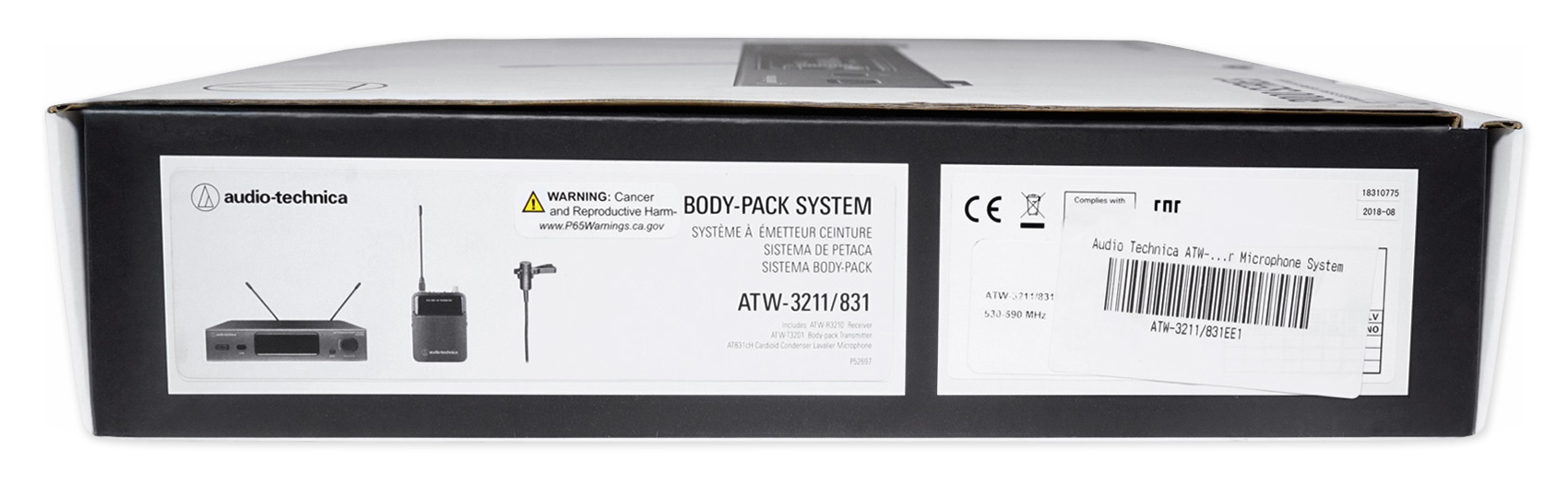

What’s in the box:
Description of ATW-3211/831DE2:
Providing easy setup, versatile operation and rock-solid,
richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000
Series wireless systems give users the power and flexibility to operate within
the congested UHF spectrum.
With a class-leading 60 MHz tuning range – more than twice that offered by the
previous versions – the new 3000 Series systems are available in frequency bands
– DE2 (470–530 MHz). Frequencies can be easily scanned and selected on the
receiver and then synced with the transmitter via IR sync functionality. The
3000 Series even lets users set a backup frequency that can be quickly swapped
by pressing the transmitter’s multifunction button in the event of unexpected
interference.

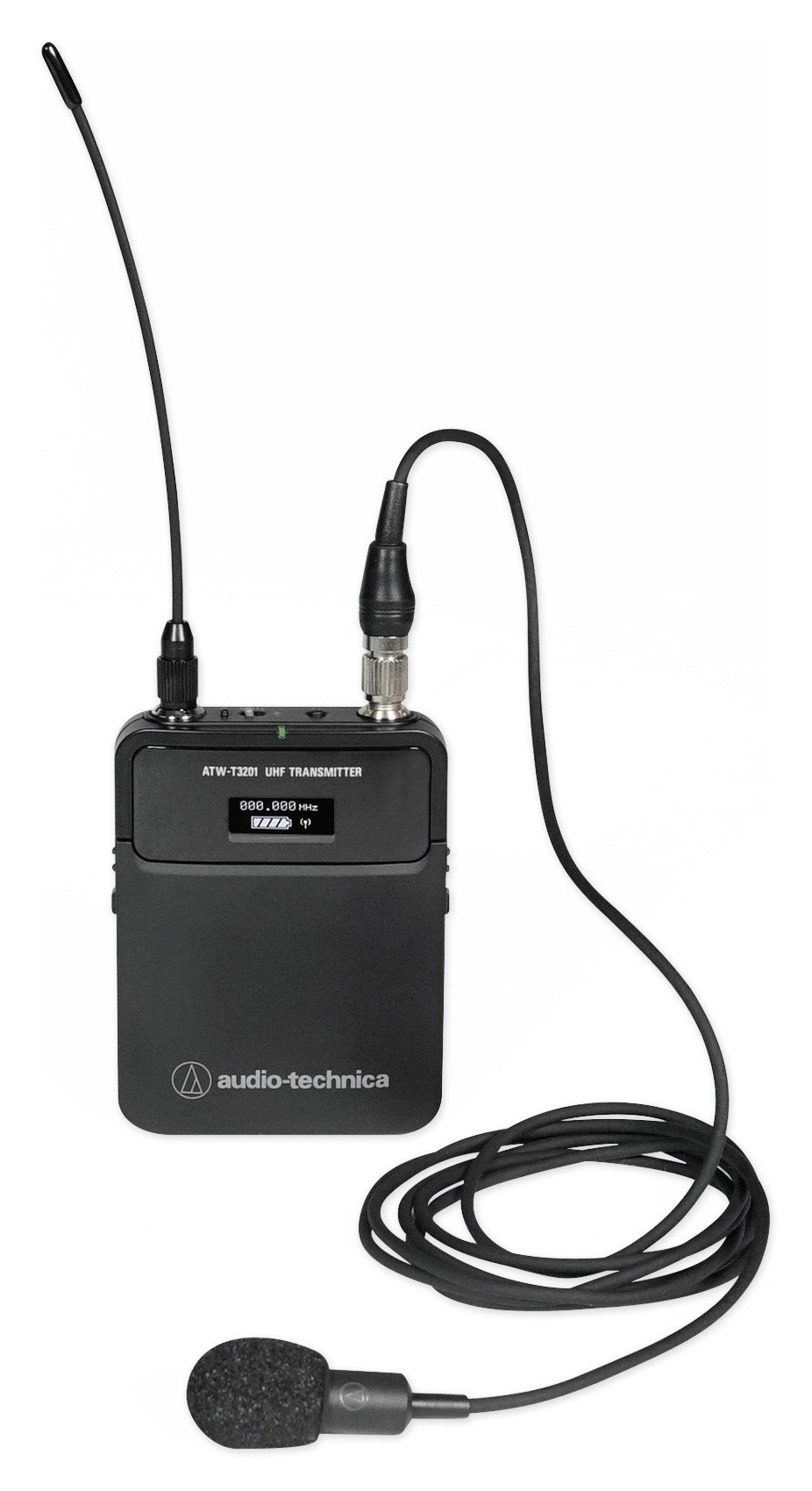

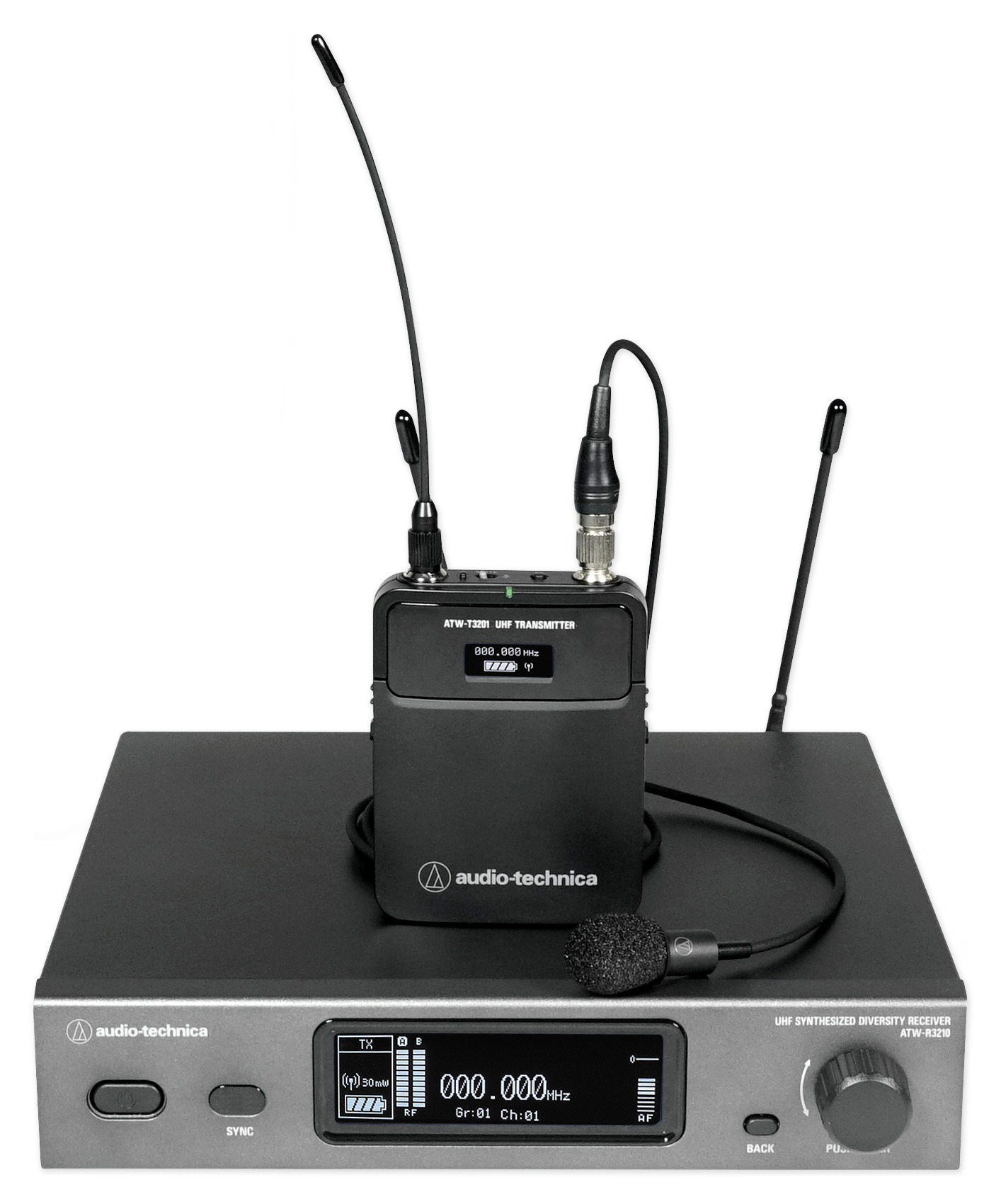

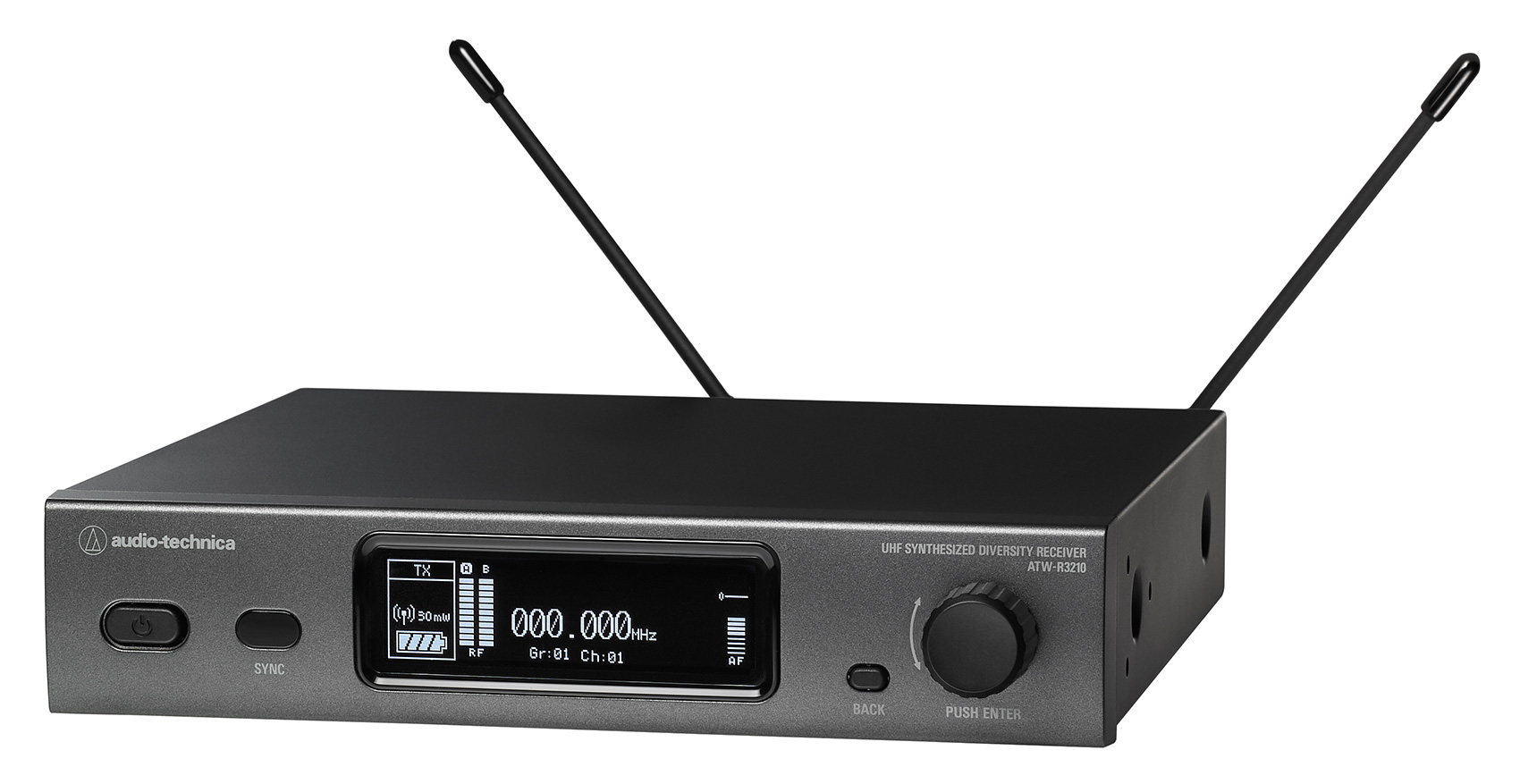

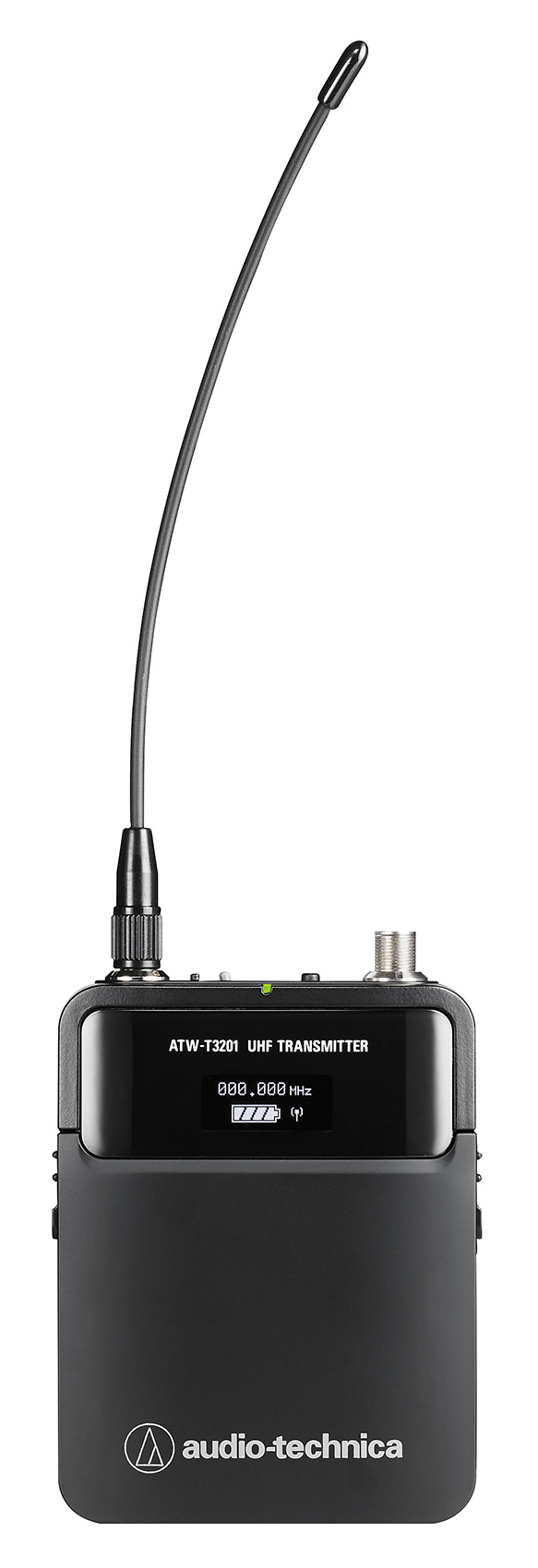

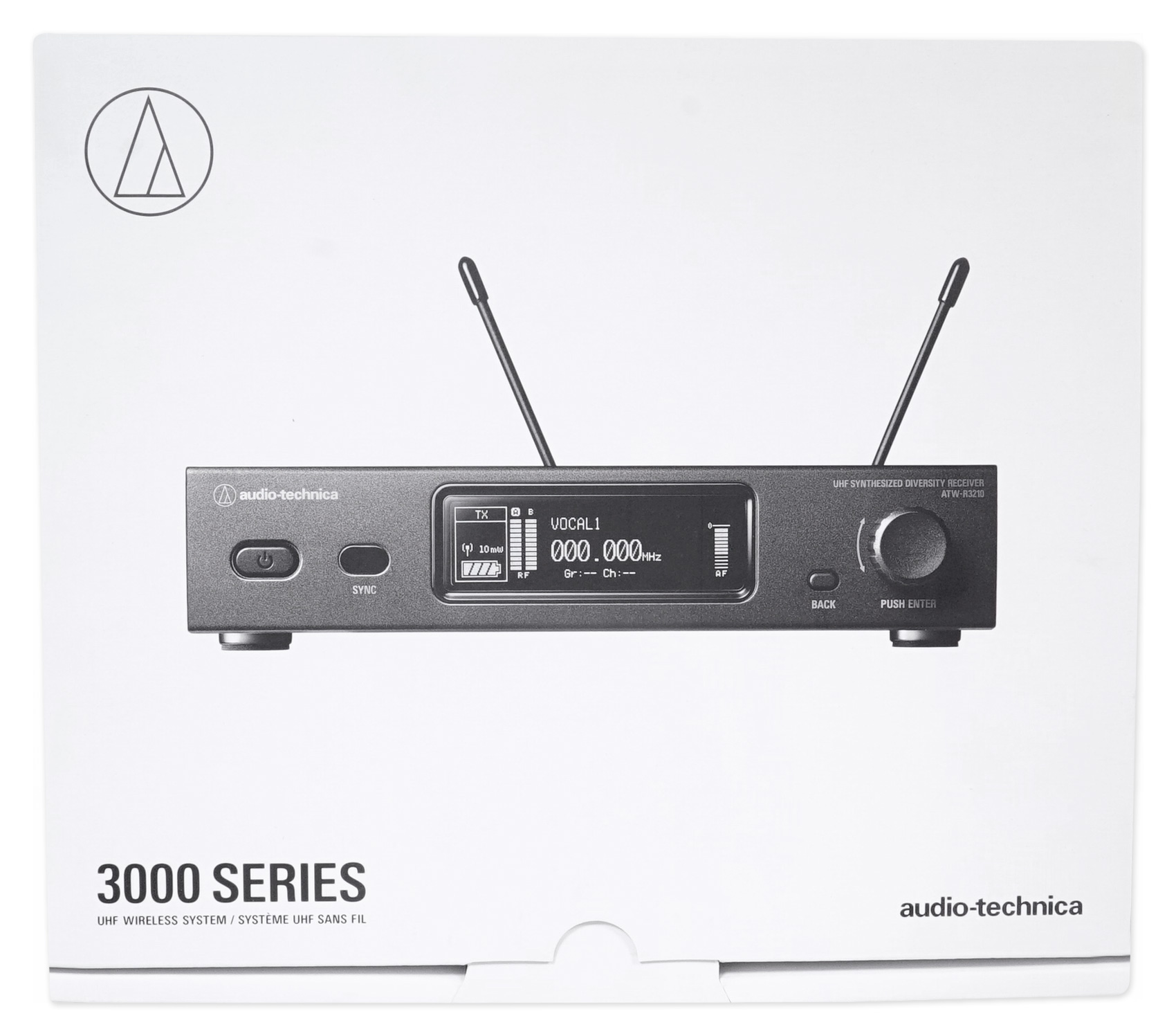

This system configuration features an ATW-R3210 receiver along with an ATW-T3201
body-pack transmitter and an AT831cH miniature cardioid condenser lavalier
microphone. The ATW-T3201 is equipped with Audio-Technica’s new cH-style
screw-down 4-pin connector for secure connection to Audio-Technica’s cH-style
lavalier and headworn microphones, or cables. The transmitter features rugged,
metal housings and is powered by two AA batteries. Charging terminals on the
transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging
docks (sold separately) to recharge NiMH batteries. Antenna power is available
for powered antennas and other in-line RF devices. A ground-lift switch helps
eliminate audible hum caused by ground loops. The system features balanced and
unbalanced audio output jacks.
60 MHz tuning range
With a class-leading 60 MHz tuning range – more than twice that offered by the
previous versions – the new 3000 Series systems are available in four frequency
bands – DE2 (470–530 MHz). Frequencies can be easily scanned and selected on the receiver and then
synced with the transmitter via IR sync functionality. The 3000 Series even lets
users set a backup frequency that can be quickly swapped by pressing the
transmitter’s multifunction button in the event of unexpected interference.
Backup Frequency
Unique multifunction button on the handheld and body-pack transmitters can be
used to switch to a backup frequency (on both transmitter and receiver) should
interference be encountered
Rechargeable
The charging terminals on each transmitter work with the ATW-CHG3 and
networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH
batteries.
4-pin connector
The ATW-T3201 is equipped with Audio-Technica’s new cH-style screw-down 4-pin
connector for secure connection to Audio-Technica’s cH-style lavalier and
headworn microphones, or cables
Multifunction button
Unique multifunction button on the body-pack transmitter can be used to switch
to a backup frequency
Charging terminals
Charging terminals on each transmitter work with the ATW-CHG3 and networkable
ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries
OLED screens
Transmitters and receivers include OLED screens for optimal readout of key
settings and alerts
Features:
Specifications:

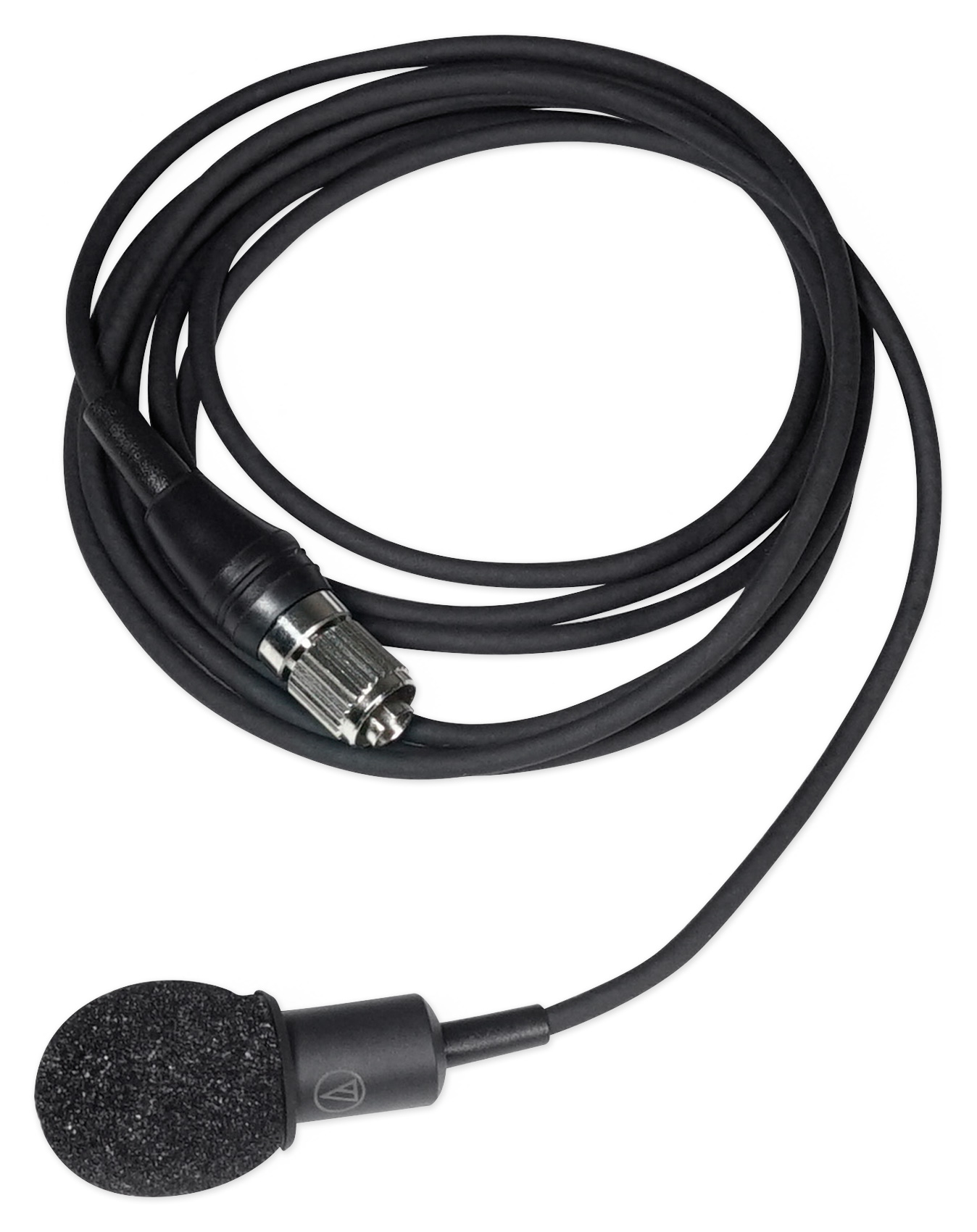

| Microphone | |
|---|---|
| Element |
Fixed-charge back plate permanently polarized condenser |
| Polar Pattern |
Cardioid |
| Weight |
2.8 g |
| Dimensions |
25.0 mm long, 10.2 mm diameter |
| Output Connector |
4-Pin cH-Style screw down connector |
| Cable |
1.4 m long (permanently attached to microphone), 2.6 mm diameter,
2-conductor, shielded cable with screw-down 4-pin cH-style connector |
| Accessories Included |
Clothing clip; AT8444 instrument adapter; AT8116 windscreen;
protective carrying case |
| Overall System | |
|---|---|
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz |
| Minimum Frequency Step |
25 kHz |
| Modulation Mode |
FM |
| Maximum Deviation |
ATW-T3201: ±38 kHz (THD:10%) |
| Simultaneous Use |
40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
| Frequency Response |
ATW-T3201: 31 Hz to 15500 Hz |
| Operating Range |
100 m |
| Dynamic Range |
ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical |
| Total Harmonic Distortion |
<1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range |
-5 ºC to +45 ºC |

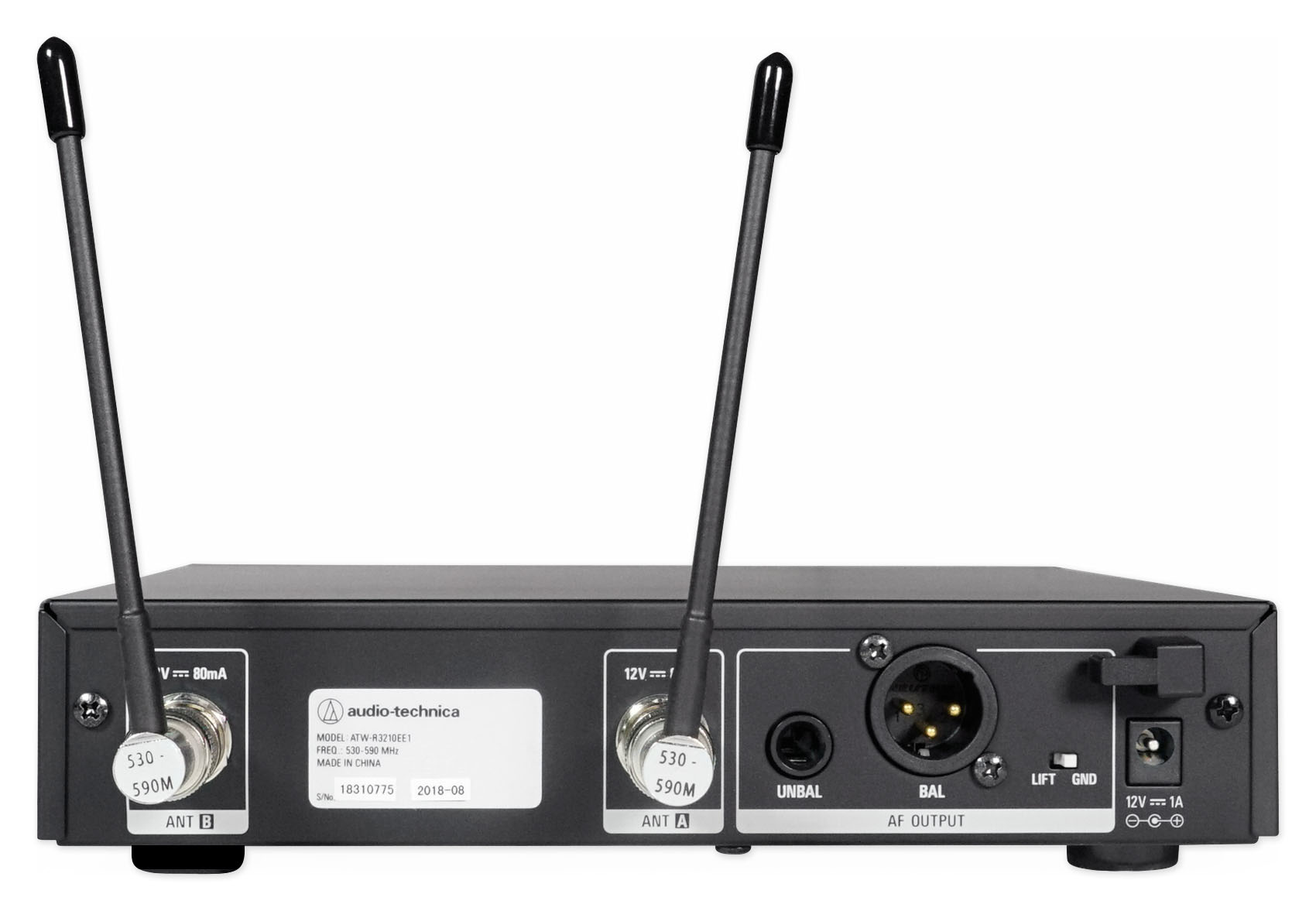

| Receiver | |
|---|---|
| Receiving System | True Diversity |
| Sensitivity |
20 dBuV at 60 dBA S/N ratio (50Ω termination) |
| Maximum Output Level |
XLR / Balanced: +14 dBV 6.3 mm (¼") / Unbalanced: +8 dBV |
| Antenna Input |
BNC-type, 50 O |
| Power Output |
12 V DC, 160 mA (combined) |
| Power Supply |
100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode
external power supply |
| Dimensions |
210.0 mm x 191.0 mm x 43.4 mm (W x H x D) |
| Weight |
1100 g, without accessories |
| Accessories Included |

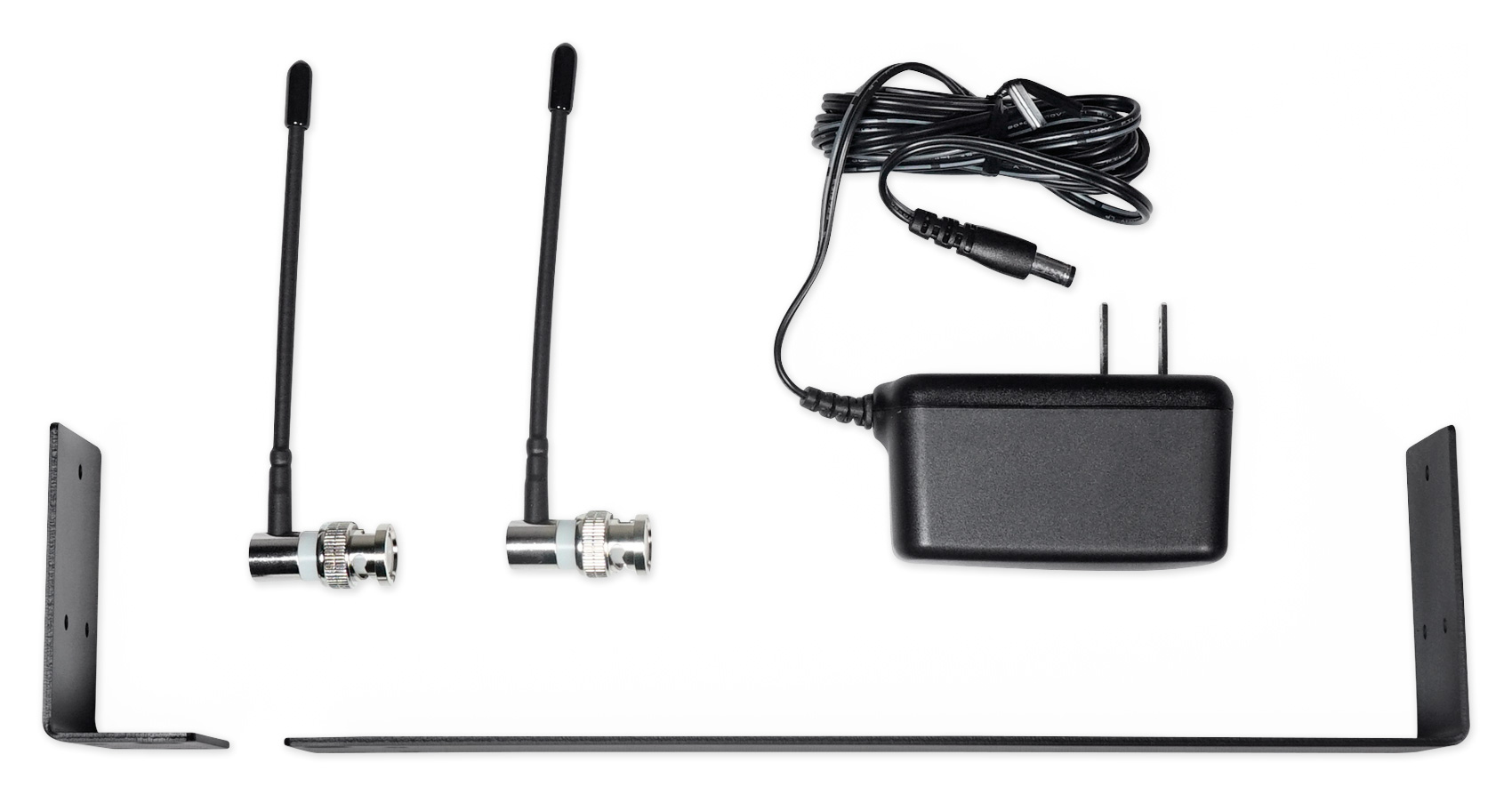

Two Flexible UHF antennas AC adapter (country dependent) Rack Mount Adaptors |

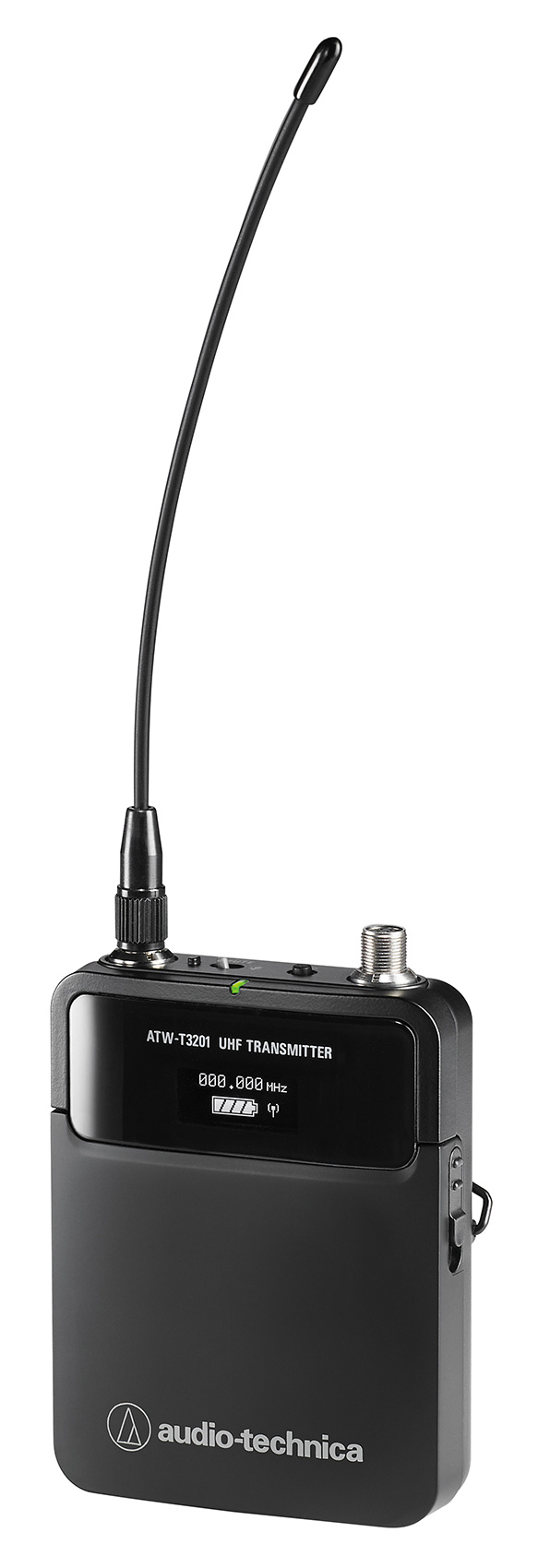

| Belt Pack | |
|---|---|
| RF Power Output |
High: 30 mW, Low: 10 mW (switchable), at 50 O |
| Spurious Emissions |
Following Federal and National Regulations |
| Input Connections |
4-Pin screw down cH-Style Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Battery Type | |
