【Precautions】

●●●-The conversion kitdoesnot include batteries,freewheel,tires, disc brakes, and Torque Arm Amplifier.(If youneed batteries,freewheel,tires, disc brakes, Torque Arm Amplifier, please contact us for additional costs) If you choose "wheels only", there is only one electric wheel, without any other accessories;

●●●-If you needFreewheel,Disc brake, Torque Arm Amplifier, there is a link to make up the difference at the bottom of the details page, or please contact us;

●●●-PAS, Throttle, and E-brake in the kit are optional. If you need to replace it,please contact us.

●●●-Please refer to the list form for packaging products.

●●●-All packaged goods are subject to SKU pictures and list lists

[Note]

Not included in the kit torque arm，disc brake rotor，freewheel。

●If you need torque arm, it only need extra 5usd.

●If you need extra disc brake rotor 16mm, only 3usd.

●If you need extra 7 speed freewheel, it is only 6usd.

【Product Features】

This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.And we will give you a controller bag as a gift !!!

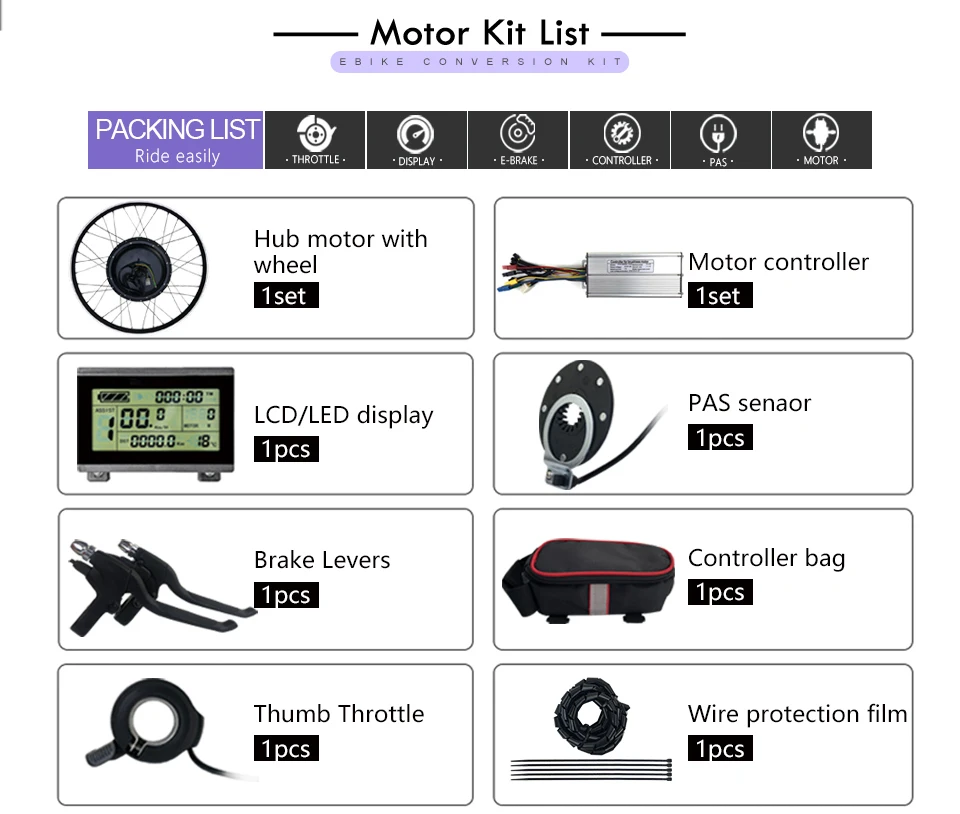

【Packing List】

⑴48V 1000W wheel x1 (without tire)

⑵30A controller x1

⑶Display and manual x1

⑷Throttle x1

⑸Power Cut-off Brake Levers x1Pair

⑹PAS sensor x1

⑺Zip ties and Protection line x1

⑻Motor extension cable x1

⑼Gift! controller Box x1

【E-bike Conversion Kit Paramater】

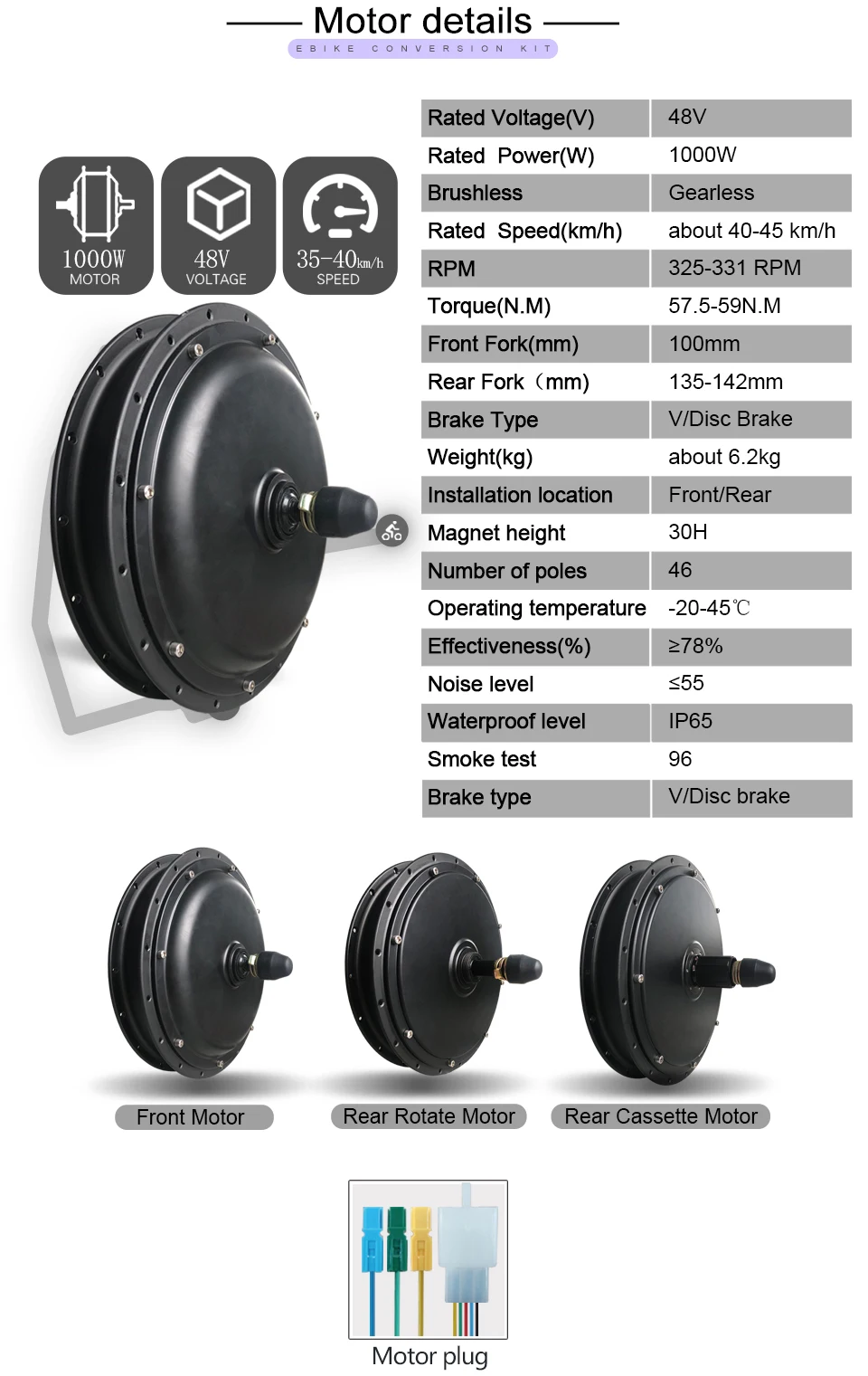

Motor：

●Rated Voltage：48V

●Rated Power：1000W

●Rated Speed：about 40-45km/h

●RPM：325-331 RPM

●Torque(N.M)：57.5-59 N.

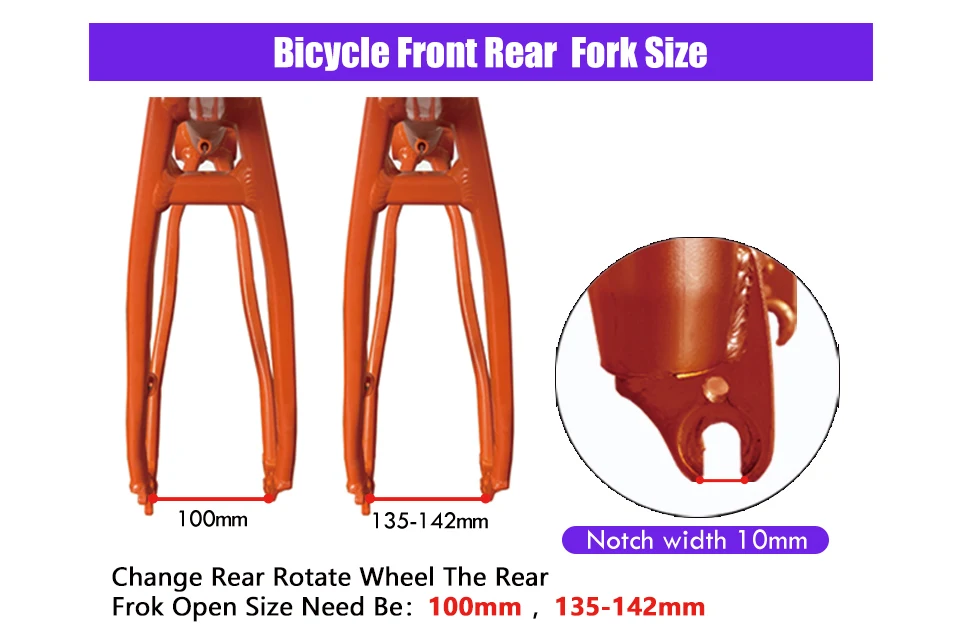

●Rear Fork(mm)：142mm

●Brake Type：V/Disc Brake

●Type：Brushless gear hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Load≤200KG

●Motor cable length：200mm

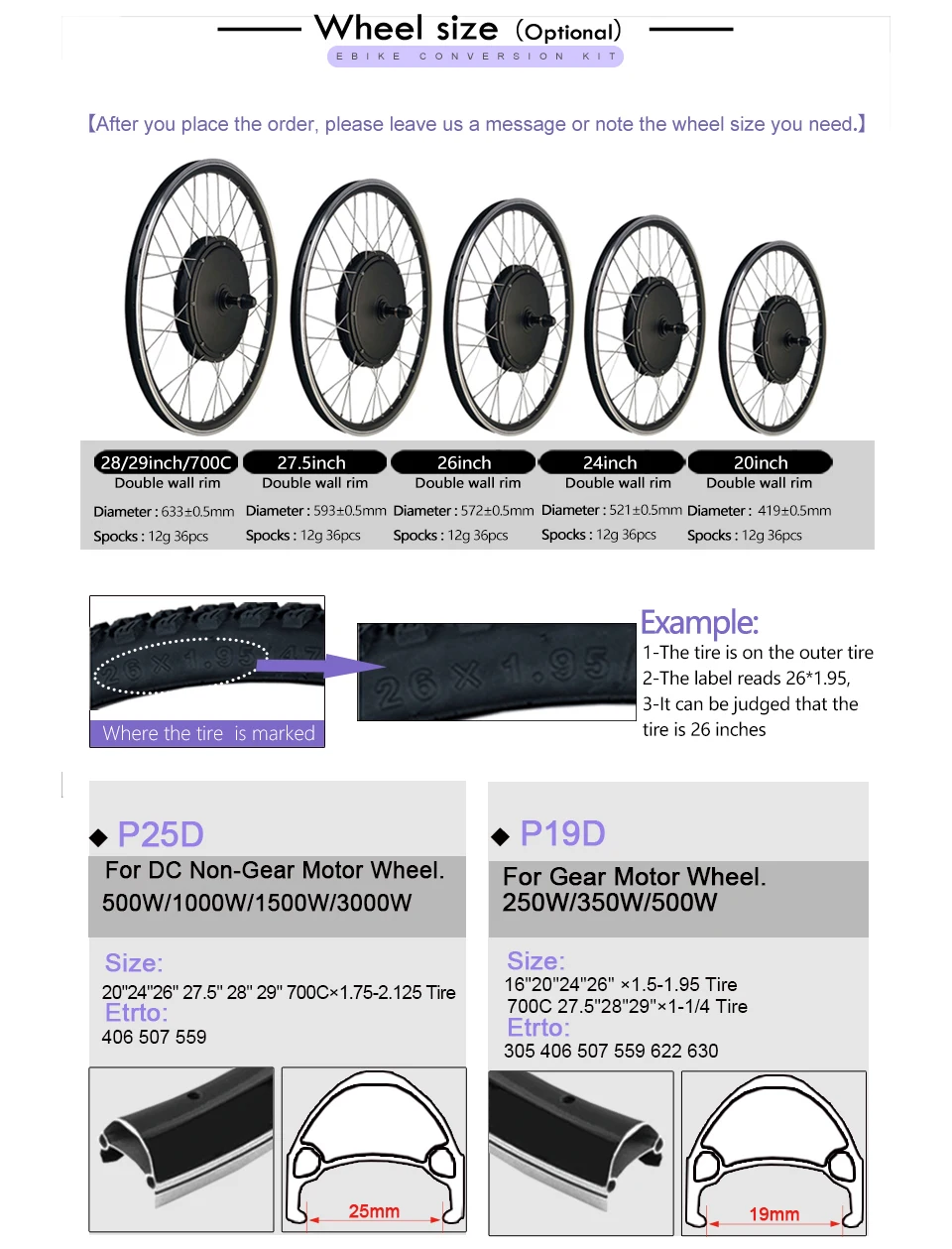

●Wheel size： 20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

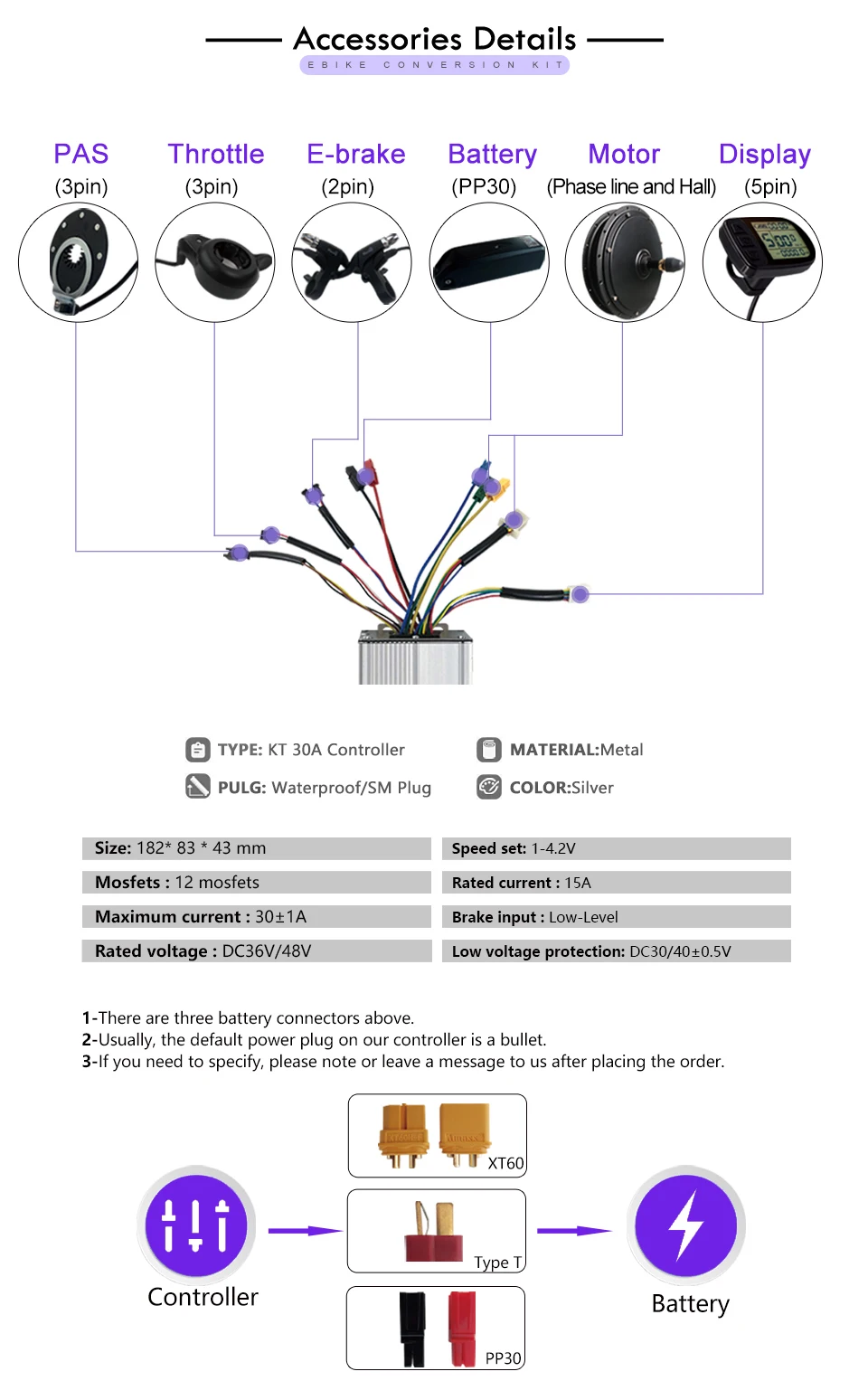

KT-30A Controller:

●Dimension :182*83*43mm

●Weight :500g

●Cable length :all about 10-13cm

●Mosfets:12 mosfets

●Maximum current :30±1A

●Rated voltage :DC36V/48V

●Speed set :1-4.2V

●Brake input :Low-Level

●Low voltage protection :DC30/40±0.5V

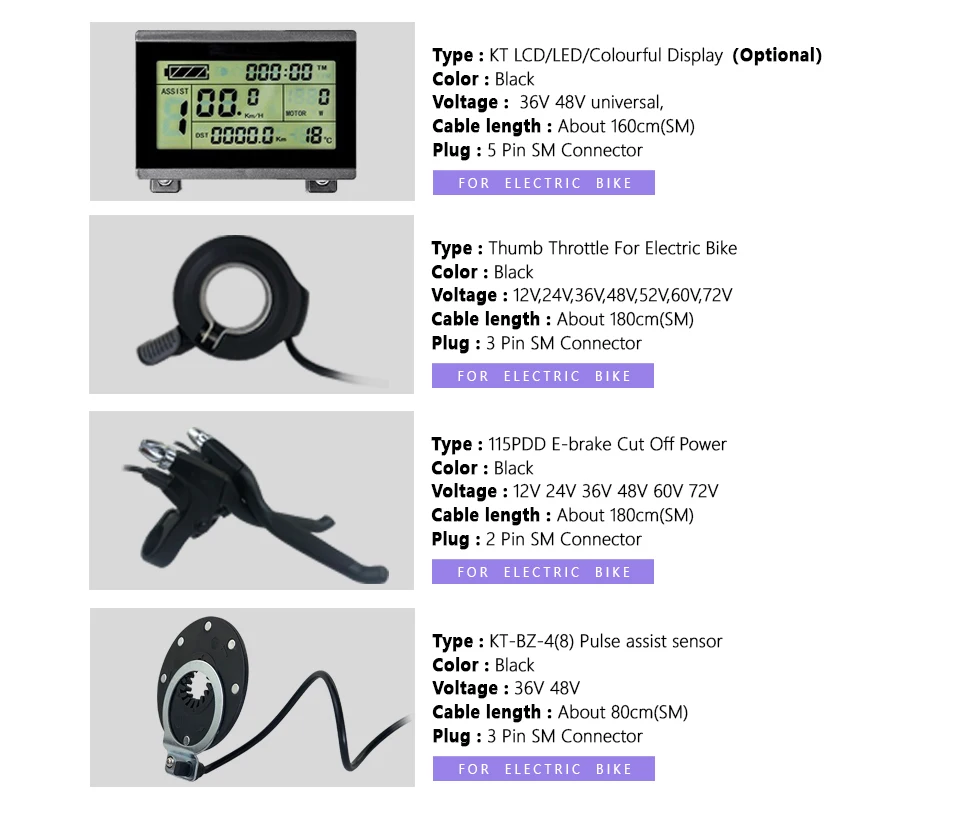

PAS KT-BZ-4(8)(Default):

● Type:KT-BZ-4(8) Pulse assist sensor

● Voltage:36V/48V

● Cable Length:180cm including the connector

● Magnet :8 Magnets

● Weight :100 g

● Plug Type:3 Pin SM plug

● Color :As pictures shown

● Material:Plastic

● Installation:Left

● Adaptation:Ebike Electric Bike Bicycle

130X Throttle (Default):

● Type:130X Thumb Throttle

● Voltage:12V 24V 36V 48V 52V 60V 72V

● Wire length:180cm(SM)

● Weight :100g

● Waterproof :IP76

● Plug Type:3 Pin SM plug

● Color :Black

● Installation:Right

● Apply to:E-bike, E-Scooter, Ebike Conversion Kit

● Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

● Type:115PDD E-brake Cut Off Power

● Voltage:12V 24V 36V 48V 60V 72V

● Cable Length:180cm (SM)

● Weight :300g

● Waterproof :IP76

● Material:Aluminum Alloy

● Installation:Left/Right

● Size:L156mm W105mm H34mm

● Plug :2 pin SM plug

Display（Opition):

● Type :KT LCD/LED/Colourful Display

● Color :Black

● Voltage :36V 48V universal

● Cable length :About 180cm(SM)

● Plug :5 Pin SM plug
