Product features:
1. 10MHZ bandwidth plus 18650 lithium battery charging experience super range 2. MODE key to switch between digital multimeter and oscilloscope mode
3. Waveform data storage and formatting
4. Custom brightness adjustment and off time settings
5. Output in the form of pictures, sampling rate 48M / S storage depth 64Kpts PC transfer
1. 10MHZ bandwidth plus 18650 lithium battery charging experience super range 2. MODE key to switch between digital multimeter and oscilloscope mode
3. Waveform data storage and formatting
4. Custom brightness adjustment and off time settings
5. Output in the form of pictures, sampling rate 48M / S storage depth 64Kpts PC transfer

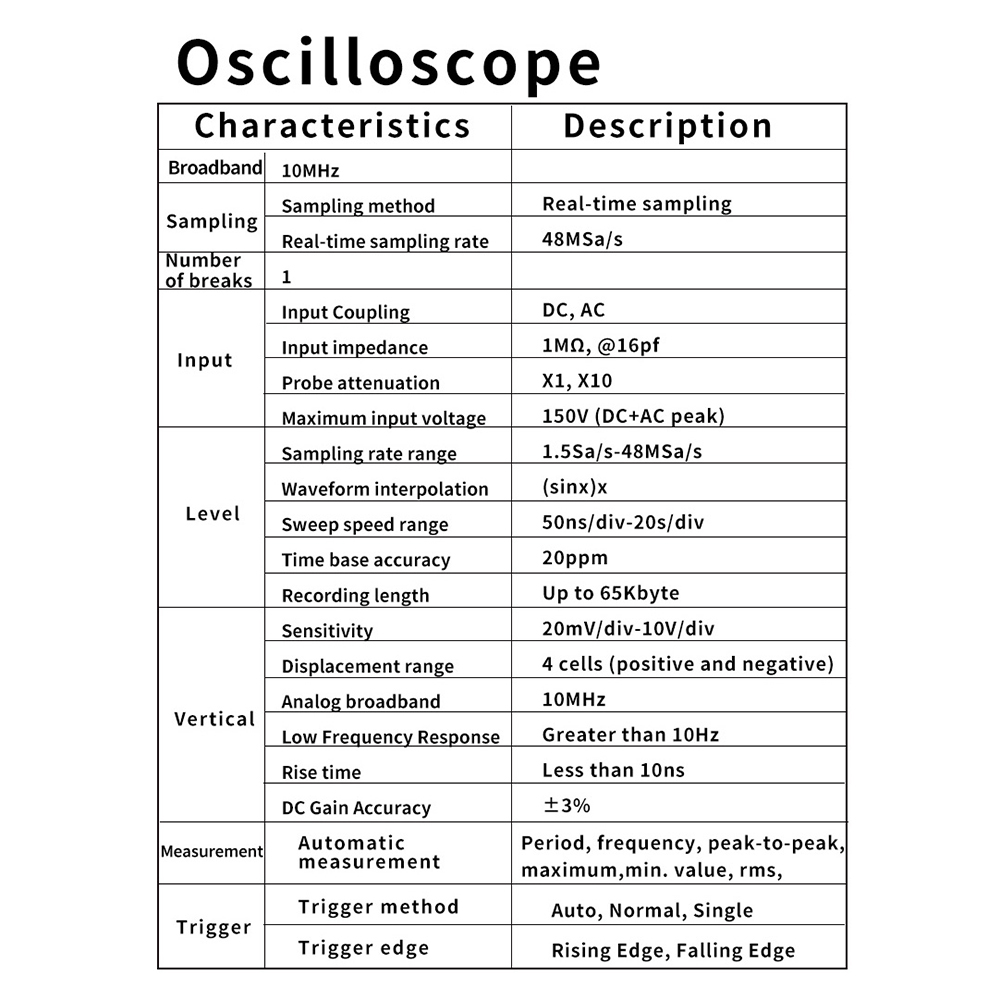

Product parameters:
Display: 9999 count
Number screen size: 2.8 inches
Frequency band: 10MHz
Real-time sampling rate: 48MSa / s
Input impedance: 1MΩ, @16pf
Maximum input voltage: 400V (DC + AC peak)
Horizontal SEC range: 50ns/div-20s/div Vertical sensitivity: 20mV/div-10V/div
Display: 9999 count
Number screen size: 2.8 inches
Frequency band: 10MHz
Real-time sampling rate: 48MSa / s
Input impedance: 1MΩ, @16pf
Maximum input voltage: 400V (DC + AC peak)
Horizontal SEC range: 50ns/div-20s/div Vertical sensitivity: 20mV/div-10V/div
DC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1V±(0.5%+3)
AC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1V±(1.0%+3)
DC current: 9999μA/99.99mA 1μA/0.01mA±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.0%+3)
AC current: 9999μA/99.99mA 1μA/0.01mA±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.2%+3)
Resistance: 99.99Ω0.01Ω±(1.0%±3); 999.9Ω/9.999kΩ/99.9KΩ/999.9KΩ0.1Ω/0.001KΩ/0.1KΩ±(0.5%+3); 9.999MΩ0.001MΩ±(1.5%+3); 99.99MΩ0.01MΩ±(3.0%+5)
Capacitance: 9.999nF 0.001nF± (5.0%+20); 99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF± (2.0%+5); 9.999mF 0.001mF± (5.0% +5)
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.90kHz/5.00MHz 0.01Hz/0.1Hz/0.001kHz/0.001MHz ± (0.1% +2) Temperature: -20°C-1000°C/-4°F-1832°F ± (2.5% +5)
Diode: Yes
Continuity: Yes
Power: 18650 battery
AC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1V±(1.0%+3)
DC current: 9999μA/99.99mA 1μA/0.01mA±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.0%+3)
AC current: 9999μA/99.99mA 1μA/0.01mA±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.2%+3)
Resistance: 99.99Ω0.01Ω±(1.0%±3); 999.9Ω/9.999kΩ/99.9KΩ/999.9KΩ0.1Ω/0.001KΩ/0.1KΩ±(0.5%+3); 9.999MΩ0.001MΩ±(1.5%+3); 99.99MΩ0.01MΩ±(3.0%+5)
Capacitance: 9.999nF 0.001nF± (5.0%+20); 99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF± (2.0%+5); 9.999mF 0.001mF± (5.0% +5)
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.90kHz/5.00MHz 0.01Hz/0.1Hz/0.001kHz/0.001MHz ± (0.1% +2) Temperature: -20°C-1000°C/-4°F-1832°F ± (2.5% +5)
Diode: Yes
Continuity: Yes
Power: 18650 battery
Package and list:
Carton package
Packed oscilloscope*1
Test lead*1
Oscilloscope probe *1
Thermocouple*1
Carrying case*1
Screwdriver*1
User's manual*1
Carton package
Packed oscilloscope*1
Test lead*1
Oscilloscope probe *1
Thermocouple*1
Carrying case*1
Screwdriver*1
User's manual*1
