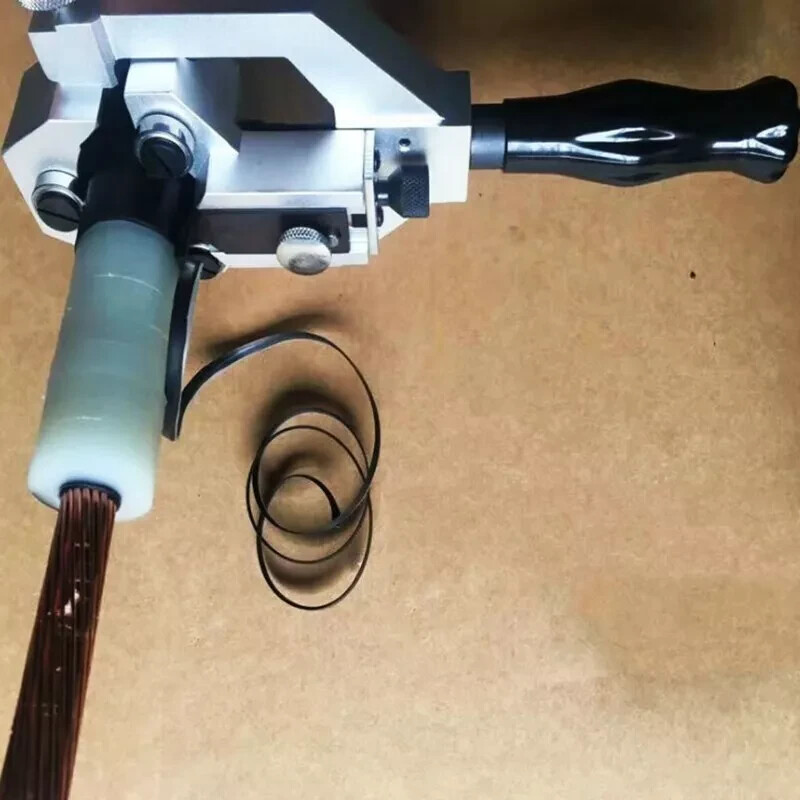

High Voltage Cable Peeler Semiconductor Layer Insulation Wire Stripper KBX-65
Product parameters:
KBX-65 with AB cutter head
Name: Multifunctional wire stripper
Model: KBX-65
Scope of application: stripping of cables below 35-65mm (35KV)
Weight:
2
kg
Size: 290x120x75mm
Purpose and operation
1. This product has a wide range of uses, fast blades, small size, accurate and arbitrary adjustment, labor-saving application, convenient operation, light and portable, and is an ideal tool for stripping cable insulation.
2. Rotate the handle to adjust the distance so that the cable is jammed by the bearing
3. Loosen the fixing blade screw.
4. Adjust the depth of the blade so that it can just peel off the main insulation layer.
5. Tighten the fixing blade screw
6. Hold the cable and rotate the wire stripper to strip it.
7. When the peeling and cutting is completed, loosen the handle slightly and gently lift up to peel and cut, and the main insulation surface of Jiang is peeled and cut clean.
Package Includes:
1X KBX-65 Multifunctional wire stripper
