Digital frequency tracking host Power 600-2000W, power amplitude adjustable, frequency range adjustable 26khz-31khz can be configured with different power handle Handle different prices. Can match any manufacturer 28khz-30khz 600w-2000w handle.

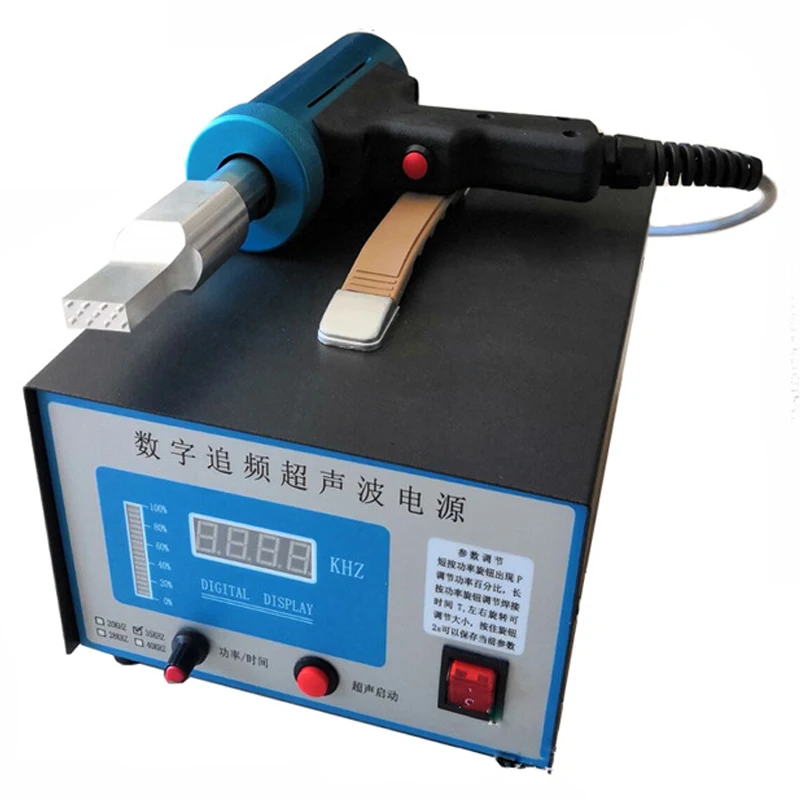

Equipment name: digital frequency ultrasonic spot welder
20khz 28khz 35khz 40khz frequency optional, conventional 28k power optional ultrasonic spot welder, molds on demand.
100-2000w power optional, according to the size of the welded product, choose not to use the power, please Want to consult the purchase.
Host power supply: 220v50hz
Host power: 600-2000w according to the need to choose.
Weight of the whole set: gross weight <6KG
Host size: 300*200*150mm
Frequency specification: 20 28 30 35 40khz are available
Product features
1、Easy and quick to operate, can be used after connecting 220v power supply;
2、Pure physical vibration, no radiation and corrosion, no harm to the human body;
3, compact size, light weight 5kg, comes with a handle, easy to carry;
4, the power supply adopts the way of automatic frequency tracking, digital frequency tracking with high precision;
5, stable amplitude can achieve the ideal welding effect, power can be adjusted;
6, you can manually set the upper and lower limits of frequency, the range is as wide as 1-3khz ultra-wide range.
7, the use of large manufacturers of transducer life longer, lightweight handle, easy to carry.
8, the drive power supply using modular integrated circuit, 4 high-current IGBT power tube powerful output.
9, built-in automatic protection circuit, multiple protection, no need to fail through different code instructions.
10、 Built-in soft start function, to protect the large mold from impact, prolong service life.
