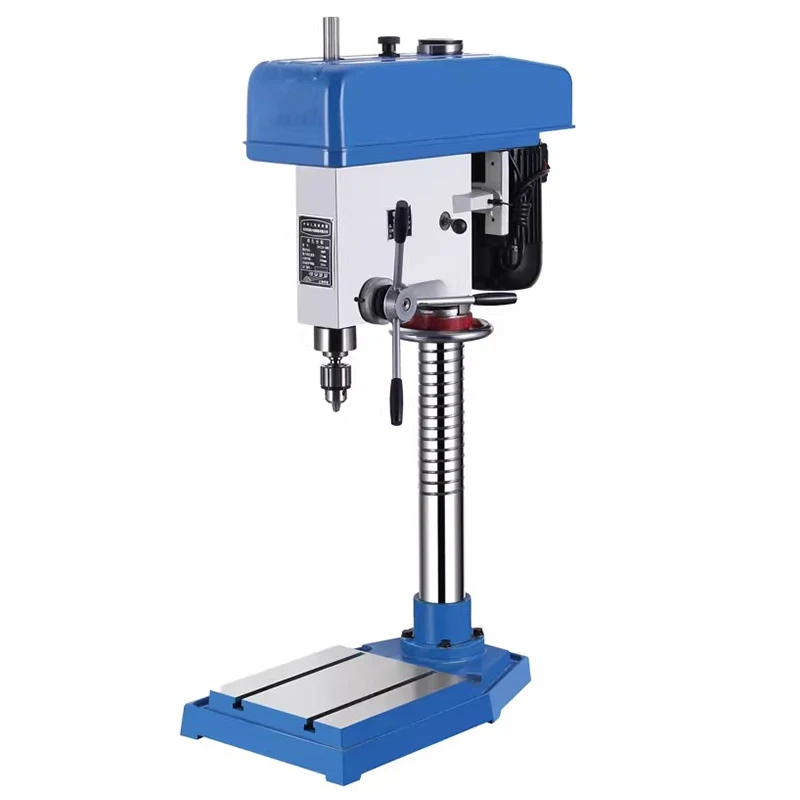

Name: Desktop drilling machine
Model: Z4120-200
Maximum drilling diameter: 20MM
Column diameter: 85MM
Maximum stroke of spindle: 200MM
Distance from spindle center to column surface: 240MM
Maximum distance from spindle end to base table: 780MM
Spindle taper: B16/MT2
Spindle speed range: 380-3000RPM
Spindle speed level: 5 levels
Spindle box lifting stroke: 450MM
Base size: 590*380MM
Base slot distance: 165MM
Total height: 1350MM
Motor: 1100W 4P
Gross weight/net weight: 138/120KG
Packaging size: 79*44*123CM
Chuck: B18: 3-16MM

Model: Z4125-200
Maximum drilling diameter: 25MM
Column diameter: 85MM
Maximum stroke of spindle: 200MM
Distance from spindle center to column surface: 240MM
Maximum distance from spindle end to base table: 780MM
Spindle taper: B18/MT3
Spindle speed range: 320-1400RPM
Spindle speed level: 4 levels
Spindle box lifting stroke: 450MM
Base size: 590*380MM
Base slot distance: 165MM
Total height: 1350MM
Motor: 1100W 4P
Gross weight/net weight: 140/122KG
Packaging size: 79*44*123CM
Chuck: B18: 3-16MM
