- Crankshaft position sensor signal simulation output: including 9 types of gear missing teeth signal: 58+2 (60-2), 58+1, 57+2, 57+1, 37+1, 36+2, 35+1, 34+2, and 22+1
- One type of standard 60+0 signal simulation output
- Magnetoelectric signal or Hall signal output. Output amplitude/Peak volt equals to power supply input, can be adjusted by adding potentiometer
- Use 60+0 signal to simulate vehicle speed sensor signal output. Camshaft sensor signal simulation
- Use 60+0 signal to drive odometer or test odometer. Use it to drive car motor PC board or speed meter

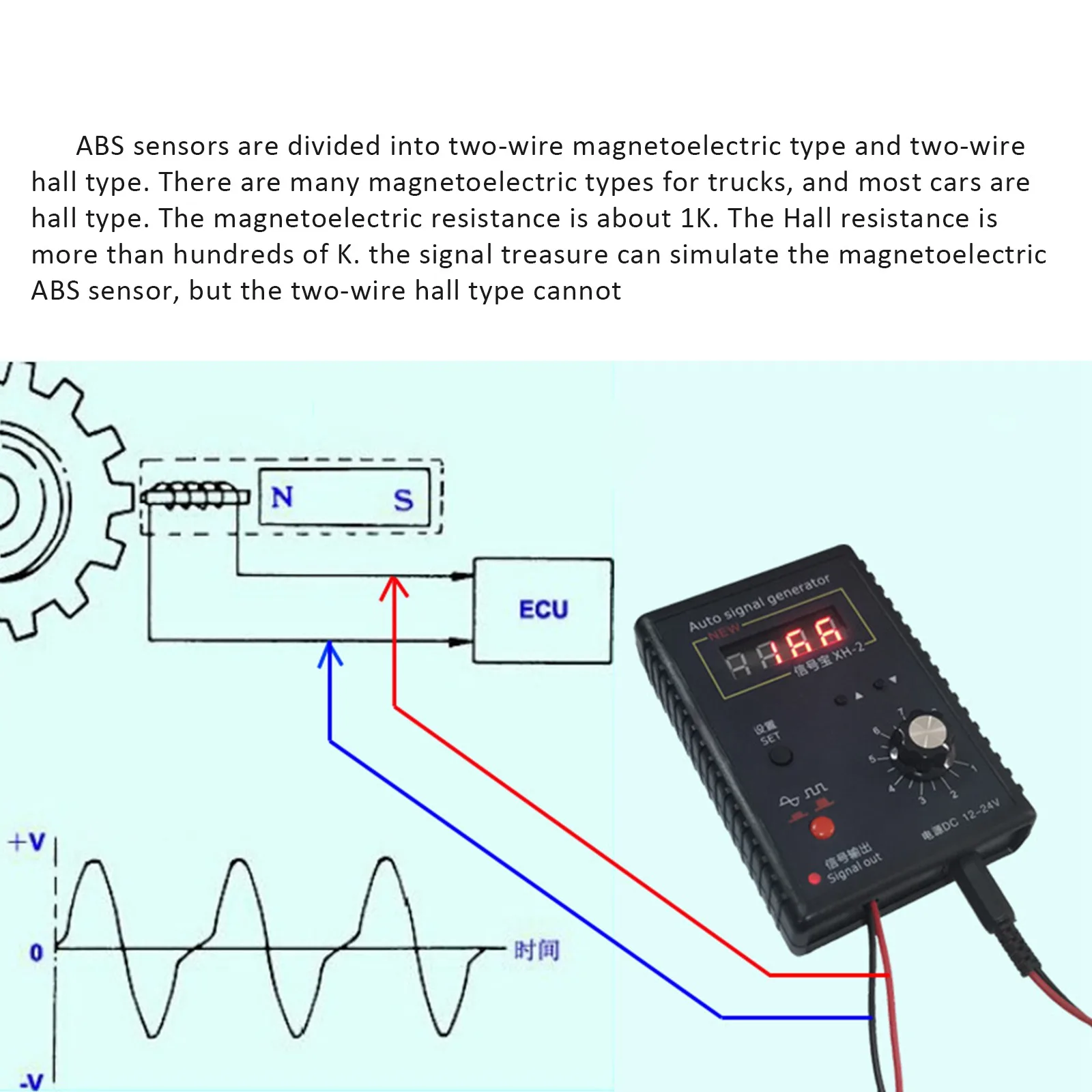

- ABS sensor, optical sensor signal simulation. Use it to analyze and inspect sensor error, car ECU and meters error
Output Parameters:

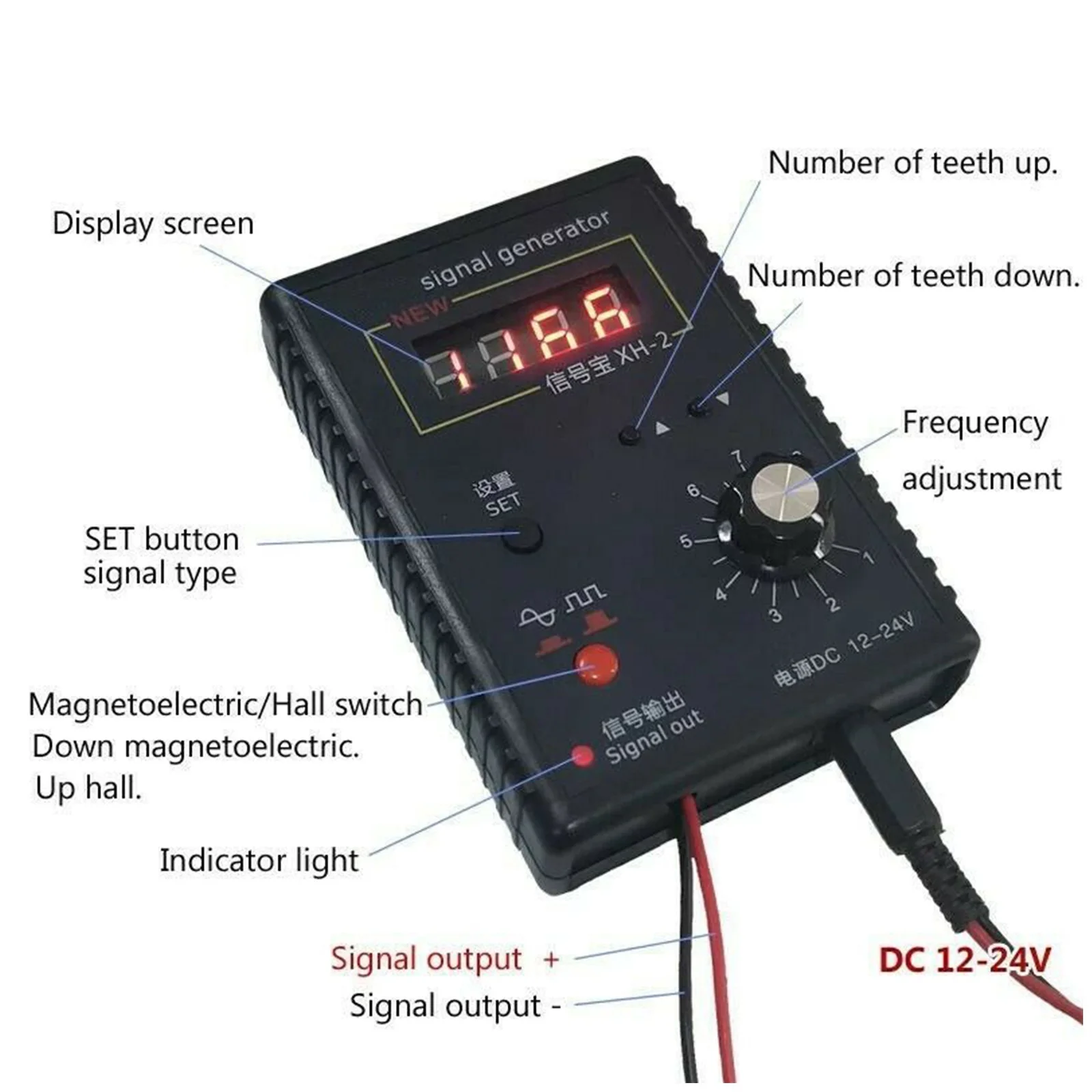

- All types of signal have been embedded inside the signal generator, and can be displayed in LED screen for selection reference, no need to download software
- One button switch between magnetoelectric signal and Hall signal, convenient to use
- 9 ranges of frequency selection, accurate frequency output
9 Frequency Ranges:
* 01 refers to 2Hz-1KHz frequency range
* 02 refers to 2Hz-2KHz frequency range
* 03 refers to 2Hz-3KHz frequency range
* 04 refers to 2Hz-4KHz frequency range
* 05 refers to 2Hz-5KHz frequency range
* 06 refers to 2Hz-6KHz frequency range
* 07 refers to 2Hz-7KHz frequency range
* 08 refers to 2Hz-8KHz frequency range
* 09 refers to 2Hz-100Hz frequency range
Package Included:

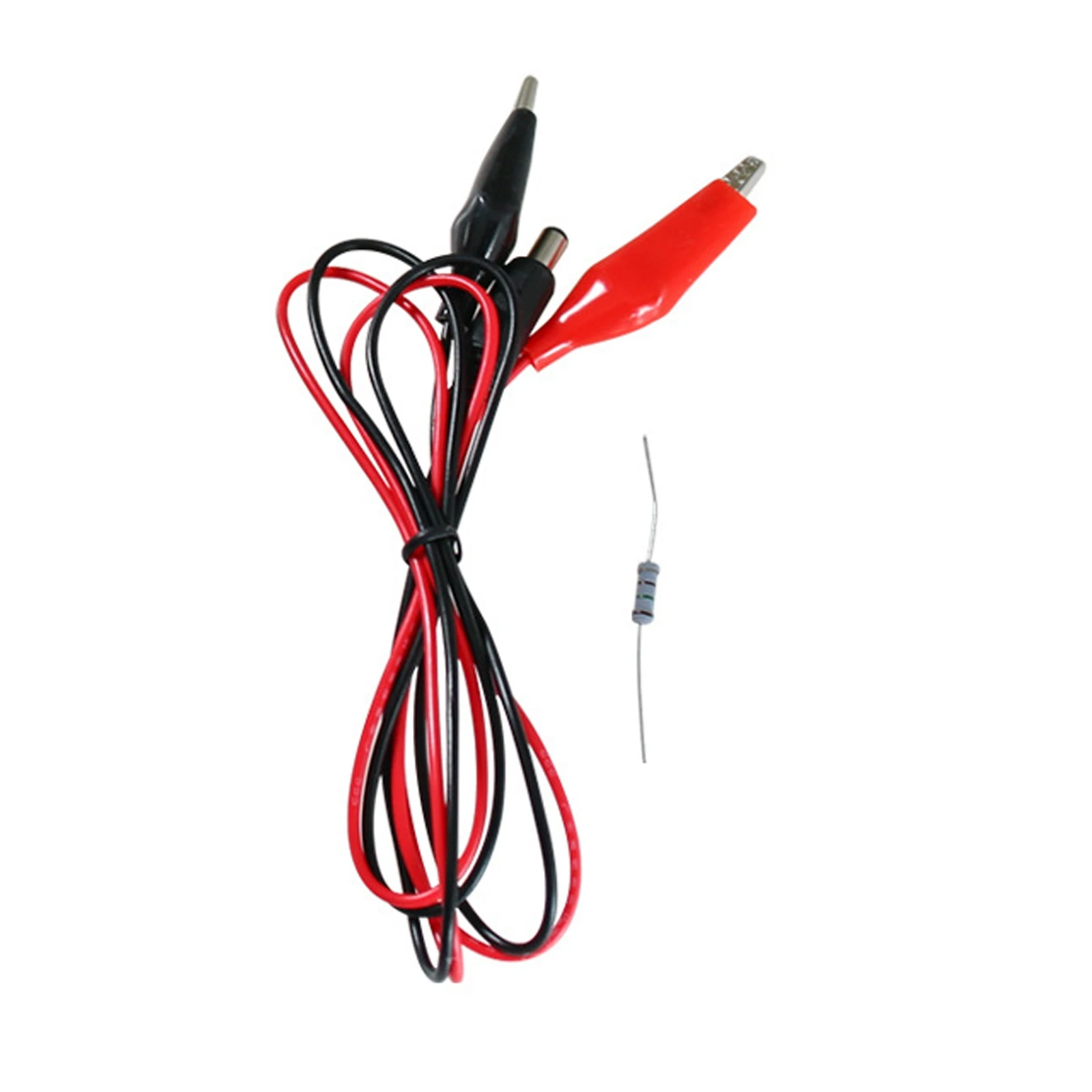

- 1 x Set of Automotive Signal Generator
Note:
- Batteries are not included in the package.
