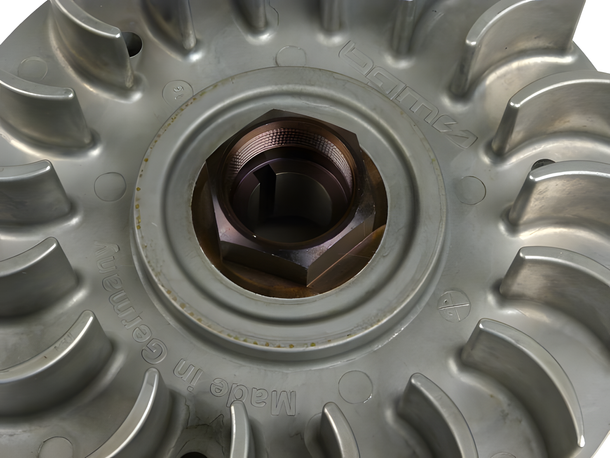

Flywheel BGM Electronics for Lambretta GP, DL – Bild 2

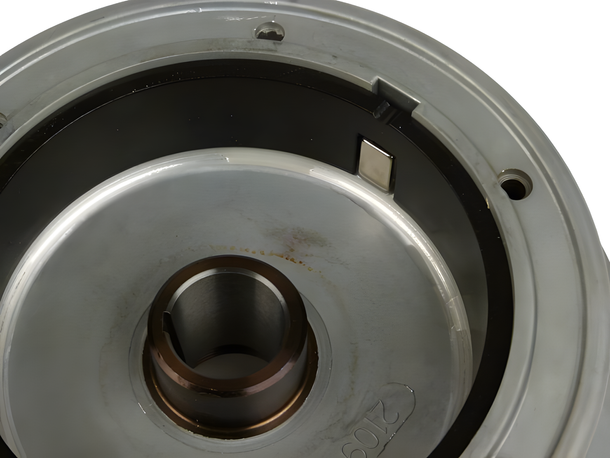

Flywheel BGM Electronics for Lambretta GP, DL – Bild 3

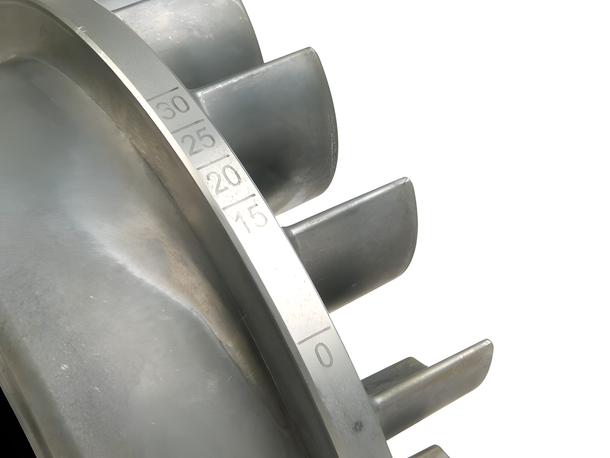

Flywheel BGM Electronics for Lambretta GP, DL – Bild 4

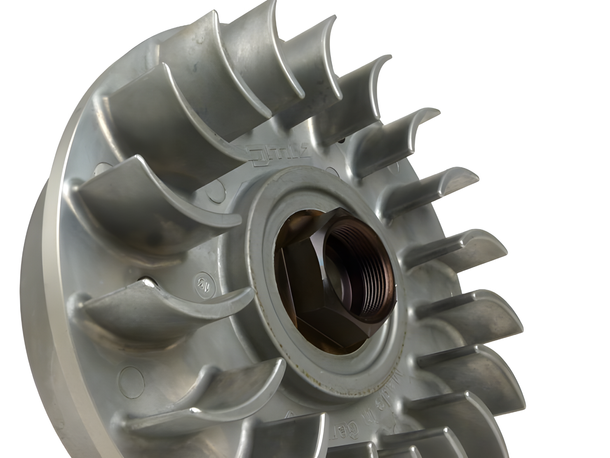

Flywheel BGM Electronics for Lambretta GP, DL – Bild 5
BGM

Flywheel BGM Electronics for Lambretta GP, DL

  • Art. ID.: 1130669
  • Art. No.: BGM-210900
  • Manufacturer: BGM

General

  • Type
    Flywheel

Description

bgm PRO fan wheel developed and manufactured entirely in Germany. This is a one-piece fan wheel without rivets and screws. 21st century technology with an almost original look and design. The fan wheel has been successfully tested up to 24,000 rpm and provides the highest alternator output with the bgm V3 ignition base plate.

Features:

  • Moment of inertia 6240 kg mm² (-5%)
  • Weight DL/gp 2025 grams
  • Weight LI/SX 2051 grams
  • Unbalance less than 100 gmm
  • Burst test 24,000 rpm
  • Improved cooling effect

    • The fan wheel is a completely new design based on the existing bgm ignition components. The goals were maximum reliability and strong alternator output.

    To ensure maximum reliability, the cone is neither screwed nor riveted, but is cast in. Each cone is checked and reworked after casting to ensure a perfect fit to the crankshaft.

    Although we specify the weight of the fan wheel, this is secondary when it comes to the motor running. The moment of inertia achieved is the decisive value here. In other words, how and where the weight is distributed over the circumference of the circle.

    The balance factor is the next interesting factor. Here, we achieve a value that is also used in real motorsport. Each fan wheel is individually adjusted to at least this value. This is the best value ever achieved for a Lambretta fan wheel.

    The fan passed the burst test up to 24,000 rpm without any damage. Of course, the bgm PRO pole wheel can also be used with all components based on the original Ducati design with 6 coils. (Such as Indian, AF, AFR, Vespa components.) However, should problems arise here, depending on the combination of components, the height of the pickup may have to be adjusted. We are happy to provide you with technical support.

    About the manufacturer BGM

    BGM is a leading brand for high-quality spare parts and accessories for scooters, motorcycles and classic Vespa models that stands for quality, precision and innovation. With an uncompromising “Made in Germany” philosophy, BGM develops durable products in collaboration with leading engineers and under strict quality controls. Whether restoring vintage cars or tuning modern scooters — BGM is the first choice for discerning drivers. Thanks to first-class workmanship and a wide range of products, BGM offers ideal solutions for performance, everyday use and individuality.

    Suitable for

    Flywheel BGM Electronics for Lambretta GP, DL suitable for

    Eibar Lambretta LI 125 Serie 2
    Eibar Lambretta LI 150 Serie 2
    Eibar Lambretta TV 175 Serie 2
    Innocenti Lambretta 125 DL (Bj. 1969)
    Innocenti Lambretta 125 DL (Bj. 1970)
    Innocenti Lambretta 125 DL (Bj. 1971)
    Innocenti Lambretta 125 LI (Serie 1) (Bj. 1958)
    Innocenti Lambretta 125 LI (Serie 1) (Bj. 1959)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1961)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1962)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1963)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1964)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1965)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1966)
    Innocenti Lambretta 125 LI (Serie 3) (Bj. 1967)
    Innocenti Lambretta 125 LI Special (Bj. 1966)
    Innocenti Lambretta 125 LI Special (Bj. 1967)
    Innocenti Lambretta 125 LI Special (Bj. 1968)
    Innocenti Lambretta 150 DL (Bj. 1969)
    Innocenti Lambretta 150 DL (Bj. 1970)
    Innocenti Lambretta 150 DL (Bj. 1971)
    Innocenti Lambretta 150 LI (Serie 2) (Bj. 1960)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1962)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1963)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1964)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1965)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1966)
    Innocenti Lambretta 150 LI (Serie 3) (Bj. 1967)
    Innocenti Lambretta 150 LI Special SX (Bj. 1966)
    Innocenti Lambretta 150 LI Special SX (Bj. 1967)
    Innocenti Lambretta 150 LI Special SX (Bj. 1968)
    Innocenti Lambretta 200 DL (Bj. 1969)
    Innocenti Lambretta 200 DL (Bj. 1970)
    Innocenti Lambretta 200 DL (Bj. 1971)
    Innocenti Lambretta 200 LI Special SX (Bj. 1966)
    Innocenti Lambretta 200 LI Special SX (Bj. 1967)
    Innocenti Lambretta 200 LI Special SX (Bj. 1968)
    Lambretta GP 125 SIL (2-Takt) (Wasser)
    Lambretta GP 150 SIL (2-Takt) (Wasser)
    Lambretta GP 200 SIL (2-Takt) (Wasser)
    Lambretta Jet 200 Serveta (2-Takt) (Wasser) (Bj. 1967 - 1982)
    Lambretta LI 125
    Lambretta LI 125 Special Serie 3 (2-Takt) (Wasser) (Bj. 1965 - 1969)
    Lambretta LI 150 Serie 1 (2-Takt) (Wasser) (Bj. 1958 - 1959)
    Lambretta LI 150 Serie 2 (2-Takt) (Wasser) (Bj. 1959 - 1961)
    Lambretta LI 150 Serie 3 (2-Takt) (Wasser) (Bj. 1962 - 1967)
    Lambretta LI 150 Serveta (2-Takt) (Wasser) (Bj. 1960 - 1965)
    Lambretta LI 150 Special Serie 3 (2-Takt) (Wasser) (Bj. 1963 - 1966)
    Lambretta V 200
