Headlight Moto Nostra LED HighPower Ø 143mm, 5.3.4 inch 12V DC with approval
- Art. ID.: 1130789
- Art. No.: MN-1101
- Manufacturer: Moto Nostra
General
-
TypeHeadlight
Description

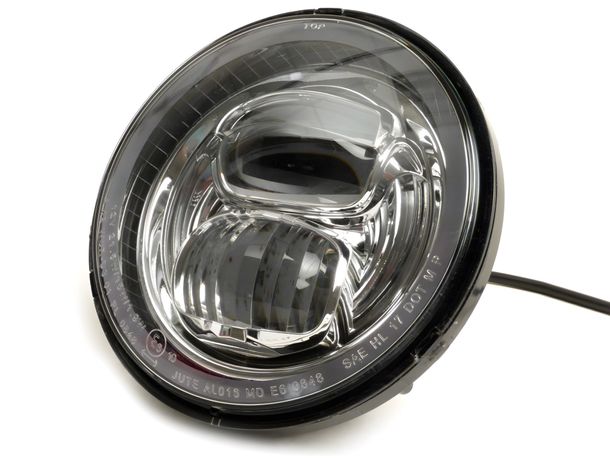

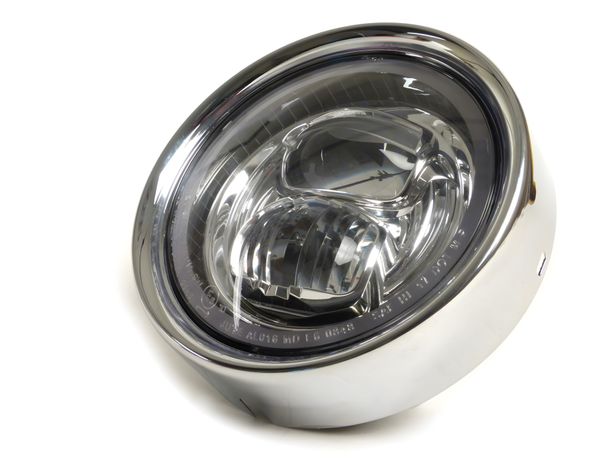

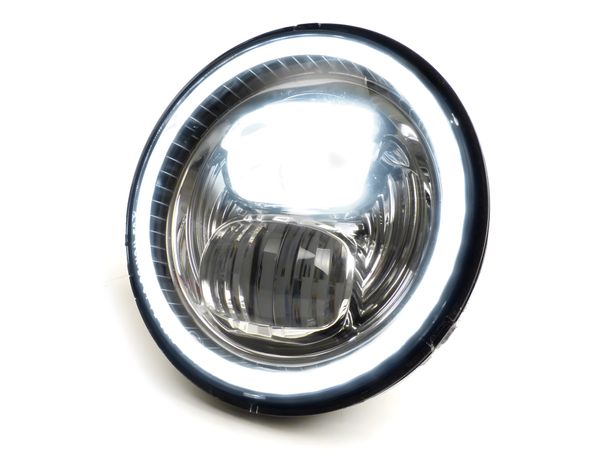

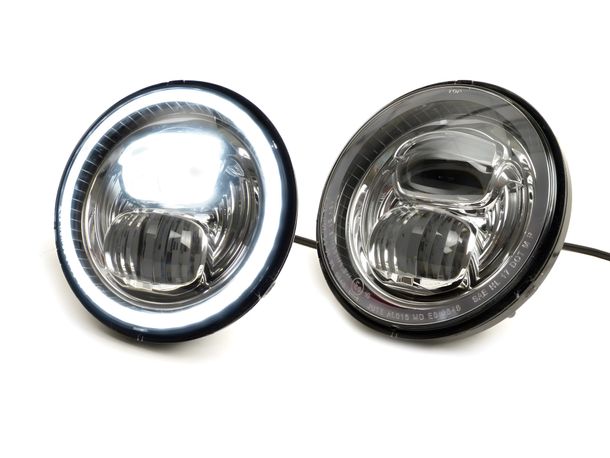

LED headlights with E9 marking (road approval) and bright high/low beam. An additional feature is a separately switchable position light. With a diameter of 143 mm, it fits perfectly into the steering head of the PX and Cosa models as well as the headlights of Vespa Sprint, GTR and Rally, for example (see pictures, lamp trim not included).LED ADVANTAGE
The limit with conventional Bilux incandescent lamps for most scooters is a 45/45 W headlight bulb. The ignitions, which usually produce 80 W to a maximum of 120 W, do not provide more. The luminosity, measured in lumens, is less than 400, and
the LED headlamp has a brightness of over three times as high (1300 lumens). The power consumption is only 20 W. This corresponds to the light output of a conventional 100 watt headlamp.
This allows significantly better illumination to be achieved with a given alternator/power supply. There is also more capacity for other consumers.
- Brightness 1300 lumens
- Voltage: 12 Volt DC (DC)
- Power consumption: 1,8A/1,3A
- Power consumption: 21.5W/15W/1.9W
- Diameter: Ø143mm
- Body construction depth: 54mm (measured from headlight ring without glass curvature)
- Overall installation depth: 79mm (measured from headlight ring without glass curvature with cable supply)
NOTE
The LED headlight only works with DC, so it requires a battery or another equivalent power source with 12V DC. Operation on an AC power source results in immediate failure.
The headlight does not have any vehicle-specific holders. We offer this separately for the Vespa PX models (see accessories).

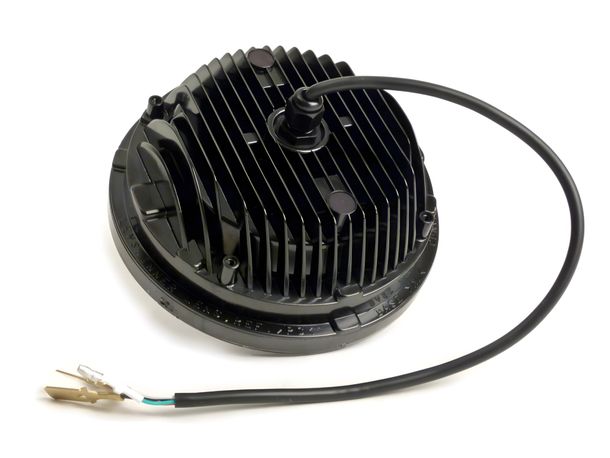

The body (made of black painted aluminum) has rear-facing threads: M4 (4x symmetrically distributed over the entire diameter)
About the manufacturer Moto Nostra
Moto Nostra stands for high-quality accessories and spare parts that have been specially developed for Vespa fans and modern scooter riders. The brand combines stylish design, precise workmanship and high durability to impress both when it comes to restorations and individual upgrades. From chrome parts to lighting to performance components, Moto Nostra offers a wide range of products for every requirement. Thanks to the perfect fit and innovative technology, Moto Nostra is the first choice for style-conscious scooter riders. Discover quality, functionality and individuality — tailor-made for classic and modern scooters.
Suitable for
Headlight Moto Nostra LED HighPower Ø 143mm, 5.3.4 inch 12V DC with approval
Vespa Cosa 1 150 (Bj. 1987) (2-Takt) (VLR1T)
Vespa Cosa 1 200 (Bj. 1988) (2-Takt) (VSR1T)
Vespa Cosa 125
Vespa Cosa 150
Vespa Cosa 2 150 (Bj. 1991) (2-Takt) (VLR2T)
Vespa Cosa 2 200 (Bj. 1991) (2-Takt) (VSR1T)
Vespa Cosa 200
Vespa P 125 X/E (Bj. 1977) (2-Takt) (VLX1T)
Vespa P 150 X/E (Bj. 1978) (2-Takt) (VNX1T)
Vespa P 200 X/E (Bj. 1977) (2-Takt) (VSX1T)
Vespa PX 125 E / Lusso (Bj. 1981) (2-Takt) (VNX2T)
Vespa PX 150 (2-Takt) (M742M)
Vespa PX 200 (2-Takt) (VSX1T)
Vespa PX 200 E / Lusso (Bj. 1983) (2-Takt) (VSX1T)
Vespa PX 200 E GS (Grand Sport) (Bj. 1987) (2-Takt) (VSX1T)
Vespa PX 80 (2-Takt) (V8X1M)
Vespa PX MY 125 (Bj. 1998) (2-Takt) (VNX1T - ZAPM74)
Vespa PX MY 200 (Bj. 1998) (2-Takt) (VSX1T)
