Name: Punch Forming Machine

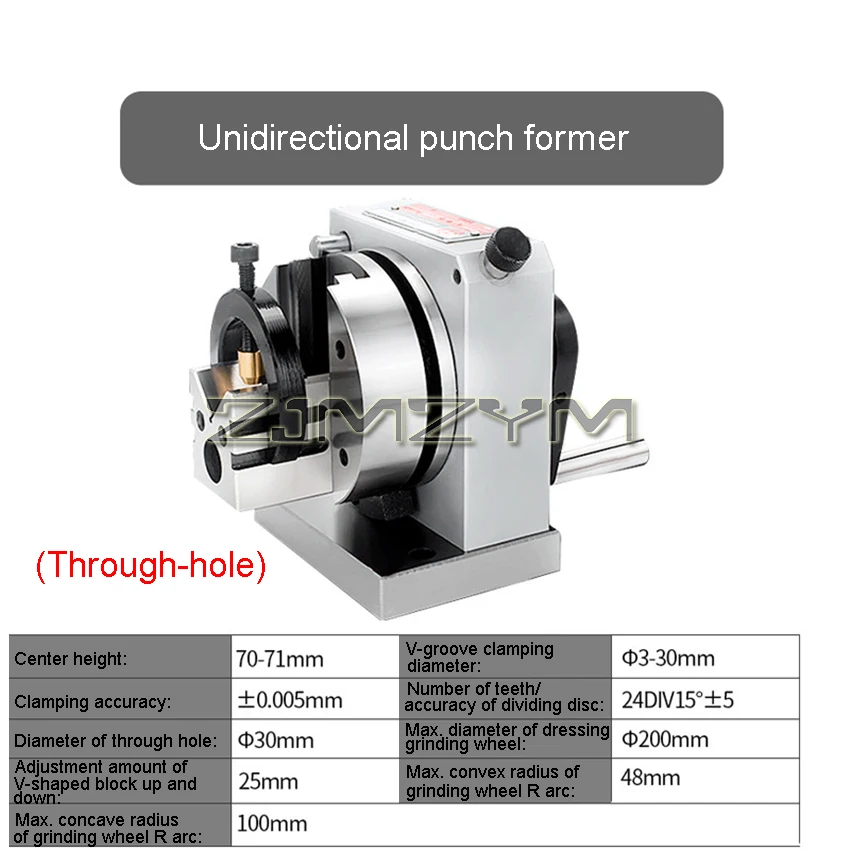

Unidirectional punch former

Center height: 70-71mm

Clamping accuracy: ± 0.005mm

Diameter of through hole: 30mm

Adjustment amount of V-shaped block up and down: 25mm

Maximum concave radius of R arc for grinding wheel repair: 100mm

V-groove clamping diameter: φ 3-30mm

Number of teeth/accuracy of dividing disc: 24DIV15 ° ± 5

Maximum diameter of grinding wheel for dressing: 200mm

Maximum convex radius of R arc for grinding wheel repair: 48mm

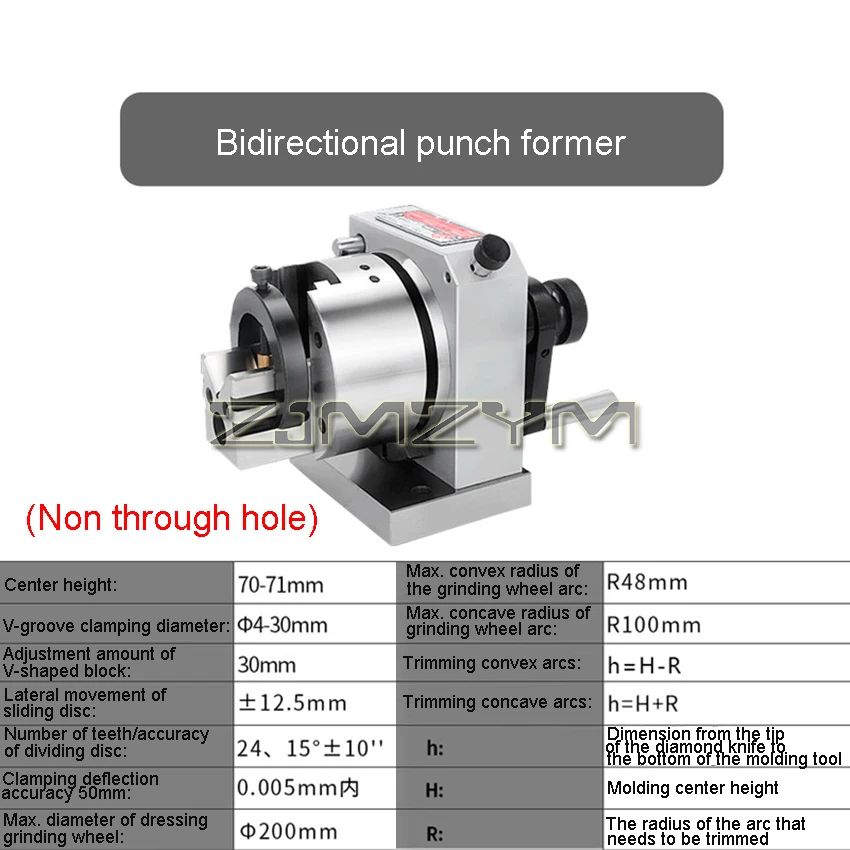

Bidirectional punch former

Center height: 70-71mm

V-groove clamping diameter: φ 4-30mm

Adjustment amount of V-shaped block: 30mm

Lateral movement of sliding disc: soil 12.5mm

Number of teeth/accuracy of dividing disc: 24, 15 ° ± 10“

Clamping deflection accuracy within 50mm: 0.005mm

Maximum diameter of grinding wheel for dressing: 200mm

Maximum convex radius of grinding wheel arc: R48mm

Maximum concave radius of grinding wheel arc: R 100mm

Trimming convex arc: h=H-R

Trimming concave arc: h=H+R

h: Dimension from the tip of the diamond knife to the bottom of the molding tool

H: Molding center height

R: The radius of the arc that needs to be trimmed

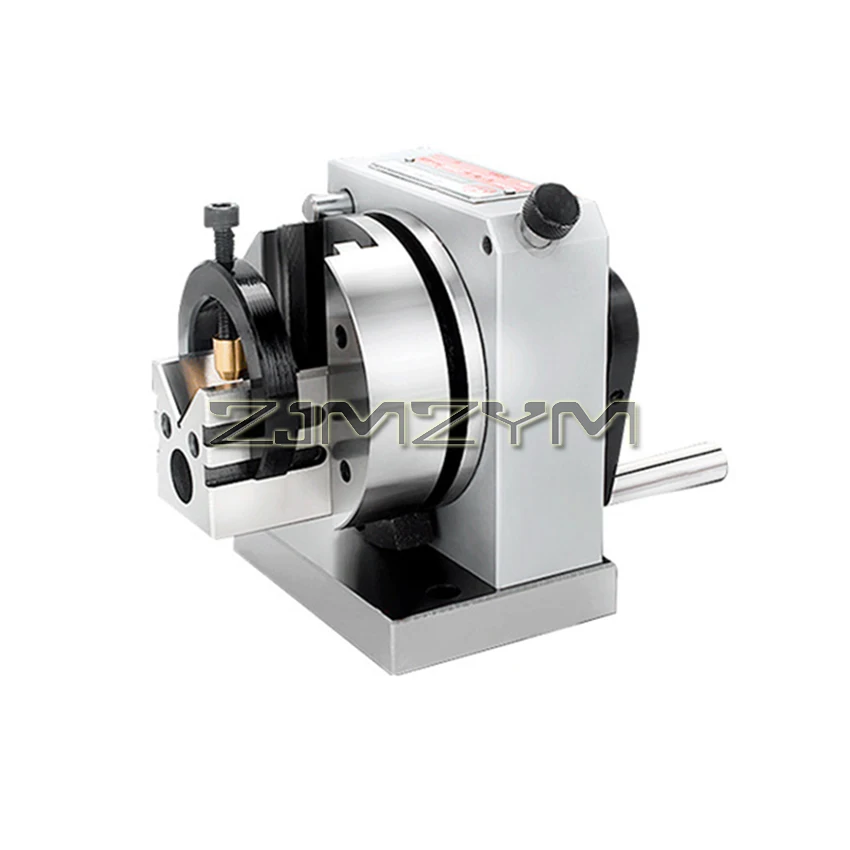

Picture showing:
