Electronic condenser CEMS semiconductor refrigeration flue gas monitoring condenser dual-channel electronic dehumidification cooler

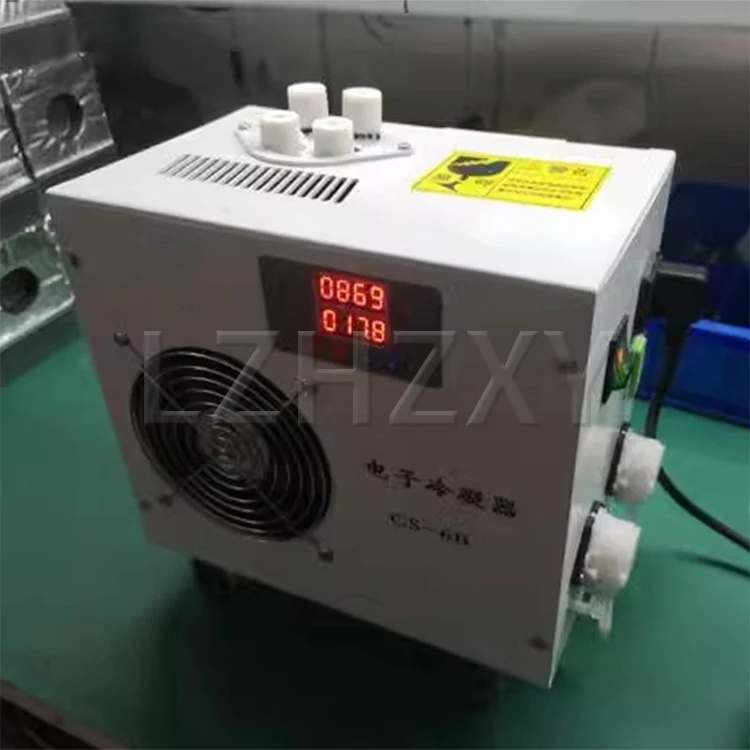

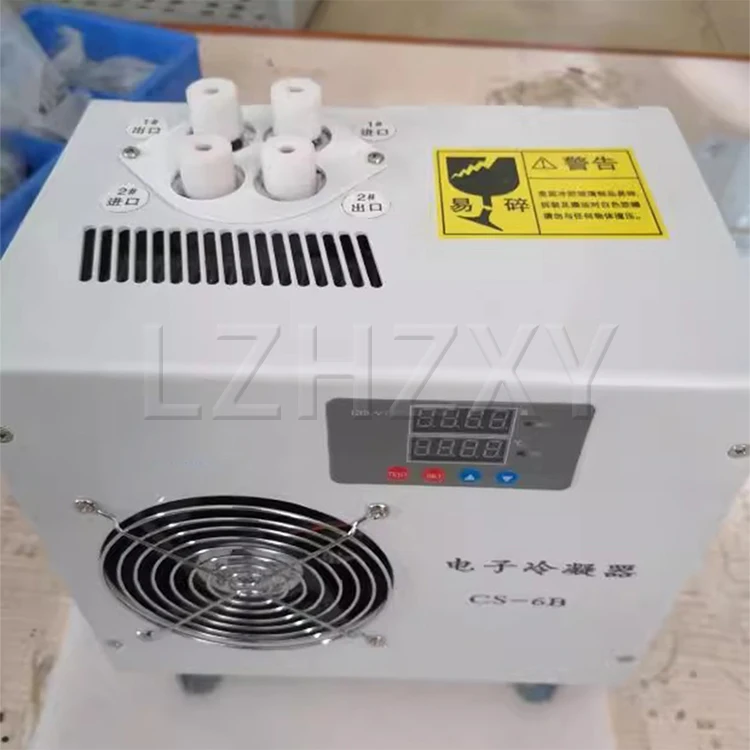

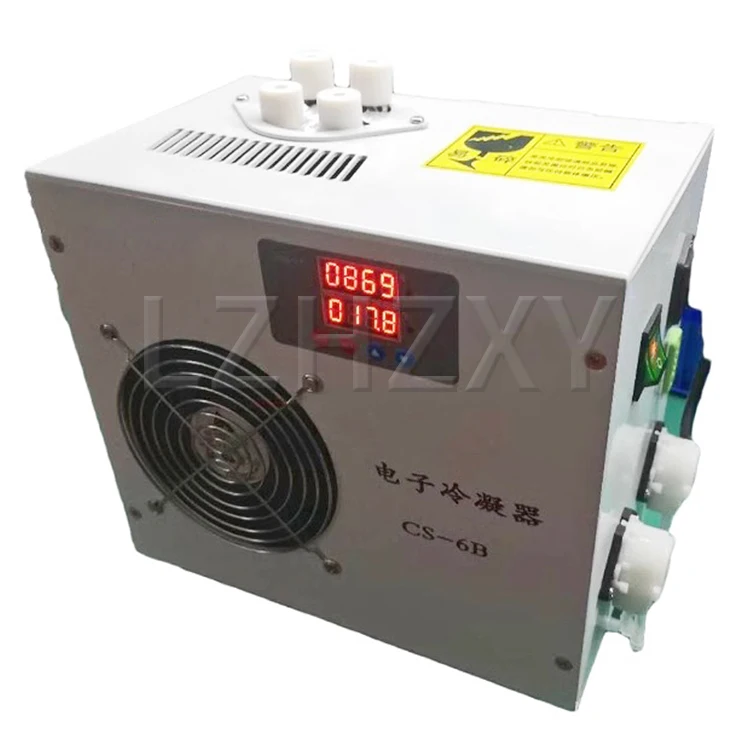

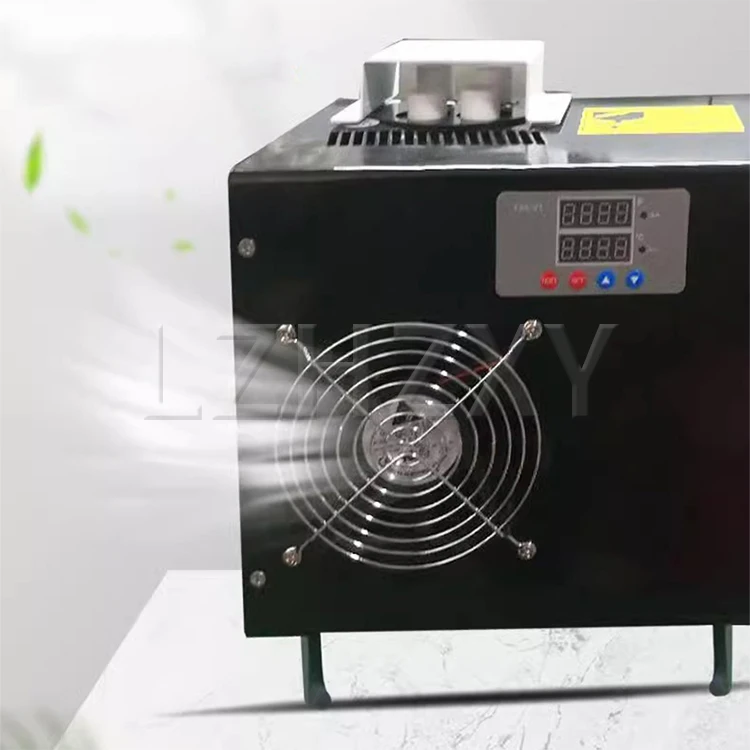

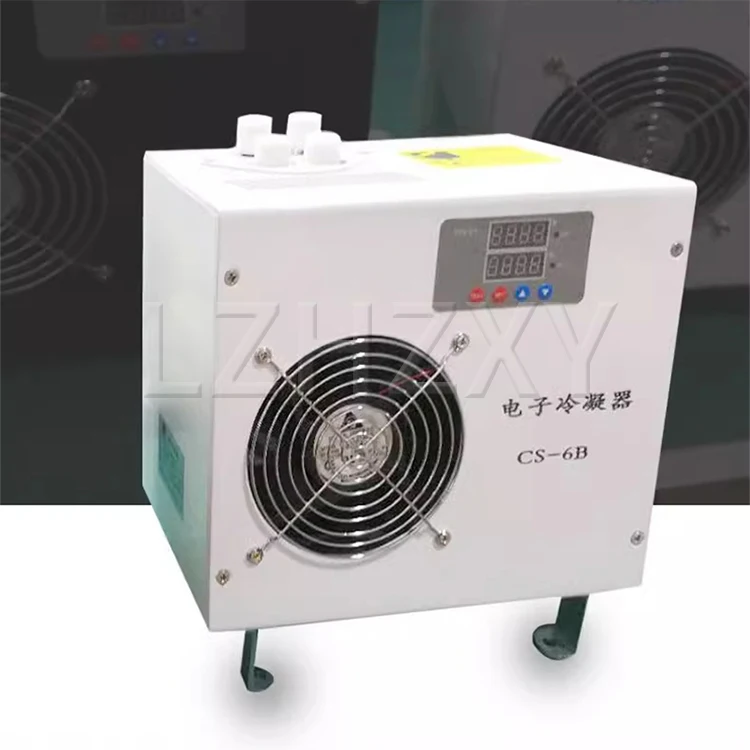

Name: Electronic condenser
Model: CS-6B
Voltage: 220V 50Hz
Rated current: 0.7A
Power: 150W
Flow: 6L/min
Outlet dew point: ≤5℃
Rated pressure: ≤0.2Bar

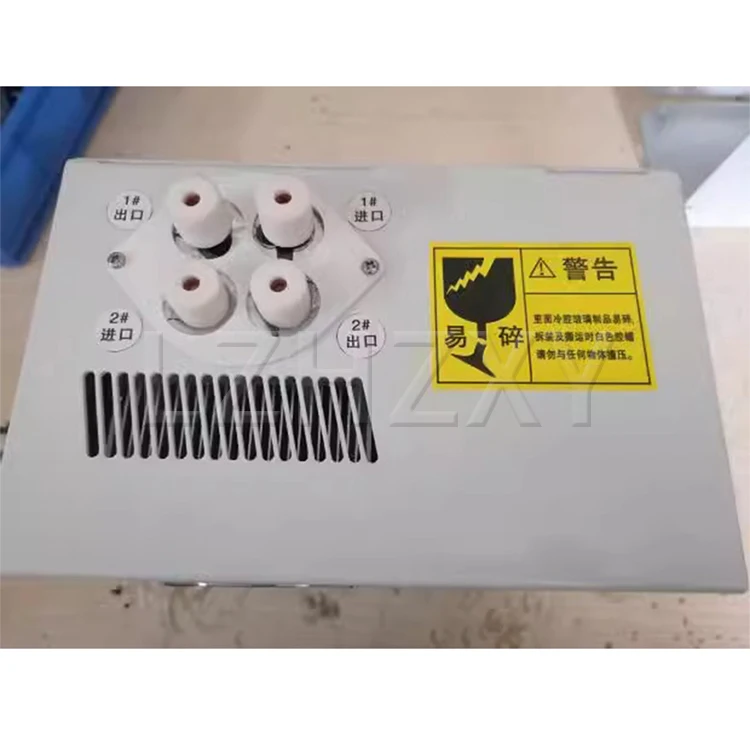

Intake pipe diameter: Φ6
Air outlet: Φ6
Drain pipe: Φ6
Drainage method: peristaltic pump
Working environment temperature: 0-40℃
Inlet temperature: ≤60℃
Cold cavity temperature: 0-10℃
Drainage time: 0-9999S
Number of channels: 2
Size: 280*165*260MM
Back mounting size: 220*239MM hole Φ7
Bottom installation for the first time: 262*128MM hole Φ7
Product introduction: This device is mainly used in the pretreatment device of various gas analyzers. It can improve the measurement accuracy of the analyzer, reduce the corrosion effect of gas on the analytical instrument and pipeline, and greatly extend the service life of the analytical instrument. The product is also suitable for other occasions where dry sample gas is required.
