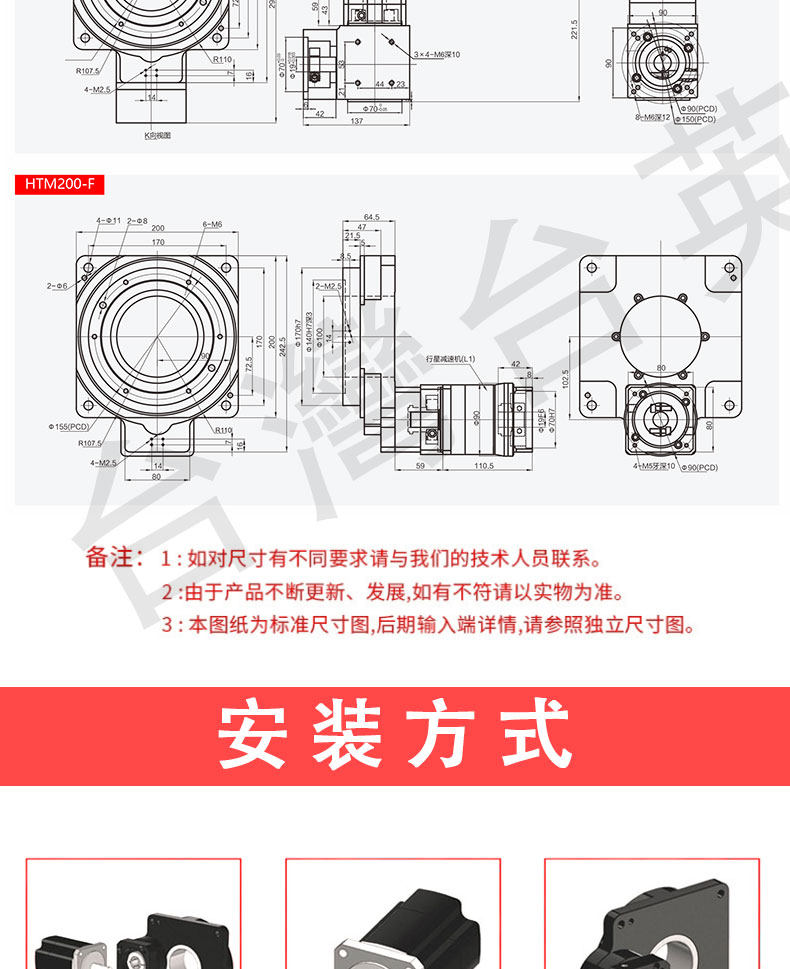

Verify that the motor model and rotary table specifications are correct well wipe the mating surfaces clean.
If the motor journal is under 35, remove the flat key from the motor shaft.
Check the size of the motor output shaft. If a sleeve is required, install it in the force hole first.
Remove the plug and use a hexagonal wrench to loosen the compression ring screws and set the screws into the holes.
Install the motor vertically into the rotating platform.
Use the torque plate to lock the hexagonal screws in order.

QUALITY SELECTION MATERIAL
QUALITY SELECTION MATERLAL Rigid structure, impact resistance Selection of materials, stable product performance.
Long service life
LONG SERVICE LIFE
Surface hardness and heart toughness
And through the tooth grinding process, the
High precision and good wear resistance are obtained.
Processing and customization
PROCESSING AND CUSTOMIZATION Excellent quality and various specifications.
Come to us to customize your “exclusive products”.
Convenient Installation
BUD STAGE
Horizontal structure and positioning pin design
Make your installation more convenient
Precision Crossed Roller Bearing Hollow Turntable
Stable performance and superiority
Suitable for stepper motors, servo motors and other motors.
Newly upgraded
Hollow rotary stage
Smooth running, stable structure and light weight
Accuracy <5 arc second
