1.Adopts Bluetooth 5.0 technology, providing longer transmission distance, higher transmission rate and lower power consumption.
2.Support stereo output: supports high quality stereo audio decoding, providing clear and detailed sound quality experience.
3. Low-latency transmission: Optimized audio transmission algorithm ensures low-latency audio transmission, especially suitable for watching videos, playing games and other scenarios that require synchronization of audio and video.
4. Multiple interfaces, 3.5mm audio interface and TYPE-C power supply interface, convenient to connect different audio devices, such as headphones, speakers, sound systems, etc.
5. The module has a protection mechanism, support power reverse connection protection.

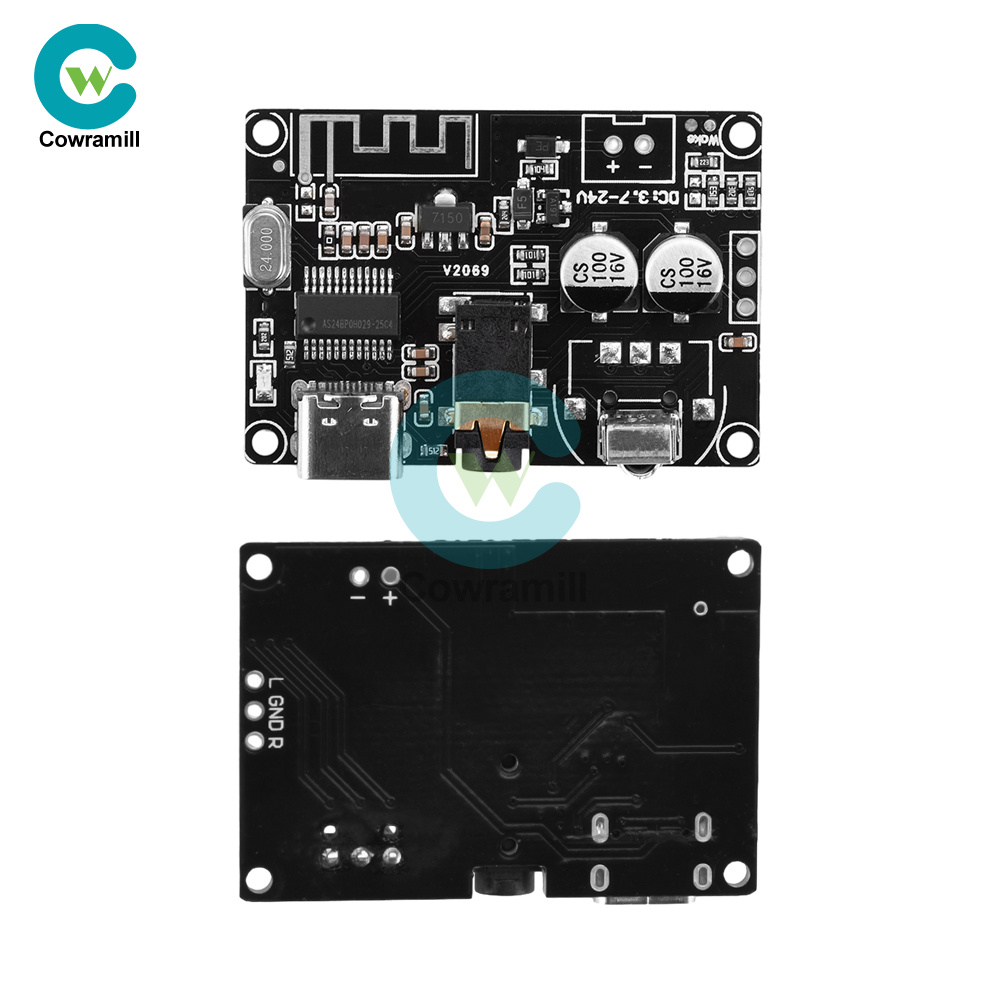

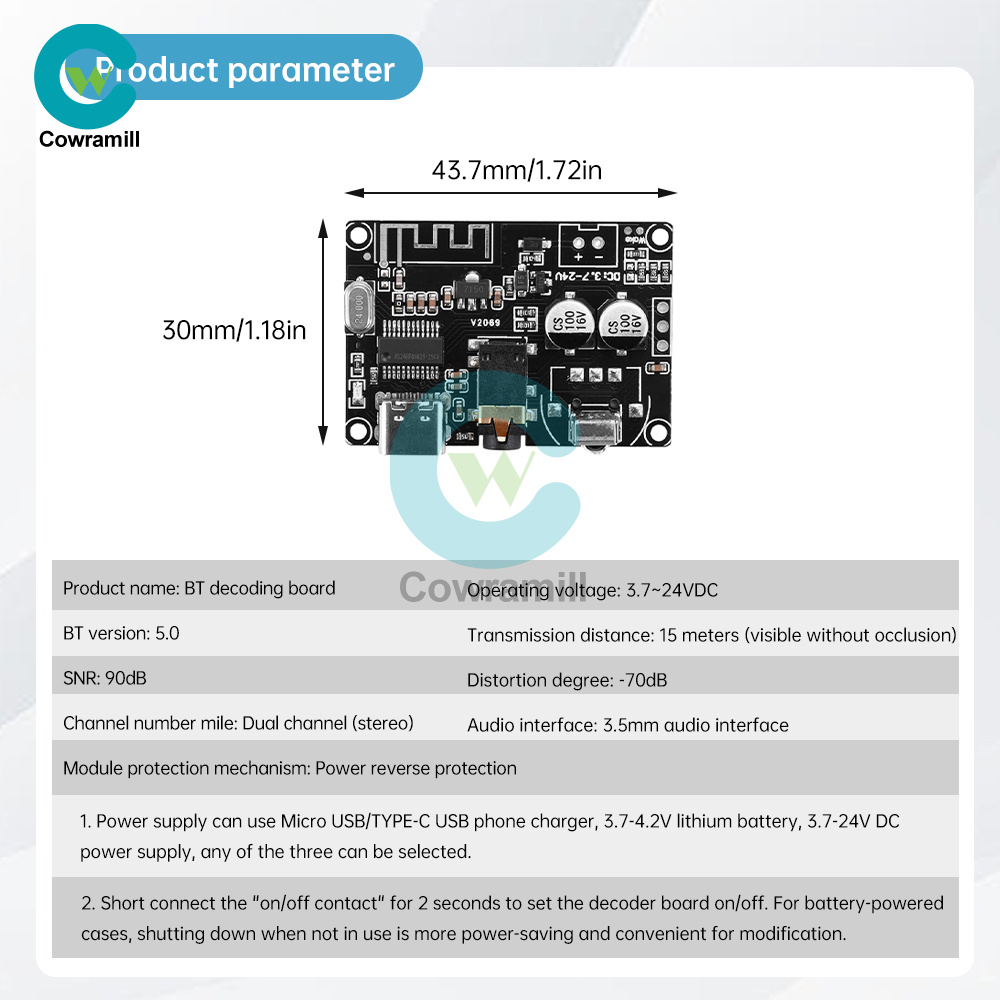

Product Name: Bluetooth decoder board
Operating voltage: 3.7~24VDC
Bluetooth version: 5.0
Transmission distance: 15 meters (visible and unobstructed)
Signal-to-noise ratio: ≥90dB
Distortion: ≤-70dB
Number of channels: dual-channel (stereo)
Audio interface: 3.5mm audio interface
Module protection mechanism: power reverse connection protection
1. Power supply can use Micro USB/TYPE-C USB cell phone charger, 3.7-4.2V lithium battery, 3.7-24V DC power supply, one of the three can be selected.
2. Short “on/off contact” for 2 seconds to set the decoder board on/off, for the battery-powered case, when not in use to shut down more power-saving, convenient modification.
1. When using battery power supply, the battery voltage is lower than 3.3V decoder board automatically shut down, re-power or fully charged after shorting the on/off contact for 2 seconds to boot.
2. When using battery power, if the battery voltage is too low, there may be “ZiZi” noise, in this case you need to charge the battery.
3. Since the decoder board is not designed for lithium battery charging protection circuit, it is recommended to use lithium battery with its own protection board.
4. If your rechargeable battery supports MicroUSB direct charging, you can use Micro USB/TYPE-C USB to charge the battery directly.
1 x Audio Module

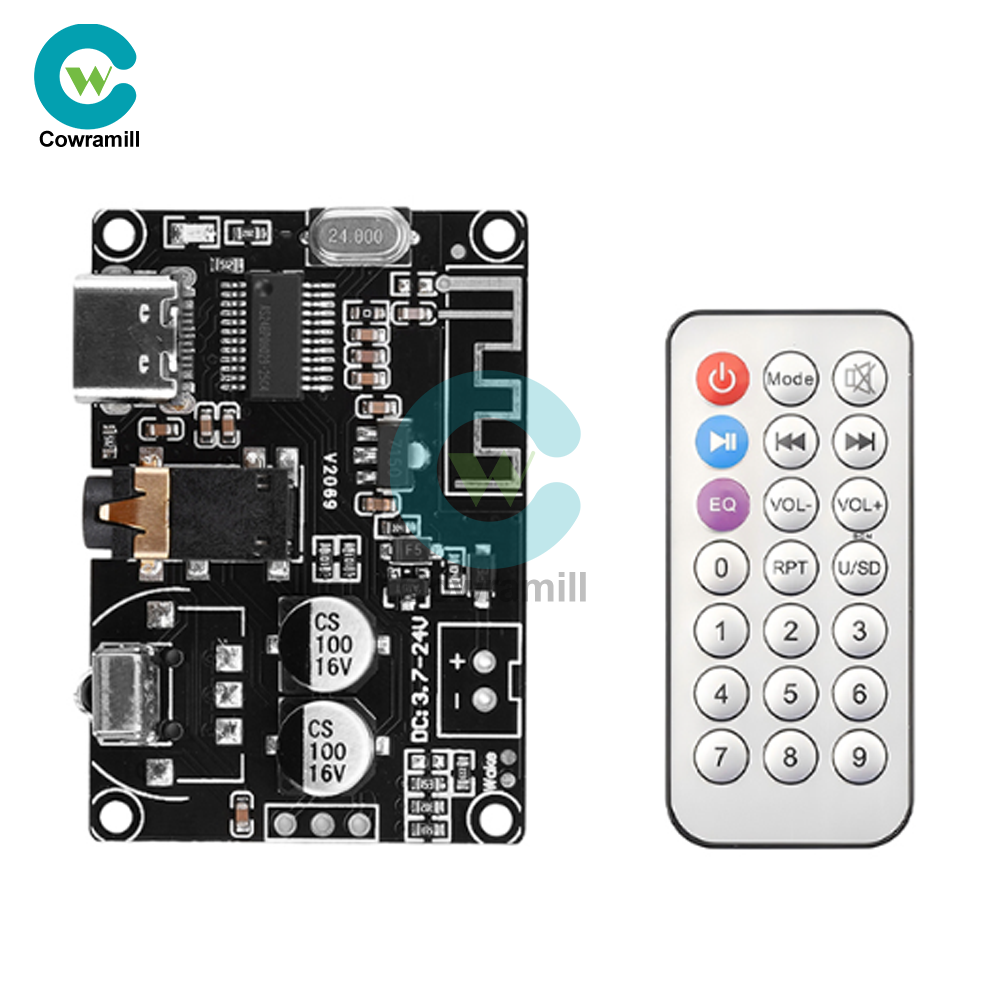

1 x Remote control (optional)
