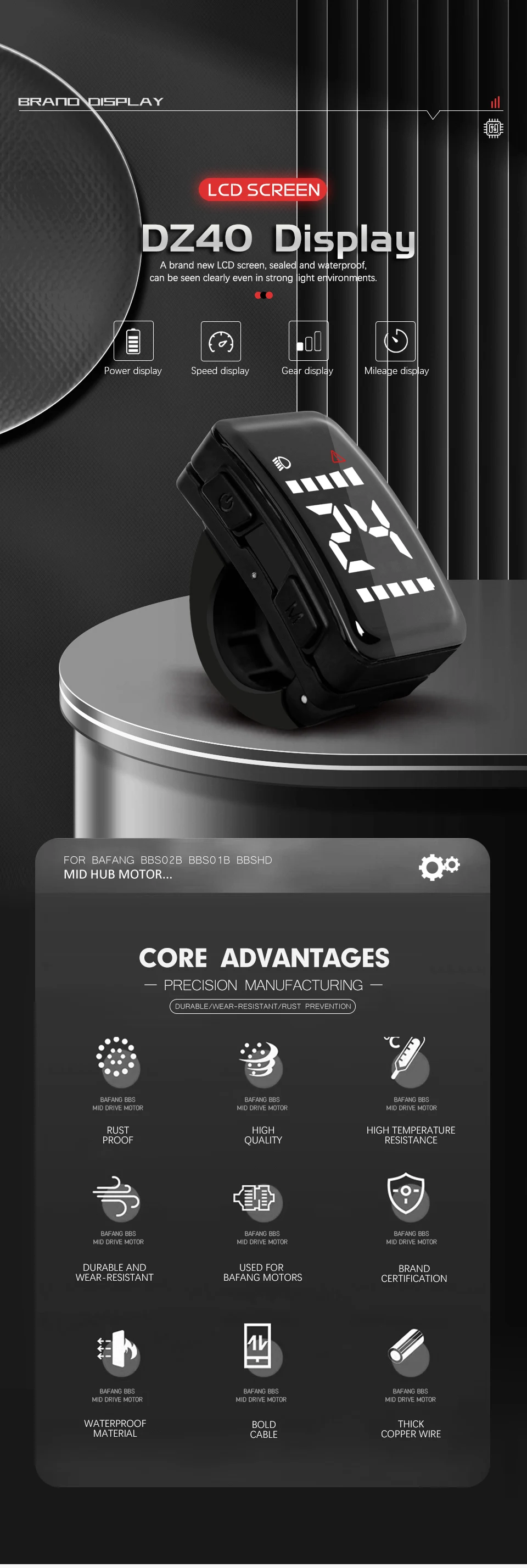

DZ40 Display

Electric Bike LCD Display,Waterproof Electric Bicycle LCD Instrument DZ40 8 Fun Display Mini Meter Ebike Screen Intelligent LCD Display Panel for BAFANG BBS01 BBS02 BBSHD Mid Drive Motor

  About this item

●[ COMPATIBILITY ] This small-sized ebike display DZ40 is only compatible with BAFANG elctric bike motor with UART 5.0~5.8 protocol . If you are not sure , please message us before purchasing

●[ INTELLIGENT DZ40 ABS & PC DISPLAY ] Thescreen offers exceptional visibility , even in bright sunlight , allowing you to easily monitor your ride

●[ EASY INSTALLATION ] The DZ40 can be installed on the left side of the horizontal tube with a handlebar size of φ22.2mm , making installation a breeze

●[ Comprehensive Data Display ] The DZ40 displays a variety of important data , including speed , headlight , battery indication , helping you stay informed and safe during your ride .

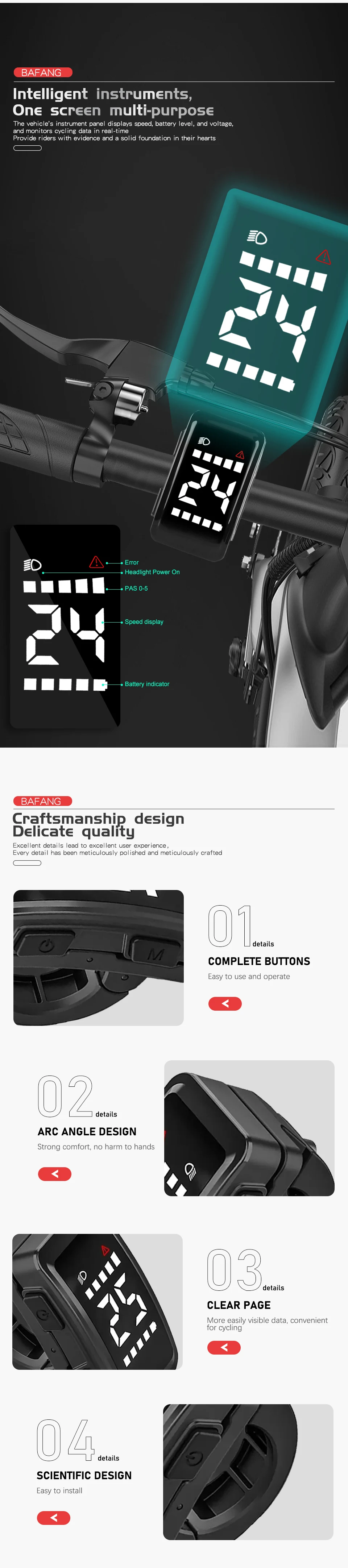

 Function Introduction

Three buttons, easy to operate

Metric/imperial switch selection

Mileage display: subtotal mileage(trip), total mileage(ODO)

Speed display: real time speed(speed), maximum speed(max), average speed(AVG)

Power assist control: 0-5 levels default

Six levels of electricity instructions: 1-5level power, and under voltage prompts

Headlamp indication: headlamp switch status indication(supported by controller

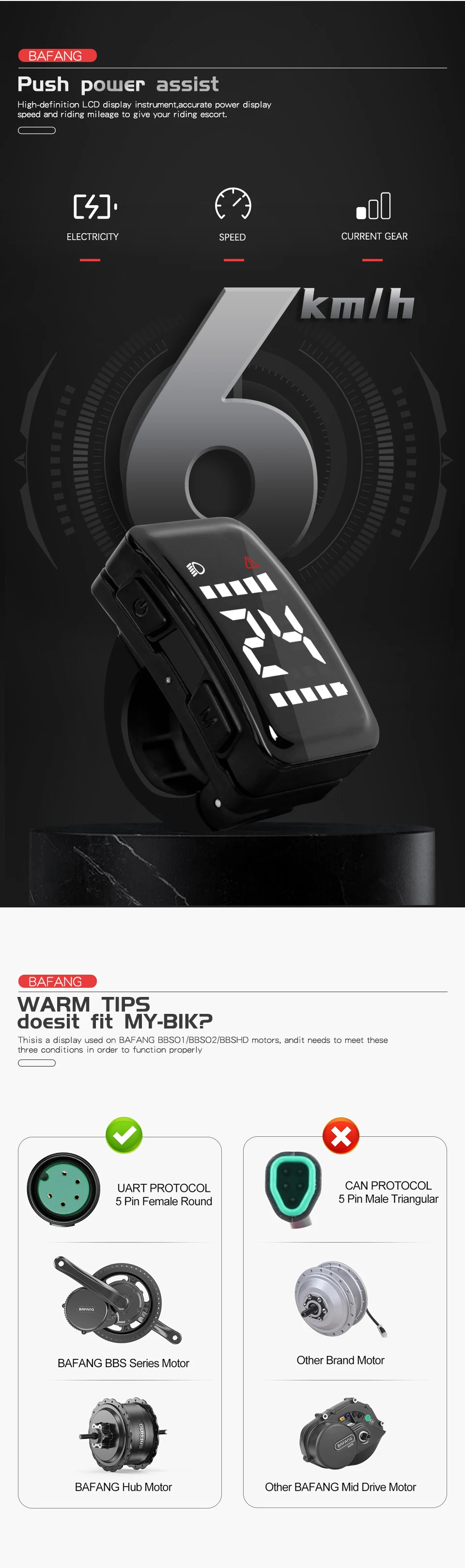

6km/h walk assist function

Error code indication(The communication interface of the connecting line is convenient for system maintenanceand parameter setting

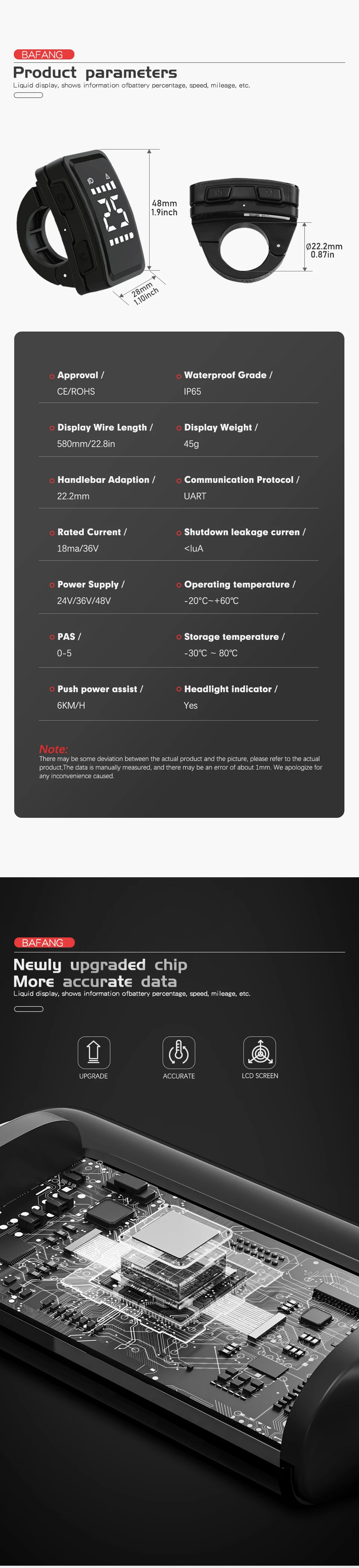

  Specification:

• Power supply: DC 24V/36V/48V

• Rated current:18mA/36V

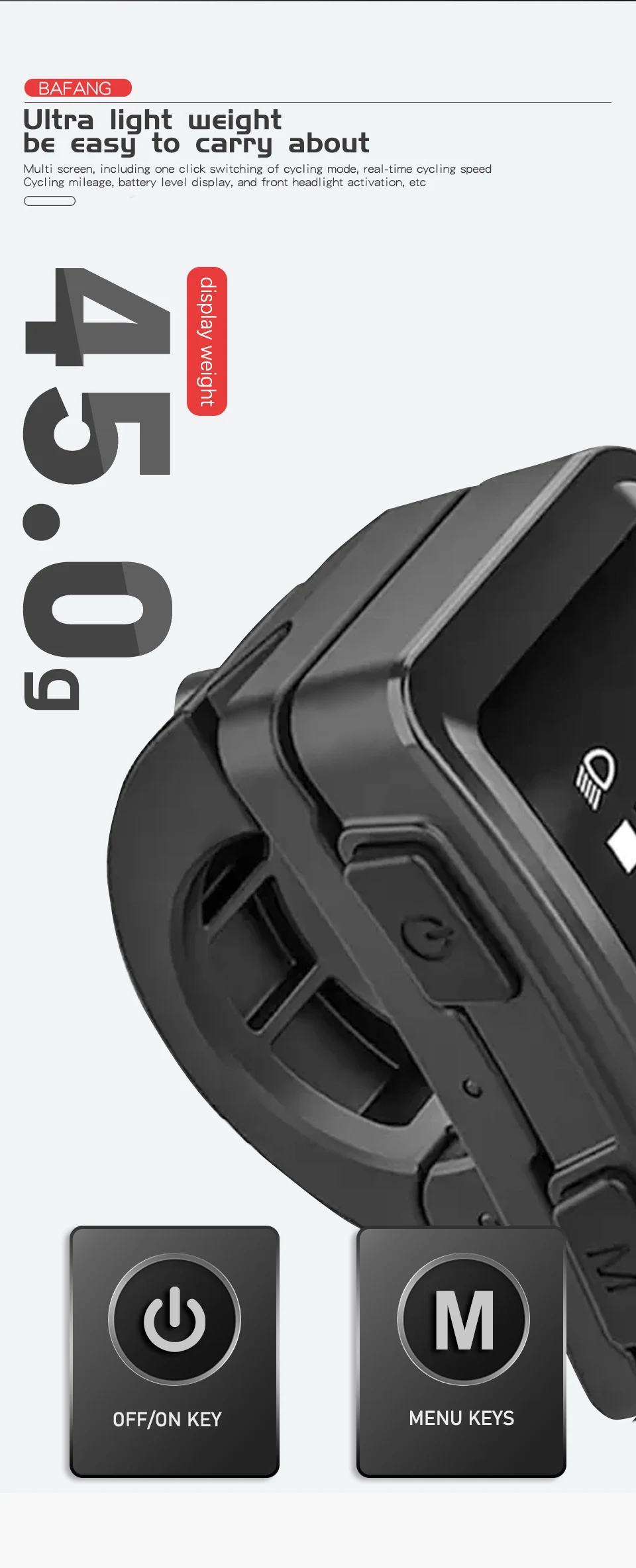

• Weight:45g

• Support levels mode: 0-5

• Shutdown leakage current: < 1uA;

• Screen specifications: LED digital tube

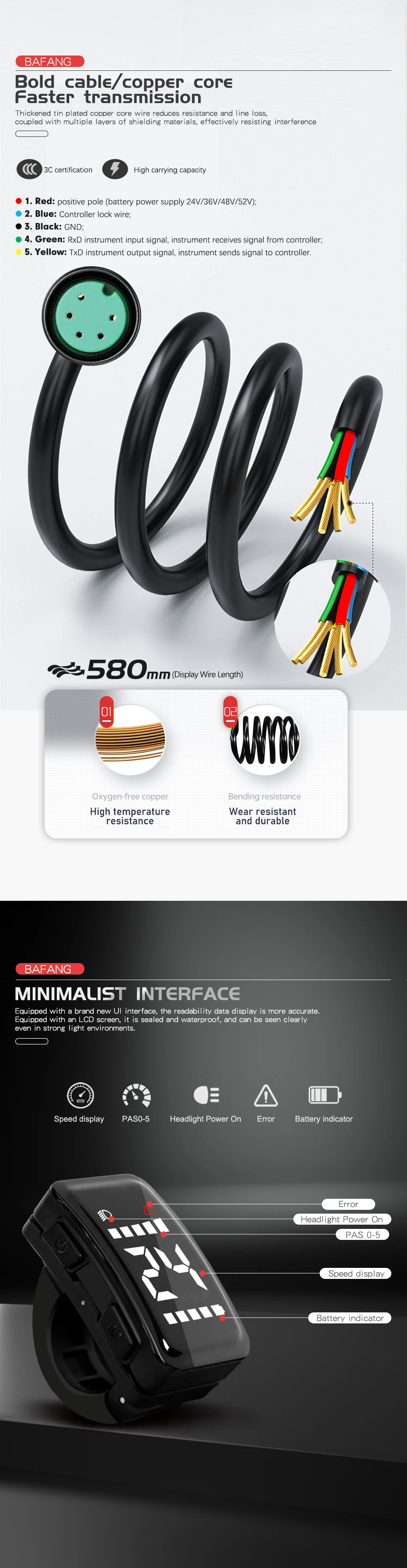

• Communication mode: UART (default)

• Operating temperature: -20 C ~ 60 C

• Storage temperature: -30 C ~ 80 C

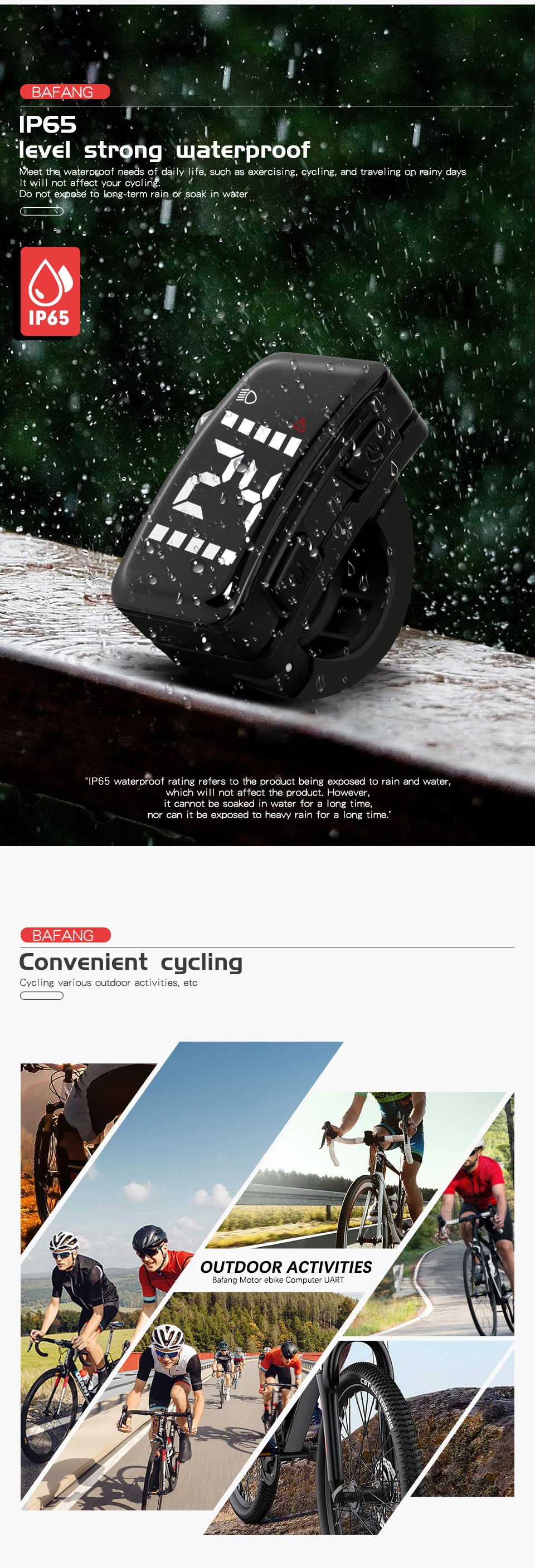

• Waterproof grade: IP65

• Storage humidity: 30%-70%

• Only suitable for Bafang engine
